Name: 120M HDMI Extender AV Over IP 1080P With IR Support Point To Many To Many Cascading
Brand: Shenzhen LINK-MI Technology Co., Ltd.
SKU: LM-EX22
Availability: InStock

Home > products > AV Over IP >

120M HDMI Extender AV Over IP 1080P With IR Support Point To Many To Many Cascading

120M AV Over IP

AV Over IP 1080P

120M HDMI Extender Over IP

Place of Origin:

China

Brand Name:

LINK-MI

Model Number:

LM-EX22

Request A Quote

120M HDMI Extender AV Over IP 1080P With IR Support Point To Many To Many Cascading

Product Details

Model NO.:

LM-EX22

Support Video Format:

DTV/HDTV:480i/576i/480P/576P/720P/1080i/1080P

Video Output:

HDMI

Transmission Distance:

1080P 8-bit 120m(Maximum) Over Single CAT5E/6 /24AWG/Solid

IR Wavelength &frequency:

Wave Lengh:940nm,frequency 38kHz

Net Weight:

Transmitter: 220g Receiver: 220g

TX:

Default IP Address:192.168.168.55 MAC Address:00:0b:78:00:60:01

RX:

Default IP Address:192.168.168.56 MAC Address:00:0b:78:00:60:02

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiable

Packaging Details

White/Brown/Color Box

Delivery Time

5-7 work days

Payment Terms

T/T, Western Union, PayPal, Bank Transfer

AV Over IP Centralized Control For HDBT With Automatic IP Allocation

Get Best Price

AV over Ethernet with Error Correction and Centralized Management

Get Best Price

H.264 Encoder with Centralized AV Device Management and Group ID Support

Get Best Price

120M AV Over IP H.264 Encoder for Reliable Audio and Video Transmission Over TCP/IP with 1x HDBT Input

Get Best Price

+8613332950287

sales@link-mi.com

86-755-83513509

Contact Now

Product Description

120M HDMI Extender Over IP with IR Support Point to Many Many to Many Cascading AV Over IP

Introduction

LINK-MI LM-EX22 120M HDMI Extender Over IP can extend 1080p HDMI signals up to 120m over a single UTP Cat5e/6 cable. It supports Point-to-Point, Point-to-Many and Many-to-Many network configuration. Supports Flexible and scalable HDMI 1080p Video Wall Broadcasting with Gigabit Ethernet LAN.

Feature:

1. Compliant HDCP 1.2
2. Use off-the-shelf gigabit IP switches for extension and distribution
3. Extend 1080p HDMI signals up to 120m over a single UTP Cat5e/6 cable
4. Flexible and scalable HDMI 1080p Video Wall Broadcasting with Gigabit Ethernet LAN
5. Multicasting and broadcasting architecture, adding more displays without adding LAN bandwidth loading
6. Support Point-to-Point, Point-to-Many and Many-to-Many network configuration
7. With IR Control function, it allows you control back the source at the end of destination
8. Can be cascaded for many layers by adding Ethernet switches

Specification

Model No.	LM-EX22
Input Video Signal	0.5-1.0 Volts P-P
Input DDC Signal	5 volts p-p(TTL)
Support Video Format	DTV/HDTV:480i/576i/480P/576P/720P/1080i/1080P
Video Output	HDMI
Transmission Distance	1080P 8-bit 120m(Maximum) over single CAT5E/6 /24AWG/Solid
Power consumption	TX:3watts;RX:3watts((Maximum)
IR wavelength &frequency	Wave lengh:940nm,frequency 38kHz
Dimension (L× W× H)	103.5x93.5x24.6mm
Net Weight	Receiver:220g,Transmitter:220g
TX	Default IP address:192.168.168.55 MAC address:00:0b:78:00:60:01
RX	Default IP address:192.168.168.56 MAC address:00:0b:78:00:60:02
Operating Temperature Range	-5 to +35℃(+23 to +95℉)
Operating Humidity Range	5 to 90%RH (No Condensation)
Note: Specifications are subject to change without notice

Connection Diagram

120M HDMI Extender AV Over IP 1080P With IR Support Point To Many To Many Cascading 2

120M HDMI Extender AV Over IP 1080P With IR Support Point To Many To Many Cascading 3

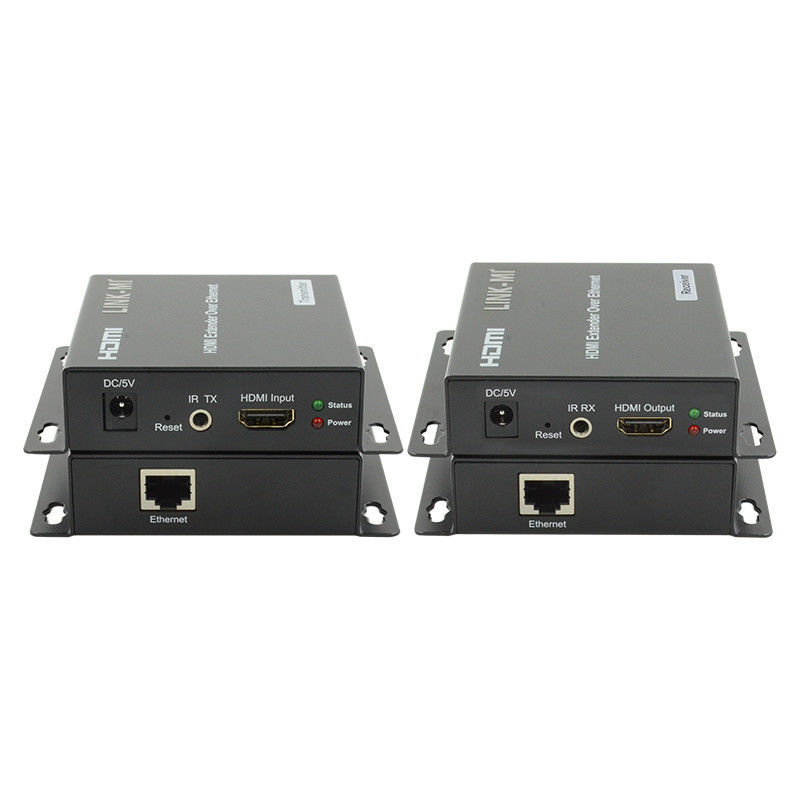

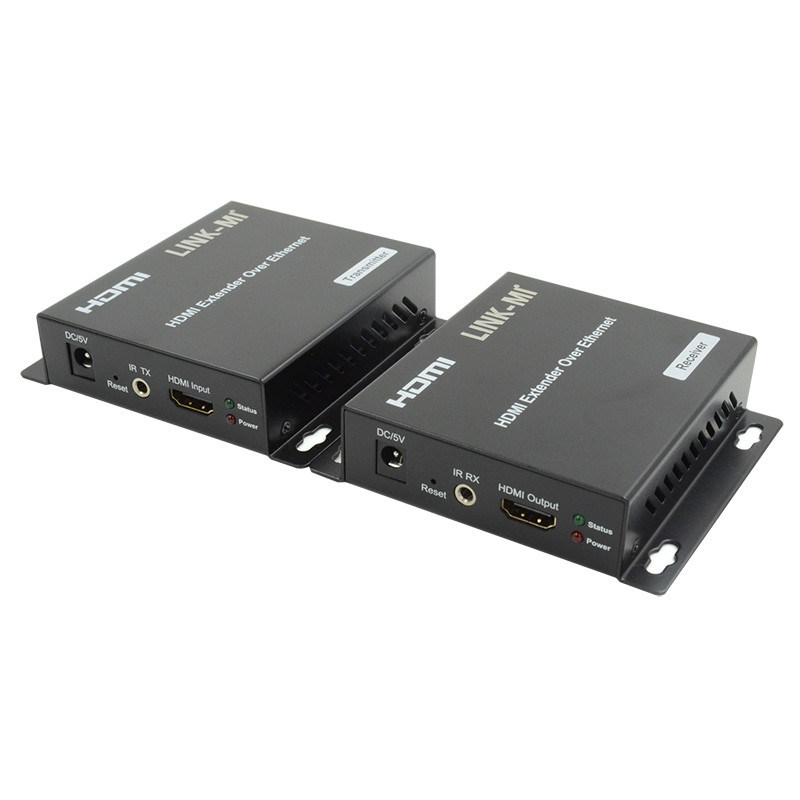

Panel Description

120M HDMI Extender AV Over IP 1080P With IR Support Point To Many To Many Cascading 4

120M HDMI Extender AV Over IP 1080P With IR Support Point To Many To Many Cascading 5

FAQ

Q1: Are you a factory or trading company?

A1: As a professional manufacturer, we supply HDMI related products more than 10 years in China.

Q2: Why should we choose you?

A2: We can offer products with factory price, good quality, best service and long warranty.

Q3: How about your product service?

A3: We can offer OEM and ODM, print your brand, your design on the product based on your order quantity.

Q4: How about the payment terms?

A4: We accept bank transfer, western union, money gram, paypal, Bank of China or cash as payments.

Q5: How do you ship the package?

A5: DHL, Fedex, EMS, by air, by sea...etc.

Q6: What kinds of warranty do you offer?

A6: Our excellent after-sale service team will provide you technical support online. We offer one year warranty for our products.

Q7: How could I buy the products I need if there is no price on the website?

A7: You can send us your inquiry about the products you need. Our sales will reply you within 24 hours to help you make the order.

User Manual:

LM-EX22 120m HDMI Extender over Ethernet.pdf
