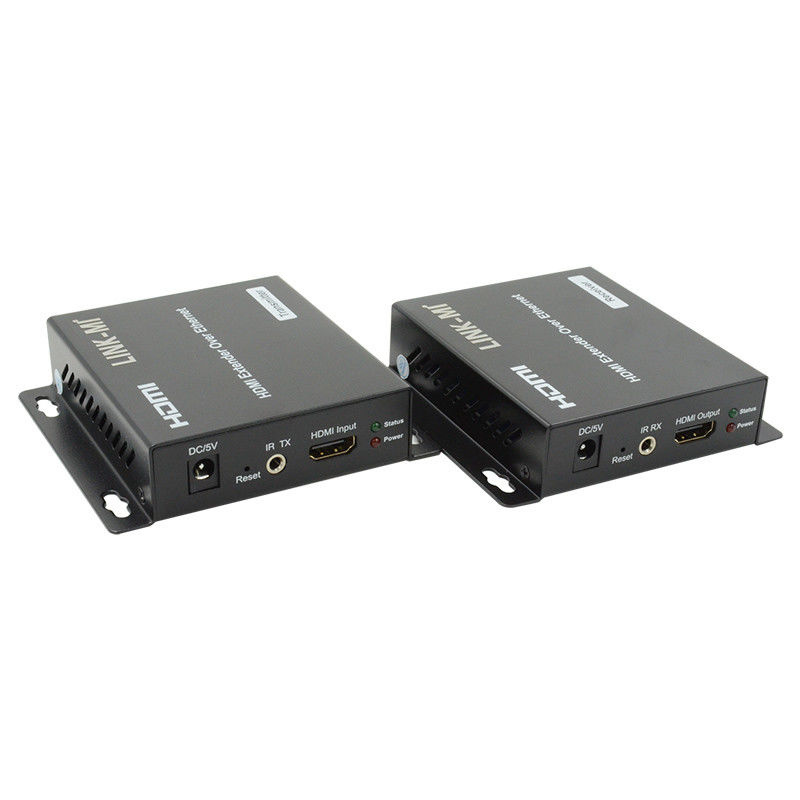

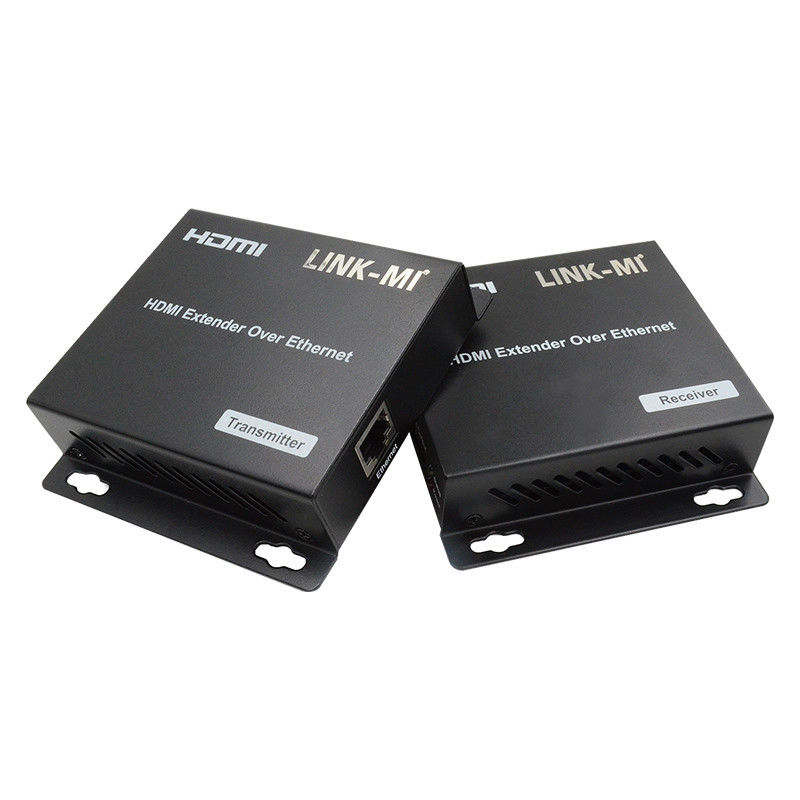

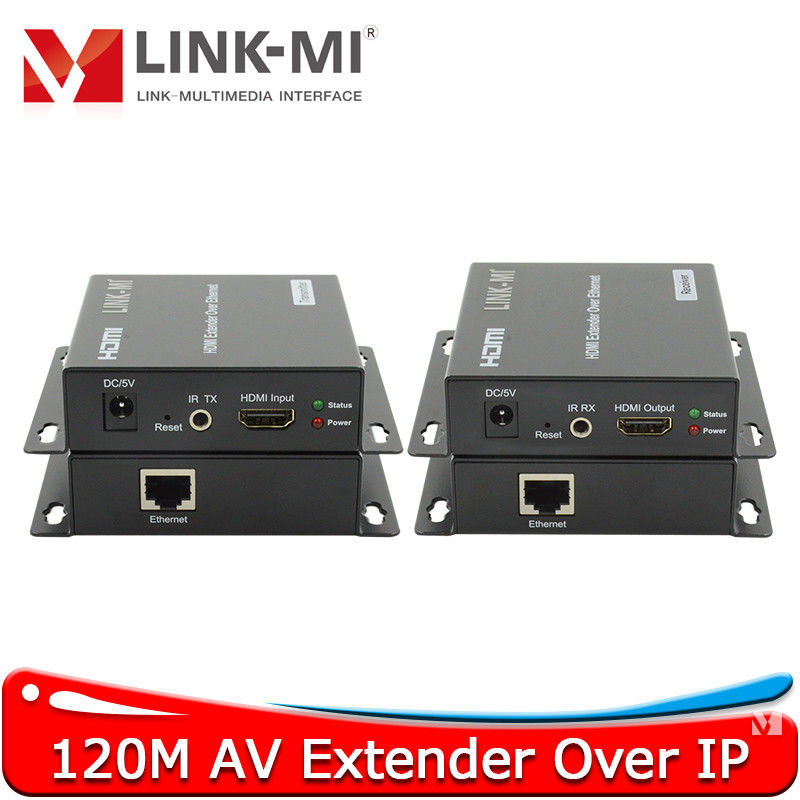

120M AV Over IP H.264 Encoder for Reliable Audio and Video Transmission Over TCP/IP with 1x HDBT Input

Product Description:

Looking for a device that can transmit your HDMI signals up to 120m without loss of quality? The LINK-MI LM-EX22 120M HDMI Extender Over IP is what you need. This device makes use of a single UTP Cat5e/6 cable, and can extend 1080p HDMI signals for up to 120m. This device supports different network configurations such as Point-to-Point, Point-to-Many and Many-to-Many, depending on your needs.

Apart from this, the LINK-MI LM-EX22 120M HDMI Extender Over IP is equipped to support Flexible and scalable HDMI 1080p Video Wall Broadcasting with Gigabit Ethernet LAN. You can now enjoy high-quality broadcasting with a reliable Ethernet connection.

Upgrade your experience with the LINK-MI LM-EX22 120M HDMI Extender Over IP and enjoy uninterrupted audio and video transmission of up to 120m with ease.

Features:

The latest HDMI extension and distribution technology comes with a range of enhanced features that help to improve performance and convenience. One of the most notable improvements is the compliant HDCP 1.2, which provides better encryption and prevents unauthorized copying or distribution of copyrighted content.

In addition, off-the-shelf gigabit IP switches are now available for extension and distribution, adding to the versatility of the technology and making it more accessible and affordable to users.

The extension capability of HDMI signals has also been expanded, with the ability to extend 1080p HDMI signals up to 120m over a single UTP Cat5e/6 cable. This is a significant improvement that allows users to extend their HDMI signals over longer distances and achieve better performance.

Another major upgrade is the flexible and scalable HDMI 1080p Video Wall Broadcasting with Gigabit Ethernet LAN. This feature enables users to create elaborate video walls and broadcast their content with ease and efficiency.

The improved HDMI extension and distribution technology also features advanced network configuration options to make it more versatile and adaptable to different setups and requirements. One of these options is the multicasting and broadcasting architecture, which allows users to add more displays without adding LAN bandwidth loading.

Other network configurations supported by the technology include Point-to-Point, Point-to-Many, and Many-to-Many, giving users more flexibility and control over how they set up and use the technology.

One of the most convenient features of the improved HDMI extension and distribution technology is the IR Control function. This function allows users to control the source at the end of the destination, making it easier to access and manage their content.

Finally, the technology is designed to be highly scalable and can be cascaded for many layers by adding Ethernet switches. This allows users to create larger and more complex setups that can be adapted to their changing needs over time.

Technical Parameters:

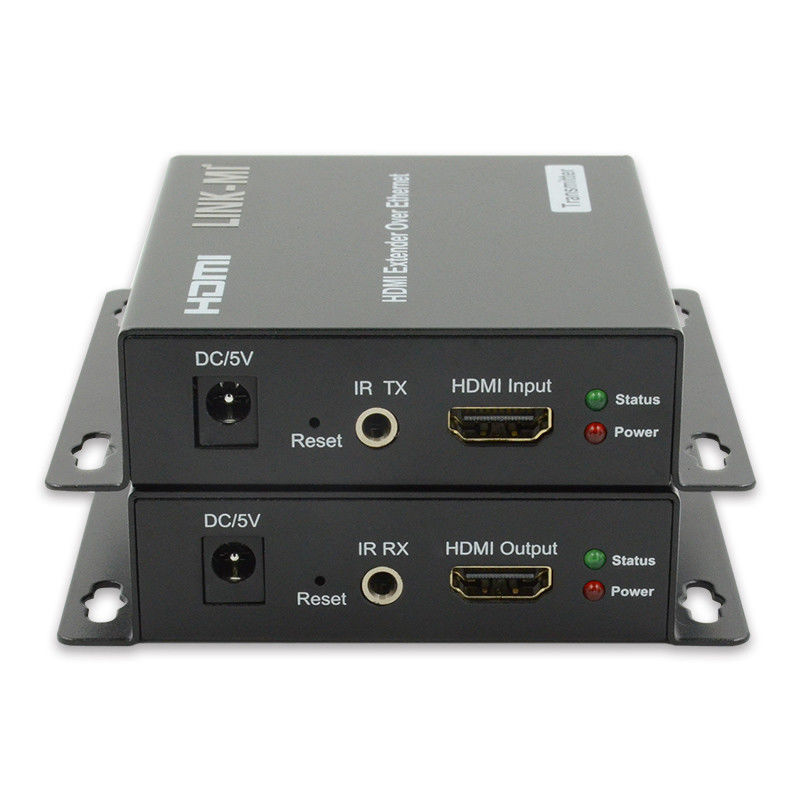

Panel Description:

Connection Diagram:

Applications:

The LM-EX22 is an HDMI over IP product that allows for the transmission of audio and video signals over a network. It features 1x HDBT In, making it easy to connect to other HDMI devices. This product is easy to set up and can be configured to meet the specific needs of any organization.

One of the key advantages of the LM-EX22 is its flexibility. It can be used in a variety of different applications, making it a versatile solution for businesses of all sizes. For example, it can be used in digital signage applications to display dynamic content in a variety of different settings. It can also be used in video wall applications to create stunning visual displays that are sure to impress.

The LM-EX22 is also an ideal solution for businesses that require centralized management and control of their AV devices. With this product, it is easy to manage and control multiple devices from a single location. This makes it an ideal solution for businesses with multiple locations or for businesses that require a centralized control room.

In summary, the LM-EX22 is an advanced AV over IP product that is designed to meet the needs of businesses and organizations of all sizes. Its flexibility, ease of use, and advanced features make it an ideal solution for a wide range of applications. Whether you need to transmit audio and video signals over a network, manage multiple AV devices from a single location, or create stunning visual displays, the LM-EX22 is the perfect solution.
