4 Port HDMI2.0 KVM Switch Up To 4K 60Hz 18Gbps 1920x1200

4 Port HDMI2.0 KVM Switch Up To 4K 60Hz 18Gbps 1920x1200

KVM Switch 4K

KVM Switch 60Hz 1920x1200

HDMI2.0 KVM 18Gbps

Place of Origin:

China

Brand Name:

LINK-MI

Model Number:

LM-KVM401D

Contact Us

Request A Quote
Product Details
Model No.:
LM-KVM401D
Resolution:
1920x1200/1080P@60Hz, 12bit Deep Color 4096x2160@60Hz(4:4:4) 3840x2160@60Hz(4:4:4) VESA:2560*1600@60Hz/1920*1440@60Hz/1680*1050@60Hz
Maximum Data Rate:
18Gbps(6Gbps Per Color)
Digital Audio:
LPCM Up To 7.1/24-bit/96 KHz, Dolby Atmos, Dolby TrueHD, Dolby Digital Plus, Dolby Digital EX, Dolby Digital 5.1, Dolby Digital 2/0 Surround, Dolby Digital 2/0, DTS-HD Master Audio, DTS-HD, DTS ES Discrete 6.1, DTS ES Matrix 6.1, DTS Digital Surround 5
Analog Audio:
PCM 2-channel, 16/20/24 Bit Depths, 32/44.1/48 KHz Sampling
Refresh Rate:
24Hz/30Hz/50Hz/60Hz
USB Host:
USB TYPE B X4
USB Devices:
USB Type A X6
Transmission Distance:
HDMI Input :5m HDMI Output :4K/60Hz 5m 4K/30Hz And 1080P/60Hz 15m USB Cable:1.8m
Operating System:
Ubuntu, Win7, Win10, Mac Os, Etc
Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
White/Brown/Color Box
Delivery Time
5-7 work days
Payment Terms
T/T, Western Union, PayPal, Bank Transfer
Product Description

4-Port HDMI2.0 KVM Switch up to 4K@60Hz, 18Gbps



Introduction

LINK-MI LM-KVM401D 4-Port HDMI KVM Switch Support 4K@60Hz. It comes with 4 USB input and 4 USB output for KVM control.



Features

1. HDMI 2.0, 18Gbps, resolution up to 4K@60hz 4:4:4, HDR

2. 4x USB 3.0 Type B Inputs and 2x USB 3.0 Type A Outputs and USB 2.0 Type A outputs for KVM control

3. Support keyboard hotkey, device panel button and RS232 control

4. Support LPCM up to 7.1/24-bit/96 kHz, Dolby Atmos and DTS-X

5. Support Dolby Vision, HDR10, HLG

6. Support HDCP2.2 and HDCP1.4

7. Support deep color up to 12 bit

8. Support auto switching, power-off memory function

9. Support analog audio extraction

10. Operating system support WIN7/WIN10/Apple/Ubuntu,etc

11. Support Micro USB for firmware updating

12. With mounting ears



Specification

Model No. LM-KVM401D
Operating Temperature 0℃to+40℃(+32℉to+104℉)
Operating Humidity 5 to 90%RH(No Condensation)
HDMI input/output 5xHDMI Type A
HDMI version HDMI 2.0
HDCP HDCP2.2 and HDCP1.4
Resolution

1920x1200/1080P@60Hz, 12bit Deep Color

4096x2160@60Hz(4:4:4)

3840x2160@60Hz(4:4:4)

VESA:2560*1600@60Hz/1920*1440@60Hz/1680*1050@60Hz

Maximum data rate 18Gbps(6Gbps per color)
Maximum pixel clock 600MHz
Colour gamut RGB,YUV 4:4:4,4:2:2,4:2:0
Digital audio

LPCM up to 7.1/24-bit/96 kHz, Dolby Atmos, Dolby TrueHD,

Dolby Digital Plus, Dolby Digital EX, Dolby Digital 5.1, Dolby

Digital 2/0 Surround, Dolby Digital 2/0, DTS-HD Master Audio,

DTS-HD, DTS ES Discrete 6.1, DTS ES Matrix 6.1, DTS

Digital Surround 5.1

Analog audio PCM 2-channel, 16/20/24 bit depths, 32/44.1/48 kHz sampling
Refresh Rate 24Hz/30Hz/50Hz/60Hz
USB Host USB TYPE B x4
USB devices USB Type A x6
Transmission Distance HDMI Input :5m HDMI Output :4K/60Hz 5m 4K/30Hz and 1080P/60Hz 15m USB cable:1.8m
Operating system Ubuntu, Win7, Win10, Mac os, etc
Note: Specifications are subject to change without notice































Connection Diagram

4 Port HDMI2.0 KVM Switch Up To 4K 60Hz 18Gbps 1920x1200 0

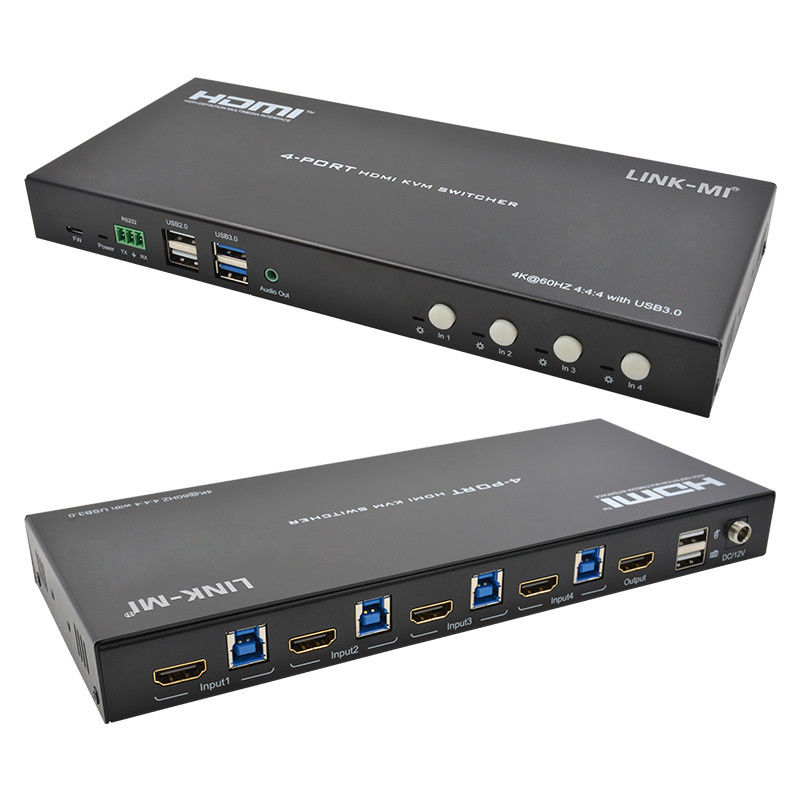

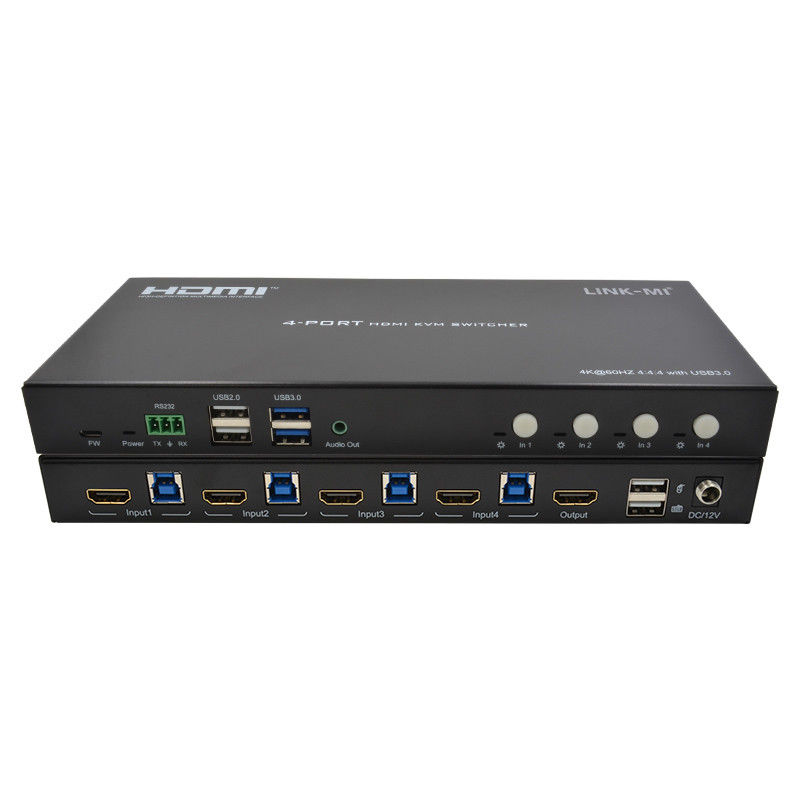

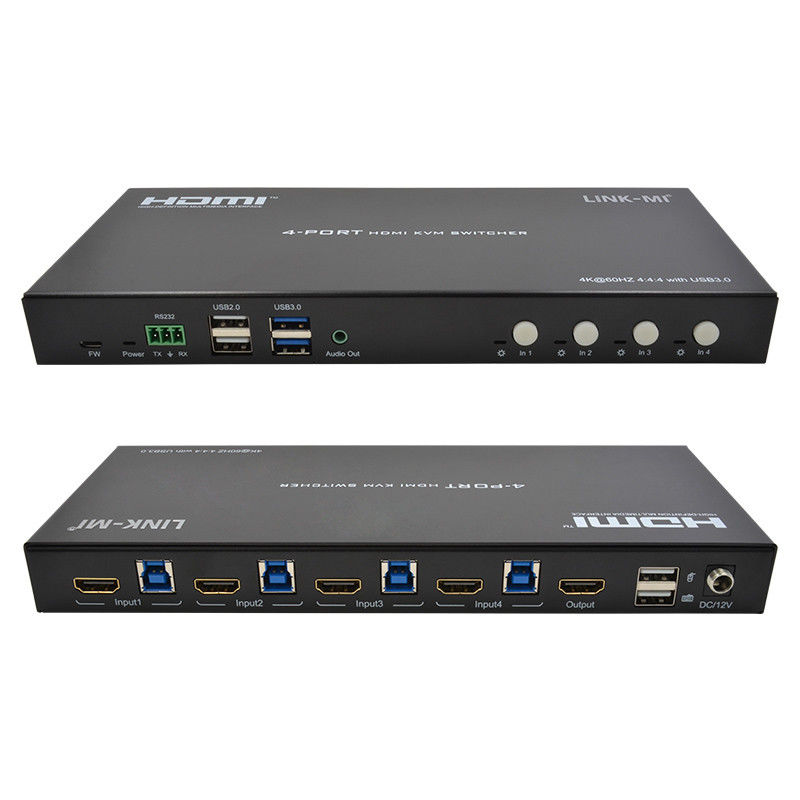

Panel Description

4 Port HDMI2.0 KVM Switch Up To 4K 60Hz 18Gbps 1920x1200 1



FAQ

Q1: Are you a factory or trading company?

A1: As a professional manufacturer, we supply HDMI related products more than 10 years in China.

Q2: Why should we choose you?

A2: We can offer products with factory price, good quality, best service and long warranty.

Q3: How about your product service?

A3: We can offer OEM and ODM, print your brand, your design on the product based on your order quantity.

Q4: How about the payment terms?

A4: We accept bank transfer, western union, money gram, paypal, Bank of China or cash as payments.

Q5: How do you ship the package?

A5: DHL, Fedex, EMS, by air, by sea...etc.

Q6: What kinds of warranty do you offer?

A6: Our excellent after-sale service team will provide you technical support online. We offer one year warranty for our products.

Q7: How could I buy the products I need if there is no price on the website?

A7: You can send us your inquiry about the products you need. Our sales will reply you within 24 hours to help you make the order.



User Manual:

LM-KVM401D 4-Port HDMI2.0 KVM Switch.pdf
