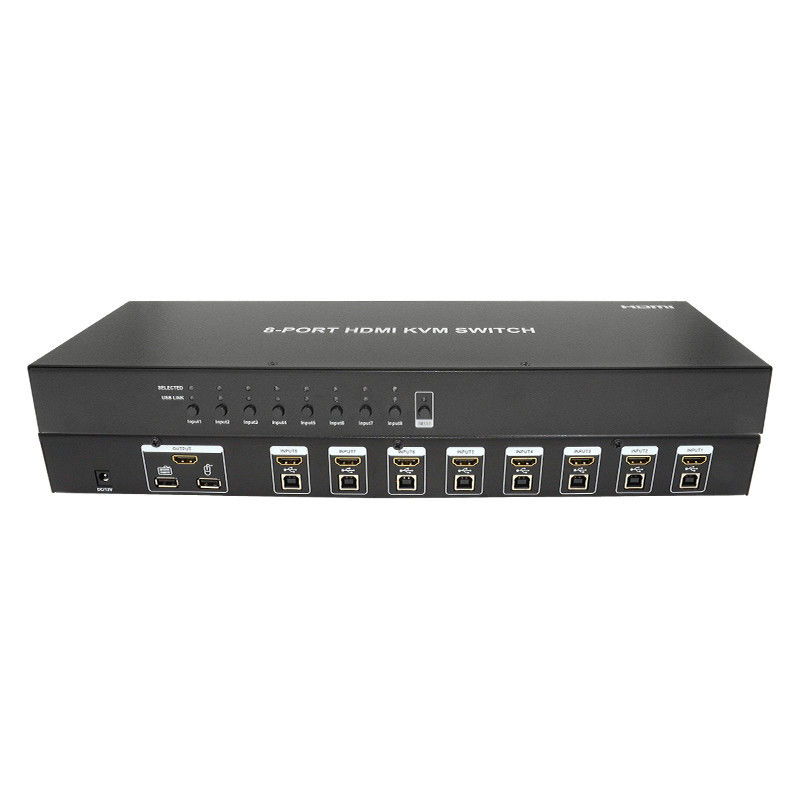

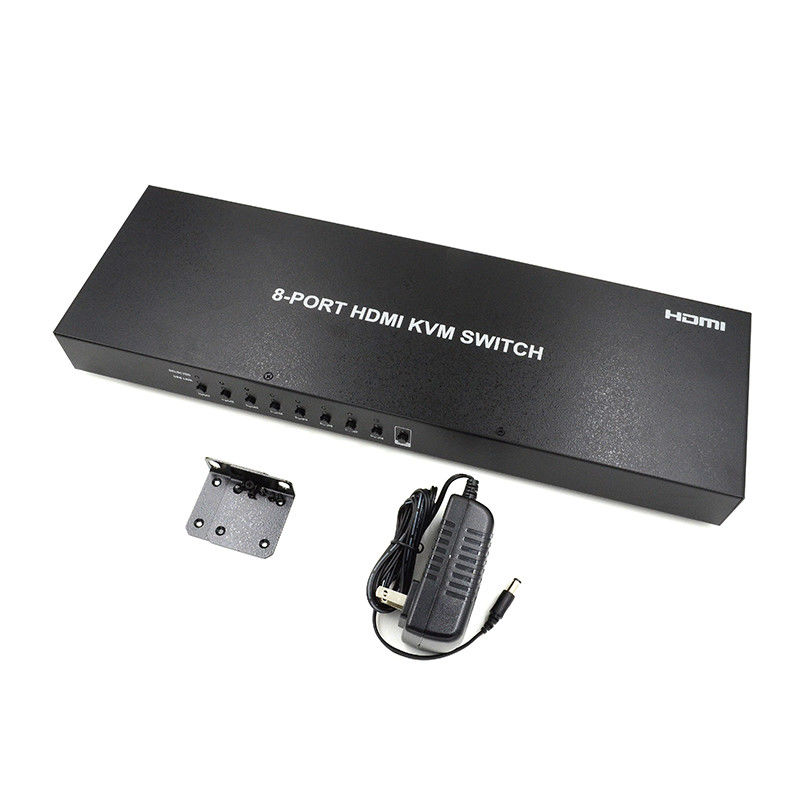

8-PORT HDMI KVM Switch
Introduction
LINK-MI LM-KVM801 HDMI USB KVM Switch is a multi-functional appliance that consolidates access and control of up to 8 HDMI Computers from a single USB keyboard, USB mouse and monitor console.
In addition the LM-KVM801 features multi-dispaly functionality, which enables the use of the standard USB cables to stack up to 8 switches in a multi-dispaly installation where each computer is fitted with multiple video cards. It allows you to contrast, analyse and monitor video output in convenient ways, substantially simplifying the working environment.
Features
1. Using only 1 set of keyboard, mouse and monitor to control 8 host devices.
2. Support Windows 95/98/2000/2003/NT/XP/WIN7/WIN8, Linux, Unix, MAC OSS.
3. Support hot plug, connect or disconnect devices to the KVM switch in any time and without turn off devices.
4. Support auto switching (monitor the devices in a specified time interval.
5. Support keyboard hot keys to control KVM switch.
6. Available to use keyboard and mouse without any delay after switch host devices.
7. Support auto switching host devices by just moving mouse.
8. Support resolution up to 1920*1440.
Specification
| Function |
KVM801 |
| Port Selection |
|
HotKey,Pushbutton |
| Connectors |
Console Ports |
Keyboard |
1xUSB Type A Female |
| Video |
1x HDMI Female |
| Mouse |
1x USB Type A Female |
| KVM Ports |
Keyboard/Mouse |
8xUSB TypeB Female |
| Video |
8xHDMI Femal |
| Power |
1xDC Jack |
| Switches |
Port Selection |
8xPushbutton |
| |
Reset |
1xPushbutton |
| Switch control way |
Auto Switching, Timming Switch,Mouse movement switching |
| LEDS |
USB Link |
8( Green) |
| On line/Selected |
8( Green) |
| Rest |
1( Red ) |
| Emulation |
Keyboard/Mouse |
USB |
| Bandwidth |
2.25Gbps |
| Vedio |
Resolution (Max) reach up to 1080p(1920*1440) |
| Scan interval |
More than 1's ( Default 6 secs) |
| Power Consumption |
DC 12V,5watts ( Max) |
| Enviroment |
Operation Temperature |
+32 to +104 ℉ (0 to +40℃) |
| Storage Temperature |
-4 to +140 ℉ (-20 to +60℃) |
| Humidity |
20-90%RH(No condensation) |
| Physical Properties |
Housing |
Metal,Black |
| Weight |
1.85kg |
| Dimensions(LxWxH) |
48.1X14.2X4.4cm |
Connection Diagram

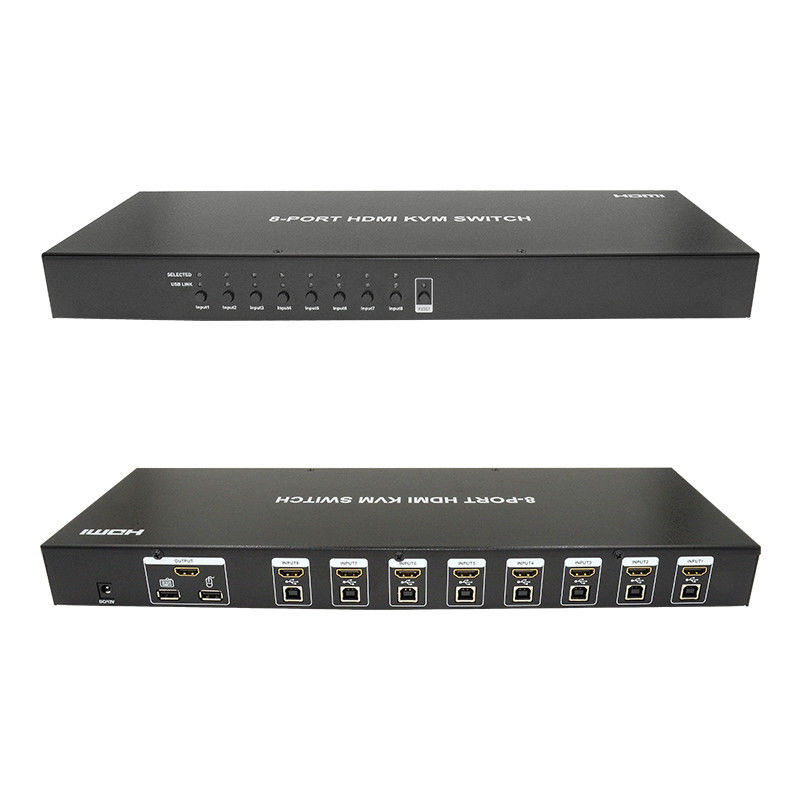

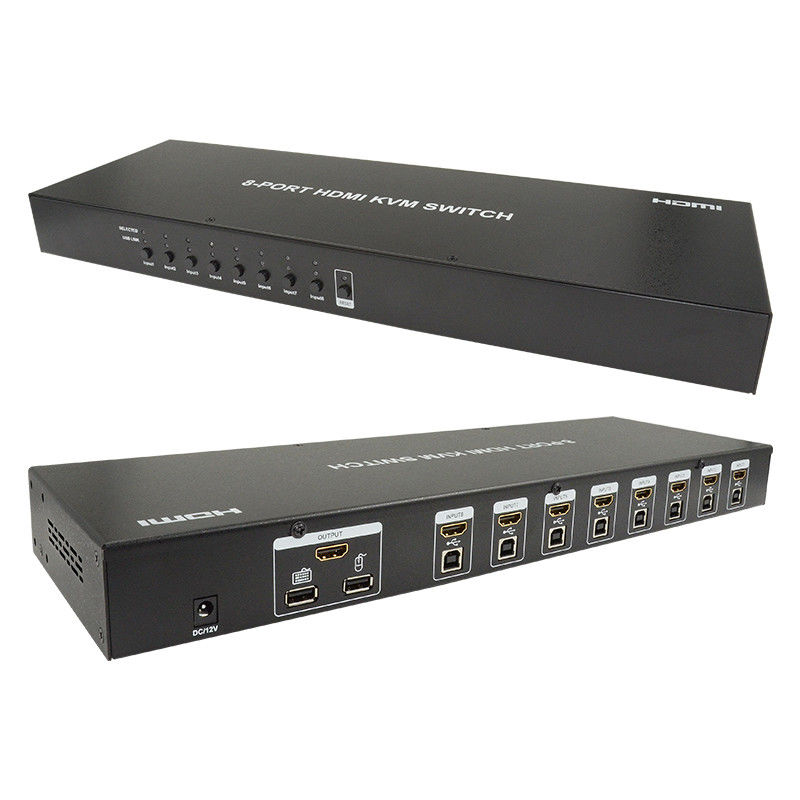

Panel Description
FAQ
Q1: Are you a factory or trading company?
A1: As a professional manufacturer, we supply HDMI related products more than 10 years in China.
Q2: Why should we choose you?
A2: We can offer products with factory price, good quality, best service and long warranty.
Q3: How about your product service?
A3: We can offer OEM and ODM, print your brand, your design on the product based on your order quantity.
Q4: How about the payment terms?
A4: We accept bank transfer, western union, money gram, paypal, Bank of China or cash as payments.
Q5: How do you ship the package?
A5: DHL, Fedex, EMS, by air, by sea...etc.
Q6: What kinds of warranty do you offer?
A6: Our excellent after-sale service team will provide you technical support online. We offer one year warranty for our products.
Q7: How could I buy the products I need if there is no price on the website?
A7: You can send us your inquiry about the products you need. Our sales will reply you within 24 hours to help you make the order.
User Manual:
LM-KVM801 8 port HDMI+USB KVM Switch.pdf
