4K 120m AV Over IP POE HDMI Extender 60KM USB KVM Extender Over Fiber
Introduction
LINK-MI LM-EP57 4K HDMI+USB over IP Extender is a solution for audio, video and USB signal extension via Local Area Network (LAN). It can be used as audio, video and KVM extender over IP and applied to point to point, point to multi-point, multi-point to multi-point and video wall broadcast system controlled by USB, RS232, IR and configured the 4K HDMI & USB over IP Extender by WEB GUI and PC GUI. An easy installation system built up with Gigabit Ethernet switch which has IGMP function and CATx cable for extension or broadcast.
Features
1. 4K UHD HDMI over IP/Fiber Extension
2. USB2.0 over IP extension
3. Support transmission distance 120m over single Cat5e/6 cable
4. Support Fiber optical up to 60KM (Single Mode)
5. Support input 4k@60hz YUV 420 (Max), output 4k@30hz (Max)
6. HDCP 2.2 / HDCP1.4 compliant
7. Support Bi-Directional Wide Band IR (38KHZ-56KHZ) Pass through
8. Support RS232 pass through and control, Telnet command
9. With IR remote/Button to control the Group ID, with LED to show the Group ID
10. Support Dolby True HD, DTS-HD Master Audio
11. Input audio: SPDIF 5.1 and L/R Stereo analog Line mixed
12. Output audio: SPDIF 5.1 and L/R Stereo Analog audio extraction
13. Support Unicast, Multicast, Video Wall system (Max 8x16), Output video Rotation
14. 10-Gigabit IGMP Ethernet Switch can be cascaded for many layers
15. Support 3D
16. 802.3af compliant POE (no need power supply when connecting with POE IGMP Switch)
Specification
|
Performance
|
|
Protocol
|
TCP, UDP, RTSP, RTP, DHCP, IGMP, Multicast, IPV4
|
|
Support Video format
|
4K@30HZ, 1080P/1080i/720P/576P/576i/480P/480i
|
|
Support Audio format
|
Stereo 192Kbps
|
|
HDCP
|
HDCP 2.2 Compliant
|
|
IR Frequency
|
38 -56 KHZ
|
|
RS232 Baud rate
|
Default 115200bps, total 8 kinds optional
|
|
IP setting &Group ID setting
|
|
Default IP
|
Automatic allocation
|
|
Group ID
|
Group 00 ~ group 99
|
|
Request for Switch/Router
|
Support IGMP, support DHCP
|
|
Connectors on Transmitter
|
|
Input
|
1xHDMI Female port, 1xUSB B type,
1xanalog Audio line in, 1xSPDIF Audio input
|
|
Output
|
1x RJ45 output, 1x Fiber output
|
|
RS232
|
Phoenix RS232 port
|
|
IR
|
IR TX Port (Support 38K-56KHz)
IR Ext Port (Support 38KHz)
|
|
Connectors on Receiver
|
|
Input
|
1xRJ45 input, 1x Fiber input
|
|
Output
|
1x HDMI Female port, 2x USB A type,
1xSPDIF Audio output, 1xAnalog Audio output
|
|
RS232
|
Phoenix RS232 port
|
|
IR
|
IR TX Port (Support 38K-56KHz)
IR Ext Port (Support 38KHz)
|
|
Environmental & Power Requirements
|
|
Operating temperature
|
-5 to +35 ℃ (+23 to +95℉)
|
|
Operating Humidity Range
|
5 to 90%RH (No Condensation)
|
|
Power supply
|
DC 5V
|
|
Power consumption
|
Max 3 watt
|
|
Physical
|
|
Dimension
|
TX: 170x109x26mm; RX: 170x109x26mm
|
|
Net Weight
|
TX: 472.8G ; RX:472.3G
|
| Note: Specifications are subject to change without notice |
Connection Diagram

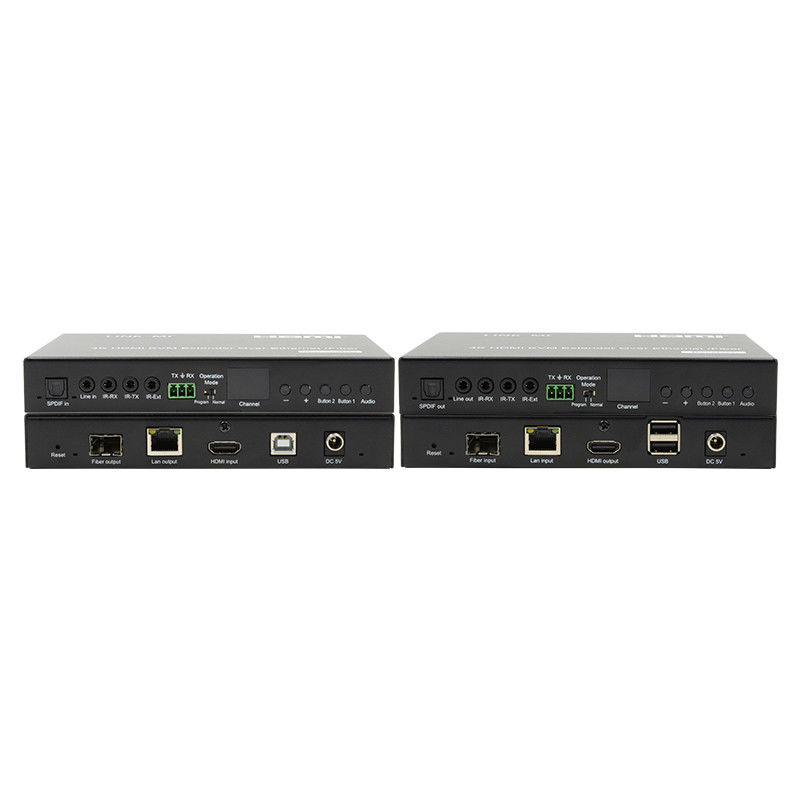

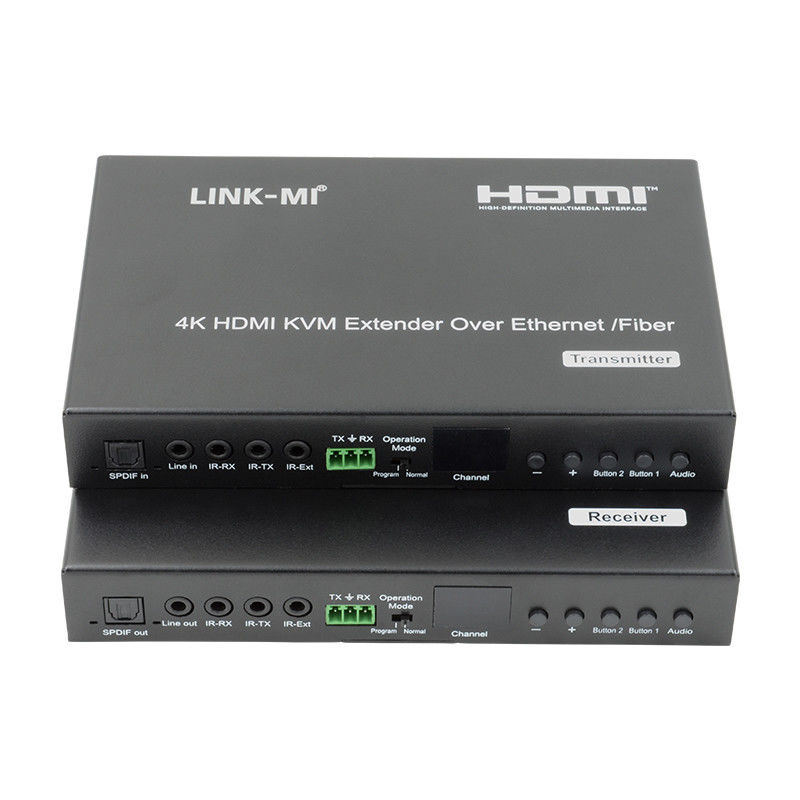

Panel Description
FAQ
Q1: Are you a factory or trading company?
A1: As a professional manufacturer, we supply HDMI related products more than 10 years in China.
Q2: Why should we choose you?
A2: We can offer products with factory price, good quality, best service and long warranty.
Q3: How about your product service?
A3: We can offer OEM and ODM, print your brand, your design on the product based on your order quantity.
Q4: How about the payment terms?
A4: We accept bank transfer, western union, money gram, paypal, Bank of China or cash as payments.
Q5: How do you ship the package?
A5: DHL, Fedex, EMS, by air, by sea...etc.
Q6: What kinds of warranty do you offer?
A6: Our excellent after-sale service team will provide you technical support online. We offer one year warranty for our products.
Q7: How could I buy the products I need if there is no price on the website?
A7: You can send us your inquiry about the products you need. Our sales will reply you within 24 hours to help you make the order.
User Manual:
LM-EP57 4K HDMI+USB KVM Extender over IP Fiber wit...
