50m HDMI Extender Over Single Cat5e/6 Cable With Loop Out 1080P POC EDID
Introduction

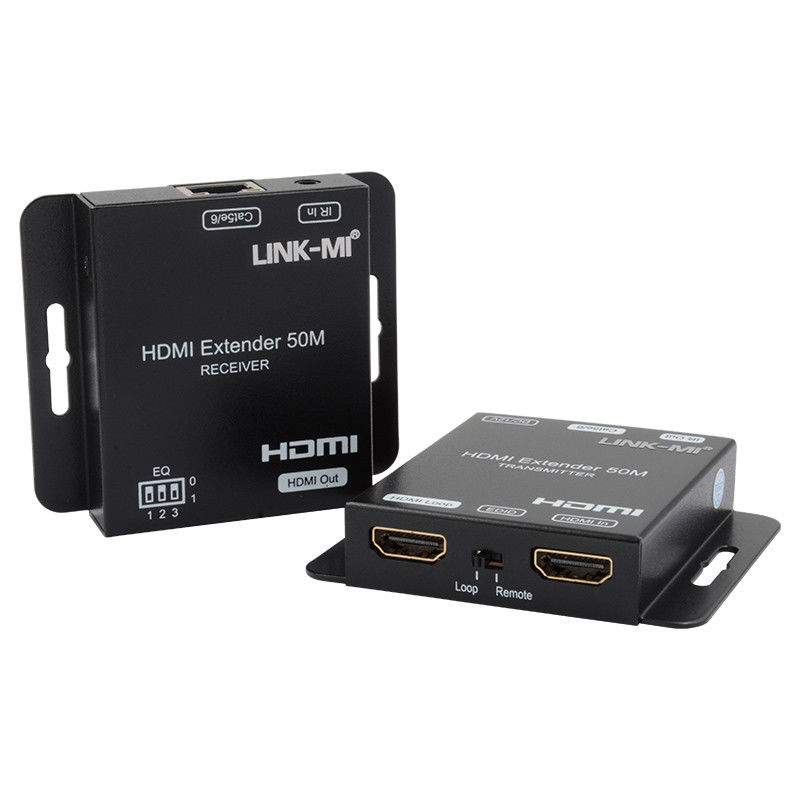

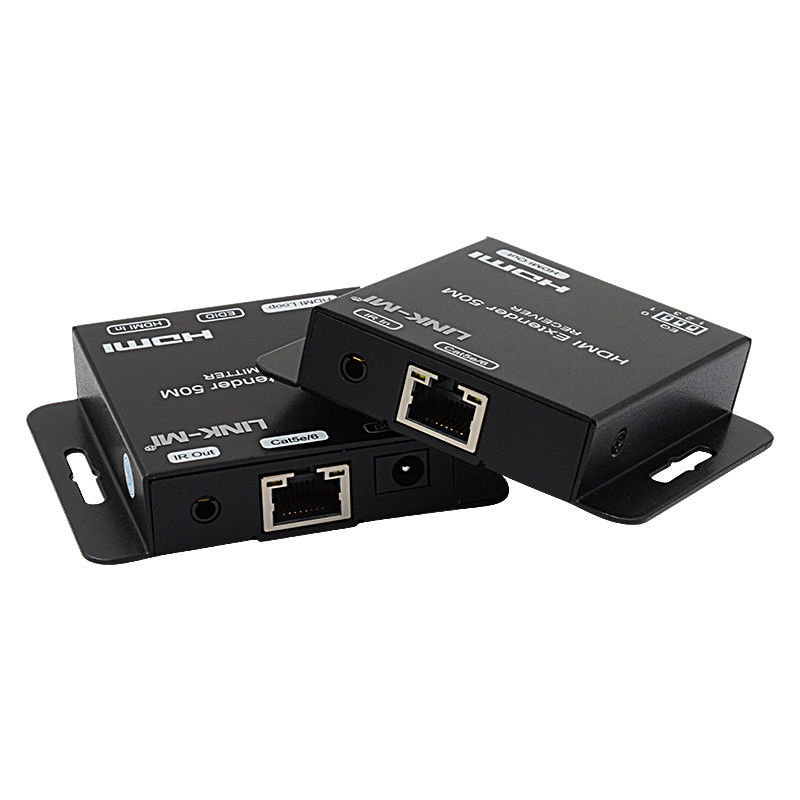

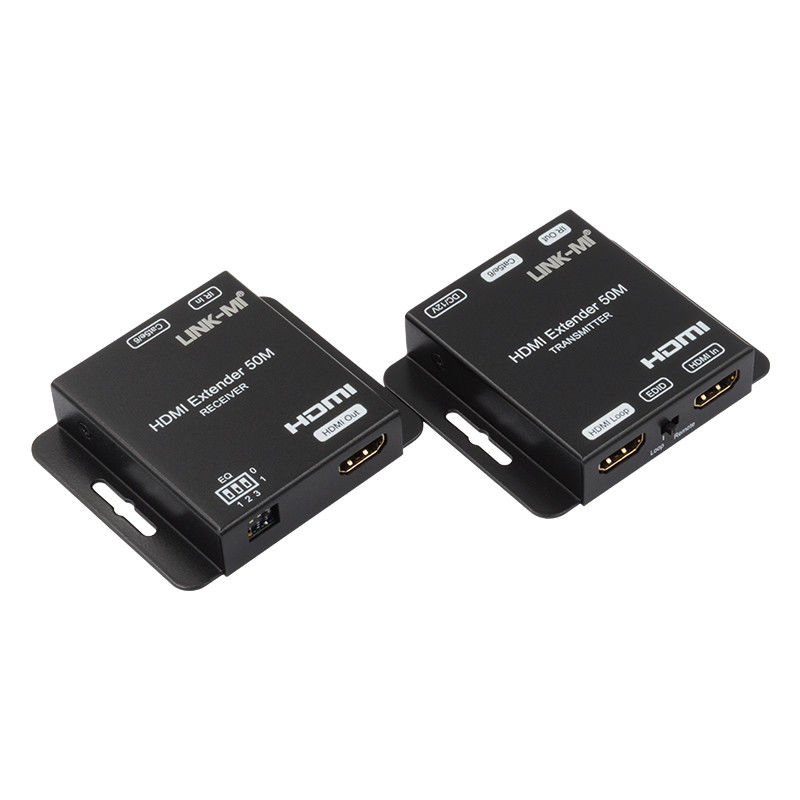

LINK-MI LM-EX13 50M HDMI Extender transmits digital audio and video over Cat5e/6 Cable. Its transmission distance is up to 50m. It comes with POC, EDID function, with HDMI loop out.
Feature
1. Each set includes one transmitter with loop out and one receiver
2. Audio sampling rate up to 48KHz, support 7.1 channels
3. Support 1080P60HZ@YUV4:4:4 Maximum extension of 50m
4. DC12V1A, support POC power supply
5. RX end one-way infrared transmission to TX end
6. Copy local and remote EDID functions
7. Setting of distance extension dialing switch: cat5e/cat6 10m ~ 50m
8. Support Dolby True-HD, DTS-HD Master audio.
Specification
| Model No. |
LM-EX13 |
| Connectors |
| Connectors on Transmitter |
1x HDMI input, 1x HDMI loop output, 1x IR-TX |
| Connectors on Receiver |
1x HDMI output, 1x IR-RX |
| Technical |
| Resolution outputs |
1080p/1080i/720p/576p/480p |
| Audio format supported |
DTS-HD Master Audio, Dolby True HD, multi-channel 7.1, stereo etc |
| Output Video Signal |
HDMI |
| Transmission Distance |
1080p up to 50m ① |
| Mechanical |
| Power Supply |
DC 12V1A Power supply |
| Power Consumption |
2W (MAX) |
| Housing |
| Dimension |
TX: L79.3xW68xH16.5mm; RX: L79.3xW68xH16.5mm |
| Weight |
TX: 120g; RX:115g |
|
Note ①: Under perfect transmission conditions including straight cable runs with no electrical interference, bends, kinks, patch panels or wall outlets.
Note: Specifications are subject to change without notice.
|
Connection Diagram

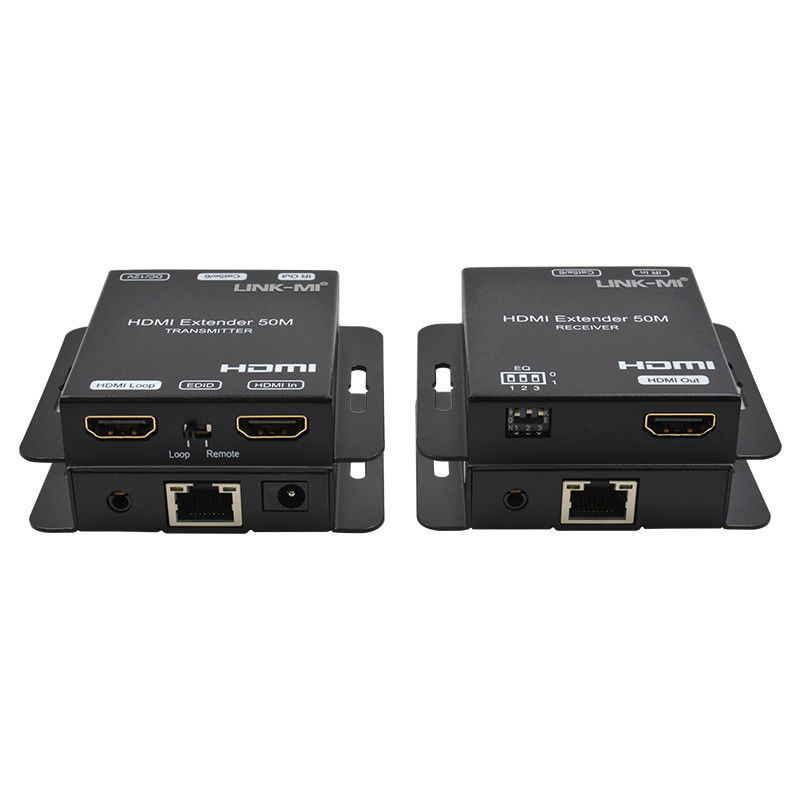

Panel Description
FAQ
Q1: Are you a factory or trading company?
A1: As a professional manufacturer, we supply HDMI related products more than 10 years in China.
Q2: Why should we choose you?
A2: We can offer products with factory price, good quality, best service and long warranty.
Q3: How about your product service?
A3: We can offer OEM and ODM, print your brand, your design on the product based on your order quantity.
Q4: How about the payment terms?
A4: We accept bank transfer, western union, money gram, paypal, Bank of China or cash as payments.
Q5: How do you ship the package?
A5: DHL, Fedex, EMS, by air, by sea...etc.
Q6: What kinds of warranty do you offer?
A6: Our excellent after-sale service team will provide you technical support online. We offer one year warranty for our products.
Q7: How could I buy the products I need if there is no price on the website?
A7: You can send us your inquiry about the products you need. Our sales will reply you within 24 hours to help you make the order.
