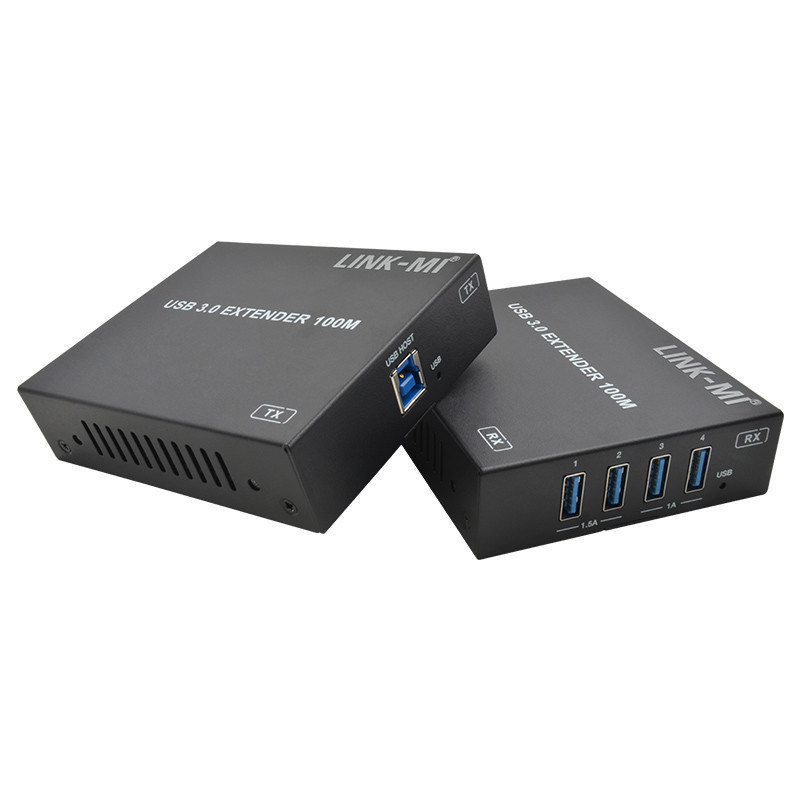

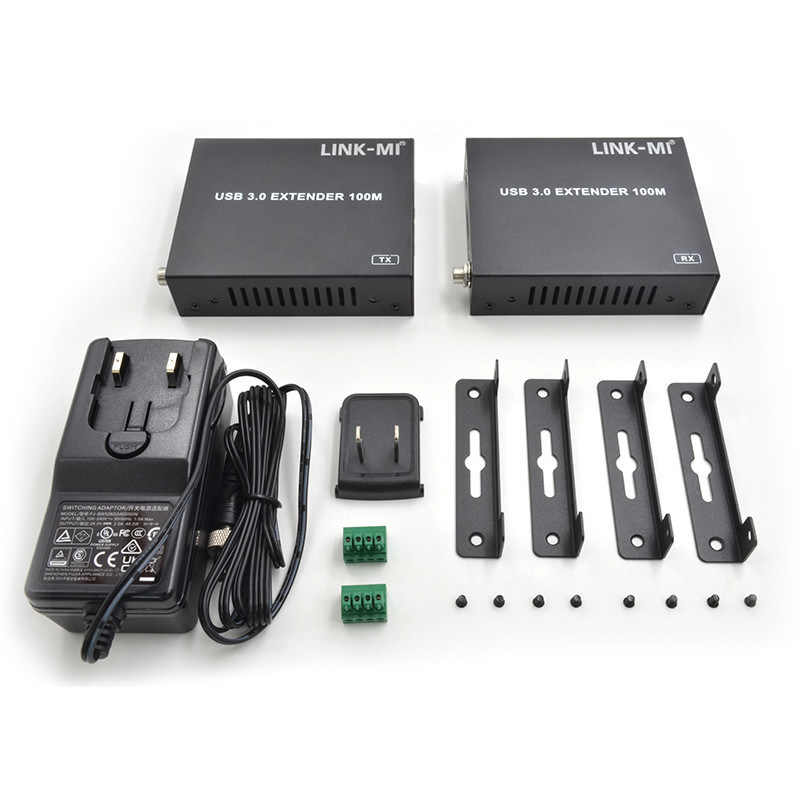

USB 3.0 Extender (100m)
Introduction
LINK-MI LM-EX100U USB 3.0 Extender can extend USB signal to a distance up to 100m/328ft via a single CAT6a cable. Transmitter features with one USB 3.0 Type B input, one FSYSNC GPIO input and one RS-232 pass-through. Receiver features with four USB 3.0 Type A outputs, one FSYSNC GPIO output and one RS-232 pass-through. Bi-directional 24V PoC is also supported. The product can be widely used for long distance signal transmission between a PC and USB devices.
Features
1. Extension of USB 3.0 is up to 100m/328ft over CAT6a cable
2. USB 3.0 connectivity with data transfer rate up to 5Gbps
3. Backwards compatible with USB 2.0 and 1.1
4. Hardware acceleration for isochronous and bulk transfer
5. USB-A port 1 and 2 support 5V/1.5A, port 3 and 4 support 5V/1A on the Receiver
6. Support RS-232 pass-through and FSYNC GPIO pass-through (for industry camera use)
7. Support bi-directional 24V PoC
8. Simple plug and play, no driver and setting installation required
Specification
| Model No. |
LINK-MI LM-EX100U |
Technical
|
| USB Protocol |
USB 3.0 |
| Transmission Rate |
Up to 5Gbps |
| Transmission Distance |
100m/328ft over CAT6a (F/FTP) cable |
| ESD Protection |
IEC 61000-4-2:
±8kV (Air-gap discharge), ±4kV (Contact discharge) |
Connections
|
| Transmitter |
Input: 1× USB HOST [USB-B, 9pin Female]
Output: 1× HDBT OUT [RJ45, Female]
Control: 1× RS-232 [3pin-3.5mm Phoenix Connector]
1× FSYNC [1pin-3.5mm Phoenix Connector]
1× SERVICE [USB-C, Update Port] |
| Receiver |
Input: 1× HDBT IN [RJ45, Female]
Output: 4× USB Devices [USB-A, 9pin Female]
Control: 1× RS-232 [3pin-3.5mm Phoenix Connector]
1× FSYNC [1pin-3.5mm Phoenix Connector]
1× SERVICE [USB-C, Update Port] |
| Mechanical |
| Housing |
Metal Enclosure |
| Color |
Black |
| Dimensions |
Transmitter / Receiver: 85mm [W] × 100mm [D] × 25.5mm [H] |
| Weight |
Transmitter: 253g, Receiver: 260g |
| Power Supply |
Input: AC 100~240V 50/60Hz
Output: DC 24V/2A |
| Power Consumption |
PoC Power Supply: 40W (Max) |
| Operating Temperature |
0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature |
-20°C ~ 60°C / -4°F ~ 140°F |
| Operating Humidity |
20%~80% relative humidity, non-condensing |
| Storage Humidity |
10%~90% relative humidity, non-condensing |
Connection Diagram

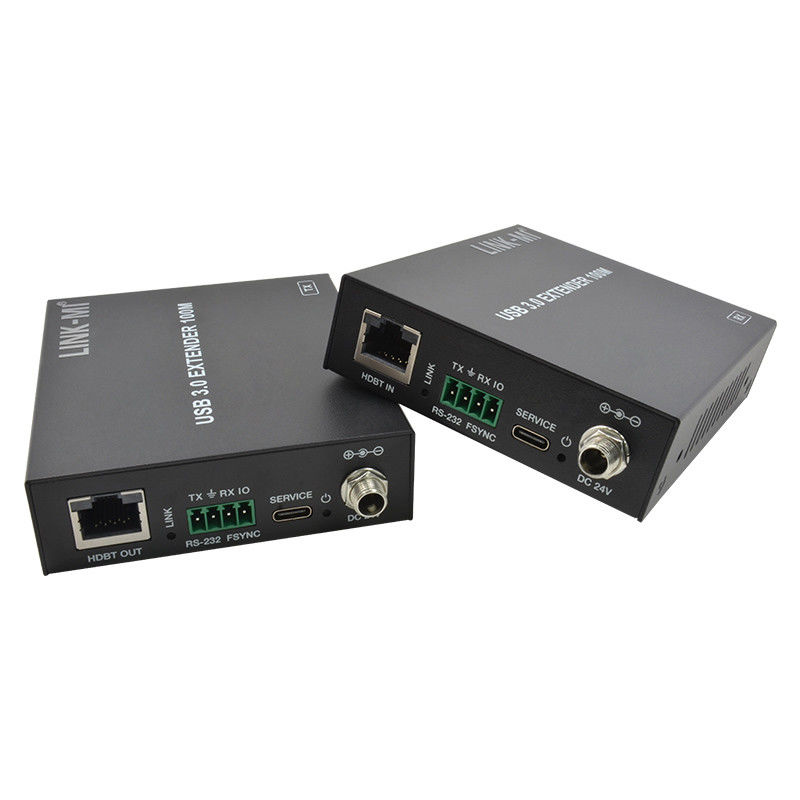

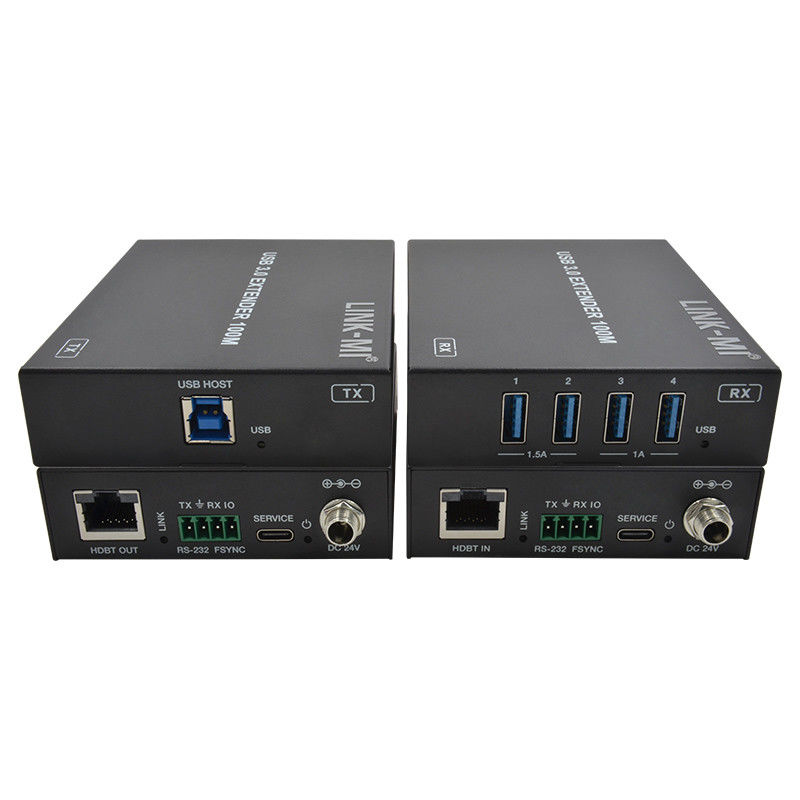

Panel Description
FAQ
Q1: Are you a factory or trading company?
A1: As a professional manufacturer, we supply HDMI related products more than 10 years in China.
Q2: Why should we choose you?
A2: We can offer products with factory price, good quality, best service and long warranty.
Q3: How about your product service?
A3: We can offer OEM and ODM, print your brand, your design on the product based on your order quantity.
Q4: How about the payment terms?
A4: We accept bank transfer, western union, money gram, paypal, Bank of China or cash as payments.
Q5: How do you ship the package?
A5: DHL, Fedex, EMS, by air, by sea...etc.
Q6: What kinds of warranty do you offer?
A6: Our excellent after-sale service team will provide you technical support online. We offer one year warranty for our products.
Q7: How could I buy the products I need if there is no price on the website?
A7: You can send us your inquiry about the products you need. Our sales will reply you within 24 hours to help you make the order.
