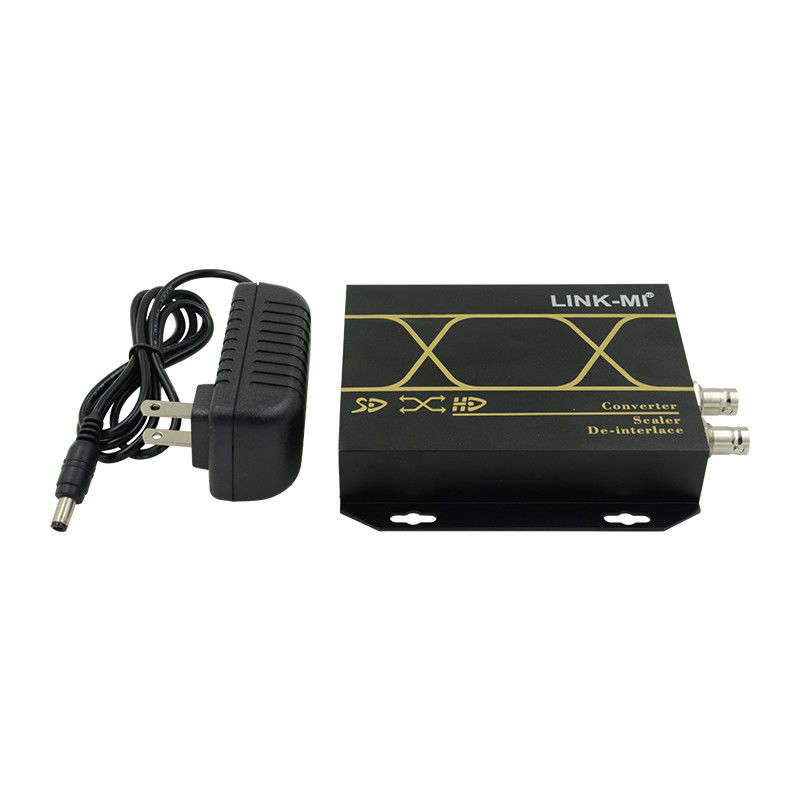

AHD to HDMI converter, With 1xlooping AHD output
Introduction
LINK-MI LM-AHD01 to HDMI is professional converter, USES the industrial-grade SCALER conversion processing design, converting AHD signal all the way along the HDMI signal output, AHD signal amplification ring all the way out at the same time. Make your HDMI HD equipment compatible AHD system. AHD signal automatic identification compatible AHD - 720 p, AHD - 960 HD signal, such as HDMI output can be fixed into five kinds of the most widely used formats: 480 i60, 576 i50, 720 p60, 1080 i50, 1080 i60, 1080 p25, 1080 p30, 1080 p50 and 1080 p60. Industrial grade power supply design support 5 v ~ 24 v, longer service life.
Features
1. Support the analog high definition AHD input
2. Support high-definition digital signal HDMI(1080P@60Hz) input
3. Support the power adapter 5-24V DC
4. Support integration AHD receiver, integration HDMI modulator
5. Support HDMI Fixed resolution format output
6. Support HDMI Version 1.3 of downward compatibility
7. Support the video fluency output, no signal loss,Partial screen and Screen wobble.
8.Products are specialized in radio and television broadcast machine room and non-linear editing system; Installation is simple(No software and driver installation).
9. Consideration of heat conduction of design, 7 days x 24 hours online operation requirements
Specification
| Model No |
LM-AHD01 |
| Item |
AHD to HDMI+AHD distributor |
| Weight |
0.195kg |
| Dimension |
135 x 110 x 26mm (5.31” x 4.33” x 1.02”) |
| Material |
Aluminium Alloy |
| Selling Points |
Pure hardware design, scaler, Intelligent Identification and AHD Extend |
| Input interface |
1 x AHD (BNC) |
| AHD format |
AHD1.0(720P30/50/60Hz),AHD2.0(1080P25Hz) |
| Signal strength |
0.8Vp-p |
| Impedance |
75Ω |
| Coupling type |
AC |
| The recommended maximum distance |
500meters |
| Cable standard |
SYV75-3 /5 /7 |
| Output interface |
1 x HDMI (A Type) 1 x AHD (BNC) |
| HDMI format |
HDMI 1.3a(1.3/1.2/1.1) |
| HDMI resolution |
480p@60Hz,576i@50Hz,720p@50/60Hz,1080i50/60Hz,1080p@25/30/50/60Hz |
| Interface bandwidth |
2.25Gbps,Full digital(a total of6.75Gpbs,each color2.25Gpbs) |
| Clock jitter |
＜0.15 Tbit |
| Rise time |
＜0.3 Tbit(20%--80%) |
| Fall time |
＜0.3 Tbit(20%--80%) |
| Signal type |
DVI-D/HDMI digital T.M.D.S signal in DVI1.0/HDMI1.3a specification |
| Signal strength |
T.M.D.S. 3.3V p-p |
| Minimum/maximum level |
T.M.D.S. 2.9V/3.3V
|
| Impedance |
50Ω |
| Maximum DC offset erro |
±15mV |
| The recommended maximum distance |
10 meters. |
| Power interface |
1 x DC_2.1mm. |
| Alternating current(AC) |
110~220V 50/60Hz. |
| Direct current (DC) |
DC5~24V ±500mA |
| Power supply |
Matching UL plug,BS plug,VDE plug |
| Maximum power dissipation |
Max 5W |
| ESD protection |
1a Contact discharge Level 3.
1b Air discharge Level 3.
Executive standard:IEC61000-4-2.
|
| Mean time between faiures(MTBF) |
30000 hours. |
| Temperature |
Storage,Use temperature -25~80℃ |
| Humidity: Storage |
Use humidity:0~95% |
| Gift box size |
220 x 162 x 60mm (8.66” x 6.38” x 2.36”) |
| Net weight |
0.385kg |
| Gross weight |
0.400kg |
| Carton Size |
520 x 455 x 315mm (20.47” x 17.91” x 12.40”) |
| Net weight |
11.550kg(30pcs) |
| Gross weight |
12.000kg |
Connection Diagram

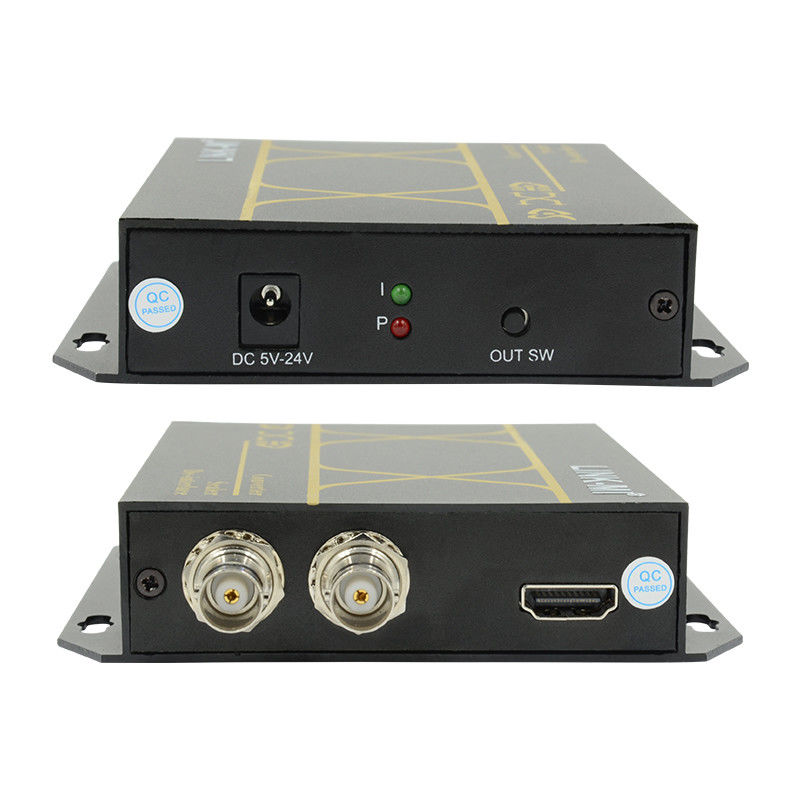

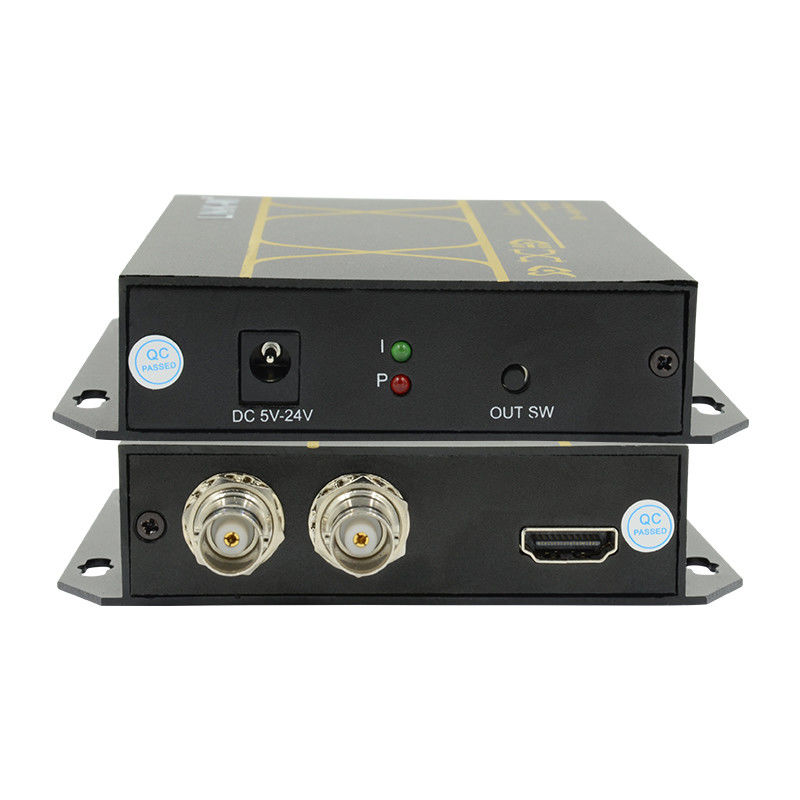

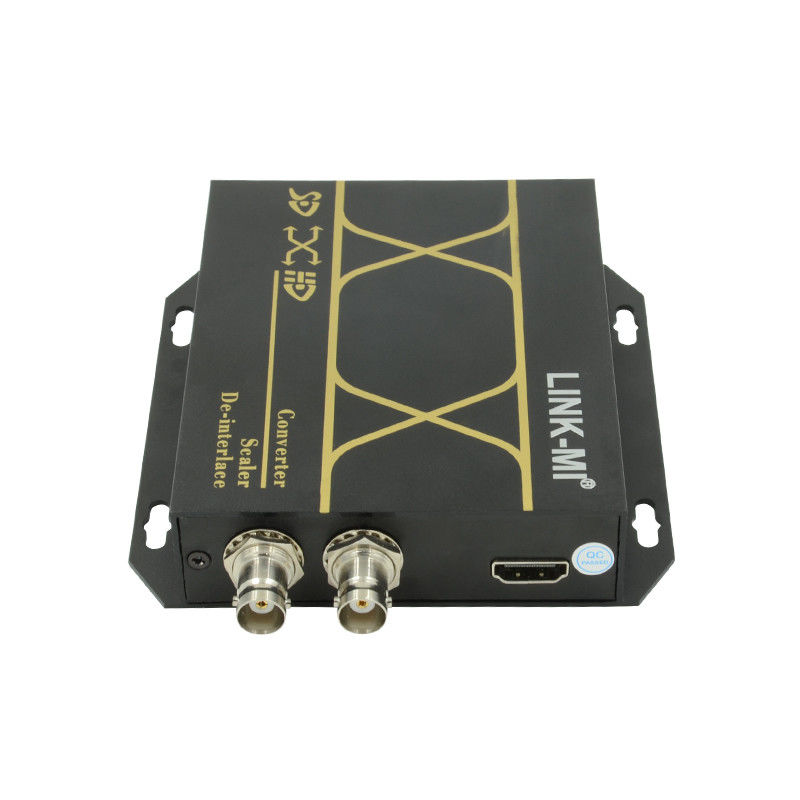

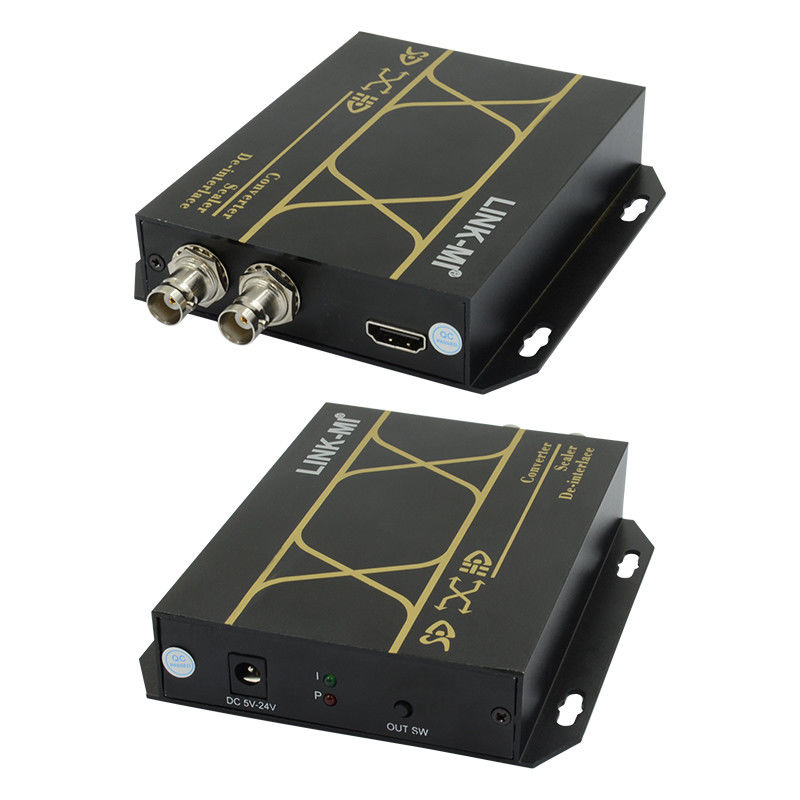

Panel Description
