4x4 HDMI Matrix Support Analog and SPDIF Audio Extraction 4K TCP/IP Web GUI Control
Introduction
LINK-MI LM-MX17 High performance HDMI Matrix Switcher can switch any of 4 HDMI sources to 4 HDMI displays. It supports resolution up to 4K2K@60Hz.
Features
1. Support 4K@60Hz YUV4:4:4
2. Bandwidth upto 18Gbps
3. HDCP 1.4 / 2.2 compliant
4. Support HDR10, HLG, Dolby vision
5. 4x HDMI Input, 4x HDMI output with 4x SPDIF coaxial Audio and 4x Analog Audio
6. Any one of the 4 Ultra HD sources to any one of the 4 Ultra HD displays
7. Support IR control for long distance; RS232 control,Panel Button control,TCP/IP control and Web GUI Control
8. Support PCM2.0, Dolby True HD and DTS-HD master audio, LPCM7.1, audio sampling rate up to 192KHZ.
9. Support analog and S/PDIF audio extraction
10. Support EDID management and EDID study
11. Support firmware updating through USB port
Specification
| Model No. |
LINK-MI LM-MX17 |
| Input Ports |
4x HDMI |
| Output Ports |
4x HDMI
4x L/R Audio Out; 4x SPDIF Audio Out
|
| Other Ports |
| RS-232 serial port |
3PIN terminal block connectors |
| Ethernet port (IP control) |
RJ45, female |
| IR Ext port |
1x3.5mm stereo jack |
| Technical |
| Max resolution |
4K@60Hz YUV4:4:4 |
| HDCP Compliant |
HDCP2.2 and HDCP1.4 |
| Output Video |
HDMI2.0 and HDMI 1.4 |
| Audio Format Supported |
PCM2.0,Dolby True HD and DTS-HD master audio, LPCM7.1 |
| Bandwidth |
18 Gbps |
| Default IP |
192.168.1.168 |
| Functions |
| Control Methods |
Remote, buttons, RS232, TCP/IP, Web GUI |
| Other Functions |
IR Extension |
| Mechanical |
| Power Supply |
DC 12V 2A |
| Power Consumption |
14W (Max) |
| Housing |
| Dimension |
L216.2XW128.5XH34mm |
| Weight |
0.47kg |
| Note: Specifications are subject to change without notice |
Connection Diagram

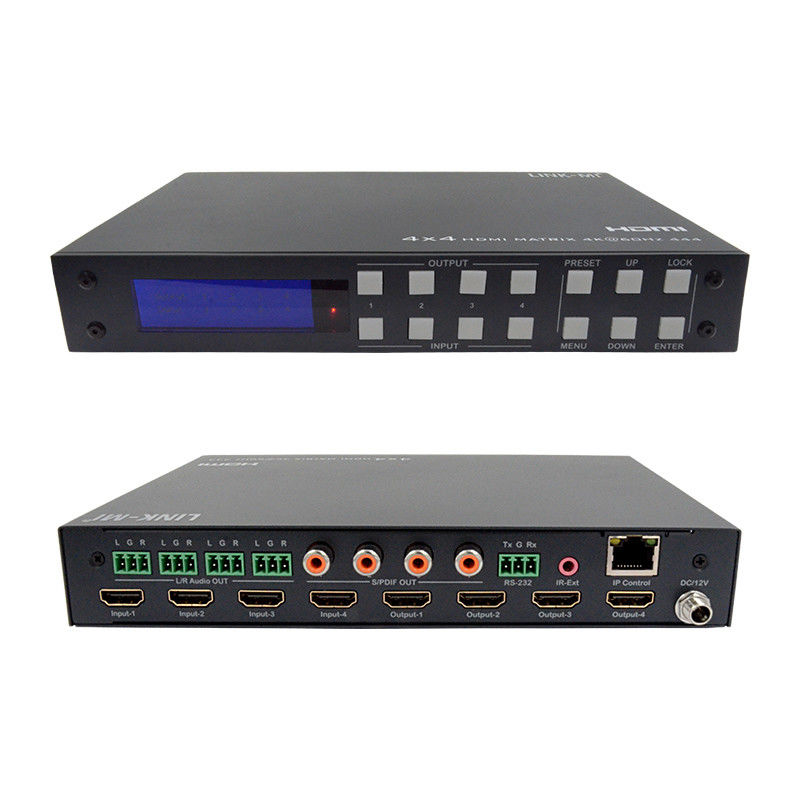

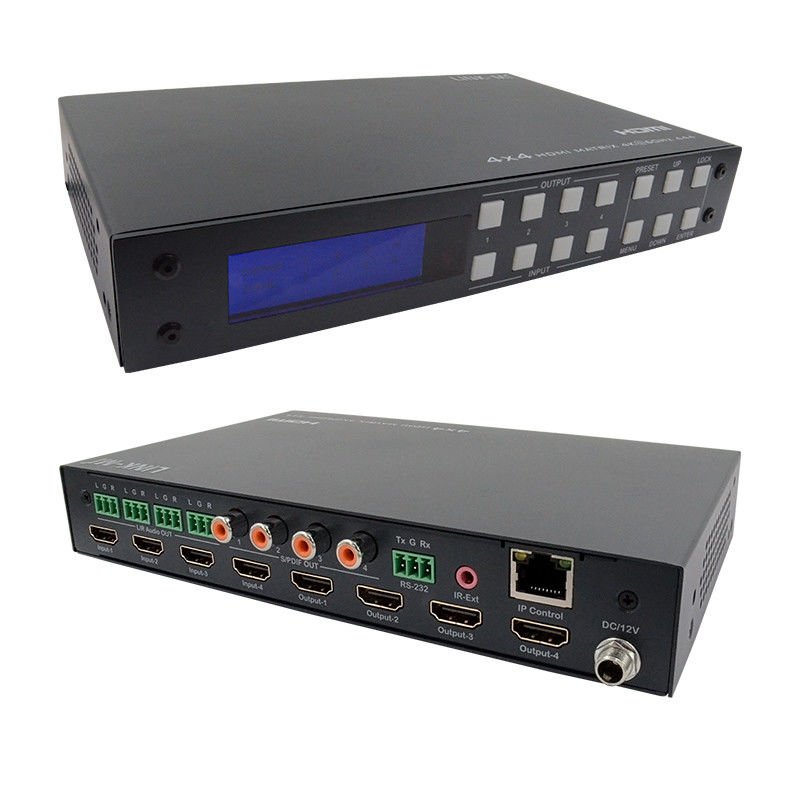

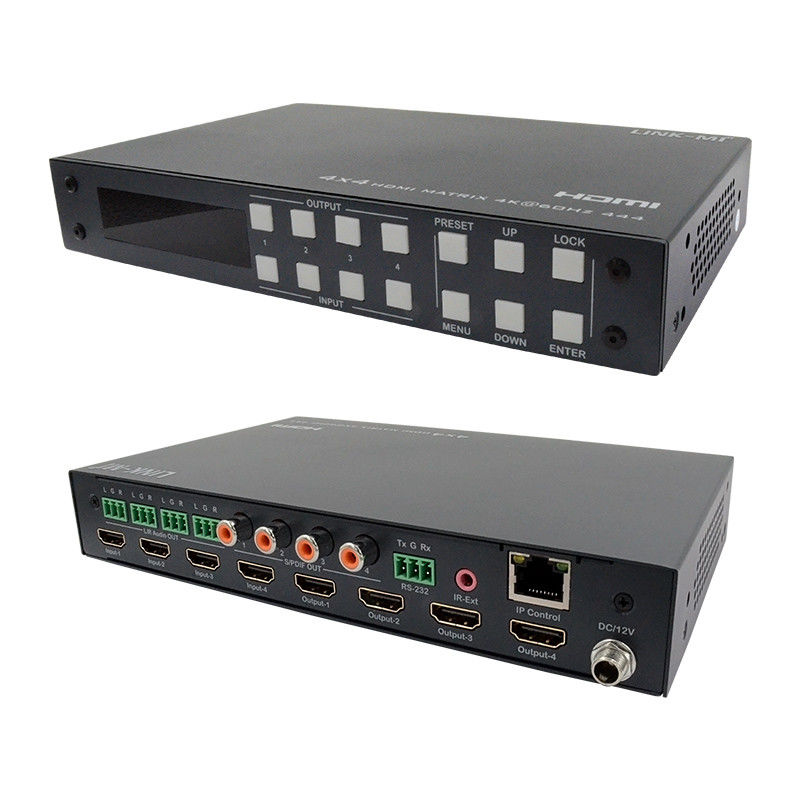

Panel Description
FAQ
Q1: Are you a factory or trading company?
A1: As a professional manufacturer, we supply HDMI related products more than 10 years in China.
Q2: Why should we choose you?
A2: We can offer products with factory price, good quality, best service and long warranty.
Q3: How about your product service?
A3: We can offer OEM and ODM, print your brand, your design on the product based on your order quantity.
Q4: How about the payment terms?
A4: We accept bank transfer, western union, money gram, paypal, Bank of China or cash as payments.
Q5: How do you ship the package?
A5: DHL, Fedex, EMS, by air, by sea...etc.
Q6: What kinds of warranty do you offer?
A6: Our excellent after-sale service team will provide you technical support online. We offer one year warranty for our products.
Q7: How could I buy the products I need if there is no price on the website?
A7: You can send us your inquiry about the products you need. Our sales will reply you within 24 hours to help you make the order.
