4K 4x4 HDMI Matrix HDMI 2.0b Matrix with HDCP 2.2 and DCI-P3/Rec.2020 Color Space Support

Product Description:

The LINK-MI LM-MX17 is a high-performance HDMI Matrix Switcher that offers unparalleled versatility in its ability to switch virtually any of the 4 HDMI sources to 4 HDMI displays.

The LM-MX17 is designed to meet the evolving needs of today's professional AV market. With its exceptional capabilities, this HDMI matrix switcher is the perfect choice for anyone who requires an outstanding audiovisual experience. Not only does the LM-MX17 support resolutions up to 4K2K@60Hz, it also offers advanced EDID management, which ensures compatibility with a wide range of display devices.

Features:

The device is able to support 4K@60Hz YUV4:4:4 without any issues. This ensures that the image on the screen is of high quality without any distortions. This is critical especially when the video is of a high resolution and clarity must be maintained.

With a bandwidth of up to 18Gbps, the device offers high speed and efficiency. This enables the transfer of data to be fast and free of lags. It also allows for smooth streaming of video content.

The HDCP 1.4/2.2 compliance ensures that the content being transmitted is protected from unauthorized access. This means that the content cannot be copied or redistributed without permission.

The device supports a wide range of video formats such as HDR10, HLG, Dolby vision, making it ideal for a wide range of users with varying needs. It is capable of handling multiple video formats with ease, which makes it ideal for different types of video content.

The device has 4 HDMI inputs and 4 HDMI outputs, with 4SPDIF coaxial Audio and 4 Analog Audio. This makes it possible to connect several devices to the device at the same time. Additionally, any one of the four ultra HD sources can be streamed to any one of the 4 ultra HD displays.

The device is designed with convenience in mind. It comes with IR control for long distance, RS232 control, panel button control, TCP/IP control, and web GUI control. This means that the device can be controlled remotely using any of the methods mentioned.

The device supports PCM2.0, Dolby True HD and DTS-HD master audio, LPCM7.1, audio sampling rate up to 192KHZ. This ensures that the sound quality is high and that the audio is not degraded in any way.

Users can extract both analog and S/PDIF audio with ease using this device. Additionally, it supports EDID management and EDID study, allowing you to configure the settings according to the requirements of your display. The device can also be easily updated using the firmware updating through USB port.

Technical Parameters:

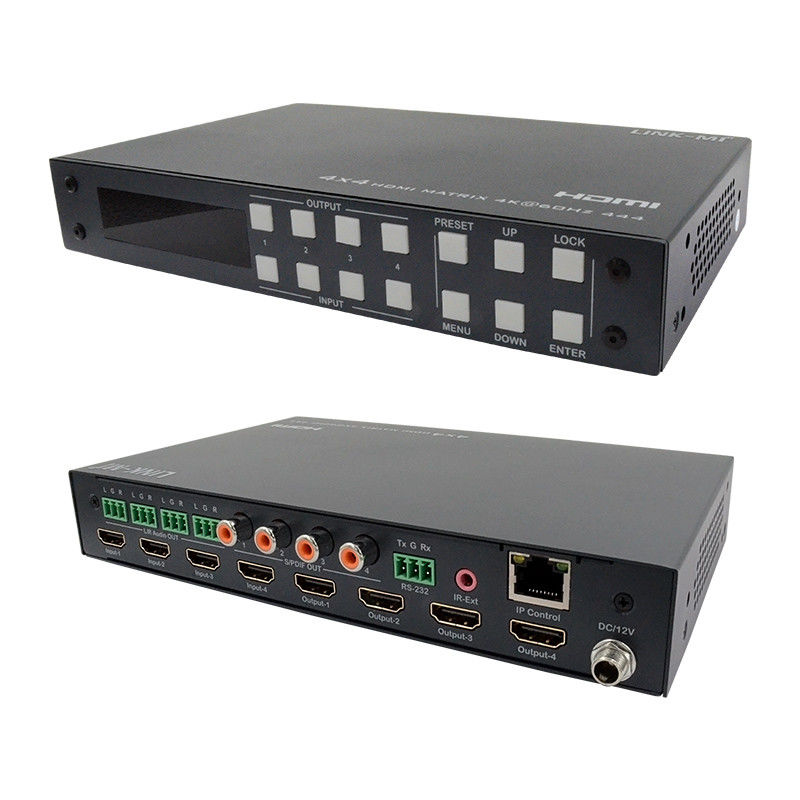

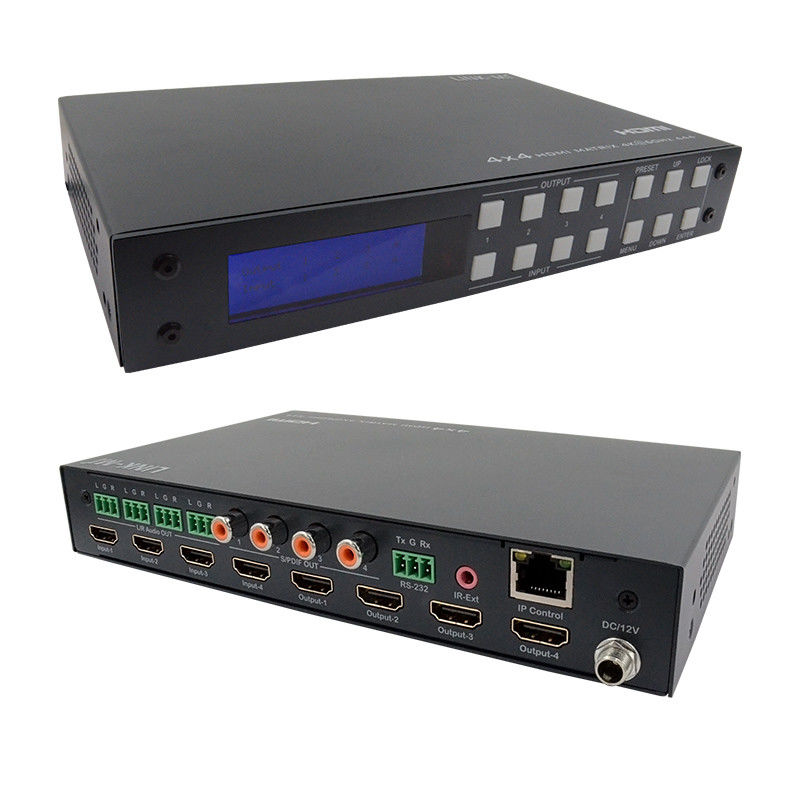

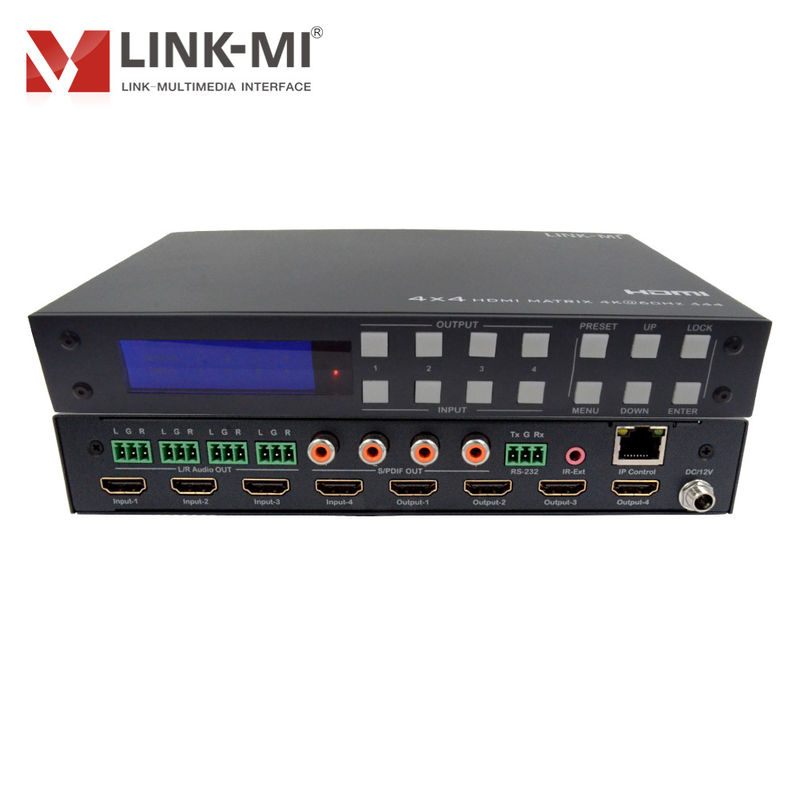

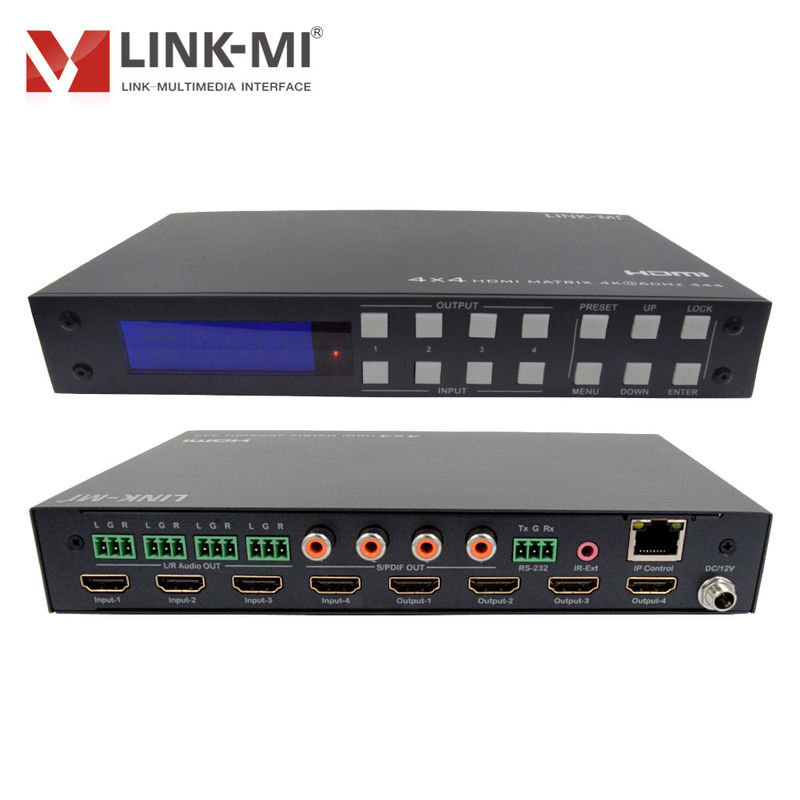

Panel Description:

Connection Diagram:

Applications:

The LM-MX17 HDMI Matrix supports 3D video format and is HDCP compliant with both HDCP2.2 and HDCP 1.4, ensuring seamless and secure transmission of high-quality video signals. It features a range of connector standards, including HDB15, USB, Mini-DIN6, RJ45, and PS2, making it compatible with a wide range of devices.

With its HM-4x4 model, the LM-MX17 HDMI Matrix allows you to connect up to four HDMI sources to up to four displays, giving you the flexibility to switch between different sources and displays as needed. This makes it an ideal solution for situations where multiple devices need to be connected to multiple screens, such as in a conference room or classroom.

The metal chassis material of the LM-MX17 HDMI Matrix ensures durability and longevity, making it a reliable and long-lasting solution for your HDMI switching needs. It is easy to install and use, with simple controls that allow you to switch between sources and displays with ease.

Whether you're looking for a high-quality HDMI switch box for your home theater or a reliable solution for your business or educational needs, the LINK-MI LM-MX17 HDMI Matrix is an excellent choice. With its versatile features, advanced technology, and durable construction, it is sure to meet all your HDMI switching needs.
