Full HD Optical transmitter and receiver
Introduction

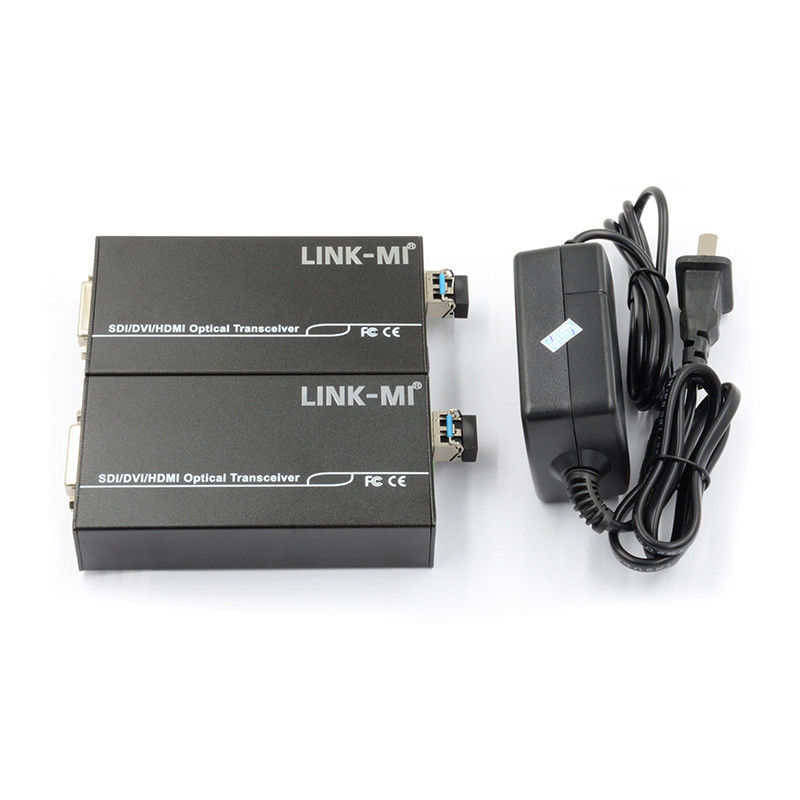

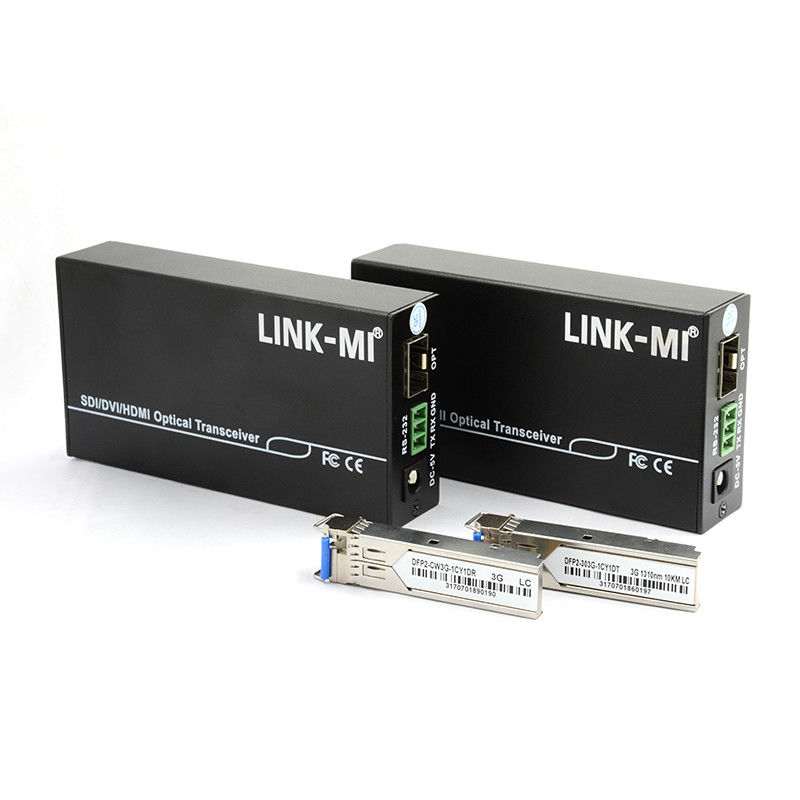

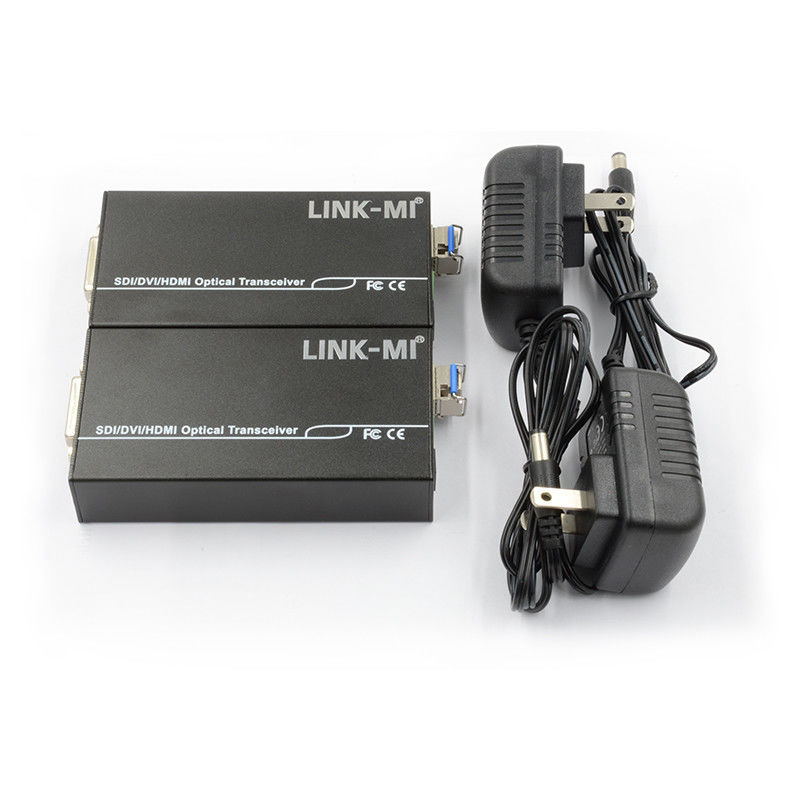

LINK-MI LM-DF02 Full HD Optical transmitter and receiver
Features
1. Full digital, Uncompressed HD optical fiber transmission.
2. Support Full HD 1920*1080@60Hz.
3. All the ONE-way audio.
4. Automatic identification and configure display mode.
5. Automatic equalization inside, stable and clear graphics.
6. ESD protection circuit inside, to ensure the ESD damage.
7. Easily to installation, plug and play, no need to set up.
Specification
| Temperature |
-5°C to +75°C |
| Humidity |
5 to 90 % RH (no condensation) |
| Pixel band width |
165MHz |
| The signa of Audio input and output |
3.5MM Audio |
| Audio format |
44.1K,48K,96K,176K,192K |
| RS232 port |
3 ports industrial terminal |
| RS232 Baud rate |
Support 115200 and all below |
| RS 232 Data bits |
8 bits |
| Fiber port |
LC |
| Fiber wavelength |
1550/1310nm |
| Fiber band width |
3Gbps |
| The Maximum transmission distance |
10KM/20KM/40KM/60KM |
| Input voltage |
DC 5V,inside+ outside- |
| Power consumption |
Transmitter 4W; Receiver 4W |
| Device size |
110mm*580mm*25mm(length*width*height) |
| Packing box size |
175mm*74mm*74mm (length*width*height) |
| Weight |
1KG |
Connection Diagram

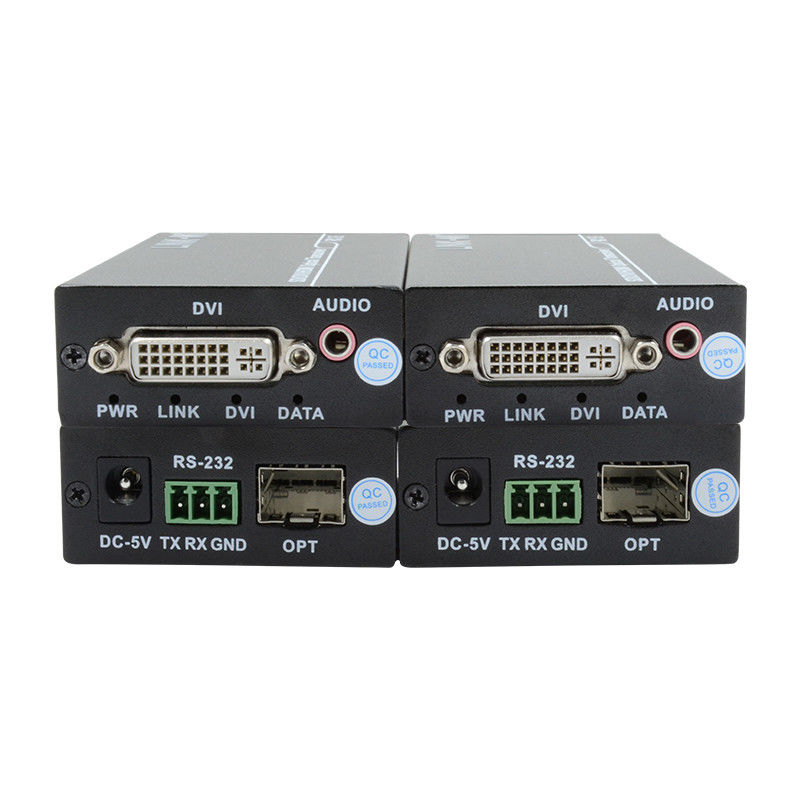

Panel Description
