4x4 HDMI2.0b Matrix 3D Video 7.1 DTS Dolby Digital Metal Chassis HDMI Switch HDCP2.2

Product Description:

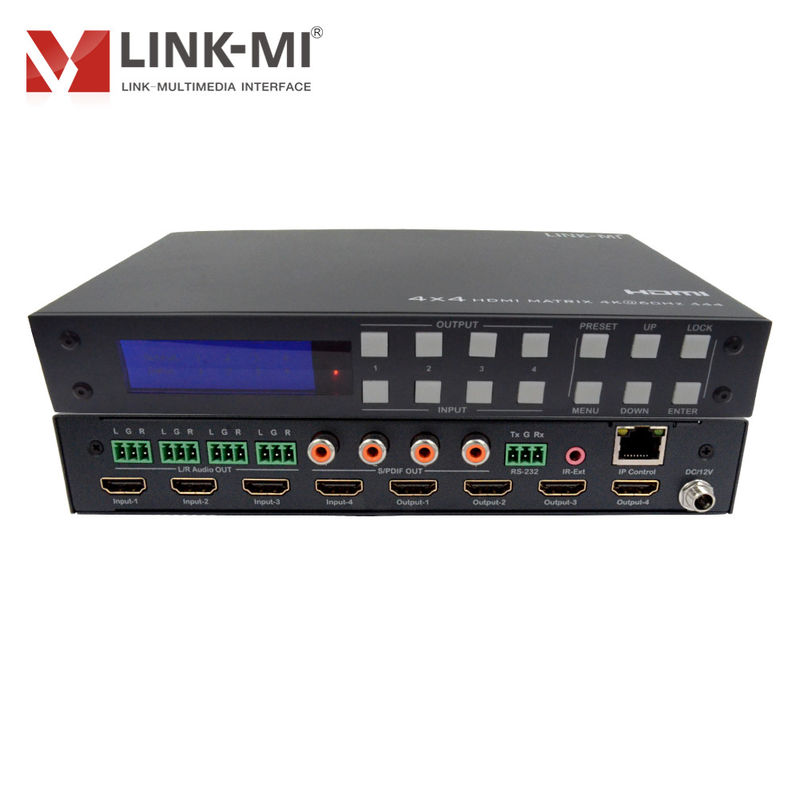

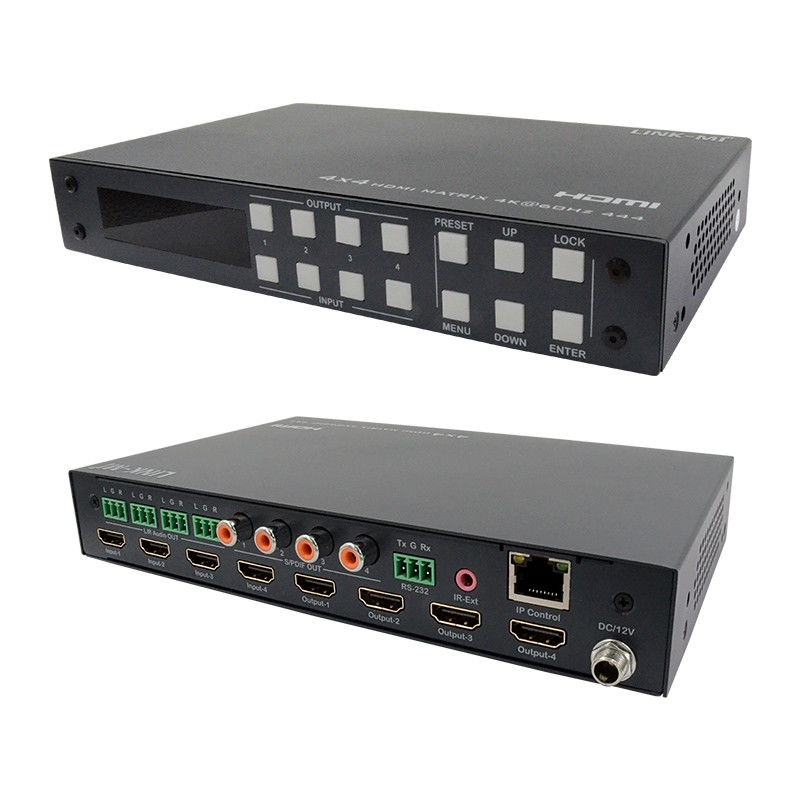

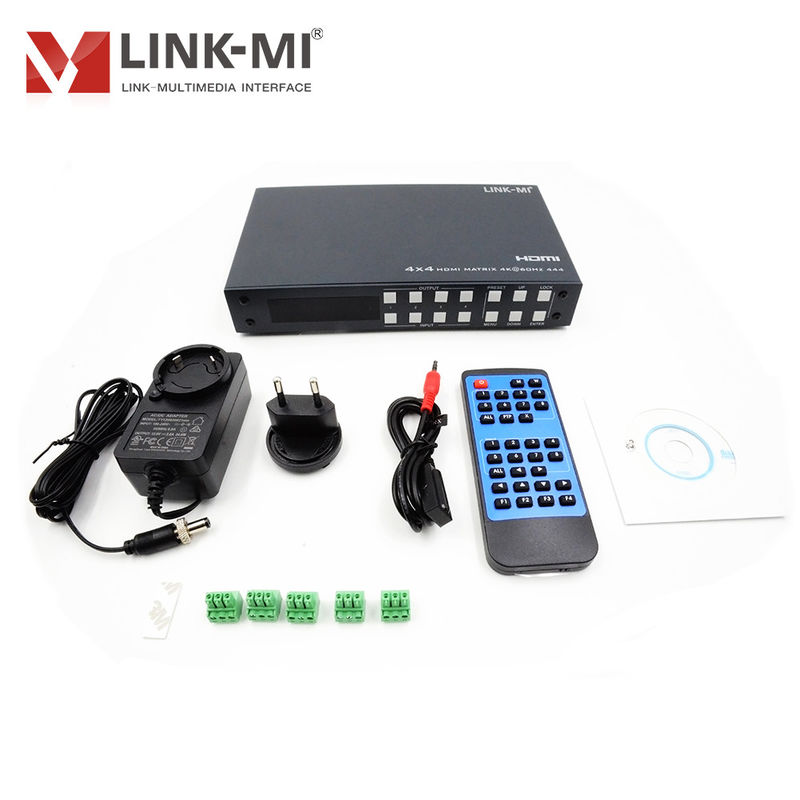

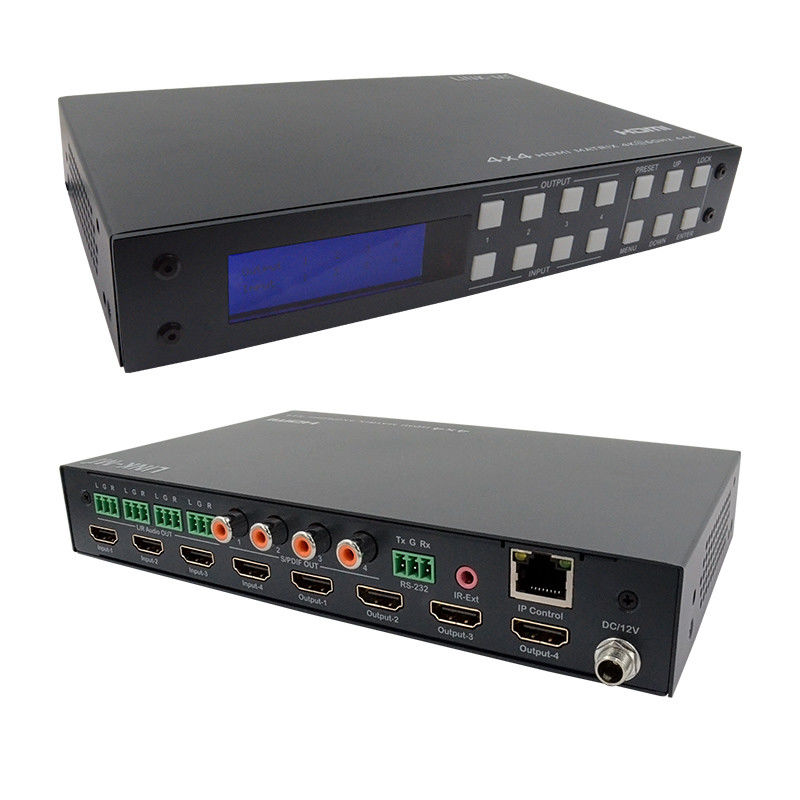

The LINK-MI LM-MX17 is a powerful HDMI Matrix Switcher that operates with high performance and efficiency. This advanced device is capable of routing any of the four HDMI sources to as many as four HDMI displays, providing true flexibility in your multimedia setup. With LINK-MI LM-MX17, you can enjoy seamless switching experience without interruption or disruptions.

The HDMI Matrix Switcher supports a crystal-clear resolution up to 4K2K @60Hz. That means it delivers sharp and detailed images with vibrant colors, making it suitable for various applications such as conference rooms, control rooms, and home entertainment setups. Whether you want to switch between Blu-ray players, gaming consoles, laptops, or any other HDMI devices, the LINK-MI LM-MX17 has got you covered.

In addition to exceptional video quality, the LINK-MI LM-MX17 comes with other notable features that make it stand out. Its compact and elegant design ensures that it seamlessly integrates with your existing AV equipment without occupying much space. Furthermore, this HDMI Matrix Switcher is easy to install and operate, even for non-technical users.

The LINK-MI LM-MX17 is an excellent choice for anyone looking for a high-performance HDMI Matrix Switcher that delivers outstanding performance, reliability, and flexibility. Its cutting-edge features and seamless switching capability make it the perfect addition to any multimedia setup, whether at home or in the office.

Features:

The HDMI splitter has the following features:

• Support for 4K@60Hz YUV4:4:4
• Bandwidth of up to 18Gbps
• HDCP 1.4 / 2.2 compliant
• Support for HDR10, HLG, Dolby vision
• 4x HDMI Input, 4x HDMI output with 4x SPDIF coaxial Audio and 4x Analog Audio
• Any one of the 4 Ultra HD sources can be displayed on any one of the 4 Ultra HD displays
• Support for IR control for long distance, RS232 control, Panel Button control, TCP/IP control and Web GUI Control
• Support for PCM2.0, Dolby True HD and DTS-HD master audio, LPCM7.1, audio sampling rate up to 192KHZ
• Support for analog and S/PDIF audio extraction
• Support for EDID management and EDID study
• Support for firmware updating through USB port

The HDMI splitter supports the display of 4K@60Hz YUV4:4:4 video with a bandwidth of up to 18Gbps. It is HDCP 1.4 / 2.2 compliant and also supports HDR10, HLG, Dolby vision. The HDMI splitter has 4x HDMI input and 4x HDMI output with 4x SPDIF coaxial Audio and 4x Analog Audio.

One of the key features of the HDMI splitter is that any one of the 4 Ultra HD sources displayed on any one of the 4 Ultra HD displays. The HDMI splitter also supports IR control for long distance, RS232 control, Panel Button control, TCP/IP control and Web GUI Control.

Audio is an essential part of any video and the HDMI splitter supports PCM2.0, Dolby True HD and DTS-HD master audio, LPCM7.1, audio sampling rate up to 192KHZ. It also supports analog and S/PDIF audio extraction. The HDMI splitter also supports EDID management and EDID study which is an essential feature for any HDMI splitter. It also supports firmware updating through USB port which ensures that the HDMI splitter can be updated to the latest firmware.

Technical Parameters:

Applications:

One of the key features of the LINK-MI LM-MX17 HDMI 4K Matrix is its video ports. It includes 4X HDMI In, 4X HDMI Out, and 4X Ethernet Out, providing users with seamless connectivity options. Additionally, the HDMI matrix's connector standard includes HDB15, USB, Mini-DIN6, RJ45, and PS2 ports, making it compatible with a wide range of devices.

The LINK-MI LM-MX17 HDMI 4K Matrix is perfect for a variety of application occasions and scenarios. For instance, it can be used in offices, where multiple displays are required for presentations or video conferencing. It can also be used in homes, for those looking for enhanced visual display quality. The HDMI matrix can be used in retail stores, where high-quality visual displays are required to showcase products or services. It can also be used in sports bars, where multiple TV screens are necessary to display different games or events simultaneously.

In conclusion, the LINK-MI LM-MX17 HDMI 4K Matrix is a versatile, high-quality, and efficient HD video matrix switcher. Its 4X HDMI In, 4X HDMI Out, and 4X Ethernet Out ports allow for seamless connectivity and its compatibility with a wide range of devices make it a must-have for various application occasions and scenarios. Get yours today to experience the best in HDMI matrix technology!
