Name: 3mV 100m VGA Extender USB+VGA KVM Extender Over Cat5e/6 Cable
Brand: LINK-MI
SKU: LM-K101TRU
Rating: 4.8 (113 reviews)

Home > products > VGA Extender >

3mV 100m VGA Extender USB+VGA KVM Extender Over Cat5e/6 Cable

3mV VGA Extender

100m VGA Extender

KVM hdmi extender over cat5e 6

Place of Origin:

China

Brand Name:

LINK-MI

Model Number:

LM-K101TRU

Request A Quote

3mV 100m VGA Extender USB+VGA KVM Extender Over Cat5e/6 Cable

Product Details

Model No.:

LM-K101TRU

Interface:

VGA Video And USB Signal

Application:

Extend VGA Video And USB Signal Over Single Cat5e/6 Cable Up To 100m

Input Connector:

1-ch VGA +1-ch USB

Output Connector:

1-ch VGA, 2-ch USB

Local Output:

HD 15pin VGA

Bandwidth:

100m

Connector Standard:

HDB15, USB, Mini-DIN6, RJ45

Video Standard:

VGA, SVGA, XGA, SXGA, UXGA, LCD

Cable Standard:

CAT5, CATSE, CAT6 UTP

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiable

Packaging Details

White/Brown/Color Box

Delivery Time

5-7 work days

Payment Terms

T/T, Western Union, PayPal, Bank Transfer

3mV 100m VGA Extender USB+VGA KVM Extender Over Cat5e/6 Cable

Get Best Price

15pin 4 Port VGA Extender 1 To 4 VGA Splitter 4 Channels Video UTP Extender

Get Best Price

100m 200m 300m VGA Extender1X2 VGA Splitter 2 Channels Video UTP Extender

Get Best Price

100m 200m 300m 1/8 VGA Splitter 1X8 Extender 1 To 8 Video Audio Extender

Get Best Price

+8613332950287

sales@link-mi.com

86-755-83513509

Contact Now

Product Description

100m USB+VGA KVM Extender Over Cat5e/6 Cable

Introduction

LINK-MI LM-K101TRU VGA-KVM Extender is one of our independent development products. The newest promoted KVM Extender has high quality of imagine, remote keyboard and mouse action does not have the time delay. It may widely apply in the computer, monitor, security, multimedia teaching systems and so on. It could extend keyboard, mouse and video ports on computer up to 100m.It promotes the function of anti-thunder and antijamming to make sure the security and stability.

Feature:

1. Simultaneously displays an Ultra Hi-Def source on up to four Ultra HD displays.
2. Support resolutions up to Ultra HD 4Kx2K(3840x2160@60Hz YUV 4:4:4 ).
3. Support four kinds of EDID handling abilities.
4. Support HDCP2.2/1.4 Compliant.
5. Support 36 bit Deep Color.
6. Support LPCM 7.1, Dolby TrueHD, Dolby digital Plus, and DTS-HD Master Audio.
7. Support 3D.
8. Bandwidth 18G.
9. Support HDR.
10. Support online firmware upgrade via Micro USB Port.

Specification

Model No.	LM-K101TRU
Brand	LINK-MI
Material	Metal
Color	Blue
Interface	VGA Video and USB Signal
Application	Extend VGA Video and USB Signal Over single Cat5e/6 Cable up to 100m
Input Connector	1-ch VGA +1-ch USB
Output Connector	1-ch VGA, 2-ch USB
Local Output	HD 15pin VGA
Bandwidth	100m
Input Level Range	0.5-2.0 Volts P-P
Input Level Error	Less than 3mV
Input Impedance	75W
Output Impedance	75W
Echo Ullage	-30dB @ 5MHz
Max. DC Compensation	±5mV-0
SNR	60dB
Connector Standard	HDB15, USB, Mini-DIN6, RJ45
Video Standard	VGA, SVGA, XGA, SXGA, UXGA, LCD
Cable Standard	CAT5, CATSE, CAT6 UTP
Power Adapter	DC 12V 500mA
Operating Temperature Range	-25 to +70 Degree Celsius
Deposited Temperature Range	-40 to +80 Degree Celsius
Relative Humidity	0 to 95%RH ( No Condensing )
MTBF	>30000 hours
Note: Specifications are subject to change without notice.

Connection Diagram

3mV 100m VGA Extender USB+VGA KVM Extender Over Cat5e/6 Cable 0

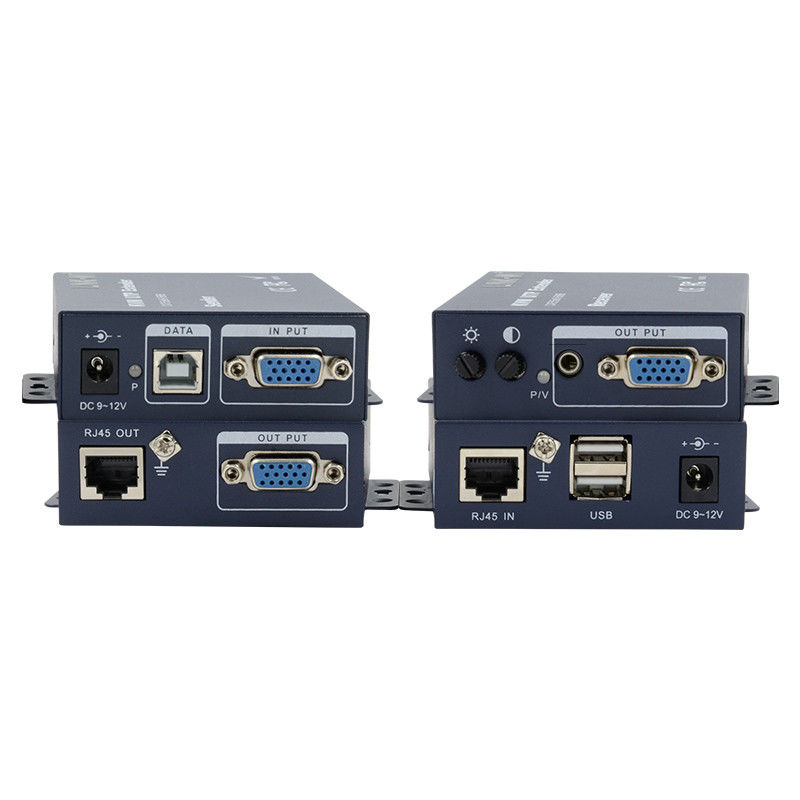

Panel Description

3mV 100m VGA Extender USB+VGA KVM Extender Over Cat5e/6 Cable 1

FAQ

Q1: Are you a factory or trading company?

A1: As a professional manufacturer, we supply HDMI related products more than 10 years in China.

Q2: Why should we choose you?

A2: We can offer products with factory price, good quality, best service and long warranty.

Q3: How about your product service?

A3: We can offer OEM and ODM, print your brand, your design on the product based on your order quantity.

Q4: How about the payment terms?

A4: We accept bank transfer, western union, money gram, paypal, Bank of China or cash as payments.

Q5: How do you ship the package?

A5: DHL, Fedex, EMS, by air, by sea...etc.

Q6: What kinds of warranty do you offer?

A6: Our excellent after-sale service team will provide you technical support online. We offer one year warranty for our products.

Q7: How could I buy the products I need if there is no price on the website?

A7: You can send us your inquiry about the products you need. Our sales will reply you within 24 hours to help you make the order.

User Manual:

LM-K101TRU 100M VGA KVM Extender over Cat5e6.pdf
