1/8 VGA Splitter 1X8 Extender 100m 200m 300m 1 to 8 Video Audio Extender
Introduction

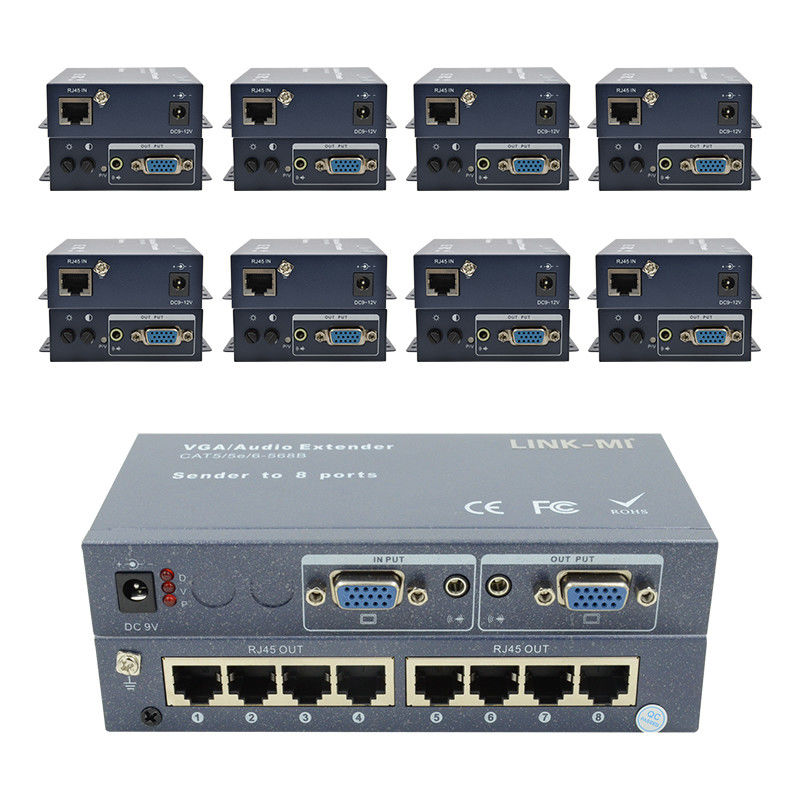

LINK-MI LM-108T 8 channel VGA Video & Audio transmitter allowing extension of highresolution VGA video and high-fidelity audio over UTP cable. 8 channel VGA video and audio transmitter receiver need to match, can match with any of the 100m-200m-300m receiver. The transmitter not only work as a 8 channel distribution amplifier, but also provides local video & audio output for local use.
Features
1. 350MHz signal transmission bandwidth.
2. High video resolution up to 1920×1080 pixels.
3. Powered by either power adaptor.
4. Support VGA, SVGA, XGA, SXGA, WXGA ,UXGA and multi-sync monitors.
5. Built-in surge&transient protection with grounding rod on front panel.
6. Super interference rejection.
Specification
| Model No. |
LM-108T |
|
Video properties
|
|
Video Input Connector
|
1* 15pin HD15 male; Impedance: 75Ω |
|
Local Video Output connector
|
1* 15pin HD15 male; Impedance: 75Ω |
|
UTP Cable Connector
|
8* RJ-45; Impedance: 50Ω
|
|
Signal Transmission Band
|
>350MHz(-3db)
|
|
Linear Distortion
|
<3%
|
|
Synchronous signal
|
0-5V,TTL PWL
|
|
Synchronous signal band
|
1K-200KHz
|
|
DDC2
|
Virtual DDC
|
|
Audio properties
|
|
Connectors
|
2* 3.5mm Audio Jacks
|
|
Input Impedance
|
10kΩ
|
|
Output Impedance
|
600Ω
|
|
Transmission Band
|
10-20KHz
|
|
Power properties
|
|
Adaptive Voltage Arrange
|
12V DC(power adaptor)
|
|
Power Consumption
|
<3.5w
|
|
Connectors
|
DC Jack,USB-B
|
|
USB Protecting Current
|
1000mA
|
|
Environmental
|
|
Operating Temperature
|
0~70
|
|
Relative Humidity(non-condensing)
|
10~85%
|
|
Storage Temperature
|
-10~80
|
|

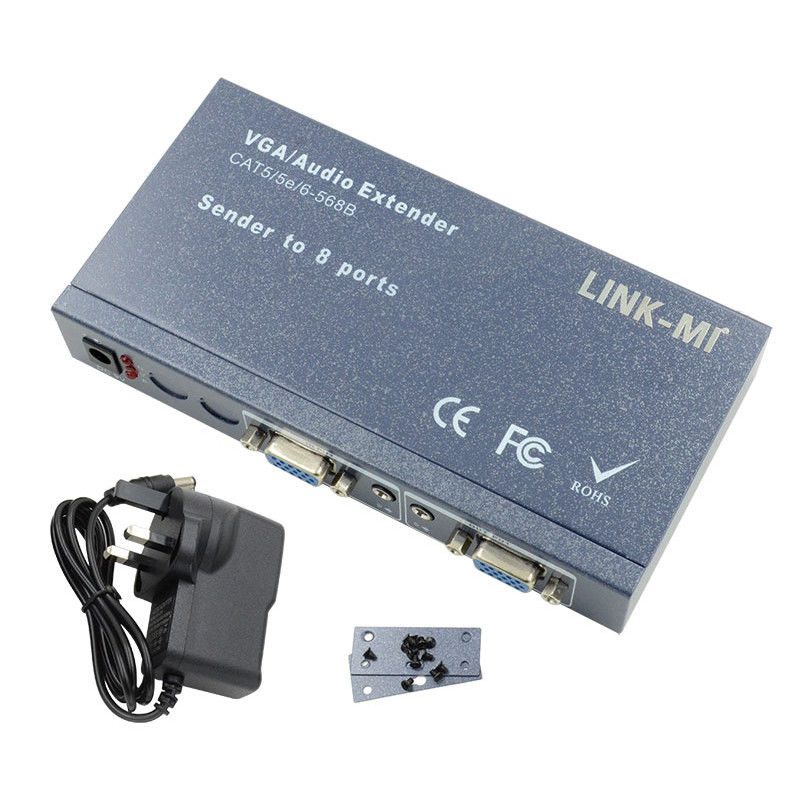

Accessories
|
|
Power Adaptor
|
Power supply input: 100-240V AC
Power supply output: 12V DC/ 1Amp
Wire Length:2m
|
|
Casing
|
|
Gross Weight
|
0.8kg
|
|
Casing Volume(LWH)
|
575*275*90mm |
Connection Diagram

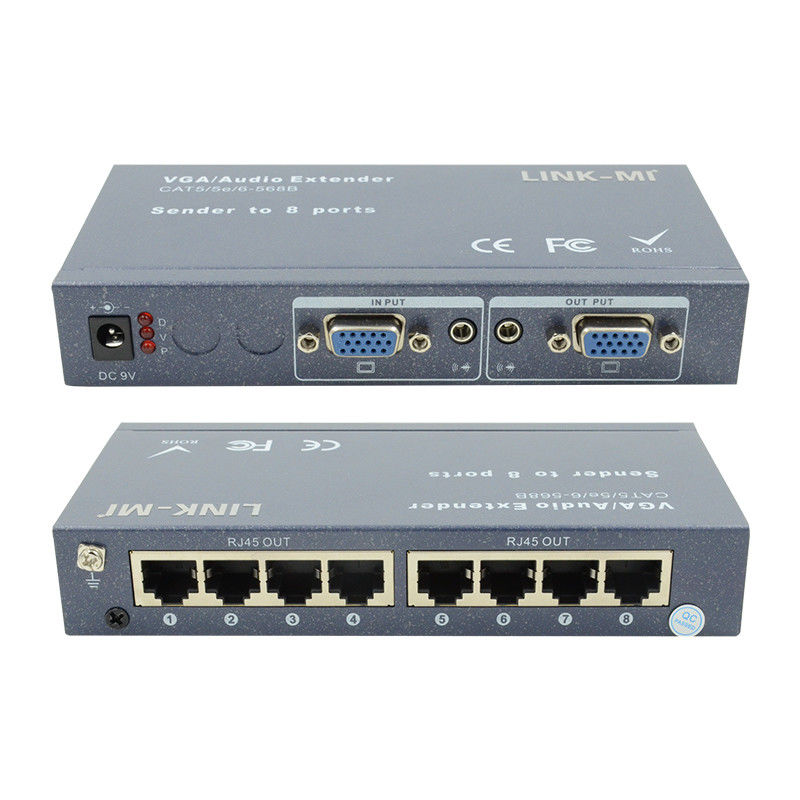

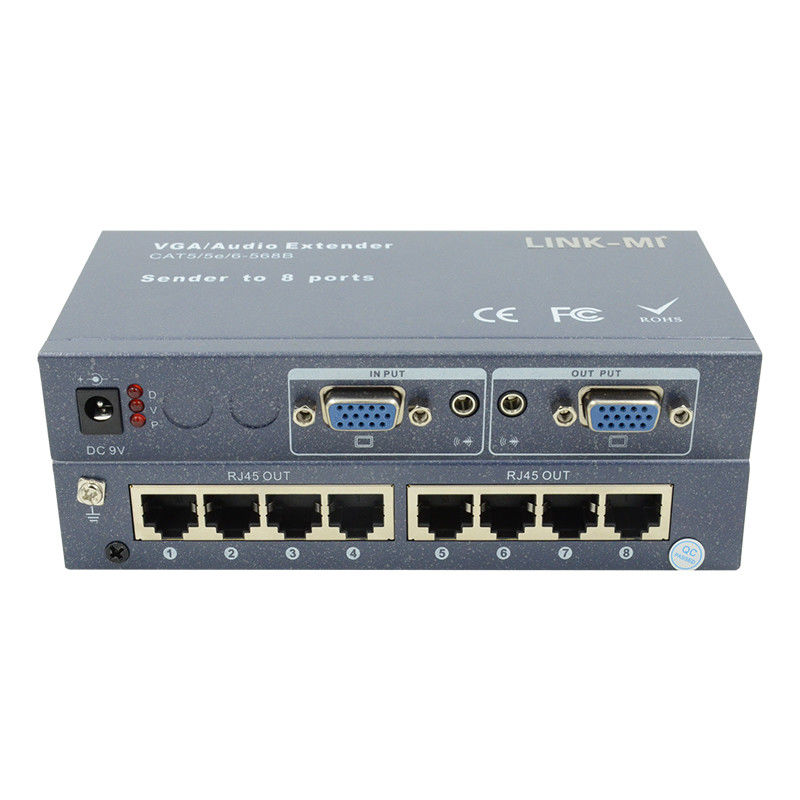

Panel Description
FAQ
Q1: Are you a factory or trading company?
A1: As a professional manufacturer, we supply HDMI related products more than 10 years in China.
Q2: Why should we choose you?
A2: We can offer products with factory price, good quality, best service and long warranty.
Q3: How about your product service?
A3: We can offer OEM and ODM, print your brand, your design on the product based on your order quantity.
Q4: How about the payment terms?
A4: We accept bank transfer, western union, money gram, paypal, Bank of China or cash as payments.
Q5: How do you ship the package?
A5: DHL, Fedex, EMS, by air, by sea...etc.
Q6: What kinds of warranty do you offer?
A6: Our excellent after-sale service team will provide you technical support online. We offer one year warranty for our products.
Q7: How could I buy the products I need if there is no price on the website?
A7: You can send us your inquiry about the products you need. Our sales will reply you within 24 hours to help you make the order.
User Manual:
LM-108T 8 Channels VGA Extender Splitter.pdf
