HDMI 2.1 Audio Extractor Support 8K@60Hz, YUV4:2:0, CEC
Introduction
LINK-MI LM-HC05 HDMI 2.1 Audio Extractor comes with 1 HDMI in, 1 HDMI out. It supports audio extraction and resolution up to 8K@60Hz. It also supports CEC and firmware upgrade.
Feature
1. Support one HDMI input, one HDMI output.
2. Support audio extraction, SPDIF(5.1CH) & Analog Audio PCM2.0 output.
3. Support audio format: LPCM, DTS, Dolby(CH7.1).
4. Support HDMI2.1 version.
5. Support resolution up to 8K60Hz YUV4:2:0 10bit, bandwidth 40Gbps.
6. HDCP2.2/1.4 Compliant.
7. Support CEC.
8. Support firmware updating through USB port.
Specification
| Model No. |
LM-HC05 |
| Operating Temperature Range |
-5 to +40℃(+23 to +104℉) |
| Operating Humidity Range |
5 to 90%RH (No Condensation) |
| Input Video Signal |
0.5-1.0 Volts P-P |
| Input DDC Signal |
5 volts p-p(TTL) |
| Support Video format |
8Kx4K/4Kx2K/1080P/1080i/720P/576P/576i/480P/480i |
| Support Video Color Format |
deep color 10bit(8K60hz YUV4:2:0) |
| Support Audio Format |
LPCM, DTS, Dolby(CH7.1) |
| Data transfer speed rate |
40Gbps (Maximum) |
| HDCP |
Compliant HDCP2.2/1.4 |
| Power consumption |
1.65watts(Maximum) |
| Dimension (L×W×H) |
104.4x86x28.3mm |
| Net Weight |
155g |
| Note: Specifications are subject to change without notice |
Connection Diagram

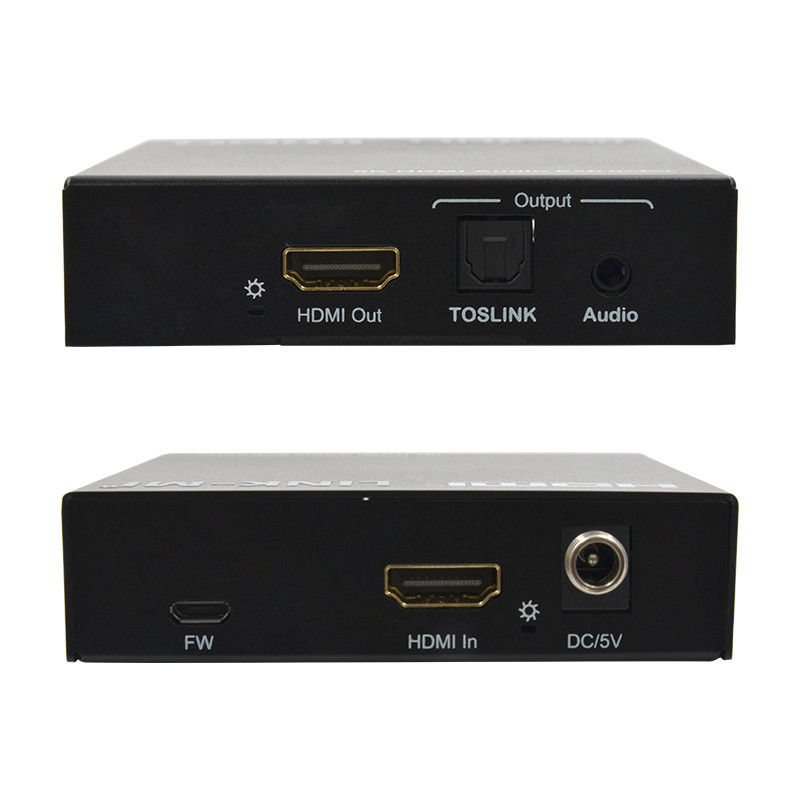

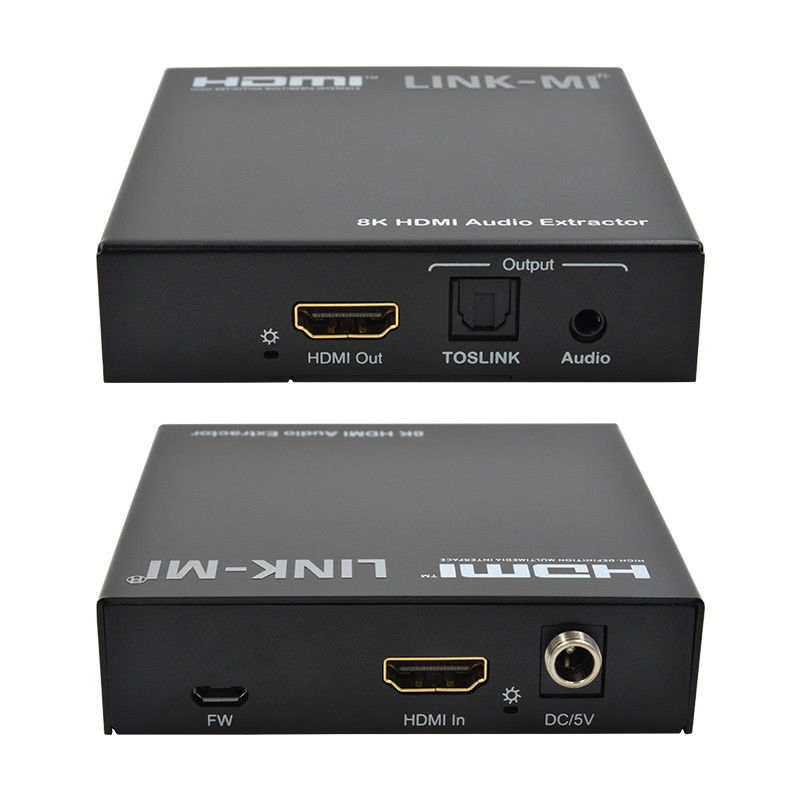

Panel Description
FAQ
