Digital Analog Audio Converter Support HDMI ARC Toslink Coax Digital Audio
Introduction
LINK-MI LM-AC01B is a Digital & Analog Audio Converter. It supports 3 audio inputs (HDMI ARC/Toslink/Coax digital audio inputs); 4 audio outputs (Toslink,Coax,Analog 3.5mm jack,L/R audio outputs). And it also supports slide switch audio input source.
Features
1. Support HDMI ARC/Toslink/Coax digital audio input;
2. Support Toslink,Coax,Analog 3.5mm jack,L/R audio output;
3. Support slide switch audio input source;
4. Support digital audio output:DTS/Dolby-AC3/LPCM;
5. Support analog audio PCM2.0,sampling rate 32-192KHZ,16~24bit;
6. Support digital audio max CH5.1, 96KHZ,16~24Bbit;
7. Support AC 100~240V 50/60hz power, DC 5V/1A
Specification
|
Model NO.
|
LM-AC01B
|
|
Connectors Input
|
1xPower DC 5V
1xHDMI ARC
1xToslink
1xCoax
|
|
Connectors Output
|
1xToslink
1x3.5mm jack
1xL/R audio out
1xCoax
|
|
Audio format
|
PCM2.0, DTS/Dolby-AC3/LPCM Max CH5.1
|
|
Power consumption
|
3watts(Maximum)
|
|
Dimension (L×W×H)
|
96.2x47.6x21mm
|
|
Net Weight
|
140g
|
|
Operating Temperature Range
|
0 to +40℃(+32 to +104℉)
|
|
Operating Humidity Range
|
5 to 90%RH (No Condensation)
|
Connection Diagram

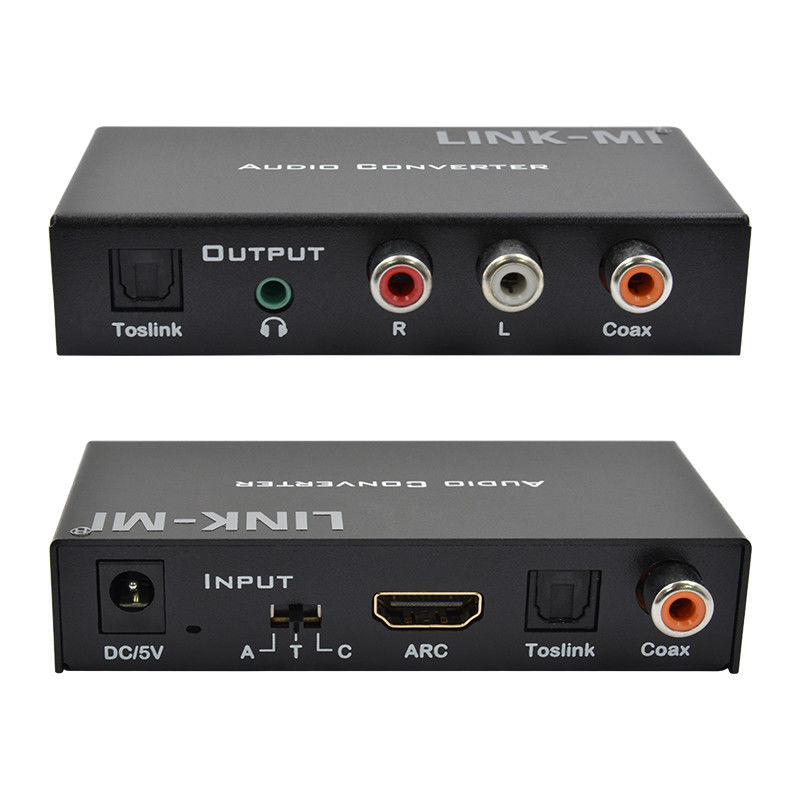

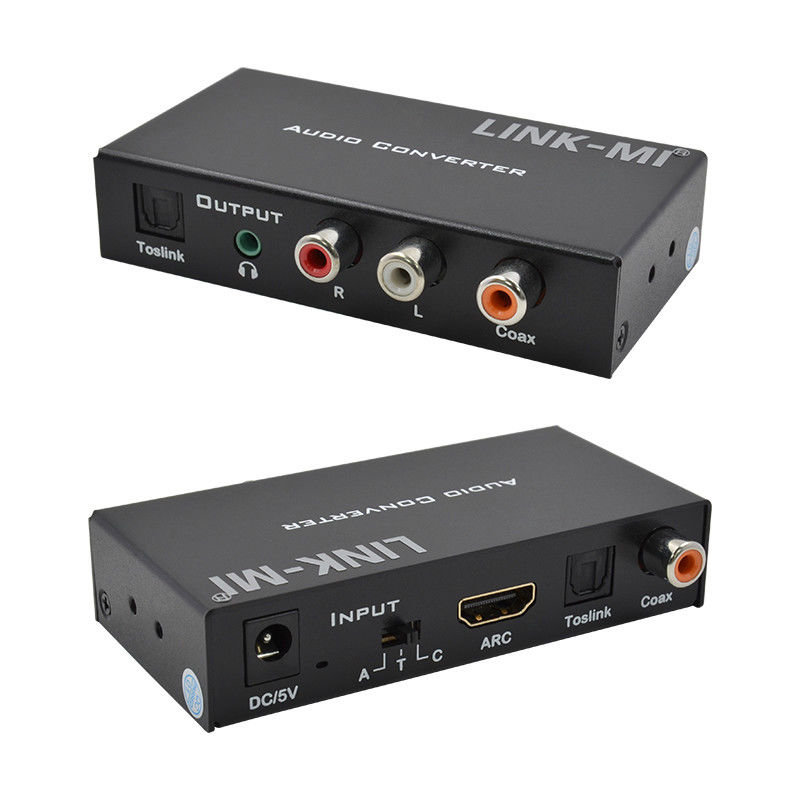

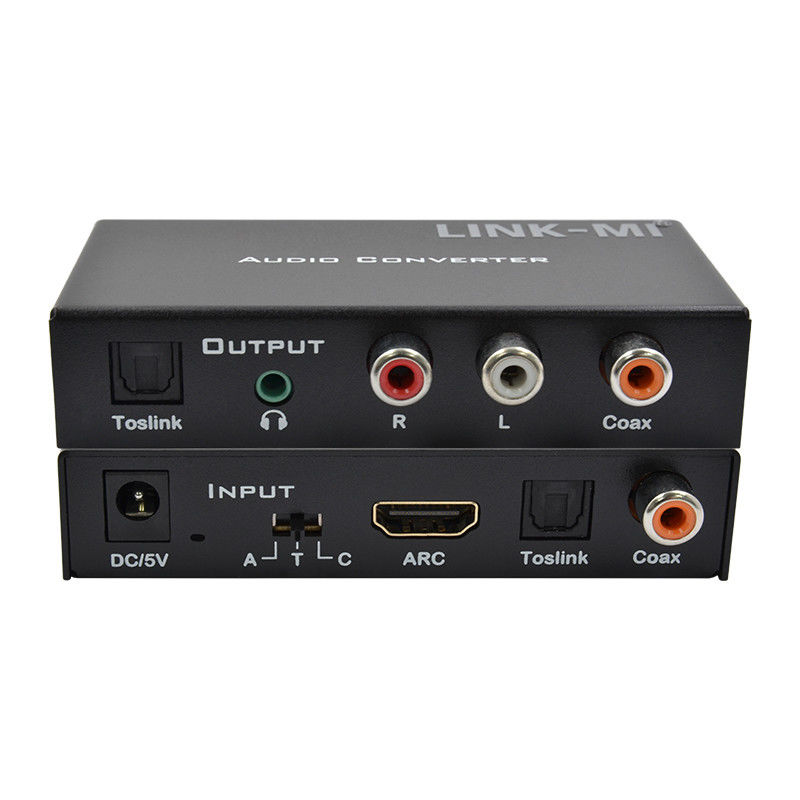

Panel Description
FAQ
Q1: Are you a factory or trading company?
A1: As a professional manufacturer, we supply HDMI related products more than 10 years in China.
Q2: Why should we choose you?
A2: We can offer products with factory price, good quality, best service and long warranty.
Q3: How about your product service?
A3: We can offer OEM and ODM, print your brand, your design on the product based on your order quantity.
Q4: How about the payment terms?
A4: We accept bank transfer, western union, money gram, paypal, Bank of China or cash as payments.
Q5: How do you ship the package?
A5: DHL, Fedex, EMS, by air, by sea...etc.
Q6: What kinds of warranty do you offer?
A6: Our excellent after-sale service team will provide you technical support online. We offer one year warranty for our products.
Q7: How could I buy the products I need if there is no price on the website?
A7: You can send us your inquiry about the products you need. Our sales will reply you within 24 hours to help you make the order.
User Manual:
LM-AC01B Digital&Analog Audio Converter.pdf
