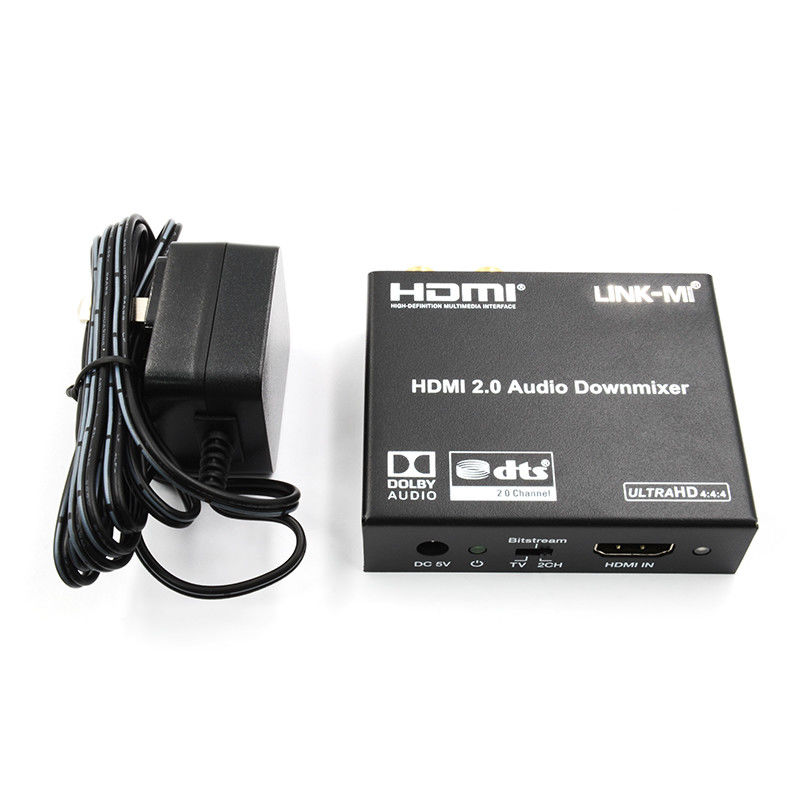

18Gbps HDMI Audio Extractor with Audio Downmix Support 4K@60Hz
Introduction
LINK-MI LM-AUE03 The HDMI 18Gbps Audio Extractor could extract audio signals from any HDMI compliant source to digital optical or analog stereo L/R audio outputs. For maximum flexibility, this audio extractor also supports bitstream audio down-mix to analog stereo output and keeps optical and HDMI out audio pass through.
Further, both input and output HDMI support video resolution up to 4K2K@50/60Hz (YUV444). It supports 10bits HDR (High Dynamic Range) pass through and HDMI high resolution digital audio formats bypass, LPCM 2CH, Dolby TrueHD, Dolby Digital Plus, Dolby Atmos and DTS-HD Master Audio, audio sampling rate up to 192 kHz. HDCP 2.2 and CEC bypass are supported.
Features
1. HDMI 2.0b (18Gbps), HDCP 2.2 and DVI compliant
2. Video resolutions up to 4K2K@50/60Hz (YUV444)
3. Extract HDMI audio to multi-channel optical (SPDIF) or L/R analog audio
4. HDMI Pass-through audio input to HDMI and optical audio output
5. Support bitstream audio down-mix to L/R analog output
6. Optical audio supports LPCM 2CH, Dolby Digital 2/5.1CH, DTS 2/5.1CH
7. Support HDMI High Bit Rate(HBR) audio pass through
8. Audio sample rates up to 96kHz
9. 10bits HDR (High Dynamic Range) pass through
10. Support CEC pass-through
Specification
| Technical |
|
HDMI Compliance
|
HDMI 2.0b
|
|
HDCP Compliance
|
HDCP 2.2 and HDCP 1.4
|
|
Video Bandwidth
|
18Gbps |
|
Video Resolutions
|
Up to 4K2K@50/60Hz(YUV4:4:4), 4K2K@30Hz,1080P@120Hz,
and 1080P 3D@60Hz
|
|
Color Space
|
RGB, YCbCr 4:4:4, YCbCr 4:2:2
|
|
Color Depth
|
10-bit, 12-bit
|
|
HDMI Audio Formats
(Pass-through)
|
LPCM 2/5.1/7.1CH, Dolby Digital,
DTS 5.1, Dolby Digital+, Dolby
TrueHD, DTS-HD Master Audio,
Dolby Atmos, DTS:X
|
|
Optical Audio
Formats
|
LPCM 2CH, Dolby Digital 2/5.1 CH, DTS 2/5.1CH
|
|
L/R Audio Formats
|
Analog Stereo 2CH
|
|
ESD Protection
|
Human body model — ±8kV
(air-gap discharge) & ±4kV
(contact discharge)
|
| Connections |
|
Inputs
|
1x HDMI Type A [19-pin female]
|
|
Outputs
|
1x HDMI Type A [19-pin female]
1x L/R Audio Out [RCA]
1x Optical Out [S/PDIF]
|
|
Mechanical
|
|
Housing
|
Metal Enclosure
|
|
Color
|
Black
|
|
Dimensions
|
73.5mm[W] x 60.7mm[D] x 20mm[H]
|
|
Weight
|
135g
|
|
Power Supply
|
Input: AC100 - 240V 50/60Hz
Output: DC 5V/1A (US/EU standards, CE/FCC/UL certified)
|
|
Power Consumption
|
1.25W (Max)
|
|
Operation Temperature
|
32 - 104°F / 0 - 40°C
|
|
Storage temperature
|
-4 - 140°F / -20 - 60°C
|
|
Relative Humidity
|
20 - 90% RH (no condensation)
|
| Note: Specifications are subject to change without notice |
Connection Diagram

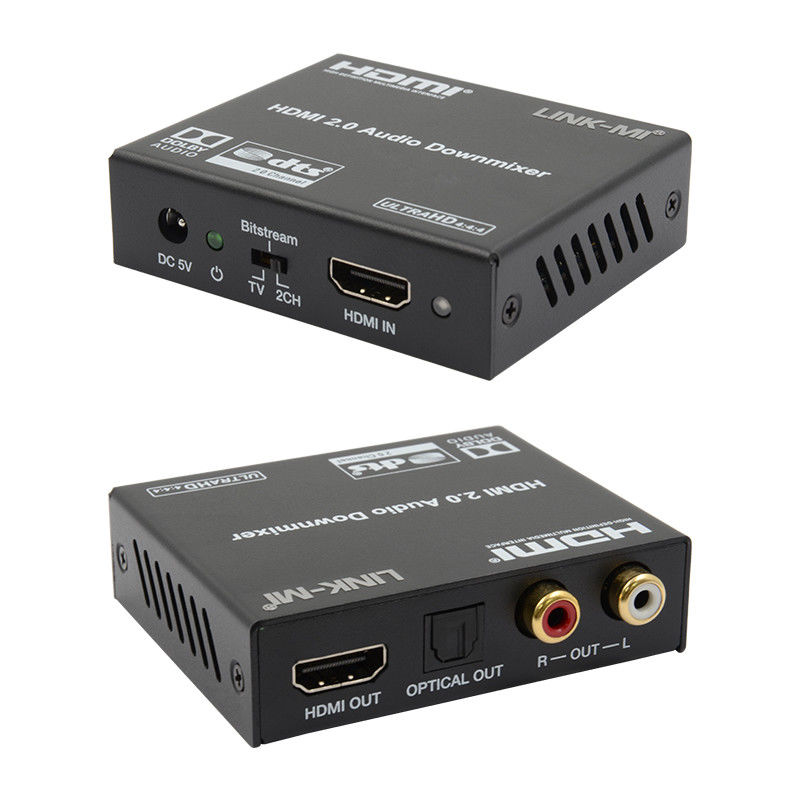

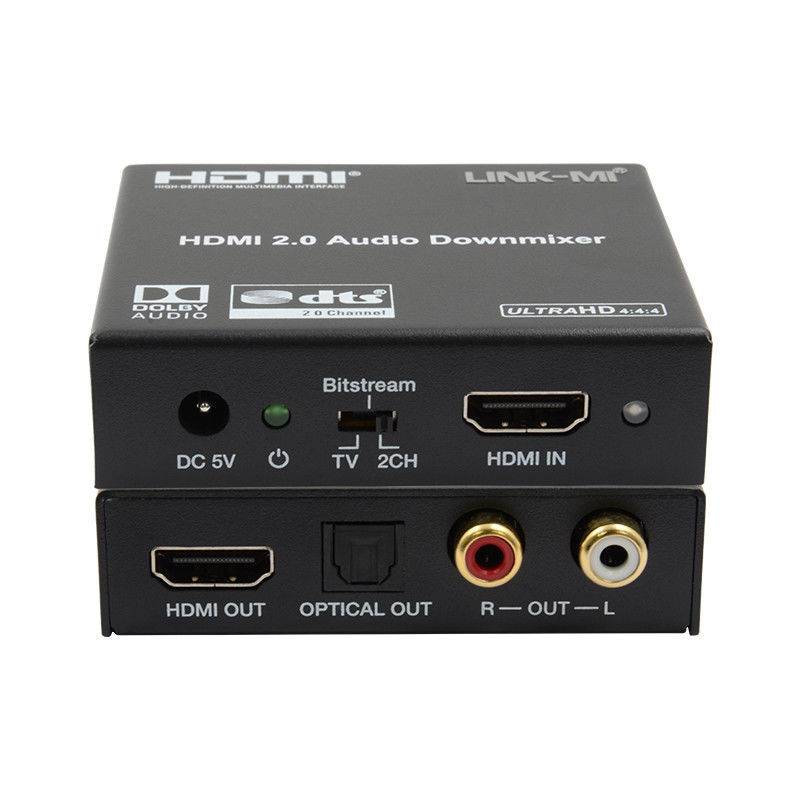

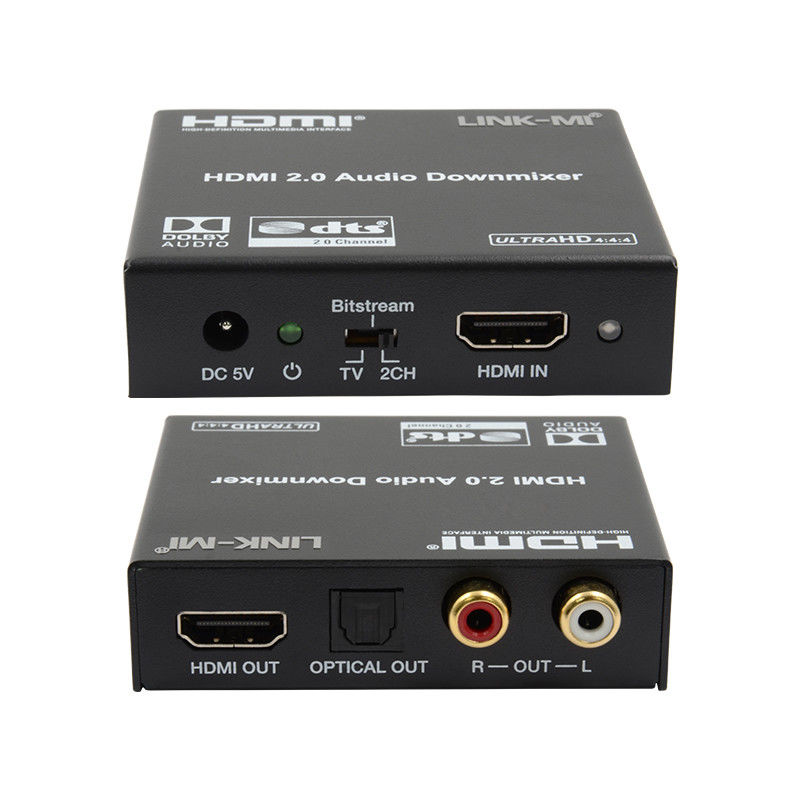

Panel Description
FAQ
Q1: Are you a factory or trading company?
A1: As a professional manufacturer, we supply HDMI related products more than 10 years in China.
Q2: Why should we choose you?
A2: We can offer products with factory price, good quality, best service and long warranty.
Q3: How about your product service?
A3: We can offer OEM and ODM, print your brand, your design on the product based on your order quantity.
Q4: How about the payment terms?
A4: We accept bank transfer, western union, money gram, paypal, Bank of China or cash as payments.
Q5: How do you ship the package?
A5: DHL, Fedex, EMS, by air, by sea...etc.
Q6: What kinds of warranty do you offer?
A6: Our excellent after-sale service team will provide you technical support online. We offer one year warranty for our products.
Q7: How could I buy the products I need if there is no price on the website?
A7: You can send us your inquiry about the products you need. Our sales will reply you within 24 hours to help you make the order.
User Manual:
LM-AUE03 HDMI 18Gbps Audio Extractor.pdf
