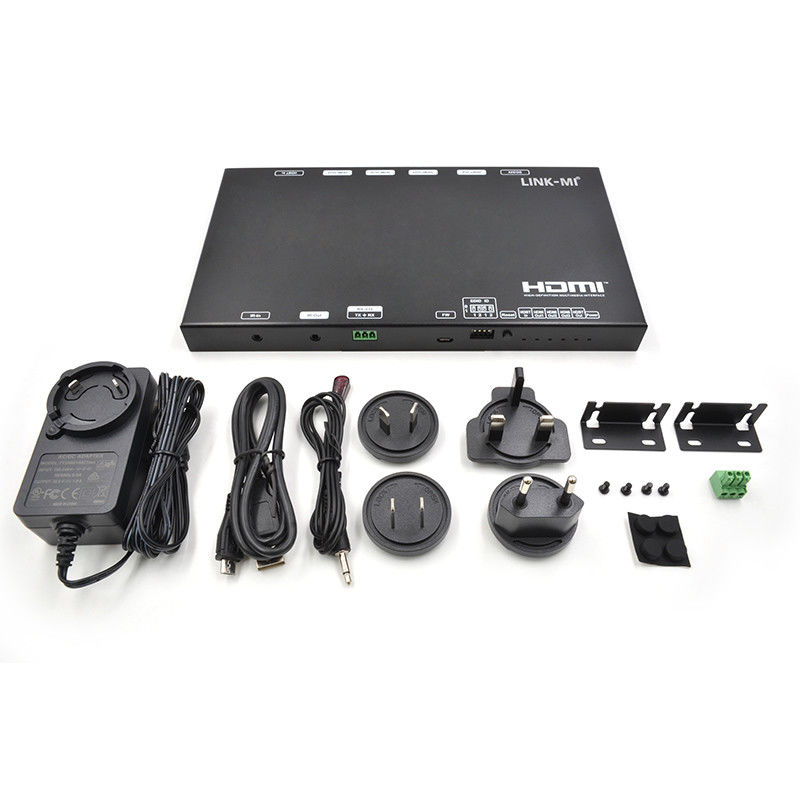

70M HDMI Extender with HDMI loop out IR RS232 Support 4K60Hz Video Repeater
Introduction
LINK-MI LM-EX58 is a HDMI2.0 Extender Repeater which supports 4K@60Hz, HDR. It suppports transmission up to 70m under 1080p, 40m under 4k.
Feature
1. HDMI 2.0 Bandwidth up to 18Gbps, resolution up to 4k@60hz YUV 4:4:4 (Work with our TX and RX Devices)
2. Transmit up to 70m under 1080p, 40m under 4k
3. Support HDR10, 3D
4. 1x HDBT in; 1x HDBT out with 3x looping HDMI out
5. Bi-directional wide band IR and RS232 Pass through and EDID Setting
6. Audio rate up to 48Khz, Maximum support 7.1ch & Dolby True HD, DTS-HD
7. Support cascade upto 4 layers
8. HDCP2.2/ HDCP1.4 Compliant
9. Support Micro USB updating
10. Support EDID management
Specification
| Model No. |
LM-EX58 |
|
Operating Temperature Range
|
-10 to +55°C (14 to +131 °F)
|
|
Operating Humidity Range
|
5 to 90 % RH (no condensation)
|
|
Input Video Signal
|
0.5-1.0 volts p-p
|
|
Input DDC Signal
|
5 volts p-p (TTL)
|
|
Video Format Supported
|
DTV/HDTV: 4K/1080P/1080i/720P/576P/480P/576i/480i
|
|
Output Video
|
UHDTV HDMI 2.0 + HDCP 2.2
|
|
Output Audio
|
Support 7.1ch DTS-HD, Dolby-HD
|
|
Maximum Transmission Distance
|
70 meters for 1080P, 40 meters for 4K
|
|
Power Supply
|
24V1A
|
|
RS232 pass through
|
Baud Rate 115200 bps
|
|
Power Consumption
|
11Watts
|
|
Dimensions
|
245mmL×139mmW×21mmH
|
|
Mass (Main unit)
|
1.06Kg
|
| Note: Specifications are subject to change without notice |
Connection Diagram

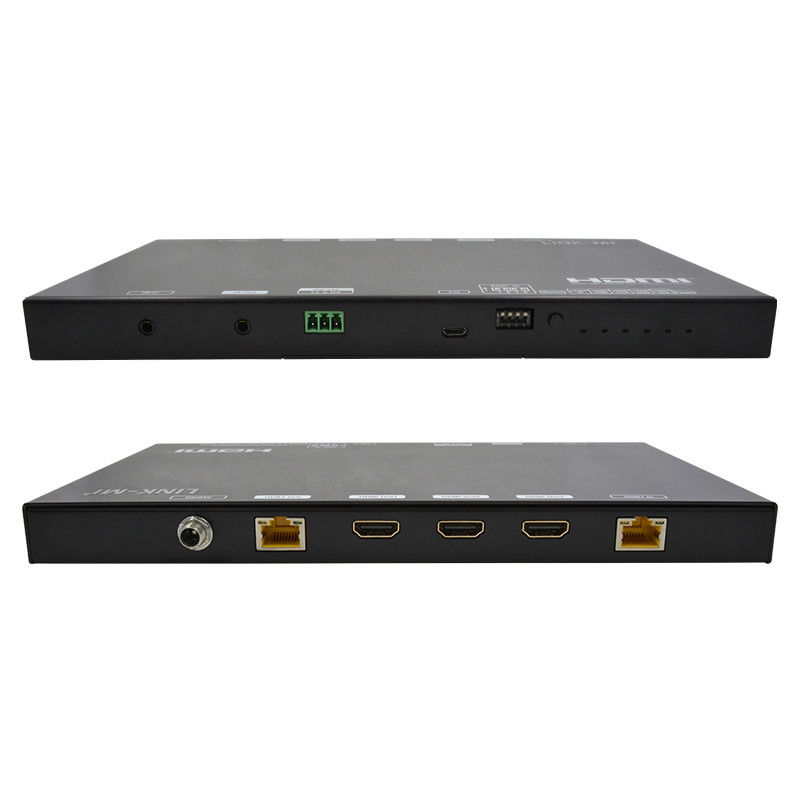

Panel Description
FAQ
Q1: Are you a factory or trading company?
A1: As a professional manufacturer, we supply HDMI related products more than 10 years in China.
Q2: Why should we choose you?
A2: We can offer products with factory price, good quality, best service and long warranty.
Q3: How about your product service?
A3: We can offer OEM and ODM, print your brand, your design on the product based on your order quantity.
Q4: How about the payment terms?
A4: We accept bank transfer, western union, money gram, paypal, Bank of China or cash as payments.
Q5: How do you ship the package?
A5: DHL, Fedex, EMS, by air, by sea...etc.
Q6: What kinds of warranty do you offer?
A6: Our excellent after-sale service team will provide you technical support online. We offer one year warranty for our products.
Q7: How could I buy the products I need if there is no price on the website?
A7: You can send us your inquiry about the products you need. Our sales will reply you within 24 hours to help you make the order.
User Manual:
LM-EX58 70M HDBaseT Transceiver Repeater.pdf
