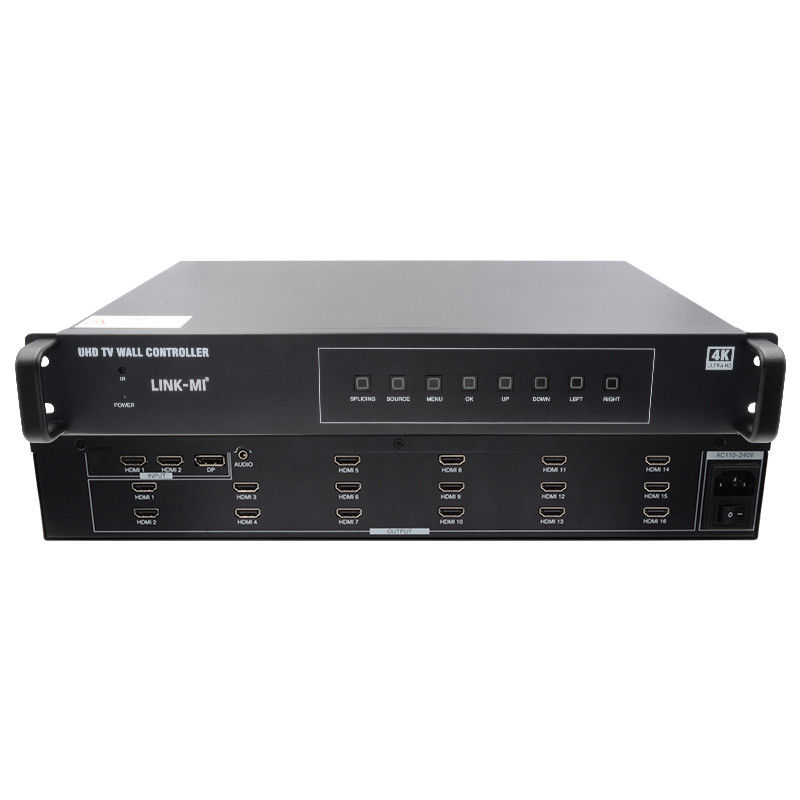

4K 4X4 HDMI Video Wall Controller with 16 HDMI Outputs Image Rotation Video Wall Processor for 16 TVs
Introduction
LINK-MI LM-TV16P video wall controller is designed to distribute video signal to multiple display units (like LCD TV, Ultra Narrow Edge LCD Screen, Projector...etc) for splicing display. It comes with HDMI 1.4, HDMI 2.0 and DP 1.2 inputs; 16 HDMI outputs; It supports input resolution up to 3840*2160@60Hz; and each output resolution supports 1920*1080P@60Hz.

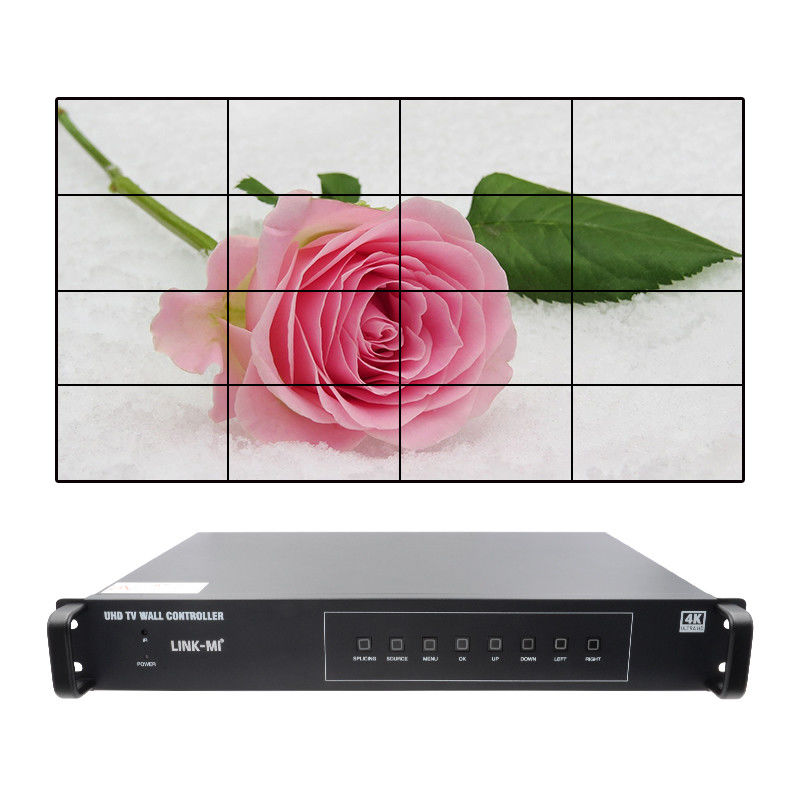

User can choose 1 or multiple input sources to display synchronously. This device supports all splicing modes for 16 TVs, such as 4x4, 3x4, 2x5, 3x3, 2x4, 2x3, 2x2, 1x4...etc. It can be controlled via panel buttons and IR remote.
Features
1. 4x4 video wall controller comes with 1x HDMI 2.0 in, 1x HDMI 1.4 in and 1xDP in; 16x HDMI out.
2. Max resolution up to 4K@60Hz 4:4:4, HDCP 2.2, DP 1.2 max 4K@60Hz.
3. Easy to set-up and control,support control via front buttons and remote.
4. Support image rotation 90°, 180°, 270° and Mirror left and right, flip up and down.
5. Support 3.5mm analog audio out.
6. Support automatically adjust border function and crop image function,Display without black edges.
7. Support roaming window and support input of the splicer can be resize and positioned at any position.
8. Supports intelligent temperature control protection technology, making the product's heat dissipation performance more stable, reliable and durable.
9. Silent smart fan, no noise at work.
Specification
| Model No. |
LINK-MI LM-TV16P |
| Input Signals |
| HDMI 1 |
HDMI 1.4, built-in audio, 640*480 to 3840*2160@30Hz resolution |
| HDMI 2 |
HDMI 2.0, built-in audio, 640*480 to 3840*2160@60Hz resolution |
| DP |
DP 1.2, built-in audio, 640*480 to 3840*2160@60Hz resolution |
|
Output Signals
|
| HDMI Output 1-16 |
16 channels HDMI outputs, each channel supports 1920*1080P@60Hz (Note: HDMI output is NOT with audio, need to connect audio output port) |
| Audio Output |
3.5mm audio output port, left and right channel stereo, sync with video |
| Display Function |
| Splicing Mode |
4x4, 3x4, 2x5, 3x3, 2x4, 2x3, 3x2, 2x2, 1x4, 1x3, 1x2.... support cascade (need more controllers) |
|
Display Mode
|
Display Mode 1P, 2P LR, 2P TB, 4P, PIP
|
| Other Functions |
image cropping; edge adjustment; Mirror; automatic detect signal source; intelligent temperature control... |
| Other |
|
Control Methods
|
Panel buttons, IR remote
|
|
Power Supply
|
AC 110V~240V |
|
Power Consumption
|
35W
|
| Size (L*W*H) |
440mm*320mm*47mm
|
| Weight |
4KG
|
Connection Diagram

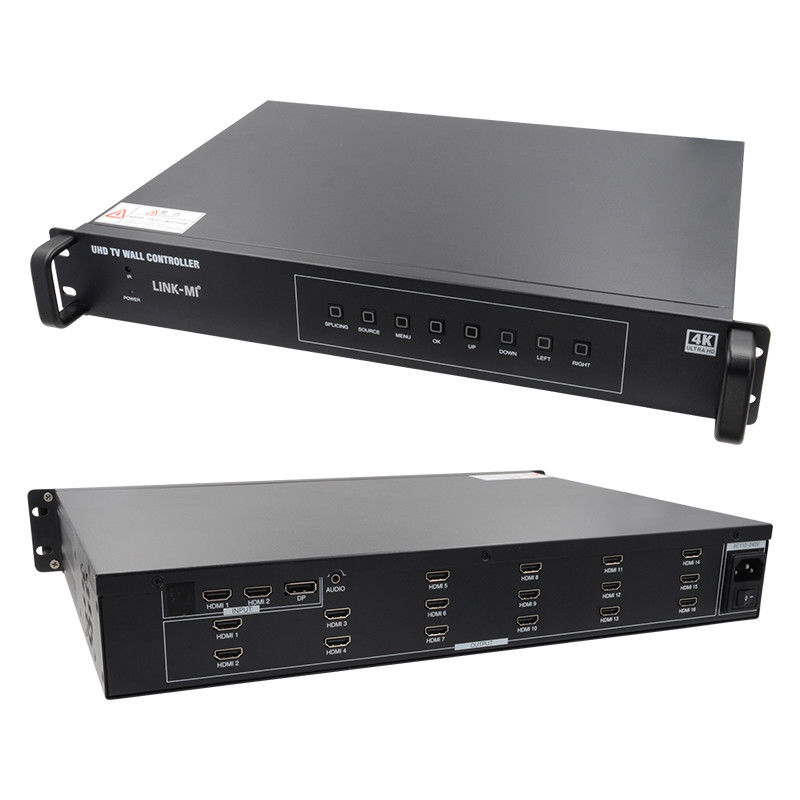

Panel Description
FAQ
Q1: Are you a factory or trading company?
A1: As a professional manufacturer, we supply HDMI related products more than 10 years in China.
Q2: Why should we choose you?
A2: We can offer products with factory price, good quality, best service and long warranty.
Q3: How about your product service?
A3: We can offer OEM and ODM, print your brand, your design on the product based on your order quantity.
Q4: How about the payment terms?
A4: We accept bank transfer, western union, money gram, paypal, Bank of China or cash as payments.
Q5: How do you ship the package?
A5: DHL, Fedex, EMS, by air, by sea...etc.
Q6: What kinds of warranty do you offer?
A6: Our excellent after-sale service team will provide you technical support online. We offer one year warranty for our products.
Q7: How could I buy the products I need if there is no price on the website?
A7: You can send us your inquiry about the products you need. Our sales will reply you within 24 hours to help you make the order.
User Manual:
LM-TV16P 4K60Hz 4x4 Video Wall Controller.pdf
