1X4 1X3 1X2 2X1 3X1 4X1 UHD TV Wall Processor for Max. 3840x2160 60Hz Input Resolution

4K 60Hz 2X2 Video Wall Controller HDMI 2.0, USB 2.0 Support 1X4 1X3 1X2 2X1 3X1 4X1 UHD TV Wall Processor

Introduction

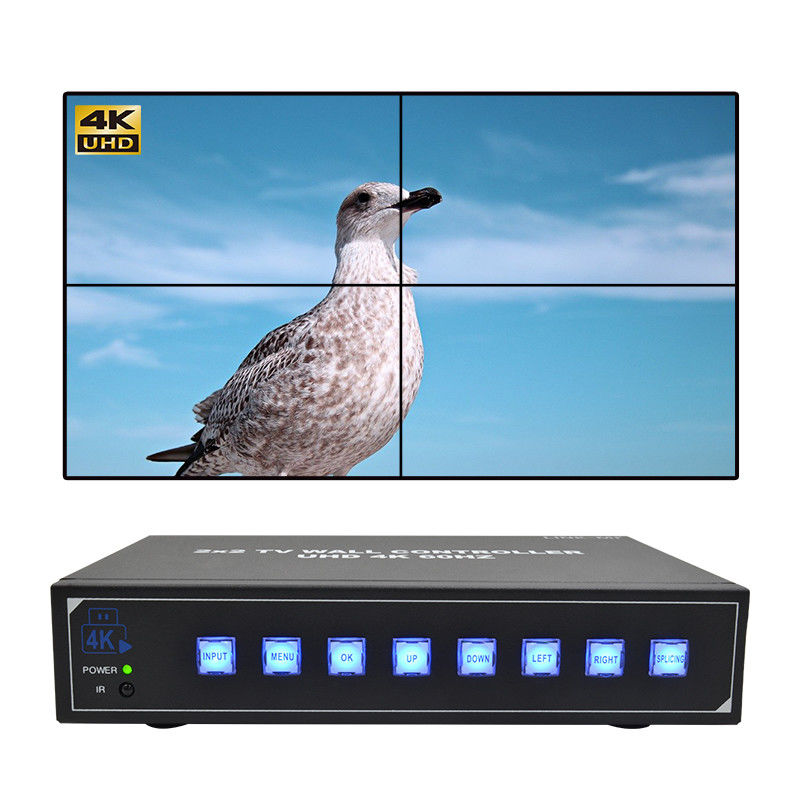

LINK-MI LM-TV04U 2x2 Video Wall Controller is used for 4 Ultra HD Splicing TVs. It supports max input resolution up to 4K@60Hz. It can play videos and pictures on USB 2.0, and also music and text.

This device comes with 3 inputs (2x HDMI 2.0, 1x USB 2.0) and 4 HDMI outputs. Any one of the 3 inputs can be switched to 4 screens for splicing display. It supports multiple splicing modes such as 1x1, 1x2, 1x3, 1x4, 2x1, 2x2, 3x1, 4x1.

It is plug & play and doesn’t require any software. It can work 24/7. It is widely used in commercial display scenarios in government and enterprise, conference rooms, hotel design, medical, education and other industries.

The fully-new remote comes with more user-friendly design. It's very easy and convenient for user to quick set and switch the splicing modes by One-Key using the remote.

Features

1. Support input resolution max 4K@60Hz, YUV 4:4:4, HDCP 2.2, realize real 4K UHD display.
2. Support multiple video wall modes like 1x1, 1x2, 1x3, 1x4, 2x1, 2x2, 3x1, 4x1.
3. Support 2x HDMI 2.0 and 1x USB 2.0 inputs. Any one of the 3 input signals can be switched to 4 TVs for splicing display.
4. Support 4x HDMI outputs, built-in audio.
5. Support 3.5mm analog audio out and SPDIF optical audio out.
6. Support IR extension for 10m long distance remote control.
7. Support USB disk access and USB auto display.
8. Support USB play of videos (up to 3840x2160), pictures (up to 4096x2160), music and text.
9. Each output supports 180 degrees rotation for TV upside down installation.
10. Support bezel adjustment function.
11. USB video and HDMI signal supports image cropping function, display without black edges.
12. No software is required, plug and play. Easy to set up and control, control via front buttons and remote.
13. Fully new remote comes with One-Key Quick Setup function (e.g. splicing modes, 180 degree rotation, factory reset)
14. Support intelligent temperature control protection technology, which enhances the heat dissipation performance of products to be more stable, reliable, and durable.
15. With intelligent fan, which can be set to automatic, on or off in the menu.
16. With button lights on the front panel, it's easy to operate in the dark. And it can be turned on or off in the menu.

Specification

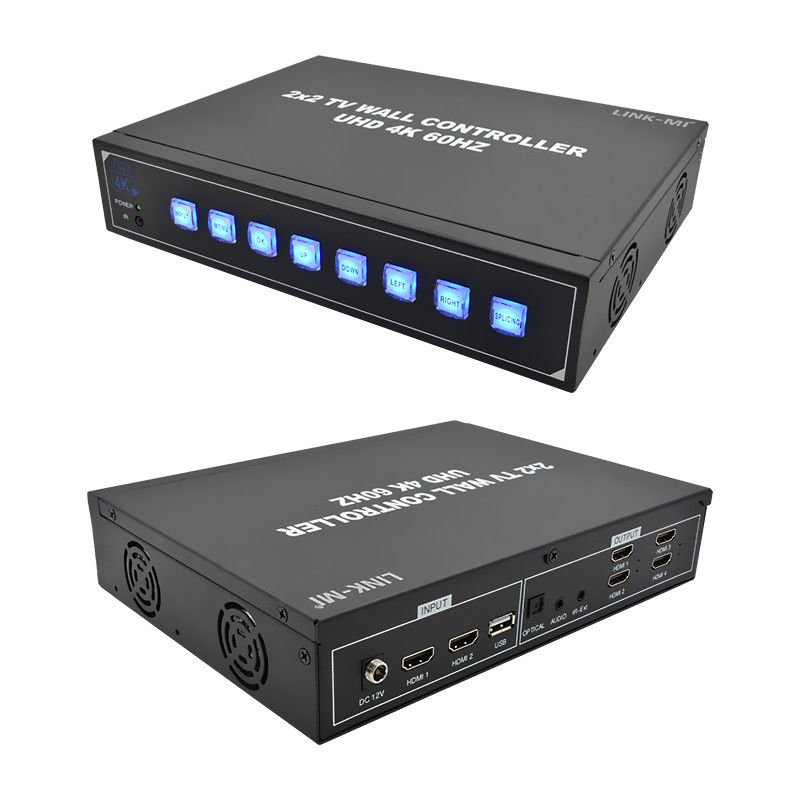

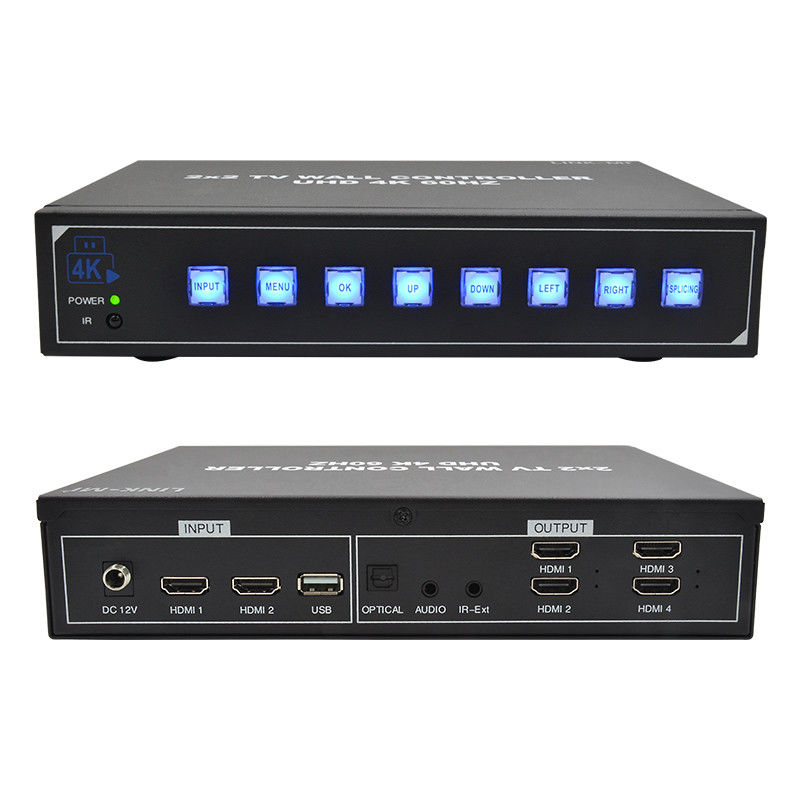

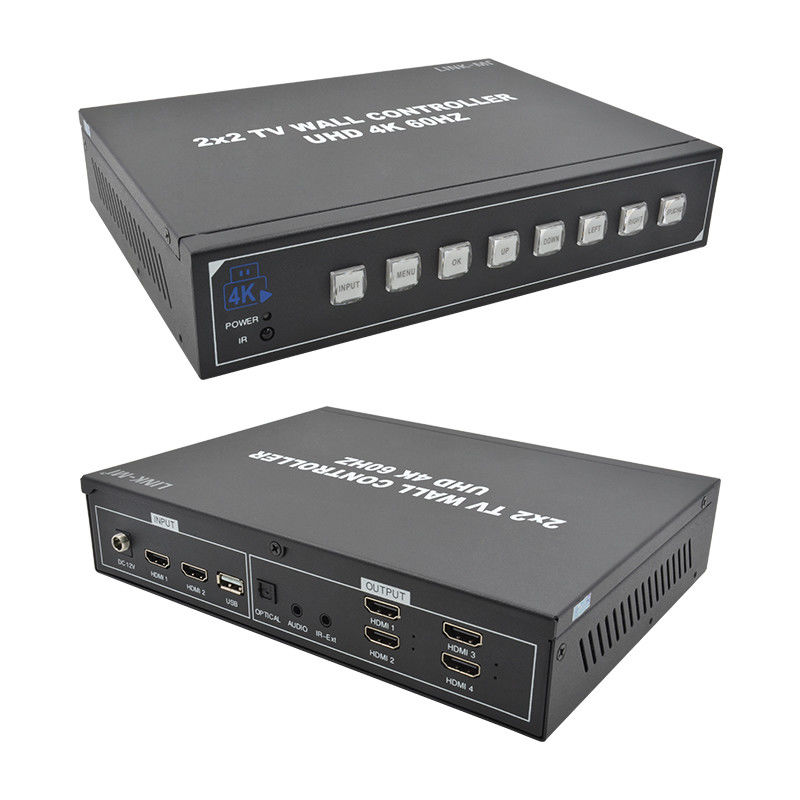

Panel Description

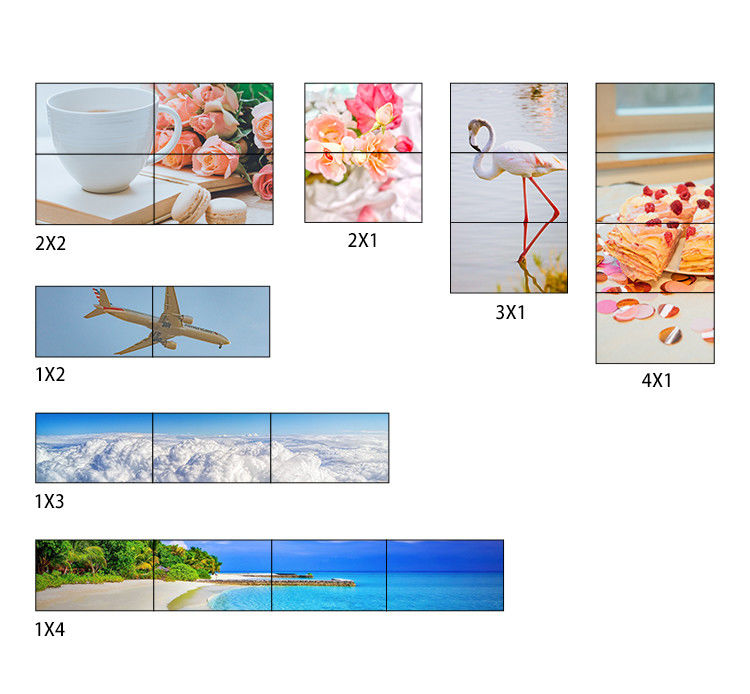

Video Wall Modes
