Product Description:

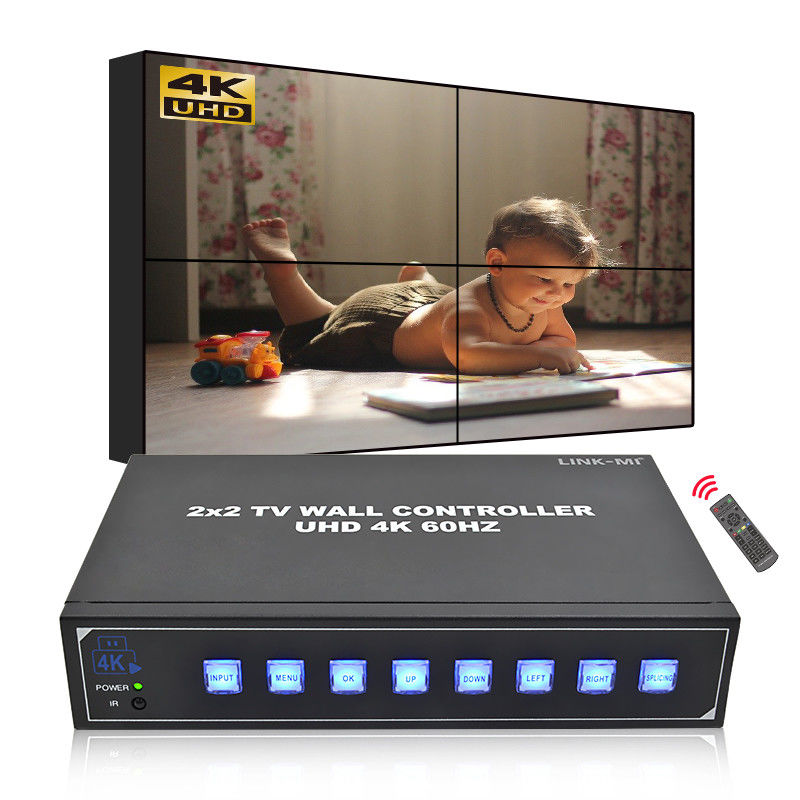

This 2x2 Video Wall Controller is engineered for 4 Ultra HD Splicing TVs. It supports input resolutions up to 4K@60Hz and can display videos, pictures, music, and text via USB 2.0.
The device features 3 inputs (2 HDMI 2.0, 1 USB 2.0) and 4 HDMI outputs. Any of the 3 inputs can be switched to 4 screens for splicing display, supporting modes like 1x1, 1x2, 1x3, 1x4, 2x1, 2x2, 3x1, and 4x1.
This plug & play device requires no software and can run 24/7. It is widely used in commercial display scenarios such as government and enterprise, conference rooms, hotel design, medical, education, and more.

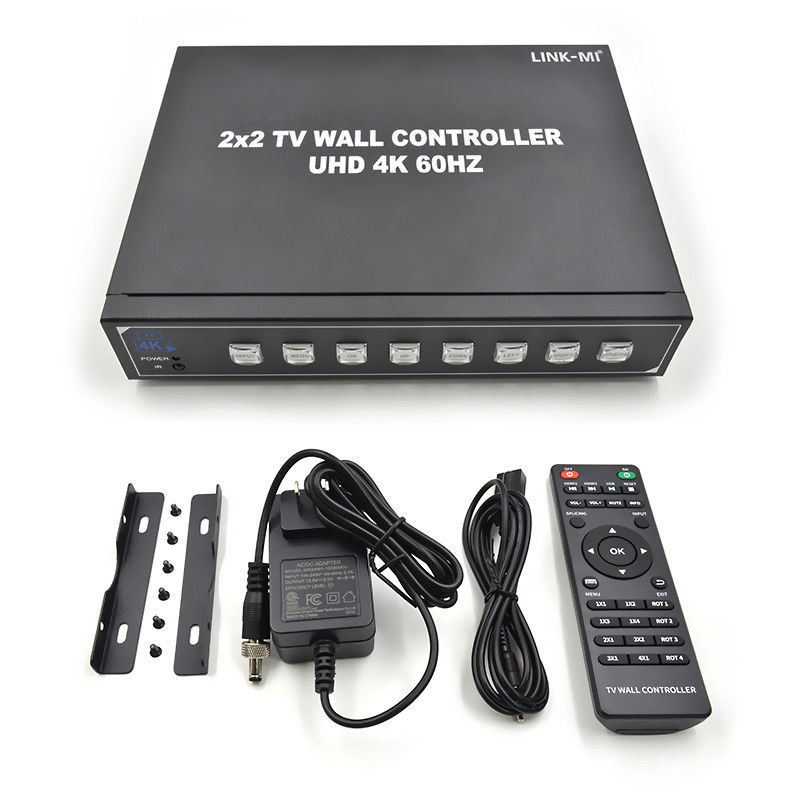

The newly redesigned remote control is more user-friendly, allowing for easy and quick splicing mode setting with a single key press.
Features:
- Product Name: 4K Video Wall Controller
- 180 Degrees Rotation: Yes
- Video Format Supported: 640×480 To 3840×2160@60Hz
- Net Weight: 1.1KG
- Video Wall Modes: 2x2, 1x1, 1x2, 1x3, 1x4, 2x1, 3x1, 4x1
- Power Supply: DC 12V 2A
Technical Parameters:
| Product Name: |
Control Room Video Wall |
| Model: |
LM-TV04U |
| Product Type: |
4K Video Wall Processor |
| Weight: |
1.1KG |
| Dimensions: |
230mm(L)x172mm(W)x47mm(H) |
| HDCP Compliant: |
HDCP 2.2 |
| Power Supply: |
DC 12V 2A |
| HDMI Input: |
2 X HDMI In |
| Input Signal: |
2 HDMI, 1 USB |
| Supported Audio Format: |
3.5mm Analog Audio, SPDIF Optical Audio |
| Video Wall Modes: |
2x2, 1x1, 1x2, 1x3, 1x4, 2x1, 3x1, 4x1 |
| 180 Degrees Rotation: |
Yes |
| Product Use: |
4K Video Wall Display |
Connection Diagram

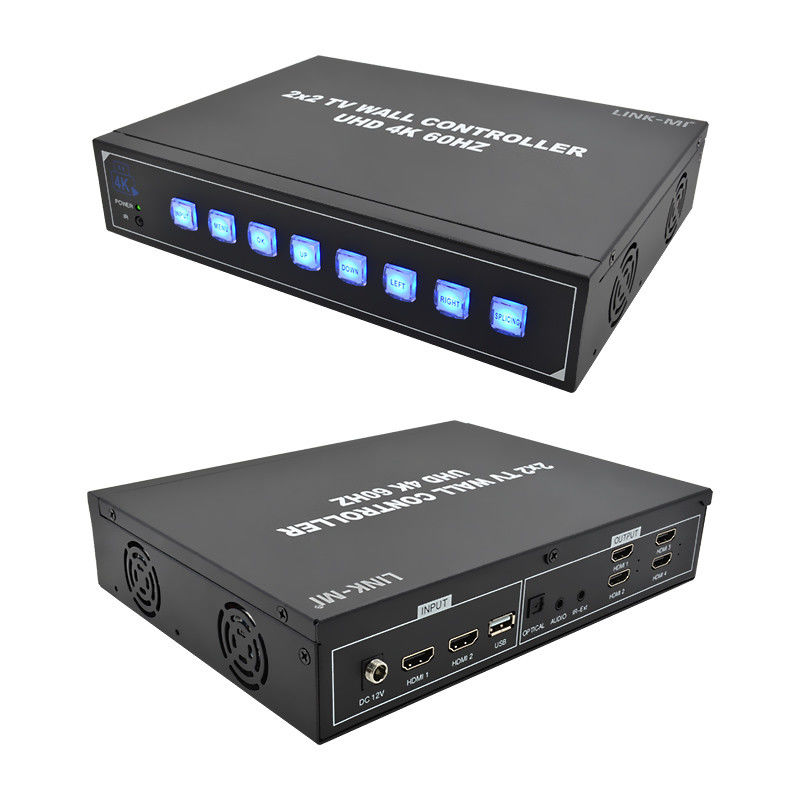

Panel Description
Applications:
The LM-TV04U is an excellent 4K Video Wall Processor product that can be used in various occasions and scenarios. It is suitable for the following applications:
- Surveillance Rooms: The LM-TV04U can be used to display multiple video signals from surveillance cameras on a single 4K video wall. This feature can help security personnel monitor multiple camera feeds simultaneously.
- Control Rooms: The LM-TV04U can be used to display multiple signals from multiple sources on a single 4K video wall, which can help control room operators manage and monitor various systems and processes effectively.
- Conference Rooms: The LM-TV04U can be used to display multiple presentations or videos on a single 4K video wall, which can enhance the overall viewing experience of the audience.
- Entertainment Venues: The LM-TV04U can be used to display multiple video feeds on a single 4K video wall, which can enhance the overall entertainment experience of the audience.
- Transportation Hubs: The LM-TV04U can be used to display multiple video feeds simultaneously, such as flight information, security camera footage, and news updates, which can help passengers stay informed and entertained.
The LM-TV04U supports two HDMI inputs and one USB input, which makes it a versatile product. It also supports various audio formats, including 3.5mm Analog Audio and SPDIF Optical Audio. The net weight of the product is 1.1KG, which makes it a lightweight and portable device.
In conclusion, the LINK-MI LM-TV04U 4K Video Wall Controller is an excellent product that can be used in various applications and scenarios, such as surveillance rooms, control rooms, conference rooms, entertainment venues, and transportation hubs. It is a versatile and energy-efficient device that supports multiple inputs and audio formats.

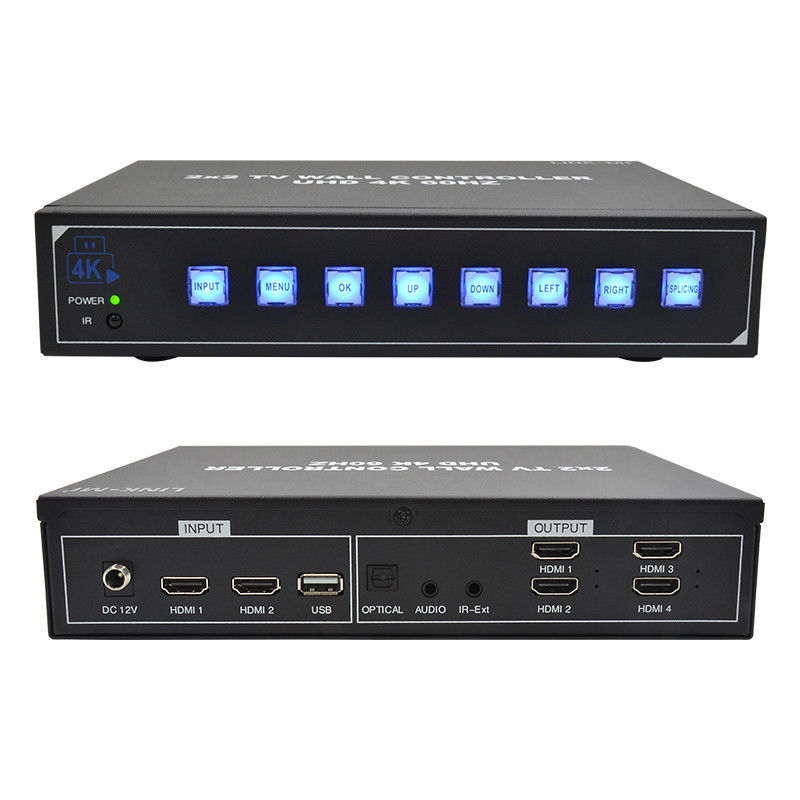

Buttons and Interfaces:
Video Wall Mode:
