8x8 HDMI Matrix with Analog Audio Extraction Support 4K@60hz 18Gbps HDR
Introduction

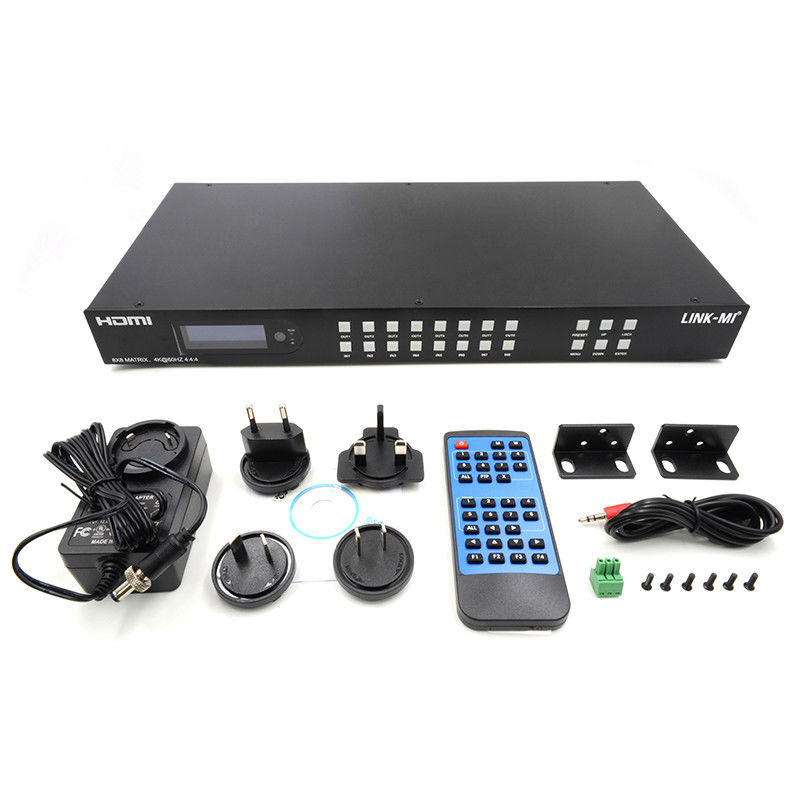

LINK-MI LM-MX21 This 8x8 4K HDMI Matrix supports the transmission of video (resolutions up to 4K2K@60Hz, HDCP 2.2, HDMI2.0) and multi- channel digital audio from 8 HDMI sources to 8 HDMI outputs and 8 SPDIF Output. This matrix supports high resolution digital audio formats such as Dolby TrueHD and DTS-HD Master Audio as well as 3D video content. In addition, this matrix also allow Analog audio embed and extract from 8 Analog audio inputs and 8 Analog audio outputs.
Features
1. HDMI 2.0 version (Support 4K@60Hz YUV4:4:4)
2. Support 3D
3. Bandwidth upto 18Gbps
4. HDCP1.4/2.2 compliant
5. Support HDR10, HLG, Dolby Vision
6. 8xHDMI Input, 8xHDMI output
7. 8xAnalog audio input and 8xAnalog audio output, and 8xS/PDIF audio output
8. Support Analog audio embedded and HDMI audio extraction
9. Any one of the 8 Ultra HD sources to any one of the 8 Ultra HD displays
10. Support LPCM2.0-5.1/16-24BIT/32-192KHZ, Dolby Atmos and DTS-X
11. RS232 interface for user to upgrade firmware
12. Controllable via front-panel buttons, IR remote, RS232, IP , Web GUI
13. The Ethernet port supports Telnet, UDP, HTTP, and TCP/IP
14. Support EDID management, CEC and ARC
Specification
| Model No. |
LM-MX21 |
| Bandwidth |
18 Gbps |
| Resolution |
480p@60hz,576P@50hz,720P@60hz, 1080P@24hz,1080P@50hz,1080P@60hz,4K@24hz,4K@30hz, 4K@60hz YUV4:2:0, 4K@ 60hz YUV4:4:4 |
| Video Input Connectors |
8xHDMI Type A, 19-pin,female |
| Video Output Connectors |
8xHDMI Type A, 19-pin,female |
| Audio Input Connectors |
8xAnalog audio, 3.5mm, female |
| Audio Output Connectors |
8xAnalog audio, 3.5mm, female, 8x SPDIF Coaxial, female |
| RS-232 serial port |
DB9, female |
| Ethernet port (IP control) |
RJ45, female |
| IR Ext port |
1x3.5mm stereo jack |
| Power consumption |
28W(Max) |
| Dimensions(WxHxD) |
L482.4 XW 220 XH44 mm |
| Net Weight |
2.8kg |
| Operating Temperature |
32°F to 104°F (0°C to 40°C) |
| Storage Temperature 1 |
4°F to 140°F (- 10°C to 60°C) |
| Note: Specifications are subject to change without notice |
Connection Diagram

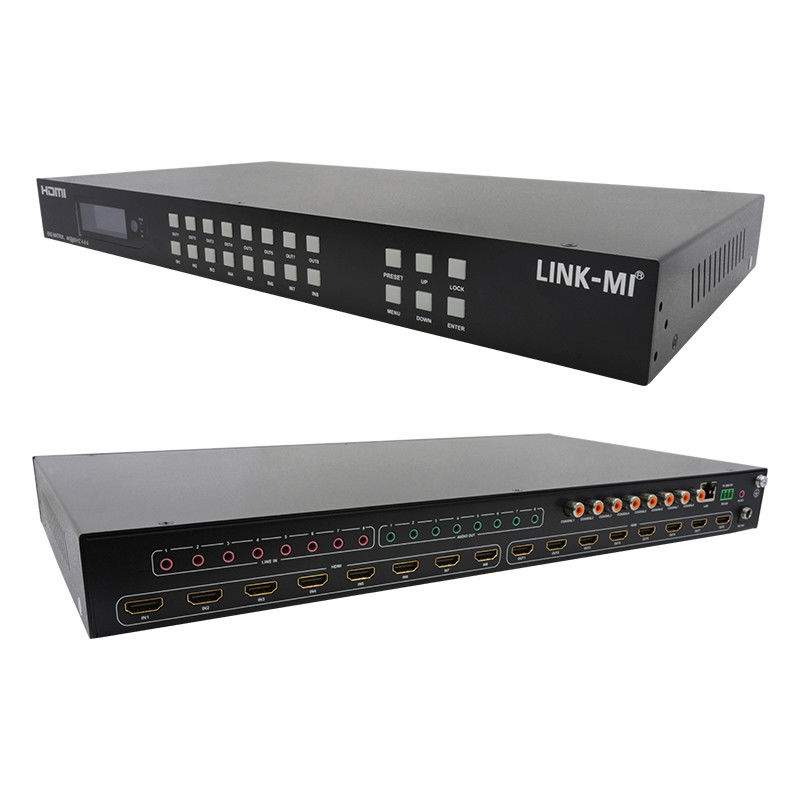

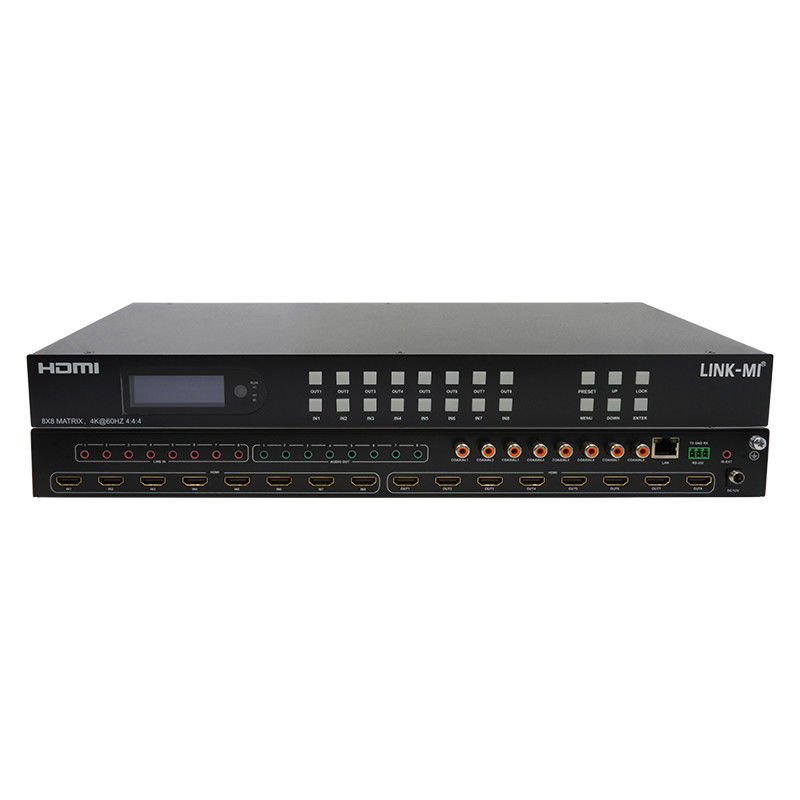

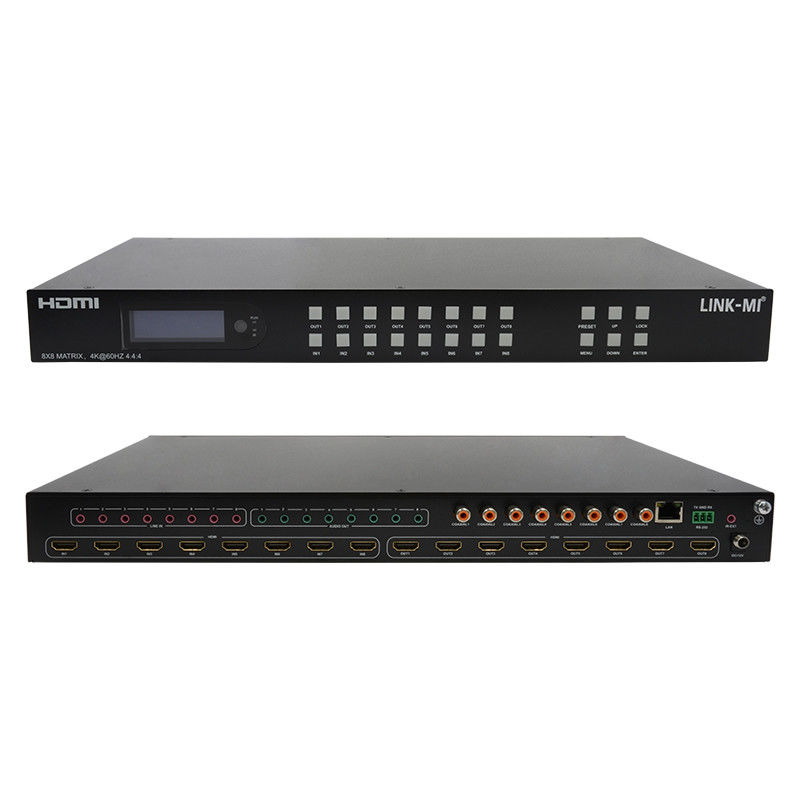

Panel Description
FAQ
