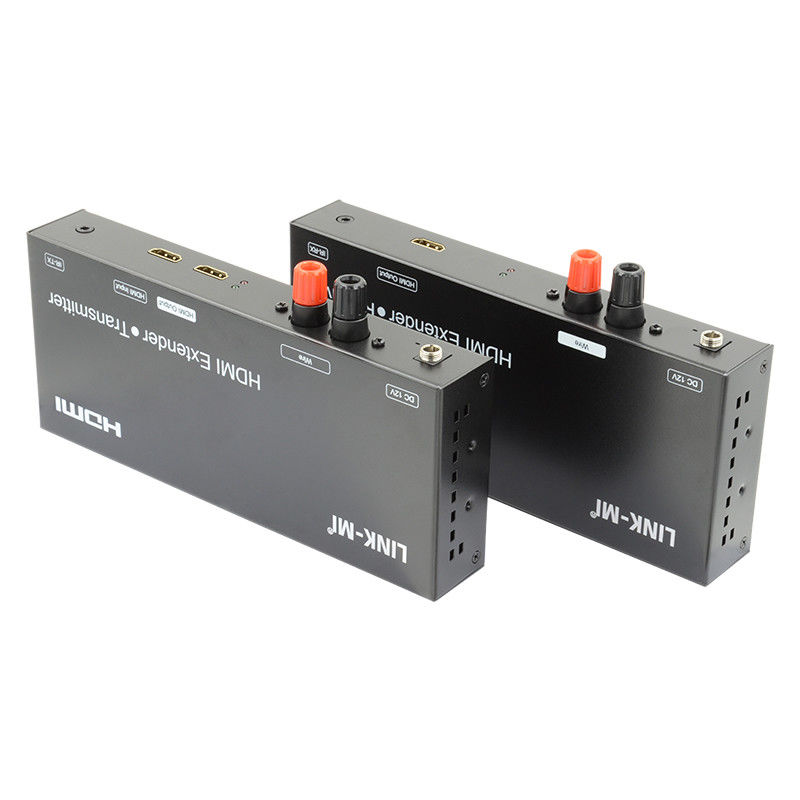

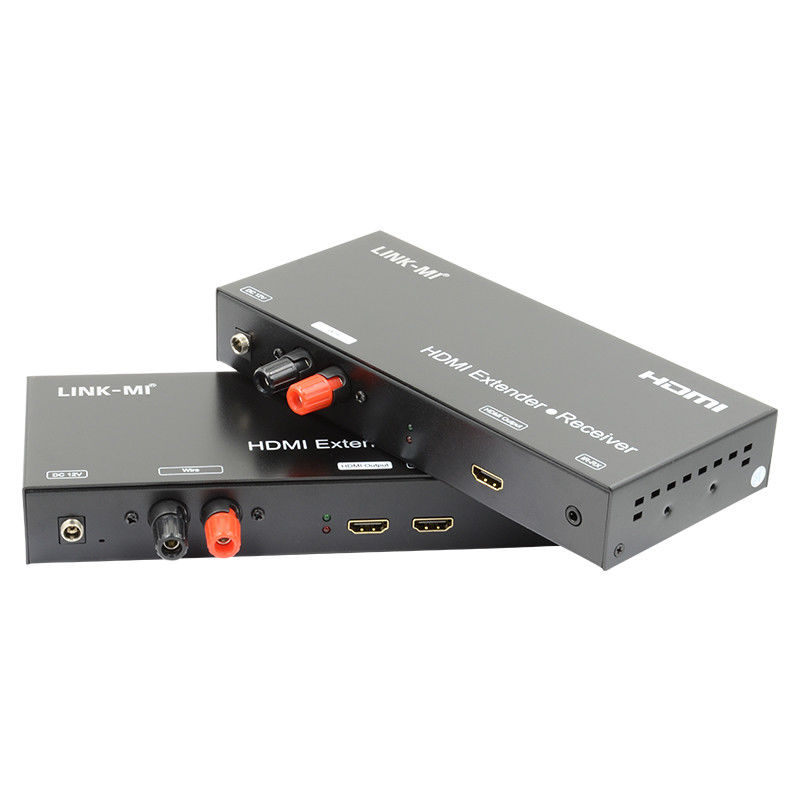

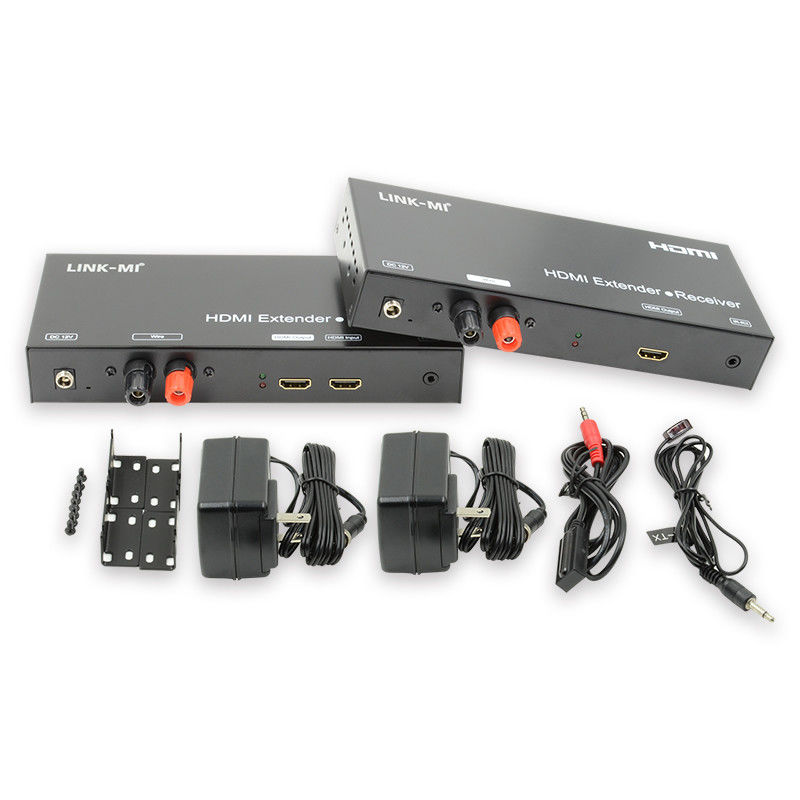

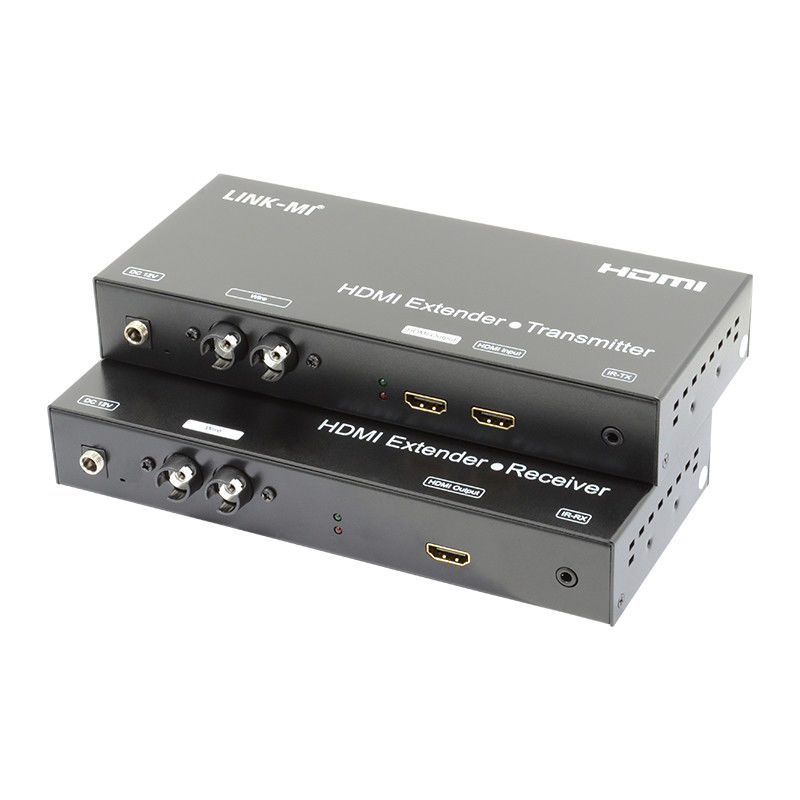

1080P HDMI Extender over Any Cable up to 600M AV over Cat5e/6 Cable with loop out
Introduction
LINK-MI LM-EX41 is a HDMI Extender Over any cables such as Twisted cable, telephone cable, Cat5e/6/7 cable etc. Its transmission distance reaches up to 600M. It supports multi-level cascasding.
Features
1. HDMI over 2-conductor cable (Such as Twisted cable, telephone cable, Cat5e/6/7 cable etc)
2. With 1x Loop HDMI output at transmitter
3. Transmission more than 600m
4. Support Multi-level cascading
5. HDMI Resolution up to 1080p
6. HDCP1.4 compliant
7. IR pass-through control
8. Power Supply DC12V
Specification
|
Operating Temperature Range
|
-10 to +50℃(+14 to +122℉)
|
|
Operating Humidity Range
|
10 to 90%RH (No Condensation)
|
|
Support Audio Format
|
LPCM audio format
|
|
Transmission Distance
|
600m 2-Conductor cable(Recommend to use 12AWG-19AWG cable)
|
|
Support Video Format
|
DTV/HDTV:480i/ 480P/576i/576P/720P/1080i/1080P
VESA: 800x600, 1024x768, 1280x768,1280x960,1280x1024,
1680x1050,1920x1080, 1280x720, 1360x768,1400x1050,1280x1024.
|
|
Connector on Transmitter
|
1x HDMI Input, 1x HDMI Looing output
1x3.5mm jack for IR-TX
1x Red Terminal Post, 1x Black Terminal Post
DC 5.5 x2.1mm Jack
|
|
Connector on Receiver
|
1x Red Terminal Post, 1x Black Terminal Post
1x HDMI Output, 3.5mm
1x3.5mm jack for IR-RX
DC 5.5 x2.1mm Jack
|
|
Power consumption
|
Transmitter: 6.5watts(Maximum),Receiver:5.5watts (Maximum)
|
|
Dimension (L×W×H)
|
L206.2xW110xH33mm
|
|
IR frequency
|
38K-56KHZ
|
|
Net Weight
|
Transmitter: 545g Receiver: 548g
|
| Note: Specifications are subject to change without notice |
Connection Diagram

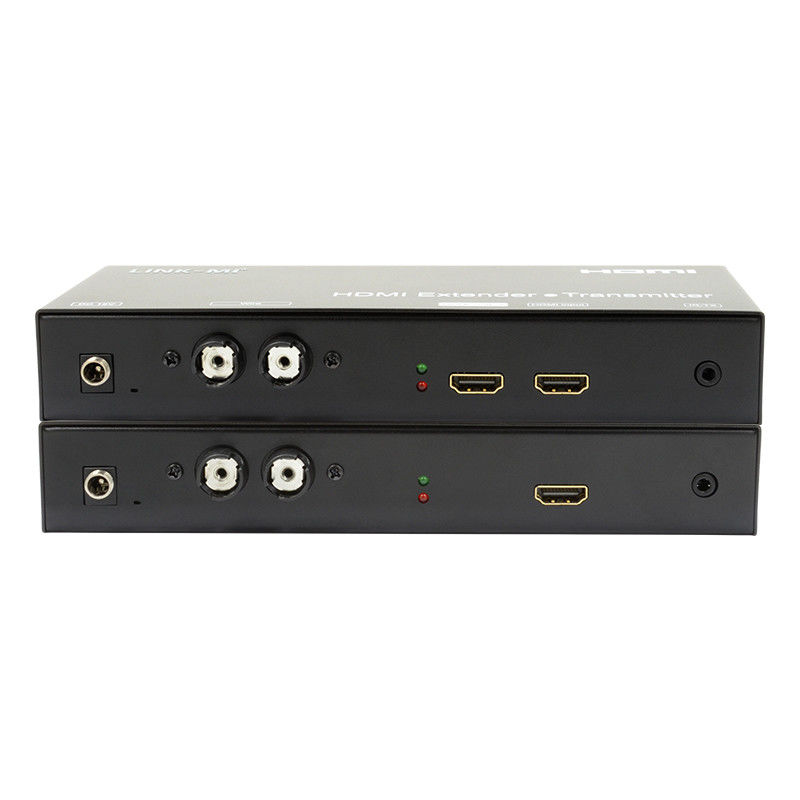

Panel Description
FAQ
Q1: Are you a factory or trading company?
A1: As a professional manufacturer, we supply HDMI related products more than 10 years in China.
Q2: Why should we choose you?
A2: We can offer products with factory price, good quality, best service and long warranty.
Q3: How about your product service?
A3: We can offer OEM and ODM, print your brand, your design on the product based on your order quantity.
Q4: How about the payment terms?
A4: We accept bank transfer, western union, money gram, paypal, Bank of China or cash as payments.
Q5: How do you ship the package?
A5: DHL, Fedex, EMS, by air, by sea...etc.
Q6: What kinds of warranty do you offer?
A6: Our excellent after-sale service team will provide you technical support online. We offer one year warranty for our products.
Q7: How could I buy the products I need if there is no price on the website?
A7: You can send us your inquiry about the products you need. Our sales will reply you within 24 hours to help you make the order.
User Manual:
LM-EX41 600m HDMI Extender.pdf
