70M 4K HDMI Extender with Loop Out Support HDR10 Dual POC SPDIF Audio Extraction
Introduction

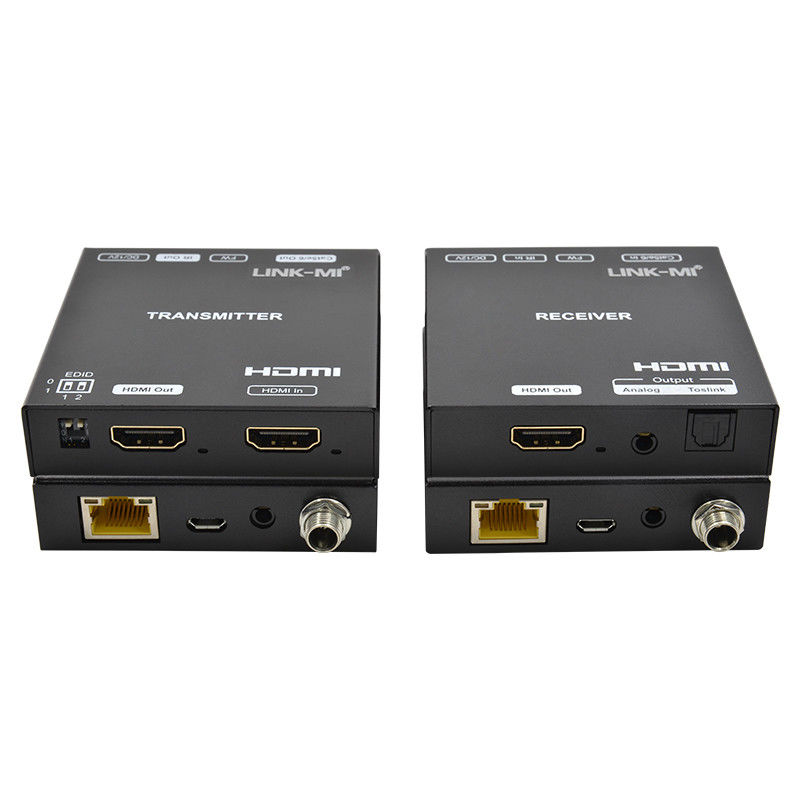

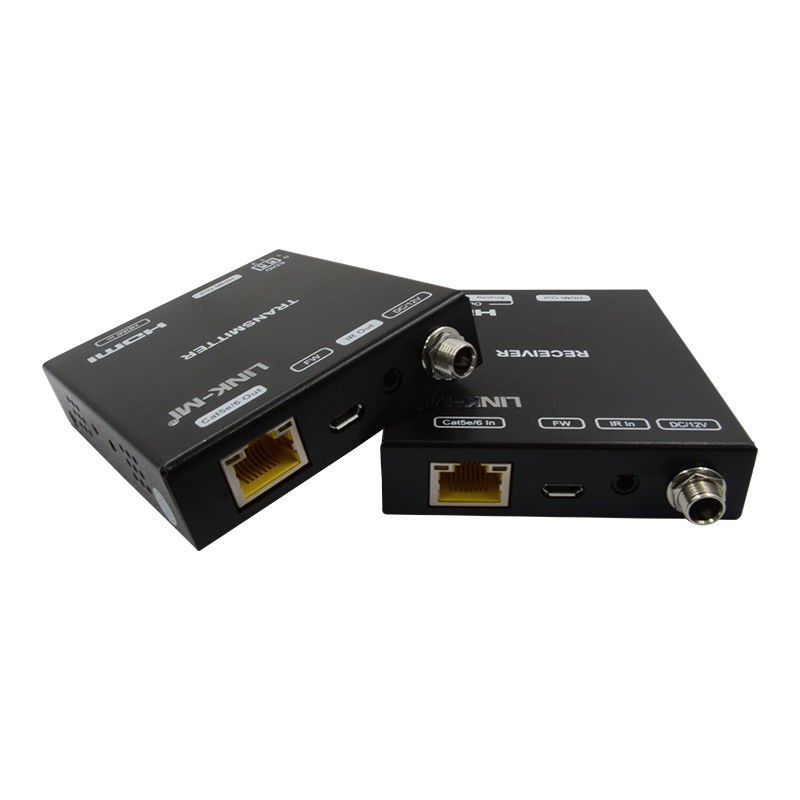

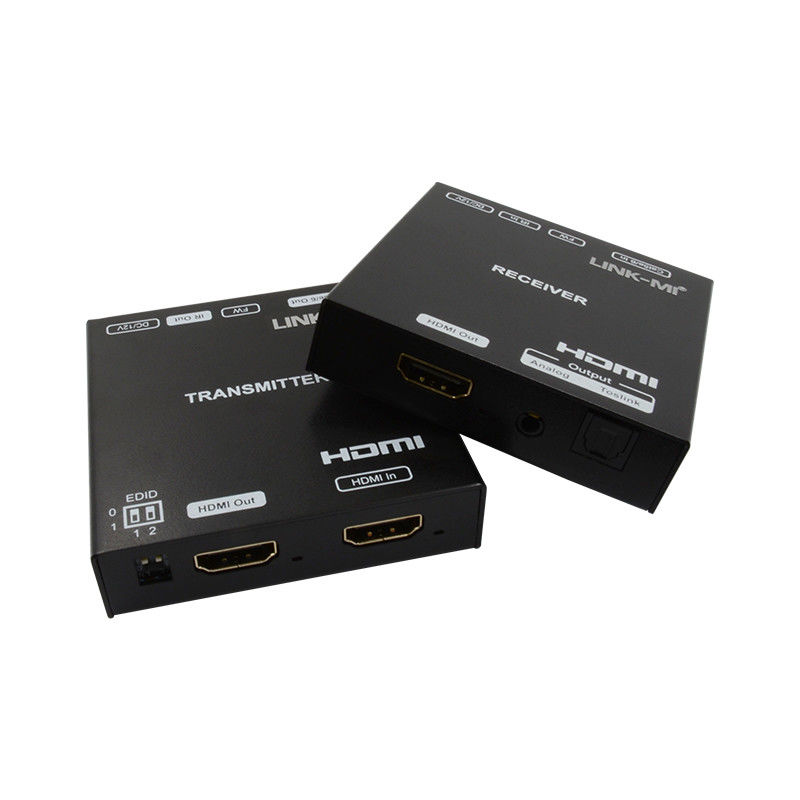

LINK-MI LM-EX63 The 4K@60Hz HDMI extenders, with 1 HDMI loop out, transmit over 70-90m via CAT5e/6 single cable. It supports audio extraction, wide band IR pass throught and EDID management.
Features
1. Transmit from 1m to 60KM.
2. Support resolution up to Ultra HD 4kx2k@60hz, YUV4:2:0.
3. Support bandwidth up to 10.2Gbps.
4. Support Single /Multi mode, Single /Duplex fiber (Optional).
5. Support HDCP2.2 input, HDCP 1.4 output.
6. Support HDCP1.4 input, HDCP1.4 output.
7. With Automatic EDID for rapid integration of source and display.
8. Support LPCM 7.1, Dolby True HD, DTS-HD Master Audio .
9. Locking power supplies.
10. Surface-mountable.
Specification
|
Operating Temperature Range
|
-5 to +40℃(+23 to +104℉)
|
|
Operating Humidity Range
|
5 to 90%RH (No Condensation)
|
|
Connectors on Transmitter
|
HDMI Receptacle x 2 (1xHDMI input, 1xHDMI loop output)
Power DC Receptacle x 1
IR Receptacle x 1(for IR TX )
|
|
Connectors on Receiver
|
HDMI Receptacle x 1
IR Receptacle x 1(for RX cable)
|
|
Resolution outputs
|
4k@60hzYUV4:4:4/ 4k@30HZ/1080p/1080i/720p/576p/480p
|
|
Audio format supported
|
DTS-HD Master Audio, Dolby True HD, LPCM7.1, PCM etc.
|
|
Output Video Signal
|
HDMI
|
|
Dimension (L×W×H)
|
TX: L75.8mm×W72.2mm × H18mm; RX: L75.8mm × W72.2mm × H18mm
|
|
Power supply
|
DC 12V1A Power supply
|
|
Power consumption
|
3.8W(MAX)
|
|
Transmission Distance
|
up to 70m under 4K@60Hz YUV4:4:4, 90m under 4K@30Hz/1080P
|
|
Net Weight
|
TX: 305g; RX:305g
|
| Note: Specifications are subject to change without notice |
Connection Diagram
Panel Description
FAQ
Q1: Are you a factory or trading company?
A1: As a professional manufacturer, we supply HDMI related products more than 10 years in China.
Q2: Why should we choose you?
A2: We can offer products with factory price, good quality, best service and long warranty.
Q3: How about your product service?
A3: We can offer OEM and ODM, print your brand, your design on the product based on your order quantity.
Q4: How about the payment terms?
A4: We accept bank transfer, western union, money gram, paypal, Bank of China or cash as payments.
Q5: How do you ship the package?
A5: DHL, Fedex, EMS, by air, by sea...etc.
Q6: What kinds of warranty do you offer?
A6: Our excellent after-sale service team will provide you technical support online. We offer one year warranty for our products.
Q7: How could I buy the products I need if there is no price on the website?
A7: You can send us your inquiry about the products you need. Our sales will reply you within 24 hours to help you make the order.
User Manual:
LM-EX63 70-90M 4K HDMI Extender with Loop Out, Aud...
