9x9 HDMI Matrix 3x3 Video Wall Controller 4K Video Switch Seamless Switching 9X1 Multi viewer
Introduction

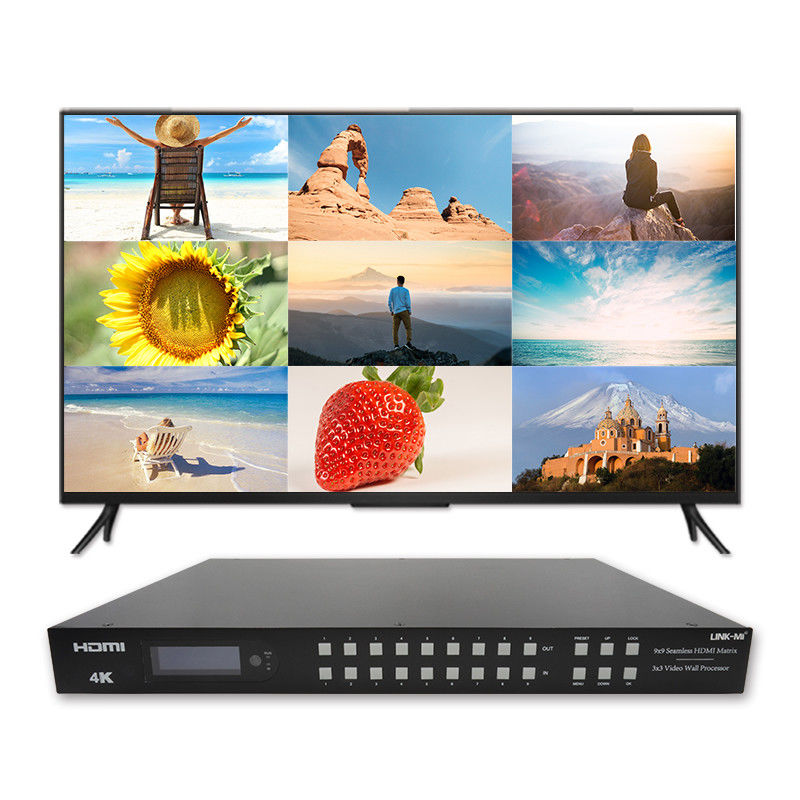

LINK-MI LM-TVM99B is a fully new multifunctional video processor, which comes with 3 functions. It's not only a 4K Seamless 9x9 HDMI Matrix, but also a 3x3 video wall controller / 9x1 multi-viewer. It's with 9 seamless switching outputs and 9 mixed inputs, with 1 HDMI loop out. Any one of 9 input sources can be displayed to any one of 9 outputs.
The Matrix offers solutions for digital entertainment center, HDTV retail and show site, HDTV, STB, DVD and projector factory, noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.
Features
1. 9xHDMI input; 9xHDMI output max resolution up to HDMI 1.4v 4K30Hz
2. Support video signal seamless switching; Video wall; Multi-Viewer; Preset setting, etc
3. Support Balanced Audio Extraction
4. Support Panel Button, IR, TCP/IP control, RS232 Commands control
5. With Built-in EDID (4K30Hz, 1080P, 4K60hz Beta, User)
6. HDCP 2.2/1.4 compliant
7. Support Micro USB for firmware updating
8. Video wall mode (Max 3x3) support adjust the screen edge
Specification
| Model No. |
LM-TVM99B |
| HDMI Input |
9 x HDMI In |
| HDMI Output |
9 x HDMI Out |
| Audio output |
Analog (Balanced audio) |
| Video Format Supported |
4k@30Hz/1080P/1080i/720P/576P/480P/576i/480i |
| HDCP Compliant |
HDCP2.2 and HDCP1.4 |
| Control way |
Panel button/Remote/TCP/IP/RS232 |
| Audio Format Supported |
PCM, Dolby5.1/7.1, DTS5.1/7.1 digital audio |
| USB |
Firmware update |
| Dimensions |
1U Rack Design L482.6 x W273.7 x H44 mm |
| Mass (Main Unit) |
4 KG |
| Operating Temperature Range |
-5 to +40°C(23 to +104 °F) |
| Storage Temperature Range |
-10 to +60°C(-14 to +140 °F) |
| Operating Humidity Range |
5 to 90 % RH (no condensation) |
| Note: Specifications are subject to change without notice |
Connection Diagram

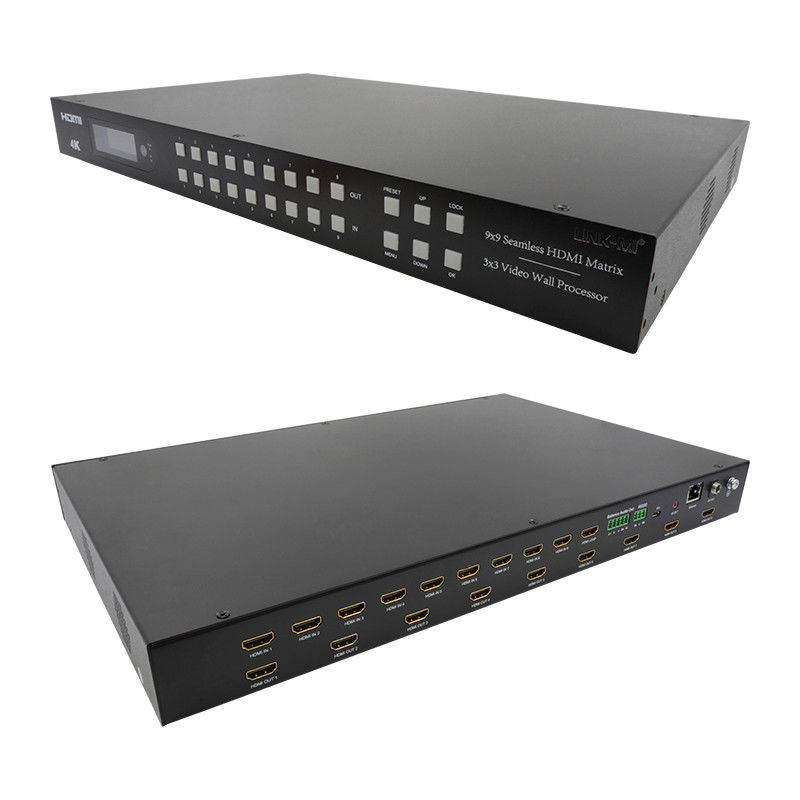

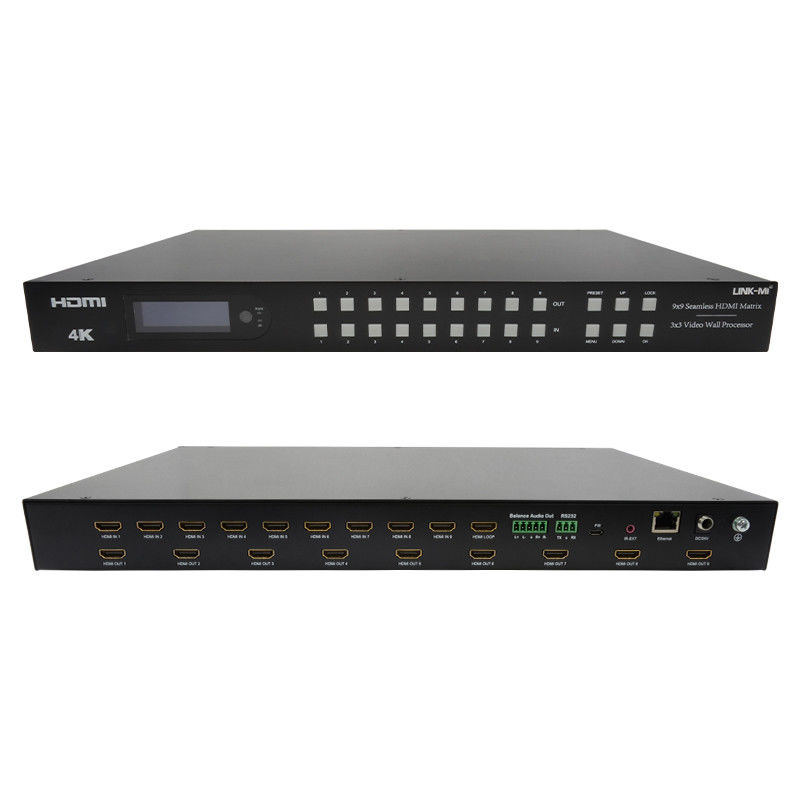

Panel Description
FAQ
Q1: Are you a factory or trading company?
A1: As a professional manufacturer, we supply HDMI related products more than 10 years in China.
Q2: Why should we choose you?
A2: We can offer products with factory price, good quality, best service and long warranty.
Q3: How about your product service?
A3: We can offer OEM and ODM, print your brand, your design on the product based on your order quantity.
Q4: How about the payment terms?
A4: We accept bank transfer, western union, money gram, paypal, Bank of China or cash as payments.
Q5: How do you ship the package?
A5: DHL, Fedex, EMS, by air, by sea...etc.
Q6: What kinds of warranty do you offer?
A6: Our excellent after-sale service team will provide you technical support online. We offer one year warranty for our products.
Q7: How could I buy the products I need if there is no price on the website?
A7: You can send us your inquiry about the products you need. Our sales will reply you within 24 hours to help you make the order.
