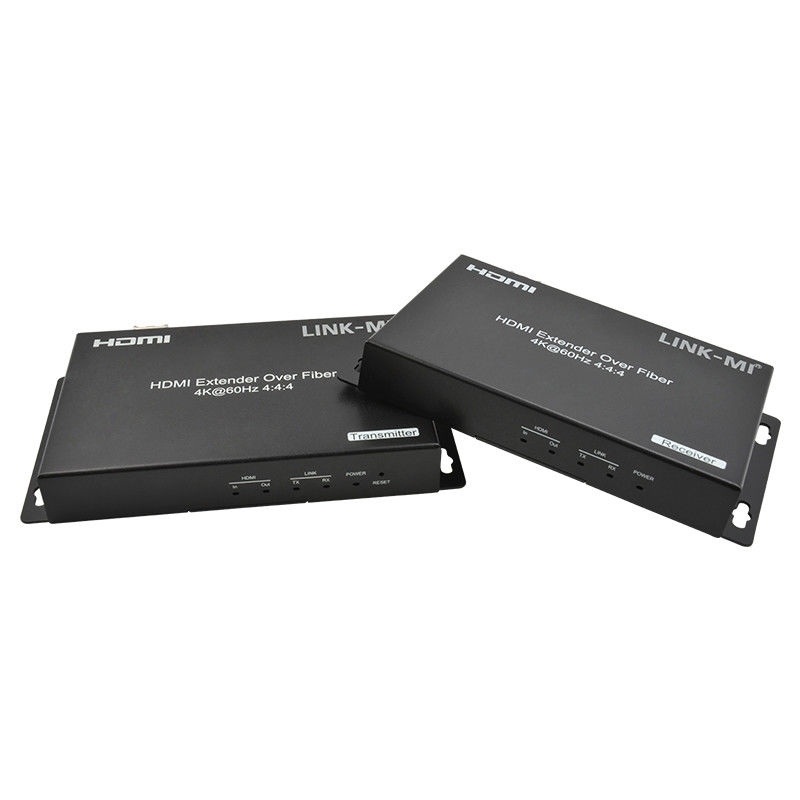

4K HDMI Extender Over Fiber 60KM Ultra HD Video Fiber Extender with EDID
Introduction
LINK-MI LM-EF04 HDMI Extender Over Fiber Support Customization transmit distance up to 60KM. It supports resolution up to 4K@60Hz, EDID and it is without latency.
Features
1. Customize transmit distance up to 60KM over Single mode, (Multi mode upto 300m) fiber module Single /Duplex fiber (Optional) cable.
2. Support resolution upto 4kx2k@60hz, YUV4:4:4 HDR.
3. Support bandwidth upto 18Gbps.
4. Without latency.
5. Support HDCP2.2 input, HDCP2.2 output.
6. Support HDCP1.4 input, HDCP1.4 output.
7. Support RS232 Bi-direction pass through.
8. With Automatic EDID for rapid integration of source and display.
9. Support LPCM 7.1, Dolby True HD, DTS-HD Master Audio.
10. Locking power supplies.
11. Surface-mountable.
Specification
|
Operating Temperature Range
|
-5 to +40℃(+23 to +95℉)
|
|
Operating Humidity Range
|
5 to 90%RH (No Condensation)
|
|
Video Input(Transmitter)
|
1xHDMI Type A, 19-pin, female
|
|
Video Output(Receiver)
|
1xHDMI Type A, 19-pin, female
|
|
Link(Transmitter/ Receiver)
|
1m~60Km single
Multi mode 300m single
Duplex fiber optical cable
|
|
Module type required
|

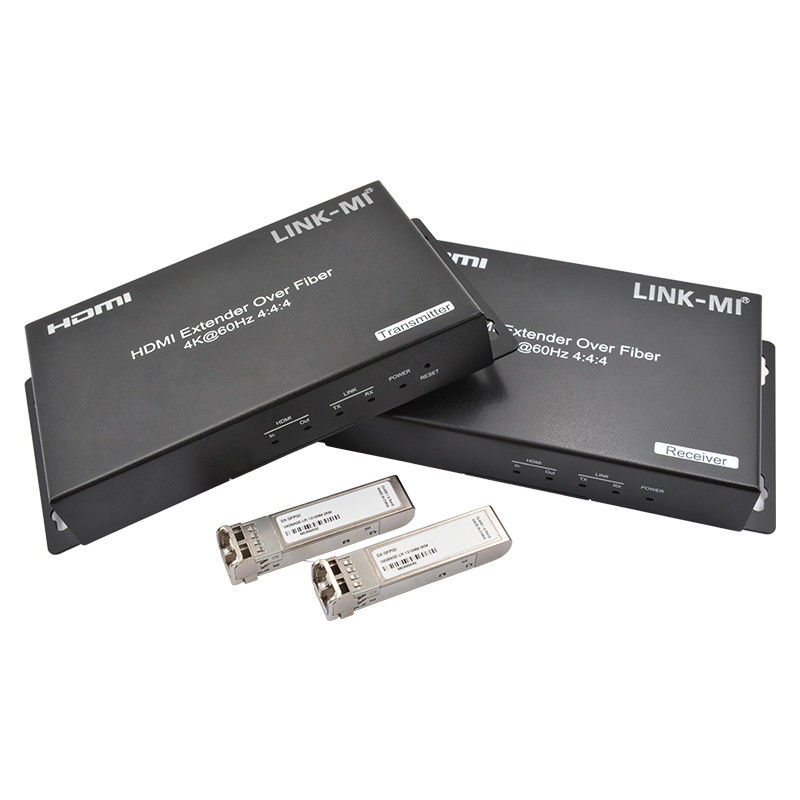

SFP Type, Single / Multi mode ,Single / Duplex fiber (optional)
|
|
Video Format
|
4K@60Hz YUV 4:4:4, 4K@60Hz, 1080P, 720P, 576P, 480P/
VESA Resolution
|
|
Audio Format
|
Support LPCM 7.1, Dolby True HD, DTS-HD Master Audio
|
|
HDCP
|
HDCP 1.4 in, HDCP 1.4 out
HDCP 2.2 in, HDCP 2.2 out
|
|
Power consumption
|
Transmitter: 3watts(Maximum)
Receive: 3watts(Maximum)
|
|
Dimension (L×W×H)
|
Transmitter: 96*100*21mm
Receiver: 96*100*21mm
|
|
Net Weight
|
475g (Pair)
|
| Note: Specifications are subject to change without notice |
Connection Diagram

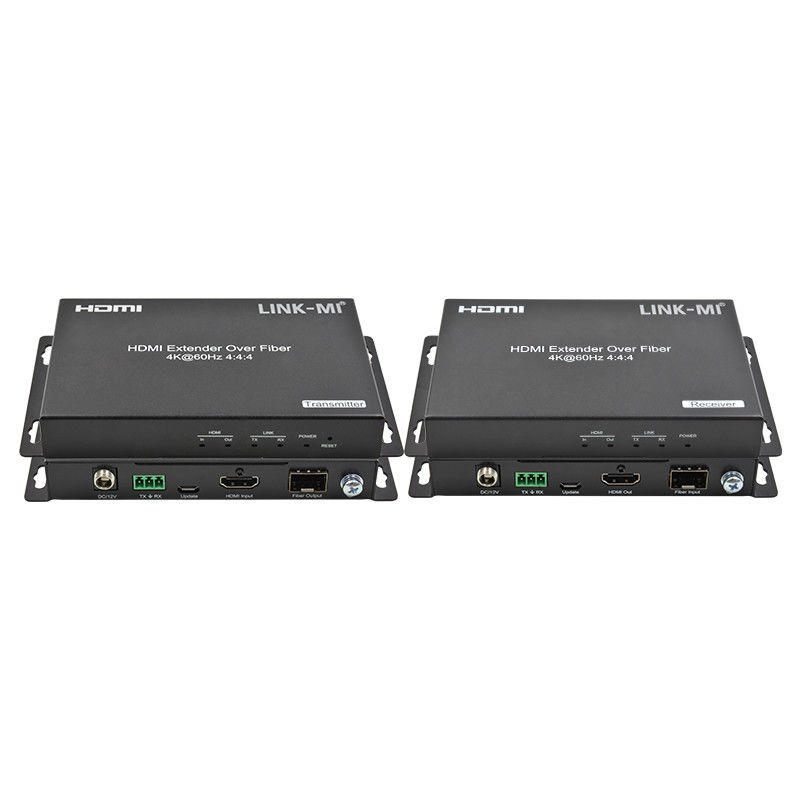

Panel Description
FAQ
Q1: Are you a factory or trading company?
A1: As a professional manufacturer, we supply HDMI related products more than 10 years in China.
Q2: Why should we choose you?
A2: We can offer products with factory price, good quality, best service and long warranty.
Q3: How about your product service?
A3: We can offer OEM and ODM, print your brand, your design on the product based on your order quantity.
Q4: How about the payment terms?
A4: We accept bank transfer, western union, money gram, paypal, Bank of China or cash as payments.
Q5: How do you ship the package?
A5: DHL, Fedex, EMS, by air, by sea...etc.
Q6: What kinds of warranty do you offer?
A6: Our excellent after-sale service team will provide you technical support online. We offer one year warranty for our products.
Q7: How could I buy the products I need if there is no price on the website?
A7: You can send us your inquiry about the products you need. Our sales will reply you within 24 hours to help you make the order.
