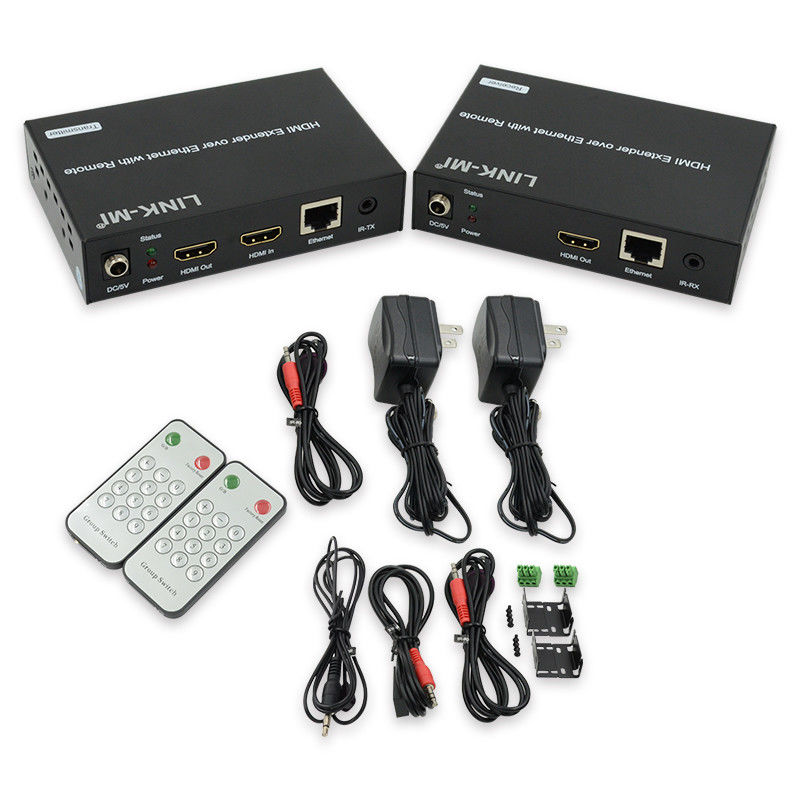

120M AV over IP HDMI Extender Suppport POE With LED Remote RS232 Video Extender
Introduction
LINK-MI LM-EP36 HDMI over IP Extender use the advanced H.264 as the compression type, which makes it occupy lower bandwidth and transmit over the LAN more smoothly. It supports 120m over single cat5e/6 cable at point to point, as well as point to many and many to many over Ethernet switch. The over IP solution is widely used in various locations, like meeting room, class room, metro, airport, home, mall advertisement...etc.
Features
1. Using H.264 compression encoding, support resolution up to 1080p@60hz
2. Transmit up to 120m over single Cat5e/6 cable, with 1x looping HDMI output
3. With IR Remote to choose the source, with LED to show the Group ID
4. Comply with TCP/IP protocol, streaming bit rate is up to 15Mbps
5. Support LPCM audio format
6. Smart IP Address Setting: Dynamic Host Configuration Protocol (DHCP)
7. Wide-band IR pass through to control the source (38khz to 56khz)
8. By pass 2 way UART/RS232 (Up to 115200), use remote controller to select 8 group Baud rate
9. Support one to one, one to many, many to one, many to many modes, with large cascade
10. Dual power input: 802.3af compliant POE & DC 5V (No need power supply when connecting with POE Switch)
11. HDCP Compliant
12. Support PC tool control
Specification
|
Performance
|
|
Protocol
|
H.264 encoder over TCP/IP
|
|
Support Video format
|
480i/480p/576i/576p/720p/1080i/1080p@60HZ
|
|
Support Audio format
|
LPCM, Audio sampling rate 48KHZ
|
|
Streaming Bit Rate
|
15Mbps
|
|
HDCP
|
Compliant
|
|
IR Frequency
|
38 -56 KHZ
|
|
RS232 Baud rate
|
Default 2400bps, total 8 kinds optional
|
|
IP setting &Group ID setting
|
|
Default IP
|
TX: 192.168.1.11 ; RX: 192.168.1.12
|
|
Group ID
|
Group 00 ~ group 63
|
|
Request for Switch/Router
|
Support IGMP, support DHCP
|
|
Connectors on Transmitter
|
|
Input
|
1xHDMI Female port
|
|
Output
|
1x RJ45 output , 1x HDMI looping output
|
|
RS232
|
Phoenix RS232 port
|
|
IR
|
IR TX port (Support 38K-56KHz)
IR Ext port (Support 38KHz)
|
|
Connectors on Receiver
|
|
Input
|
1xRJ45 input
|
|
Output
|
1x HDMI Female port looping output
|
|
RS232
|
Phoenix RS232 port
|
|
IR
|
IR RX port (Support 38K-56KHz)
IR Ext port (Support 38KHz)
|
|
Environmental & Power Requirements
|
|
Operating temperature
|
-5 to +35 ℃ (+23 to +95℉)
|
|
Operating Humidity Range
|
5 to 90%RH (No Condensation)
|
|
Power supply
|
DC 5V 1A
|
|
Power consumption
|
Max 3 watt
|
|
Physical
|
|
Dimension
|
TX: 119x79.5x28mm ; RX: 119x79.5x28mm
|
|
Net Weight
|
TX: 0.28KG ; RX:0.28KG
|
| Note: Specifications are subject to change without notice |
Connection Diagram

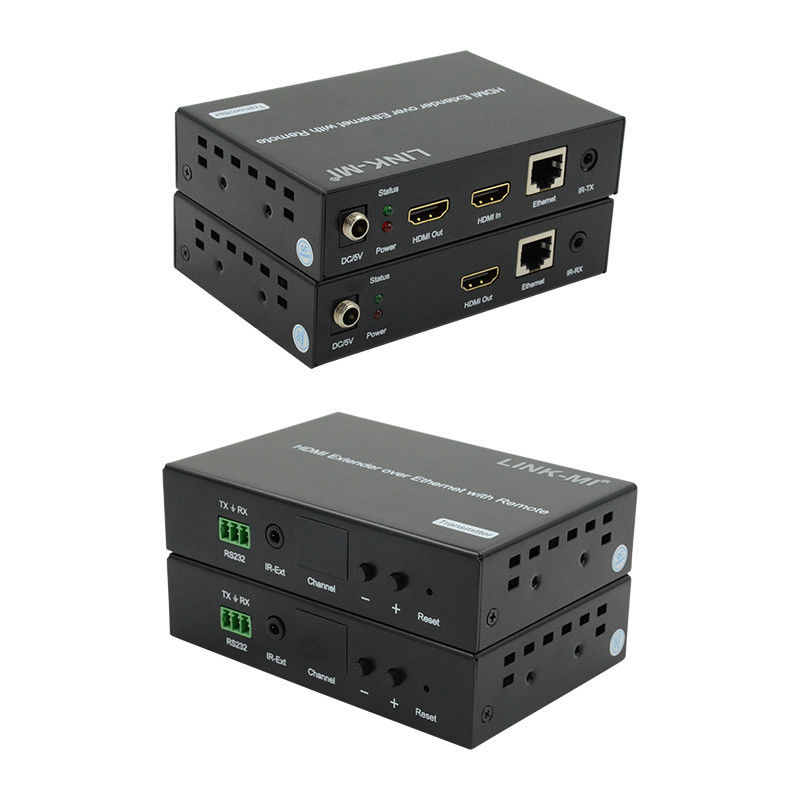

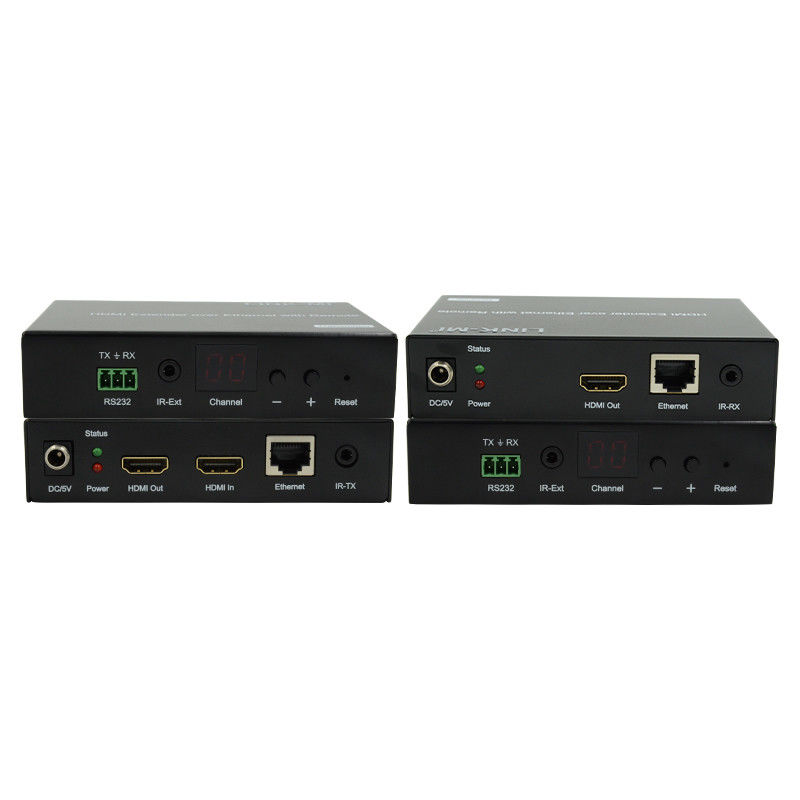

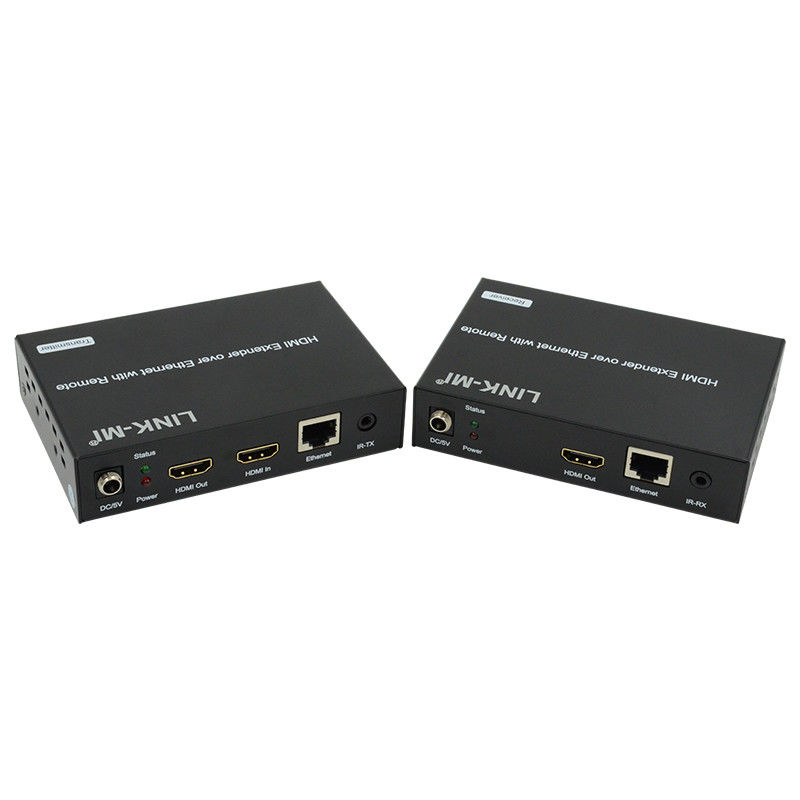

Panel Description
