AV over IP HDMI+USB KVM Extender Over Fiber Support POE RS232 Unicast Multicast
Introduction

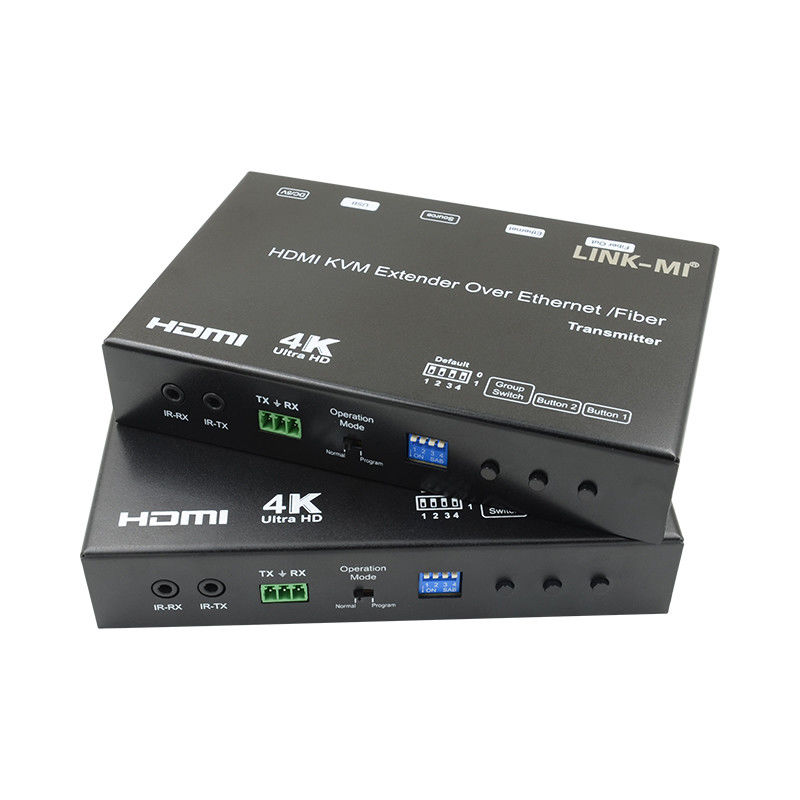

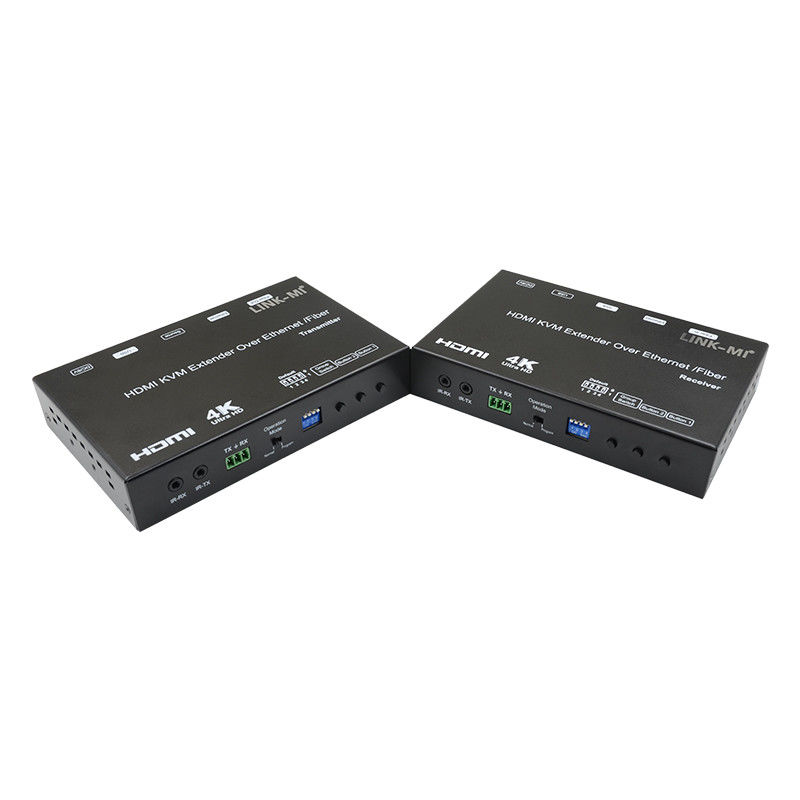

LINK-MI LM-EP37 4K HDMI+USB over IP Extender is a solution for audio, video and USB signal extension via Local Area Network (LAN). It can be used as audio, video and KVM extender over IP and applied to point to point, point to multi-point, multi-point to multi-point and screen wall broadcast system controlled by USB, RS232, IR and configured the 4K HDMI & USB over IP Extender by web browser. An easy installation system built up with Giga Ethernet switch which has IGMP function and CATx cable for extension or broadcast.
Features
1. 4K UHD HDMI over IP extension
2. USB 2.0 over IP extension
3. RS232 bi-directional extension and RS232 control
4. 4 bits switch for 16 stream channel selection
5. Support Dolby True HD, DTS-HD Master Audio
6. Support two way Wide Band IR extension (38khz-56khz)
7. Transmit over single Cat5e/6 cable up to 120m
8. Transmitter over Fiber Optical cable up to 60km (Single Mode)
9. Networking environment under Giga Ethernet switch and CAT5e cable
10. Point to point extension, Unicast, Multicast
11. Output video rotation
12. Output video partial enlargement
13. HDCP 1.4 compliant
14. 802.3af compliant POE (No need power supply when connecting with POE Switch)
Specification
|
Performance
|
|
Protocol
|
TCP, UDP, RTSP, RTP, DHCP, IGMP, Multicast, IPV4
|
|
Support Video format
|
4K@30HZ, 1080P/1080i/720P/576P/576i/480P/480i
|
|
Support Audio format
|
Stereo 192Kbps
|
|
HDCP
|
Compliant
|
|
IR Frequency
|
38 -56 KHZ
|
|
RS232 Baud rate
|
Default 115200bps, total 8 kinds optional
|
|
IP setting &Group ID setting
|
|
Default IP
|
Automatic allocation
|
|
Group ID
|
Group 00 ~ group 16
|
|
Request for Switch/Router
|
Support IGMP, support DHCP
|
| Connectors on Transmitter |
|
Input
|
1xHDMI Female port, 1xUSB B type
|
| Output |
1x RJ45 output, 1x Fiber output
|
|
RS232
|
Phoenix RS232 port
|
|
IR
|
1x IR TX port; 1x IR RX port
Support 38K-56KHz
|
|
Connectors on Receiver
|
|
Input
|
1xRJ45 input, 1x Fiber input
|
|
Output
|
1x HDMI Female port, 2x USB A type
|
|
RS232
|
Phoenix RS232 port
|
|
IR
|
1x IR TX port; 1x IR RX port
Support 38K-56KHz
|
|
Environmental & Power Requirements
|
|
Operating temperature
|
-5 to +35 ℃ (+23 to +95℉)
|
|
Operating Humidity Range
|
5 to 90%RH (No Condensation)
|
|
Power supply
|
DC 5V
|
|
Power consumption
|
Max 3 watt
|
|
Physical
|
|
Dimension
|
TX: 160x103.2x30mm ; RX: 160x103.2x30mm
|
|
Net Weight
|
TX: 472.8G ; RX:472.3G
|
| Note: Specifications are subject to change without notice |
Connection Diagram

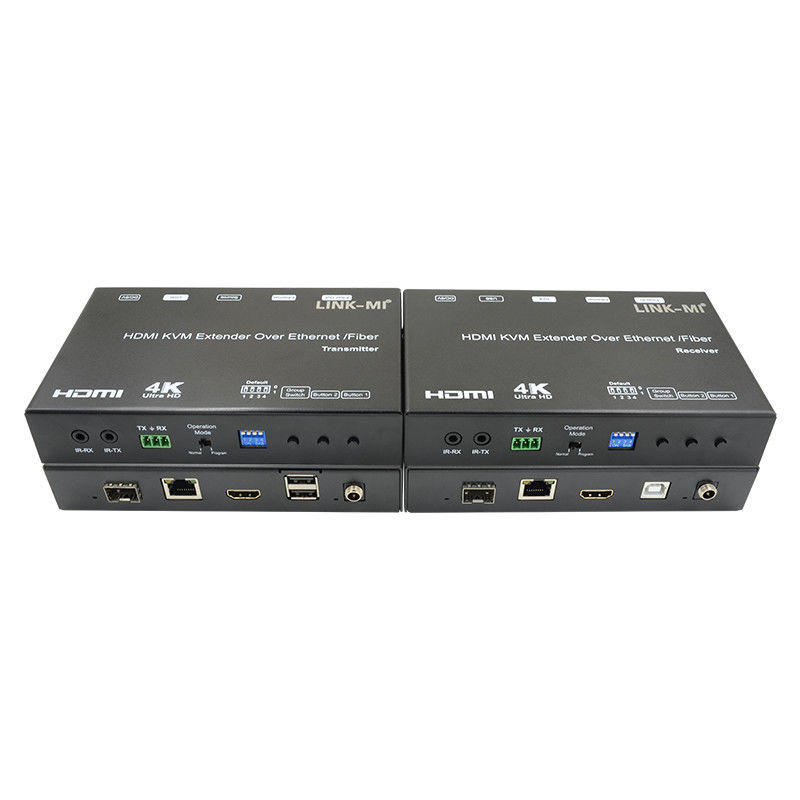

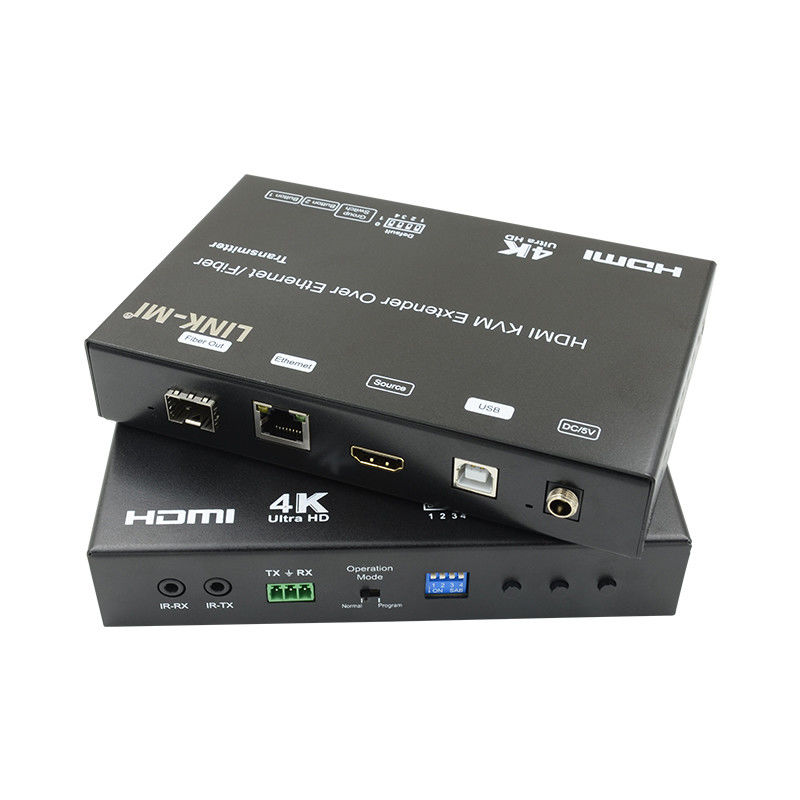

Panel Description
FAQ
Q1: Are you a factory or trading company?
A1: As a professional manufacturer, we supply HDMI related products more than 10 years in China.
Q2: Why should we choose you?
A2: We can offer products with factory price, good quality, best service and long warranty.
Q3: How about your product service?
A3: We can offer OEM and ODM, print your brand, your design on the product based on your order quantity.
Q4: How about the payment terms?
A4: We accept bank transfer, western union, money gram, paypal, Bank of China or cash as payments.
Q5: How do you ship the package?
A5: DHL, Fedex, EMS, by air, by sea...etc.
Q6: What kinds of warranty do you offer?
A6: Our excellent after-sale service team will provide you technical support online. We offer one year warranty for our products.
Q7: How could I buy the products I need if there is no price on the website?
A7: You can send us your inquiry about the products you need. Our sales will reply you within 24 hours to help you make the order.
User Manual:
LM-EP37 4K HDMI+USB KVM Extender over IP Fiber wit...
