4K HDMI Audio Extractor Support Audio Embedding DIP Switch CEC
Introduction

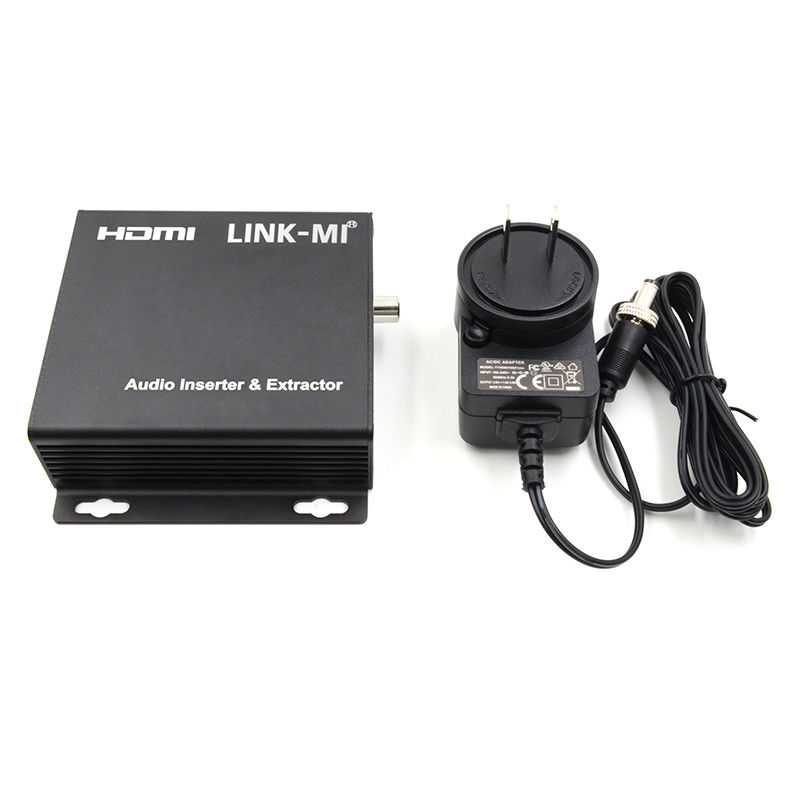

LINK-MI LM-HC04 is a 4K HDMI Audio Extractor. It is used to extract digital HDMI audio signal from HDMI input. It supports resolution up to 4K@60Hz. It supports audio embedding, CEC and firmware update.
Features
1. Support audio embedding, AUTO, SPDIF5.1, Analog Audio PCM2.0 output
2. Support 2 DIP switch to extract the digital HDMI audio signal from the HDMI input to 2 channel analog stereo output or 5.1 channel Audio output
3. Support audio uncompressed PCM, Dolby, DTS
4. Support resolution up to 4K2K60HZ, bandwidth 18Gbps
5. HDCP2.2/1.4 Compliant
6. Support CEC
7. Support firmware updating through USB port
Specification
|
Operating Temperature Range
|
-5 to +40℃(+23 to +104℉)
|
|
Operating Humidity Range
|
5 to 90%RH (No Condensation)
|
|
Input Video Signal
|
0.5-1.0 Volts P-P
|
|
Input DDC Signal
|
5 volts p-p(TTL)
|
|
Support Video format
|
4Kx2K/1080P/1080i/720P/576P/576i/480P/480i 3D video
|
|
Support Video Color Format
|
xv-YCC/deep color 36bit
|
|
Support Audio Format
|
PCM,DTS-HD Master Audio,Dolby true-HD etc.
|
|
Data transfer speed rate
|
18Gbps(Maximum)
|
|
HDCP
|
Compliant HDCP2.2/1.4
|
|
Power consumption
|
1.5watts(Maximum)
|
|
Dimension (L×W×H)
|
104.4x89x28.3mm
|
|
Net Weight
|
155g
|
| Note: Specifications are subject to change without notice |
Connection Diagram

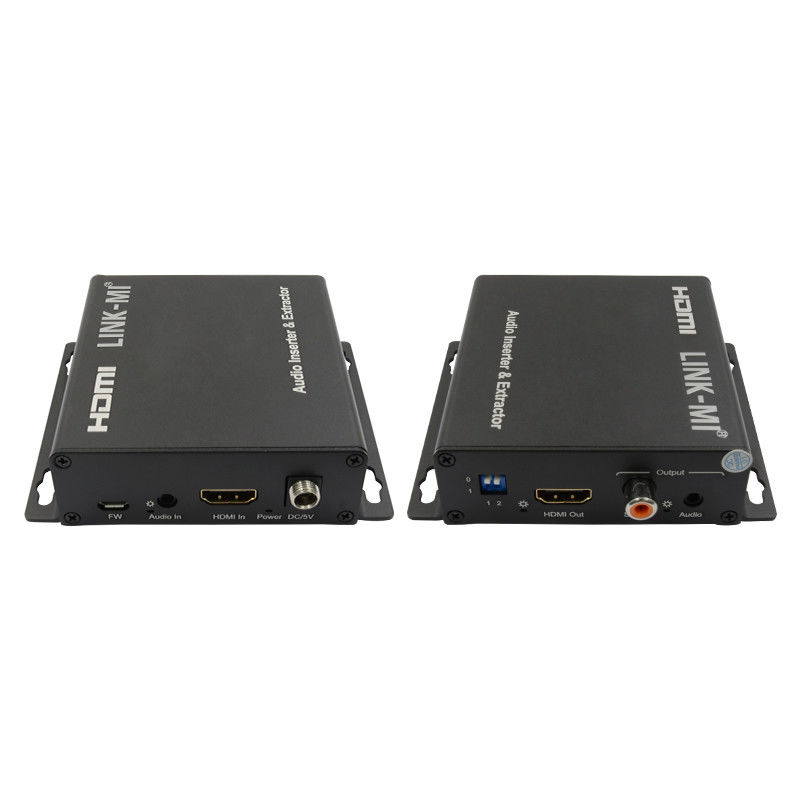

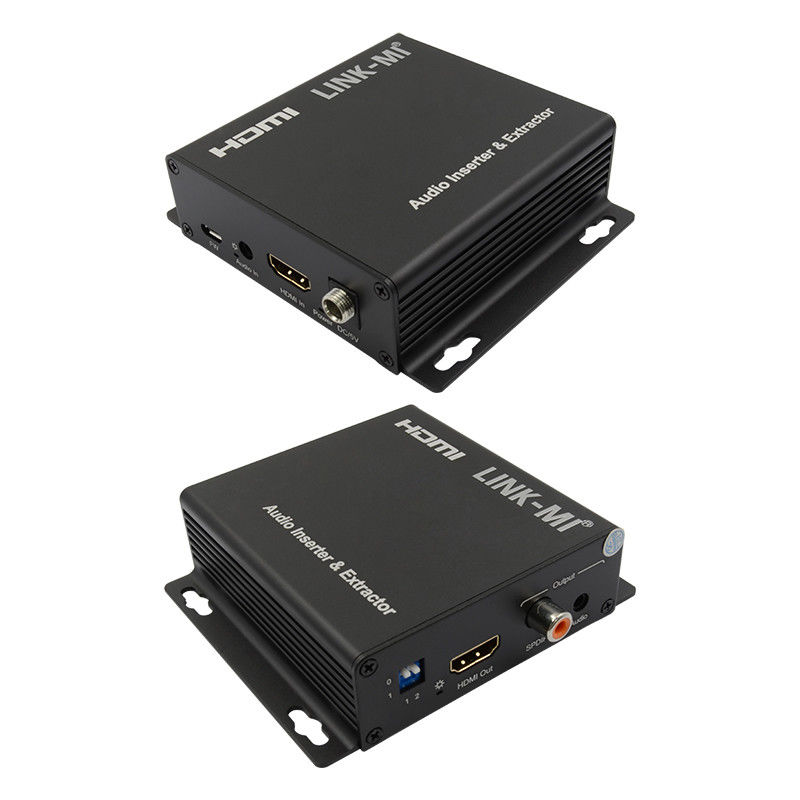

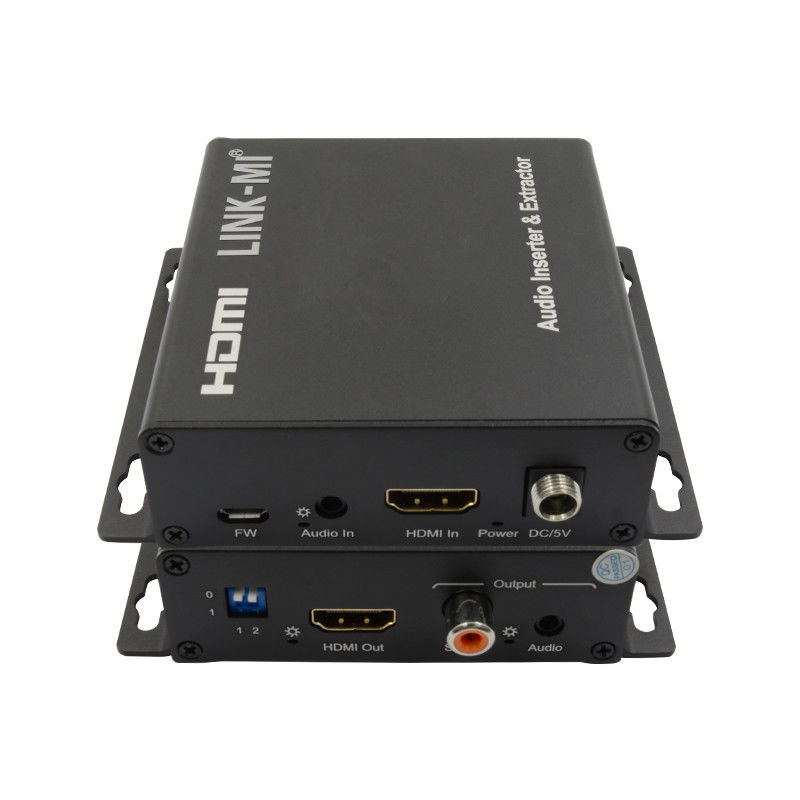

Panel Description
FAQ
Q1: Are you a factory or trading company?
A1: As a professional manufacturer, we supply HDMI related products more than 10 years in China.
Q2: Why should we choose you?
A2: We can offer products with factory price, good quality, best service and long warranty.
Q3: How about your product service?
A3: We can offer OEM and ODM, print your brand, your design on the product based on your order quantity.
Q4: How about the payment terms?
A4: We accept bank transfer, western union, money gram, paypal, Bank of China or cash as payments.
Q5: How do you ship the package?
A5: DHL, Fedex, EMS, by air, by sea...etc.
Q6: What kinds of warranty do you offer?
A6: Our excellent after-sale service team will provide you technical support online. We offer one year warranty for our products.
Q7: How could I buy the products I need if there is no price on the website?
A7: You can send us your inquiry about the products you need. Our sales will reply you within 24 hours to help you make the order.
User Manual:
LM-HC04 HDMI2.0 Audio Extractor & Inserter 4K@60H...
