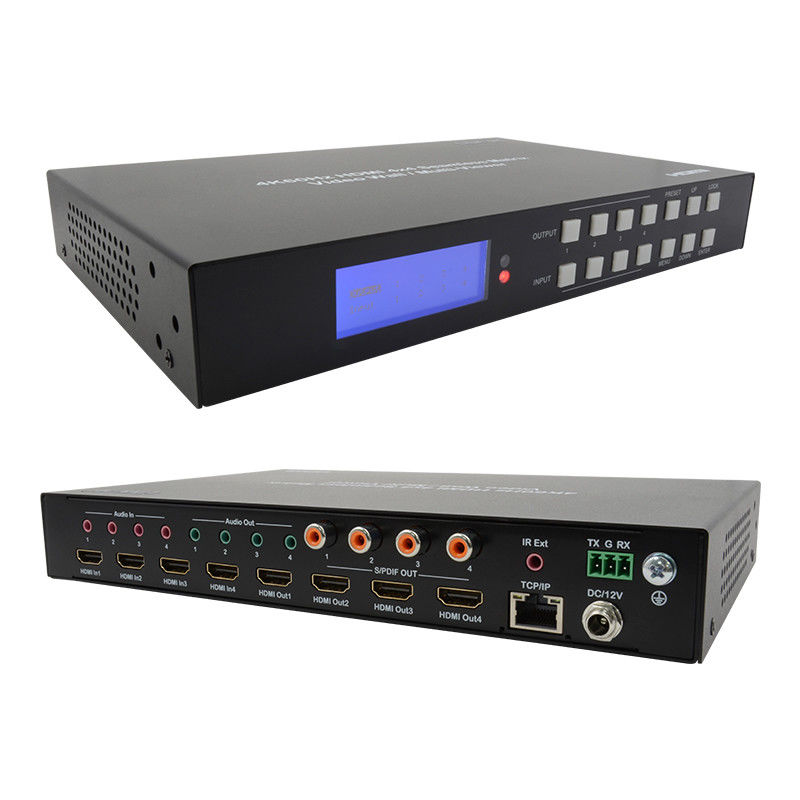

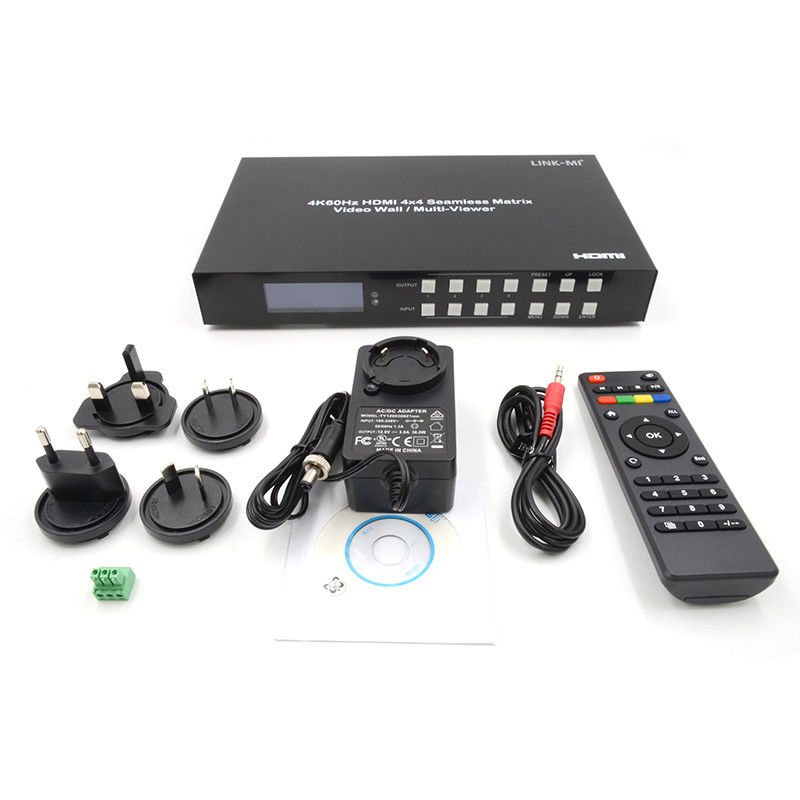

4K60Hz HDMI 4X4 Seamless Matrix Switch 2X2 Video Wall Controller & 4X1 Multi-Viewer
Introduction
LINK-MI LM-TVM47 is a high-performance matrix switcher with 4 seamless switching outputs and 4 mixed inputs. Any one of 4 input sources can be displayed to any one of 4 outputs. It supports various video wall function such as 2x2, 4x1... and output image mirror function. It supports max resolution 4K@60Hz and comes with Analog audio extraction. It can be controlled through panel button, Remote Control, RS232 Control, TCP/IP Control.
The Matrix offers solutions for digital entertainment center, HDTV retail and show site, HDTV, STB, DVD and projector factory, noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.
Features
1. 4x HDMI Inputs which can be independently routed to HDMI Outputs. No switching delay or picture loss during transitions.
2. Supports resolution up to 4K@60Hz 4:4:4.

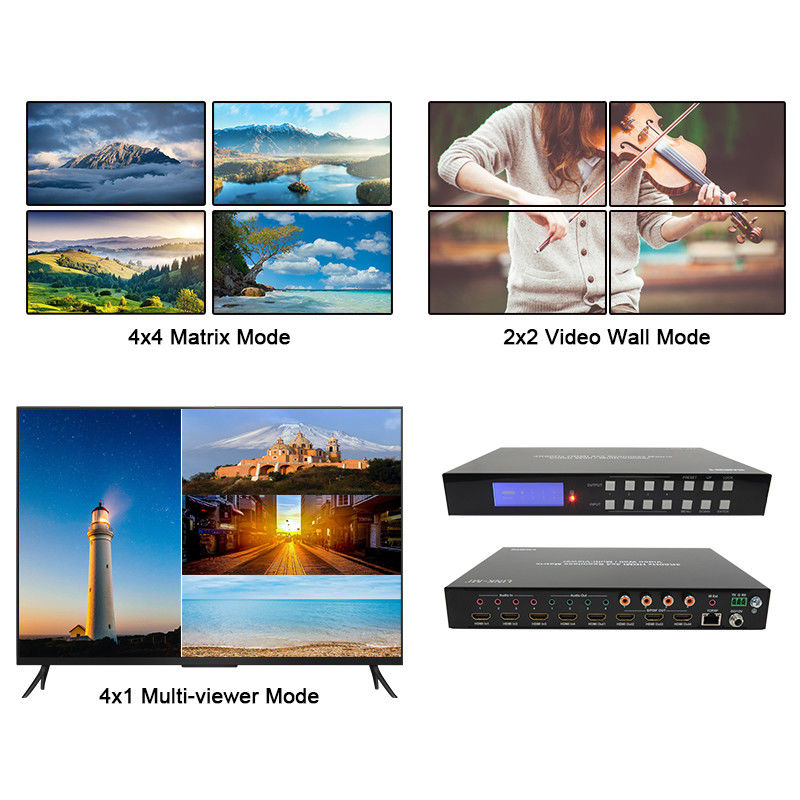

3. Supports Video Wall up to 7 different modes with each monitor with 4K@60Hz 4:4:4 resolution.
4. It can display 4 pictures on the same screen and has multiple split display modes.
5. Supports HDMI audio formats including Dolby-5.1, DTS-5.1.
6. Analog audio extraction, and the audio can be independently switching.
7. Compliant HDCP 2.2 with EDID management.
8. Control via panel button, Remote Control, RS232 Control, TCP/IP Control.
Specification
| Model No. |
LM-TVM47 |
| Input video signal |
0.5-1.0 volts p-p |
| Input DDC signal |
5 volts p-p (TTL) |
| Bandwidth |
18Gbit/s |
| Input port |
4 x HDMI (standard type A connector) |
| Output port |
4 x HDMI (standard type A connector) |
| Supported video format |
4K@60Hz, YUV 4:4:4 8-bit 4K@30Hz/1080P/1080i/720P |
| Supported audio format |
HDMI digital audio DTS-5.1/Dolby-5.1 |
| Matrix mode |
4 x 4 seamless switching |
| Video wall mode |
multiple video wall modes |
| Multi-viewer mode |
multiple multi-viewer modes |
| Power Consumption |
23W max. |
| Unit Size (LxWxH) |
262x163x36mm |
| Weight |
2710g |
| Operating temperature range |
-5 to +40°C (23 to +104 °F) |
| Storage temperature range |
-10 to +60°C (-14 to +140 °F) |
| Operating humidity range |
5 to 90% RH (no condensation) |
Connection Diagram

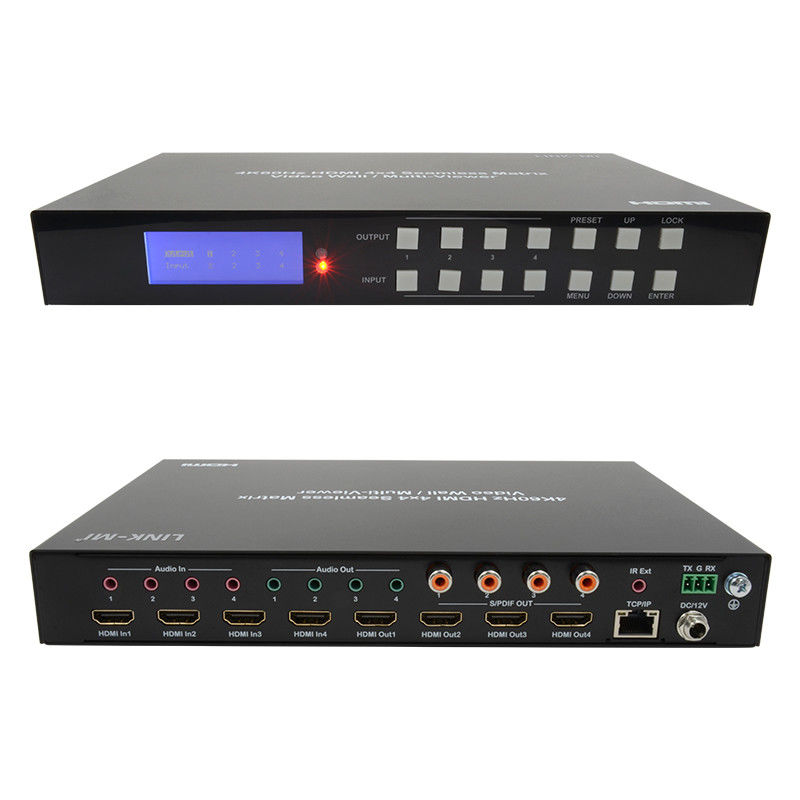

Panel Description
