12G/6G/3G-SDI to HDMI converter Support 4K@60Hz YUV4:2:2, Max 120m
Introduction
LINK-MI LM-SDH6 is a 12G SDI to HDMI Converter. It can convert 12G/6G/3G-SDI to HDMI. It supports both input and output resolution up to 4K@60Hz. And it supports 80m for 12G 4k@60Hz and 6G 4k@30Hz, 120m for 3G 1080p.
Feature
1. Convert 12G/6G/3G-SDI to HDMI
2. SDI input resolution up to 4K@60Hz YUV4:2:2
3. HDMI output resolution up to 4K@60Hz YUV4:2:2
4. Bandwidth up to 12Gbps
5. Support long SDI cable runs up to: 80m for 12G 4k@60Hz and 6G 4k@30Hz, 120m for 3G 1080p
6. Support HDCP2.2/1.4
7. Support downscaler
8. Support PCM2.0 16-24bit, 48KHz audio format
9. Support Micro USB port for firmware upgrade
Specification
| Model No. |
LM-SDH6 |
| Operating Temperature Range |
-5 to +40℃(+23 to +104℉) |
| Operating Humidity Range |
5 to 90%RH (No Condensation) |
| Input |
1x SDI input |
| Output |
1 x HDMI output |
| Resolution supports |
4k@60hzYUV4:2:2/4k@30HZ/1080p/1080i/720p, etc.. |
| Audio format supported |
PCM2.0 16-24bit 48KHz |
| Output Video Signal |
HDMI |
| Dimension (L×W×H) |
L94mm×W79mm×H20mm |
| Power supply |
DC 12V/1A |
| Power consumption |
12W(MAX) |
| SDI cable distance |
80m for 12G 4k@60hz and 6G 4k@30hz, 120m for 3G 1080p |
| Net Weight |
182g |
| Note: Specifications are subject to change without notice |
Connection Diagram

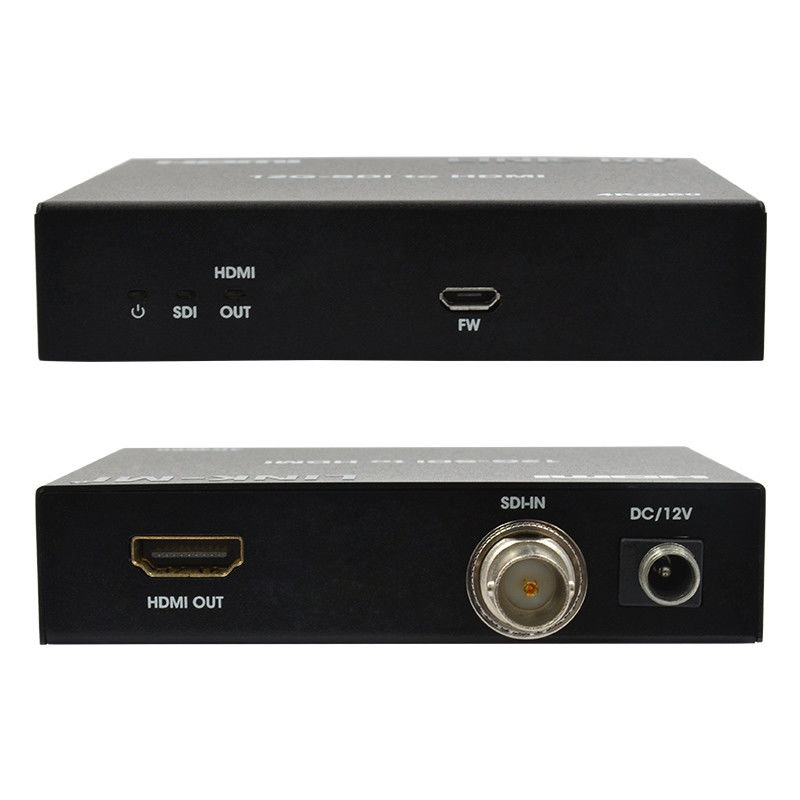

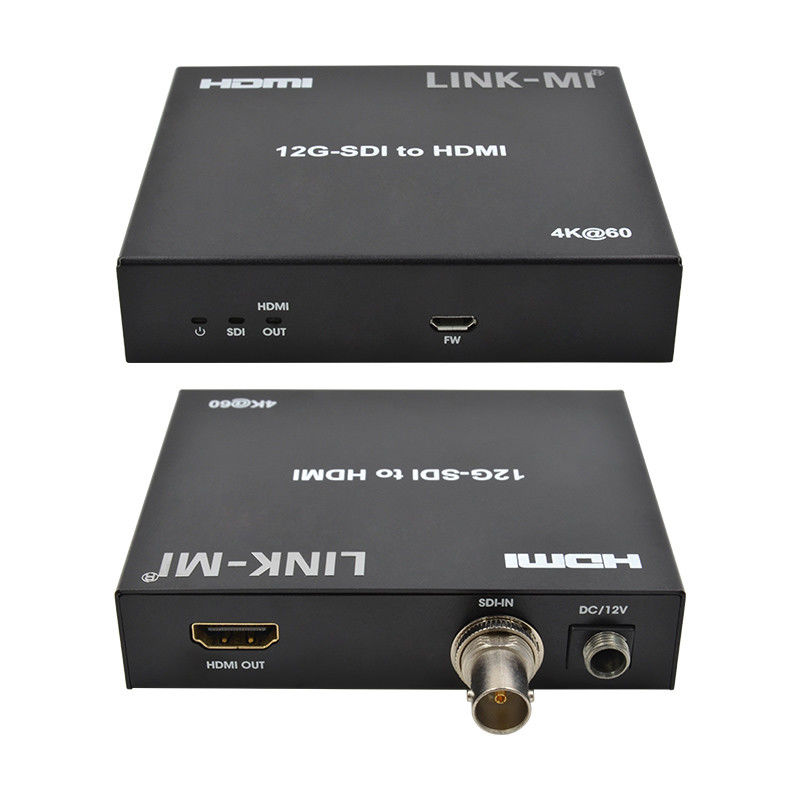

Panel Description
FAQ
Q1: Are you a factory or trading company?
A1: As a professional manufacturer, we supply HDMI related products more than 10 years in China.
Q2: Why should we choose you?
A2: We can offer products with factory price, good quality, best service and long warranty.
Q3: How about your product service?
A3: We can offer OEM and ODM, print your brand, your design on the product based on your order quantity.
Q4: How about the payment terms?
A4: We accept bank transfer, western union, money gram, paypal, Bank of China or cash as payments.
Q5: How do you ship the package?
A5: DHL, Fedex, EMS, by air, by sea...etc.
Q6: What kinds of warranty do you offer?
A6: Our excellent after-sale service team will provide you technical support online. We offer one year warranty for our products.
Q7: How could I buy the products I need if there is no price on the website?
A7: You can send us your inquiry about the products you need. Our sales will reply you within 24 hours to help you make the order.
User Manual:
LM-SDH6 12G-SDI to HDMI Converter.pdf
