HDMI to HD SDI Converter
Introduction
LINK-MI LM-HSD3 is a HDMI to SDI Converter. It can convert HDMI to SD/HD/3G-SDI. It distributes 1 HDMI source to 2 SDI output simultaneously.
Features
1. HDMI to SDI Analogue Conversion
2. Full HDMI support including embedded audio
3. Distributes 1 HDMI source to 2 SDI output simultaneously.
4. Support 1080p@25Hz,1080p@29.97Hz,1080p@30Hz,1080P@60Hz
5. Compliant HDCP
6. Uses 5V power
Specification
|
Operating Temperature Range
|
-5 to +35℃(+23 to +95℉)
|
|
Operating Humidity Range
|
5 to 90%RH (No Condensation)
|
|
Resolutions Support
|
1080p (50/60/59.94/30/29.97/25/24/23.98Hz)
1080i (60/59.94/50Hz), 720p (60/59.94/50Hz)
480i (60/59.94Hz)
|
|
SDI Standard
|
3G -SDI/HD-SDI/SDI
|
|
Input
|
1x HDMI (Standard Type A connector)
|
|
Output
|
2x SDI(BNC)
|
|
Power consumption
|
2.5watts(Maximum)
|
|
Dimension (L×W×H)
|
95x95x29mm
|
|
Net Weight
|
245g
|
| Note: Specifications are subject to change without notice |
Connection Diagram

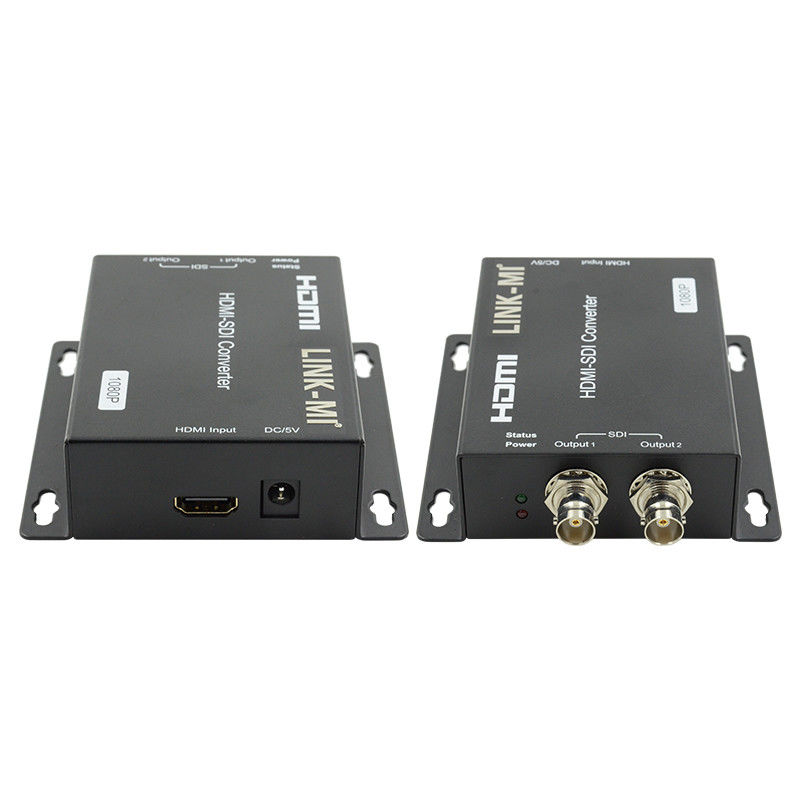

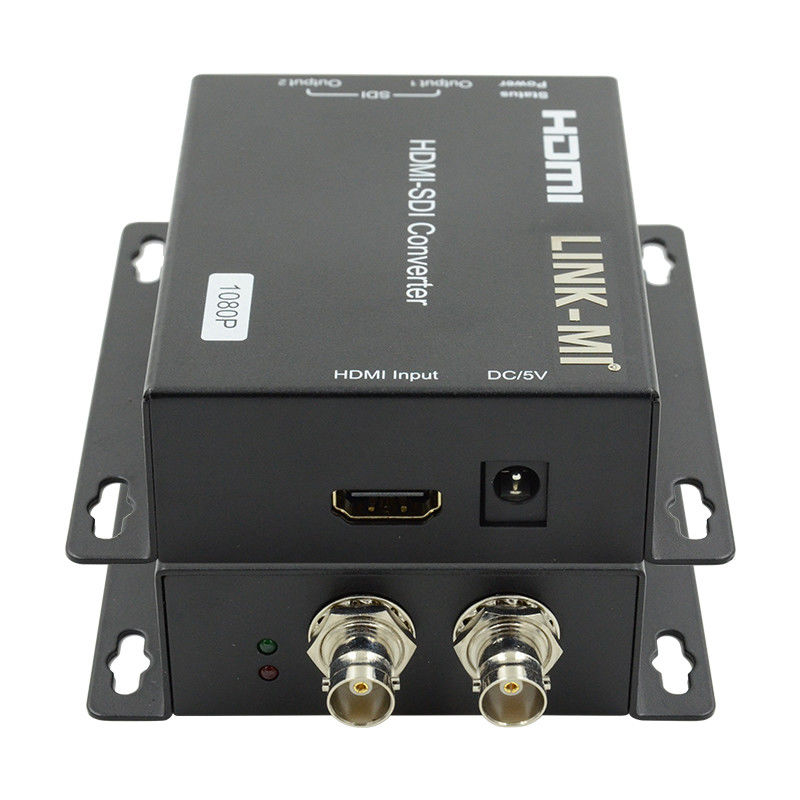

Panel Description
FAQ
Q1: Are you a factory or trading company?
A1: As a professional manufacturer, we supply HDMI related products more than 10 years in China.
Q2: Why should we choose you?
A2: We can offer products with factory price, good quality, best service and long warranty.
Q3: How about your product service?
A3: We can offer OEM and ODM, print your brand, your design on the product based on your order quantity.
Q4: How about the payment terms?
A4: We accept bank transfer, western union, money gram, paypal, Bank of China or cash as payments.
Q5: How do you ship the package?
A5: DHL, Fedex, EMS, by air, by sea...etc.
Q6: What kinds of warranty do you offer?
A6: Our excellent after-sale service team will provide you technical support online. We offer one year warranty for our products.
Q7: How could I buy the products I need if there is no price on the website?
A7: You can send us your inquiry about the products you need. Our sales will reply you within 24 hours to help you make the order.
User Manual:
LM-HSD3 HDMI to SDI Converter with loop out.pdf
