12G-SDI to HDMI Converter with Audio Extraction, 4K@60Hz, 18Gbps
Introduction

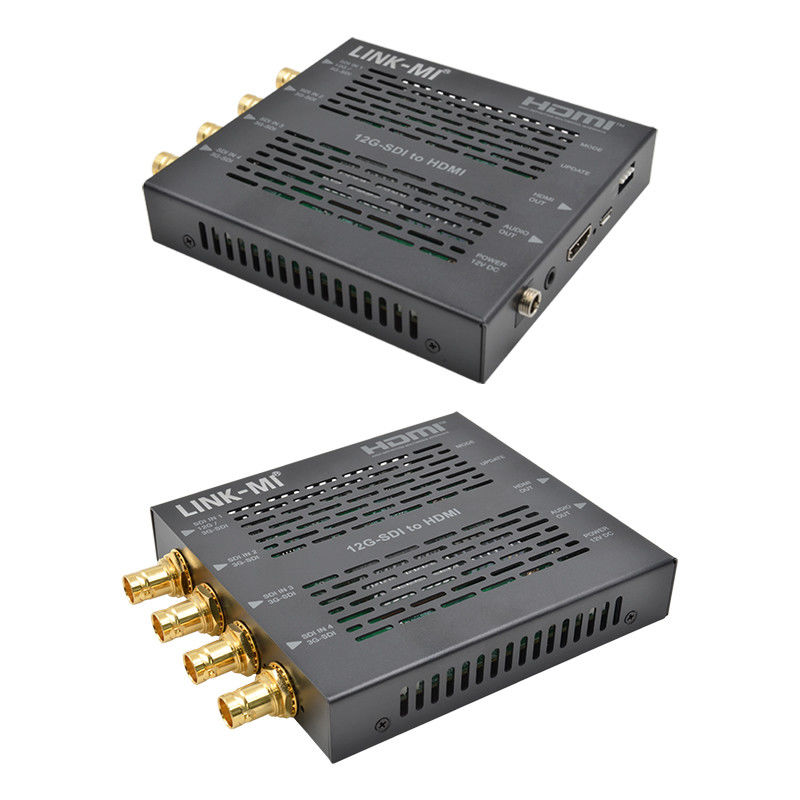

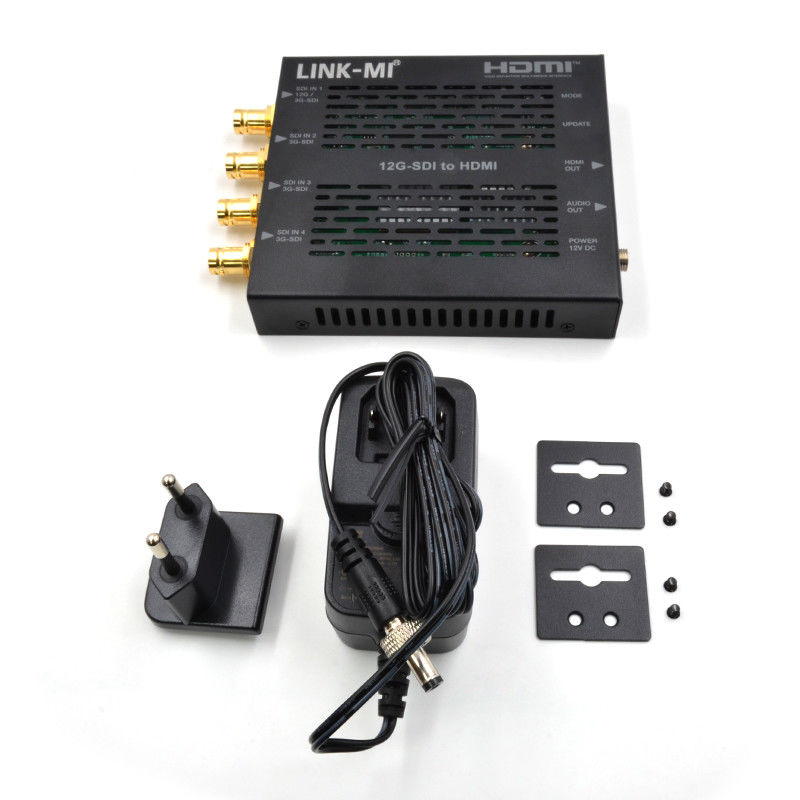

LINK-MI LM-SDH12G 12G-SDI to HDMI Converter with Audio Extraction, 4K@60Hz, 18Gbps
Features
1. Compatible with HDMI 2.0b, output without HDCP, video bandwidth up to 18Gbps
2. Compatible with SDI standards: SMPTE ST-2082, SMPTE ST-2081, SMPTE 425M-AB, SMPTE 424M, SMPTE 292M, and SMPTE 259M-C,video bandwidth up to 12Gbps
3. Maximum transmission distance: 100m/328ft in 4x3G-SDI mode, 60m/197ft in 12G-SDI mode
4. Support video resolution up to 4K2K@60Hz YCbCr 4:2:2
5. Support DIP switch control
6. Support LPCM audio format
7. Support audio extract to analog output
8. Compact design for easy and flexible installation
Specification
|
Technical
|
| HDMI Compliance |
HDMI 2.0b |
|
SDI Compliance
|
SMPTE ST-2082, SMPTE ST-2081,
SMPTE 425M-AB, SMPTE 424M,
SMPTE 292M, SMPTE 259M-C
|
|
SDI Formats
|
SD/HD/3G/12G-SDI
|
|
Video Bandwidth
|
SDI: up to 12Gbps
HDMI: up to 18Gbps
|
|
Video Resolution
|
480i ~1080p50/60Hz, 4Kx2K@24/30Hz, 4K60
|
|
Color Depth
|
8/10-bit
|
|
Color Space
|
YCbCr 4:2:2
|
|
Audio Format
|
LPCM
|
|
Connection
|
|
Inputs
|
4x SDI IN [BNC]
|
| Outputs |
1x HDMI OUT [Type A 19-pin Female]
1x AUDIO OUT [3.5mm Stereo Mini-jack]
|
|
Control
|
1x Micro USB [for upgrade]
|
|
Mechanical
|
|
Housing
|
Metal Enclosure
|
|
Color
|
Black
|
|
Dimensions
|
210mm (W) x 69mm (D) x 20mm (H)
|
|
Weight
|
400g
|
|
Power Supply
|
Input: AC100-240V 50/60Hz
Output:DC 12V/1A
(US/EU standard, CE/FCC/UL certificalted)
|
|
Power Consumption
|
10W
|
|
Operation
Temperature
|
0°C~40°C/32°F ~104°F
|
|
Storage Temperature
|
-20°C~60°C/-4°F ~140°F
|
|
Relative Humidity
|
20-90% RH (non-condensing)
|
| Note: Specifications are subject to change without notice |
Connection Diagram

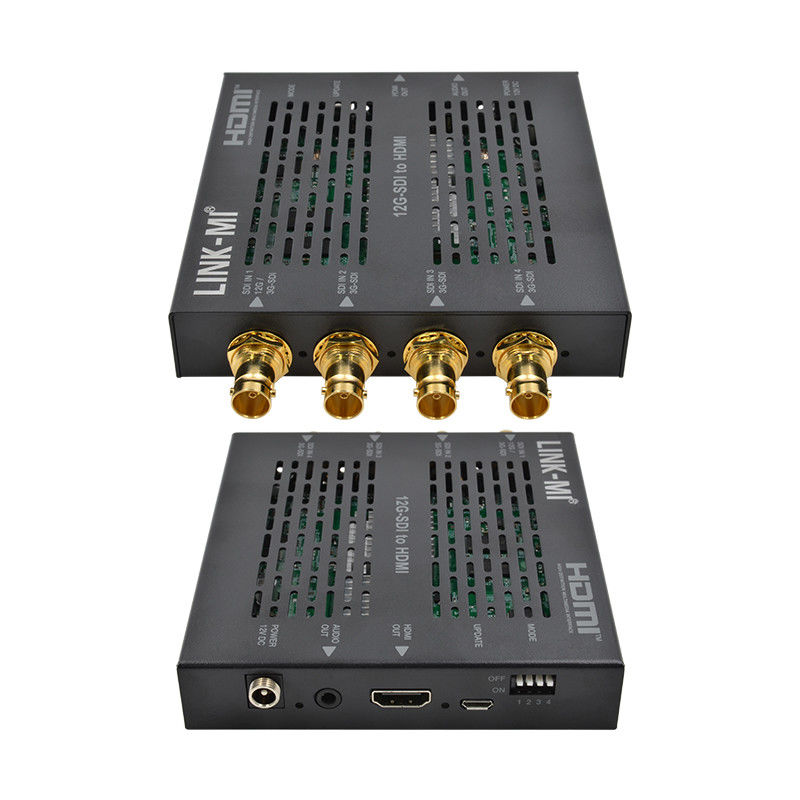

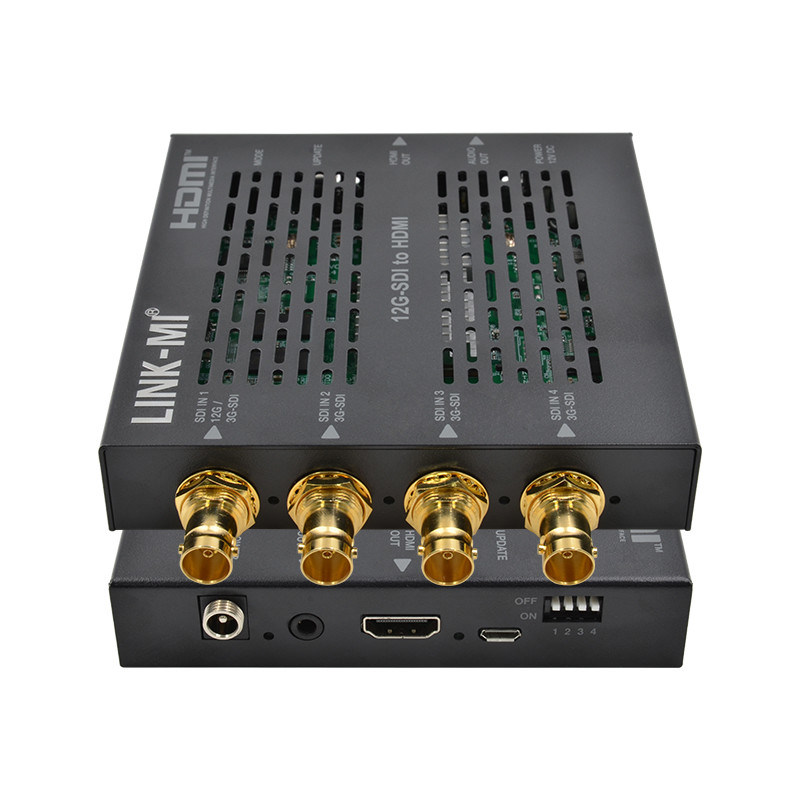

Panel Description
FAQ
Q1: Are you a factory or trading company?
A1: As a professional manufacturer, we supply HDMI related products more than 10 years in China.
Q2: Why should we choose you?
A2: We can offer products with factory price, good quality, best service and long warranty.
Q3: How about your product service?
A3: We can offer OEM and ODM, print your brand, your design on the product based on your order quantity.
Q4: How about the payment terms?
A4: We accept bank transfer, western union, money gram, paypal, Bank of China or cash as payments.
Q5: How do you ship the package?
A5: DHL, Fedex, EMS, by air, by sea...etc.
Q6: What kinds of warranty do you offer?
A6: Our excellent after-sale service team will provide you technical support online. We offer one year warranty for our products.
Q7: How could I buy the products I need if there is no price on the website?
A7: You can send us your inquiry about the products you need. Our sales will reply you within 24 hours to help you make the order.
User Manual:
LM-SDH12G 12G-SDI to HDMI Converter.pdf
