500m HDMI Audio Extractor Digital Analog Audio Extender Over Cat5e Over Cat5e/6 Cable

500m HDMI Audio Extractor Digital Analog Audio Extender Over Cat5e Over Cat5e/6 Cable

500m HDMI Audio Extractor

HDMI Audio Extractor Digital Analog

Audio Extender over Cat5e ODM

Place of Origin:

China

Brand Name:

LINK-MI

Model Number:

LM-AEX02

Contact Us

Request A Quote
500m HDMI Audio Extractor Digital Analog Audio Extender Over Cat5e Over Cat5e/6 Cable
500m HDMI Audio Extractor Digital Analog Audio Extender Over Cat5e Over Cat5e/6 Cable 500m HDMI Audio Extractor Digital Analog Audio Extender Over Cat5e Over Cat5e/6 Cable 500m HDMI Audio Extractor Digital Analog Audio Extender Over Cat5e Over Cat5e/6 Cable 500m HDMI Audio Extractor Digital Analog Audio Extender Over Cat5e Over Cat5e/6 Cable
Product Details
Model No.:
LM-AEX02
Transmission Distance:
Max 500m
Connectors Transmitter:
1xCat5e/6 Out 1xPower DC 3xAudio In(for Analog, Optical And Coaxial)
Connectors Receiver:
1xCat5e/6 In 1xPower DC 3xAudio Out(for Analog, Optical And Coaxial)
Data Transfer Speed:
6.9Mbps
Audio Format:
PCM2.0, Dolby Digital EX, Dolby Digital 5.1, Dolby Digital 2/0 Surround, Dolby Digital 2/0, DTS-HD, DTS ES Discrete 6.1, DTS ES Matrix 6.1, DTS Digital Surround 5.1, DTS 2 Channel
Dimension (L×W×H):
58.5x54.7x21mm
Net Weight:
182g(Pair)
Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
White/Brown/Color Box
Delivery Time
5-7 work days
Payment Terms
T/T, Western Union, PayPal, Bank Transfer
RELATED PRODUCTS
Good price 18Gbps HDMI Splitter Analog To Digital Audio Converter With Audio Downmix online Video

18Gbps HDMI Splitter Analog To Digital Audio Converter With Audio Downmix

Get Best Price
Good price Dac Converter Digital Analog Audio Converter Support HDMI ARC Toslink Coax Digital Audio online Video

Dac Converter Digital Analog Audio Converter Support HDMI ARC Toslink Coax Digital Audio

Get Best Price
Good price LM-DA01-Audio Digital to Analog Audio Converter with 44.1 Sampling Rate online Video

LM-DA01-Audio Digital to Analog Audio Converter with 44.1 Sampling Rate

Get Best Price
Good price 500M Audio Extender HDMI Audio Decoder with HDCP 2.3 1.x and 192KHz Sampling Rate online

500M Audio Extender HDMI Audio Decoder with HDCP 2.3 1.x and 192KHz Sampling Rate

Get Best Price
Contact Us
+8613332950287
sales@link-mi.com
86-755-83513509
Contact Now
Product Description

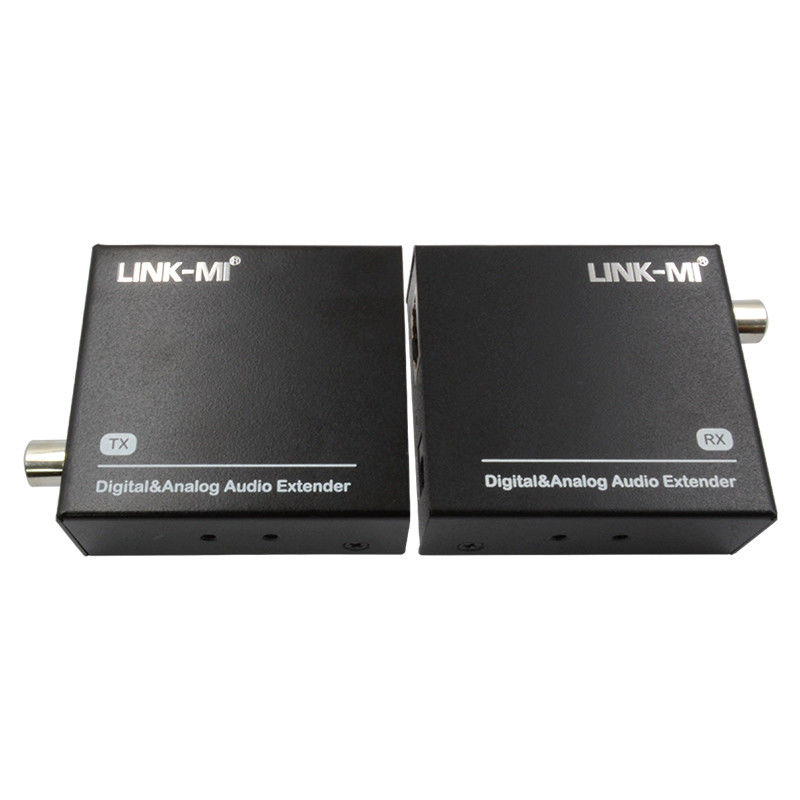

500m Digital Analog Audio Extender over Cat5e/6 Cable



Introduction

LINK-MI LM-AEX02 is a 500m Digital&Analog Audio Extender over Cat5e/6 Cable. It supports POC, Analog, Digital Coax, Optical Toslink. It can identify audio input automatically.



Feature

1. Transmission Range: Analog audio up to 1480ft (450 meters), Digital audio up to 1640ft (500 meters)
2. Accepts Analog, Digital Coax or Optical Toslink
3. Auto identify audio input: Analog>Digital Coax>Optical Toslink
4. Supports PCM2.0, Digital 5.1 (DTS, Dolby Digital, etc.)
5. Input 44.1-96khz, output 48khz, 16-24bit
6. Support AC 100~240V 50/60hz power, DC 12V/1A, dual POC



Specification

Model No. LM-AEX02
Operating Temperature Range 0 to +40℃(+32 to +104℉)
Operating Humidity Range 5 to 90%RH (No Condensation)
Data transfer speed 6.9Mbps
Connectors Transmitter
1xCat5e/6 out
1xPower DC
3xAudio in(for Analog, Optical and Coaxial)
Connectors Receiver
1xCat5e/6 in
1xPower DC
3xAudio out(for Analog, Optical and Coaxial)
Audio format
PCM2.0, Dolby Digital EX, Dolby Digital 5.1, Dolby Digital 2/0 Surround, Dolby Digital 2/0, DTS-HD, DTS ES Discrete 6.1, DTS ES Matrix 6.1, DTS Digital Surround 5.1, DTS 2Channel
Power consumption 1.5watts(Maximum)
Dimension (L×W×H) 58.5x54.7x21mm
Net Weight 182g(Pair)
Note: Specifications are subject to change without notice











































Connection Diagram

Application 1

500m HDMI Audio Extractor Digital Analog Audio Extender Over Cat5e Over Cat5e/6 Cable 0

Application 2

500m HDMI Audio Extractor Digital Analog Audio Extender Over Cat5e Over Cat5e/6 Cable 1

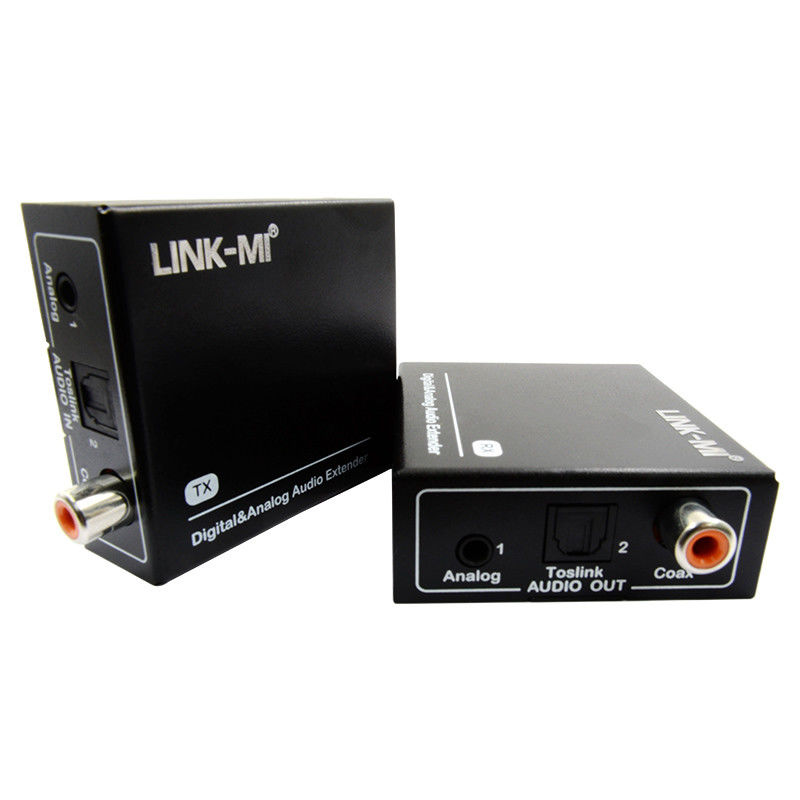

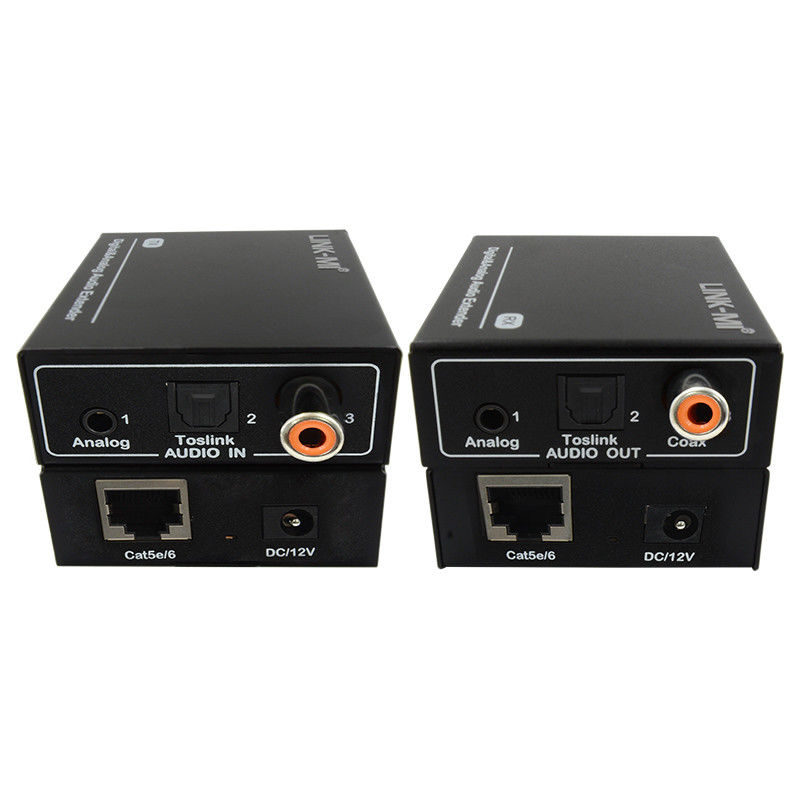

Panel Description

500m HDMI Audio Extractor Digital Analog Audio Extender Over Cat5e Over Cat5e/6 Cable 2

FAQ

Q1: Are you a factory or trading company?

A1: As a professional manufacturer, we supply HDMI related products more than 10 years in China.

Q2: Why should we choose you?

A2: We can offer products with factory price, good quality, best service and long warranty.

Q3: How about your product service?

A3: We can offer OEM and ODM, print your brand, your design on the product based on your order quantity.

Q4: How about the payment terms?

A4: We accept bank transfer, western union, money gram, paypal, Bank of China or cash as payments.

Q5: How do you ship the package?

A5: DHL, Fedex, EMS, by air, by sea...etc.

Q6: What kinds of warranty do you offer?

A6: Our excellent after-sale service team will provide you technical support online. We offer one year warranty for our products.

Q7: How could I buy the products I need if there is no price on the website?

A7: You can send us your inquiry about the products you need. Our sales will reply you within 24 hours to help you make the order.



User Manual:
