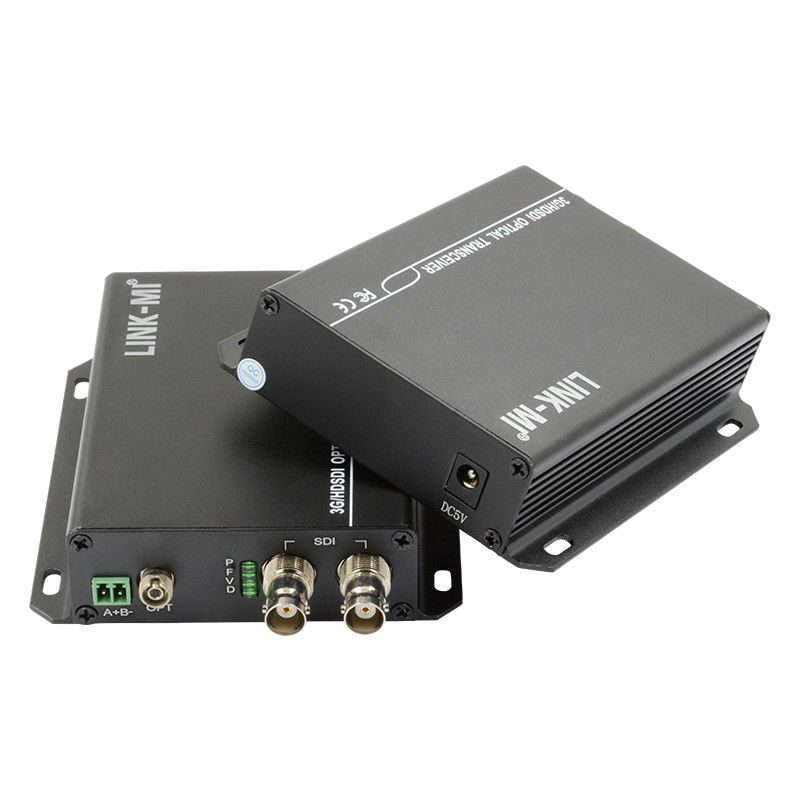

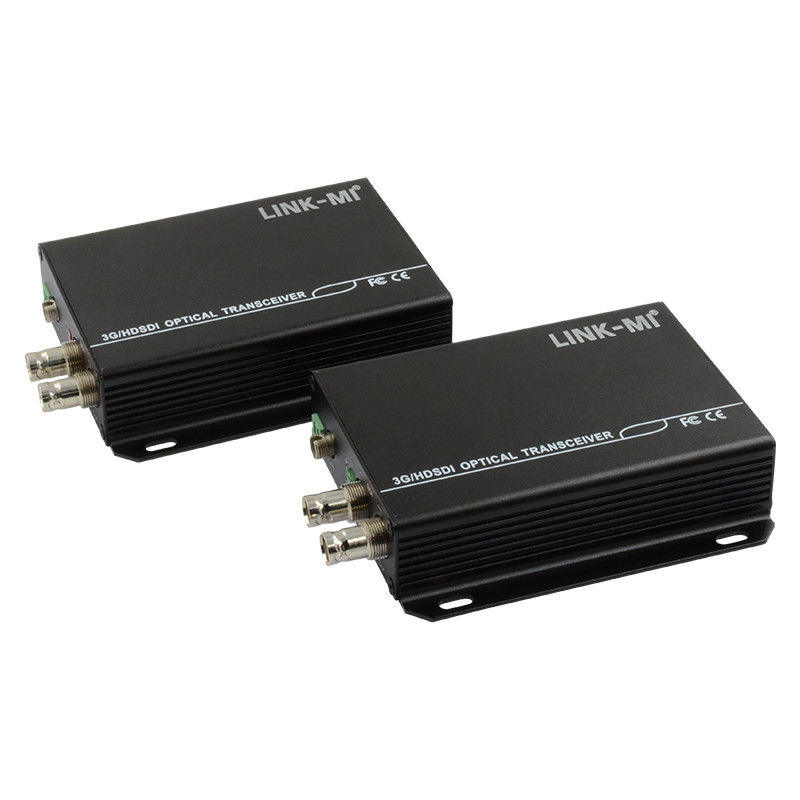

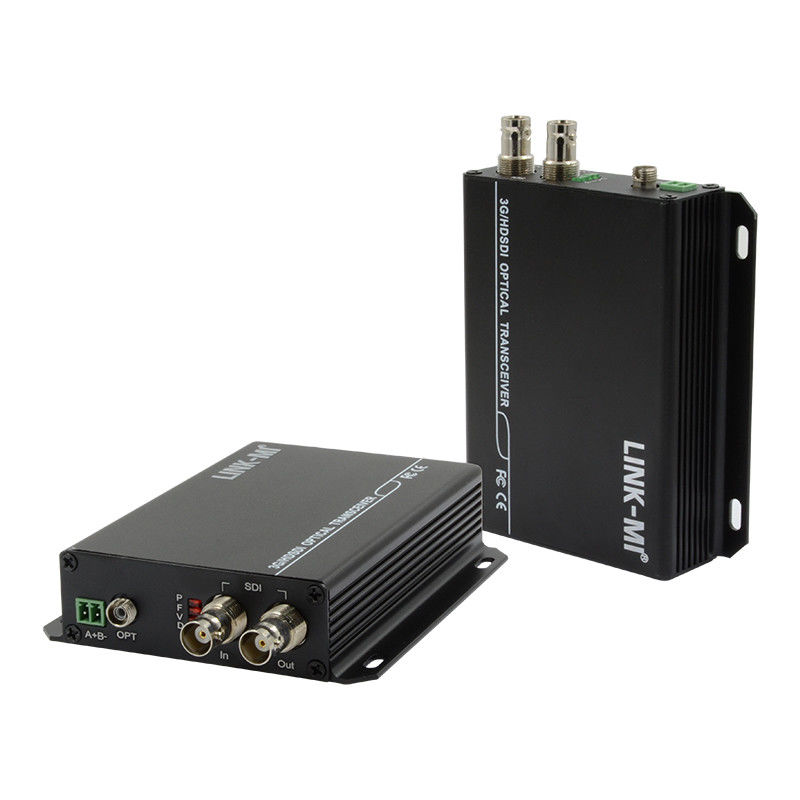

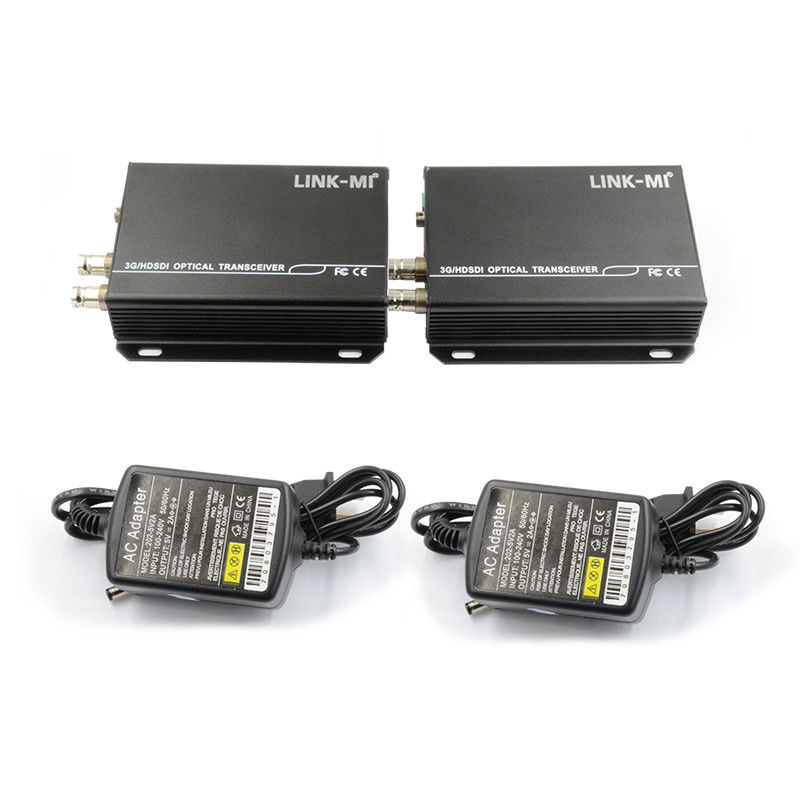

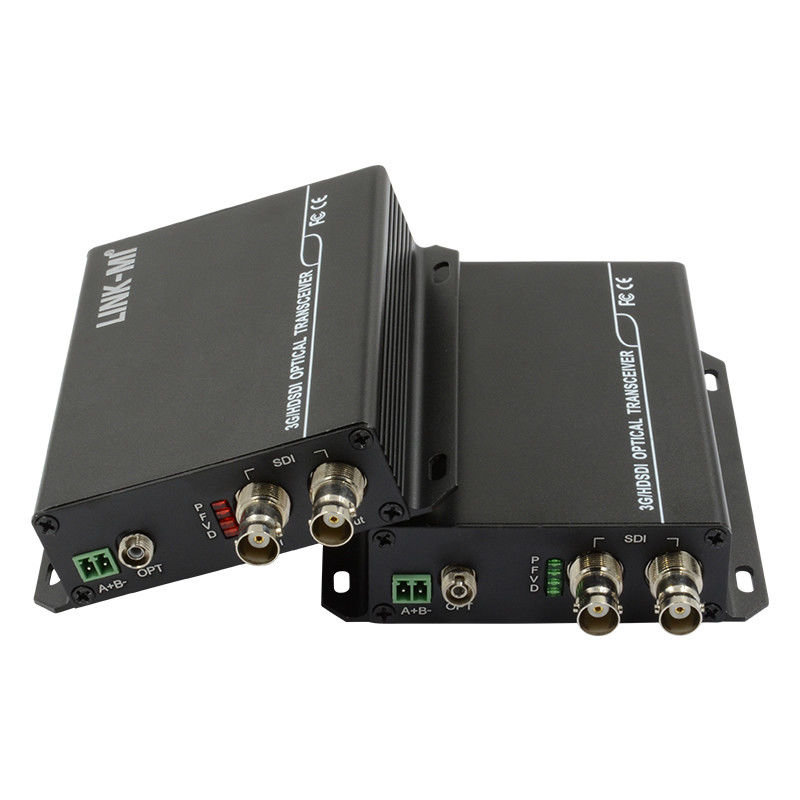

3G / HD SDI Fiber Optic Transmitter Receiver 20KM SDI Extender Over Fiber

3G / HD SDI Fiber Optic Transmitter Receiver 20KM SDI Extender Over Fiber

3G Fiber Optic Transmitter Receiver

HD SDI Fiber Optic Transmitter Receiver

SDI Extender Over Fiber

Place of Origin:

China

Brand Name:

LINK-MI

Model Number:

LM-SF01

Contact Us

Request A Quote
3G / HD SDI Fiber Optic Transmitter Receiver 20KM SDI Extender Over Fiber
3G / HD SDI Fiber Optic Transmitter Receiver 20KM SDI Extender Over Fiber 3G / HD SDI Fiber Optic Transmitter Receiver 20KM SDI Extender Over Fiber 3G / HD SDI Fiber Optic Transmitter Receiver 20KM SDI Extender Over Fiber 3G / HD SDI Fiber Optic Transmitter Receiver 20KM SDI Extender Over Fiber 3G / HD SDI Fiber Optic Transmitter Receiver 20KM SDI Extender Over Fiber
Product Details
Model No.:
LM-SF01
TV Signal Standard:
SMPTE 292M, 259M, 297M, 305M, 310M, M2S, DVB-ASI, DVB-SSI And Other Telecom/Datacom Rate （ 19.4Mb/s - 1.485Gb/s）
Input Channel:
1 ( 1-ch Loopout)
Reflection Loss:
>15DB
Equilibrium:
0-150m @ 1.485Gb/s
Connector:
LC/FC
Output Channel:
1
Type:
Single-mode/fiber (multimode Optional)
Wavelength:
1310nm /1550nm
Dimension:
10CM*13.5CM*2.8CM
Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
White/Brown/Color Box
Delivery Time
5-7 work days
Payment Terms
T/T, Western Union, PayPal, Bank Transfer
RELATED PRODUCTS
Good price HD/SD-SDI 1 to 4 Distribution Amplifier Repeater with Audio 75 ohms Output Impedance online

HD/SD-SDI 1 to 4 Distribution Amplifier Repeater with Audio 75 ohms Output Impedance

Get Best Price
Good price LM-SDI-108B 1 to 8 SD/HD/3G-SDI Distribution Amplifier Repeater with 75 ohm Impedance online

LM-SDI-108B 1 to 8 SD/HD/3G-SDI Distribution Amplifier Repeater with 75 ohm Impedance

Get Best Price
Good price 270Mbps 1.485Gbps SDI Extender SD / HD SDI / 3GSDI Repeater AC Coupling online Video

270Mbps 1.485Gbps SDI Extender SD / HD SDI / 3GSDI Repeater AC Coupling

Get Best Price
Good price 3G / HD SDI Fiber Optic Transmitter Receiver 20KM SDI Extender Over Fiber online Video

3G / HD SDI Fiber Optic Transmitter Receiver 20KM SDI Extender Over Fiber

Get Best Price
Contact Us
+8613332950287
sales@link-mi.com
86-755-83513509
Contact Now
Product Description

3G/HD-SDI Fiber Optic Transmitter Receiver 20KM SDI Extender Over Fiber with Audio RS485



Introduction

LINK-MI LM-SF01 is a 20KM SDI Extender Over Fiber which comes with loop out. It supports 3G/HD SDI.  1ch unidirectional HD-SDI video with embedded audio over one fiber. It supports optional LC/FC fiber ports and fiber modules, RS485.



Feature

1. 1ch unidirectional HD-SDI video with embedded audio over one fiber
2. Range from 19.4Mb/s to 1.485Gb/s
3. SMPTE 292M (1.485Gb/s) clock recovery
4. Support all SMPTE 295M standard,143Mb/s-360Mb/s
5. Support SMPTE 305M (SDI),SMPTE 310M (19.4Mb/s), SMPTE 344M (540Mb/s),M2S and
DVB-ASI (270Mb/s) standard
6. Output wavelength 1310nm,1550nm and 16 types of CWDM (ITU-T G.694.2 compliant)
7. 150M automatic cable equalization, all the 1.485Gb/s rate below (Belden 1694A)
8. Optical network management system
9. LED status indicators monitor the critic parameters
10. Optical network system
11. Support hot swap
12. Support stand-alone,1U rack mount and 4U rack mount



Specification

Model No. LM-SF01
Serial TV BNC Input
TV signal standard
SMPTE 292M, 259M, 297M, 305M, 310M, M2S, DVB-ASI,
DVB-SSI and other Telecom/Datacom rate ( 19.4Mb/s -
1.485Gb/s)
Input channel 1 ( 1-ch loopout)
Reflection loss >15DB
Equilibrium 0-150m @ 1.485Gb/s
Connector 75Ω BNC
Optic Output
Channel 1
Type Single-mode/fiber (multimode optional)
Wavelength 1310nm /1550nm
Reflection loss > 15dB
Jitter < 0.2UI
Connector LC/FC (Optional)
Serial TV BNC Output (EO/OE)
Output Channel 1
Signal level 800mV nominal
Rise/fall time 200Ps nominal
Overshoot <10% amplitude
Reflection loss > 15dB
Jitter < 0.2UI
Connector 75Ω BNC
Power and environmental indicator
Operating temperature 0 ～ ＋ 50
Pressure 1A@12VDC
Power 12W
EMI/RFI FCC Part 15 Class A, EU EMC standard
Average time trouble-free >100000 hours
Dimension 10CM*13.5CM*2.8CM
Note: Specifications are subject to change without notice.



































Connection Diagram

3G / HD SDI Fiber Optic Transmitter Receiver 20KM SDI Extender Over Fiber 0





Panel Description

3G / HD SDI Fiber Optic Transmitter Receiver 20KM SDI Extender Over Fiber 1



FAQ

Q1: Are you a factory or trading company?

A1: As a professional manufacturer, we supply HDMI related products more than 10 years in China.

Q2: Why should we choose you?

A2: We can offer products with factory price, good quality, best service and long warranty.

Q3: How about your product service?

A3: We can offer OEM and ODM, print your brand, your design on the product based on your order quantity.

Q4: How about the payment terms?

A4: We accept bank transfer, western union, money gram, paypal, Bank of China or cash as payments.

Q5: How do you ship the package?

A5: DHL, Fedex, EMS, by air, by sea...etc.

Q6: What kinds of warranty do you offer?

A6: Our excellent after-sale service team will provide you technical support online. We offer one year warranty for our products.

Q7: How could I buy the products I need if there is no price on the website?

A7: You can send us your inquiry about the products you need. Our sales will reply you within 24 hours to help you make the order.
