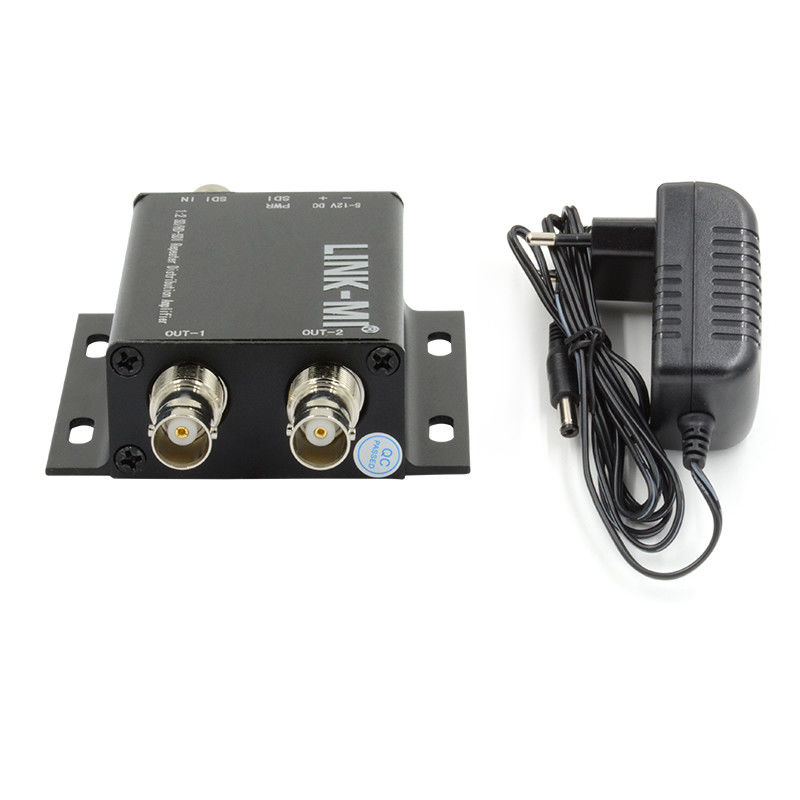

1X2 SDI Splitter Video Repeater 1 to 2 Extender
Introduction
LINK-MI LM-SS12 SD/HD-SDI/3G-SDI 1:2 Repeater& Distribution Amplifier is a 1 to 2 repeater and distribution amplifier with Re-clocking function. It receive one SDI input and perfectly duplicates it. Then it re-transmits two SDI outputs for real time multi-viewing. It is a reliable video device splitting a SDI or HD-SDI video source to two 3G-SDI or HDSDI or SD-SDI display at the same time and takes one input then re-clocks and equalizes the signal and distributes it to two identical outputs.
Features
1. SDI Standard:3G-SDI, HD-SDI, SD-SDI
2. Data Rates: 270Mbps/1.485 Gbps/2.97Gbps
3. Signal Type: SMPTE 292M, SMPTE 259M,SMPTE424M
4. Two separately buffered outputs
5. Cable equalization (Beldon 1694A) retiming and signal
6. Re-clocking function capability – unlimited repeater connection
Specification
|
Input Signal
|
1×BNC SDI
|
|
SDI Signal Type
|
SD-SDI(270Mbps),HD-SDI(1.485Gbps), 3G-SDI(2.97Gbps)
|
|
Video Support
|
480i,576i,720p@23.98/24/25/30/50/60
1080i@50/60,1080p@24/25/30
1080p@50/59.94/60
|
|
SDI Signal Amplitude
|
0.8Vp-p
|
|
Impedance
|
75Ω
|
|
SDI Coupling Type
|
AC Coupling
|
|
SDI Signal Jitter (typical)
|
SD-SDI≤0.1UI HD-SDI≤0.2UI
3G-SDI≤0.4 UI
|
|
Output Signal
|
2×BNC SDI
|
|
Max. Distance
|
Belden 1694A: SD-SDI 400m,HD-SDI 200m,3G-SDI 140m
|
|
Operating Temperature Range
|
0℃~40℃/32℉~104℉
|
|
Storage Temperature Range
|
-20℃~60℃/-4℉~140℉
|
|
Operating Humidity Range
|
20~90%RH(no condensation)
|
|
Power Supply
|
5~12V DC
|
| Note: Specifications are subject to change without notice |
Connection Diagram

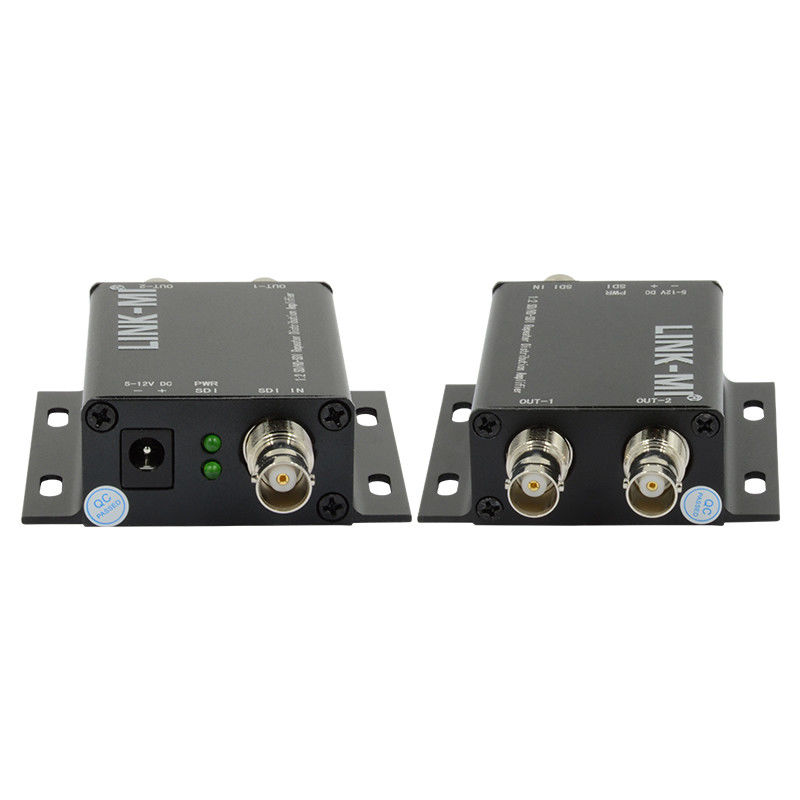

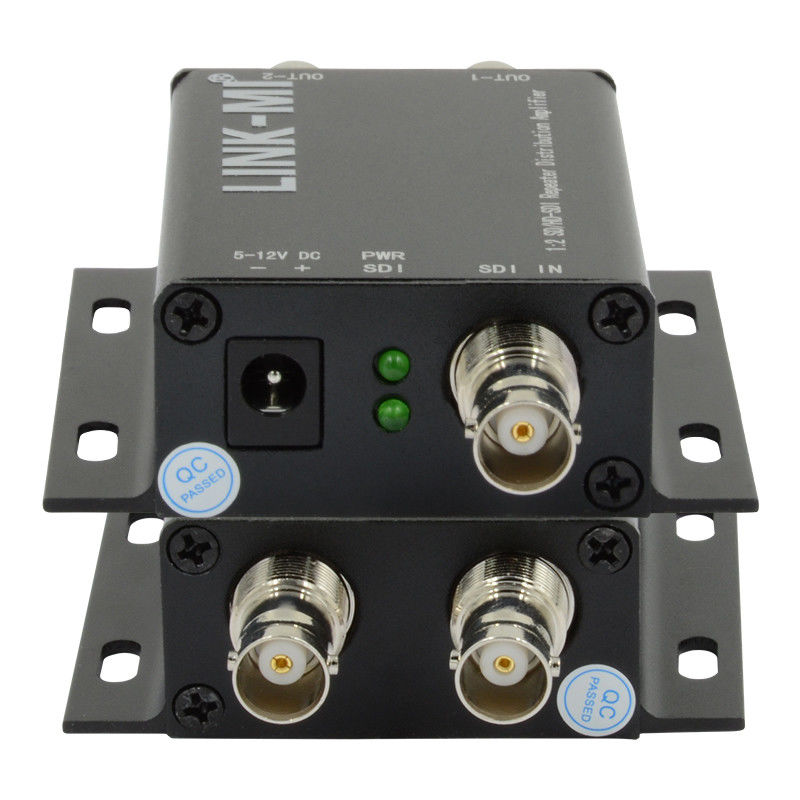

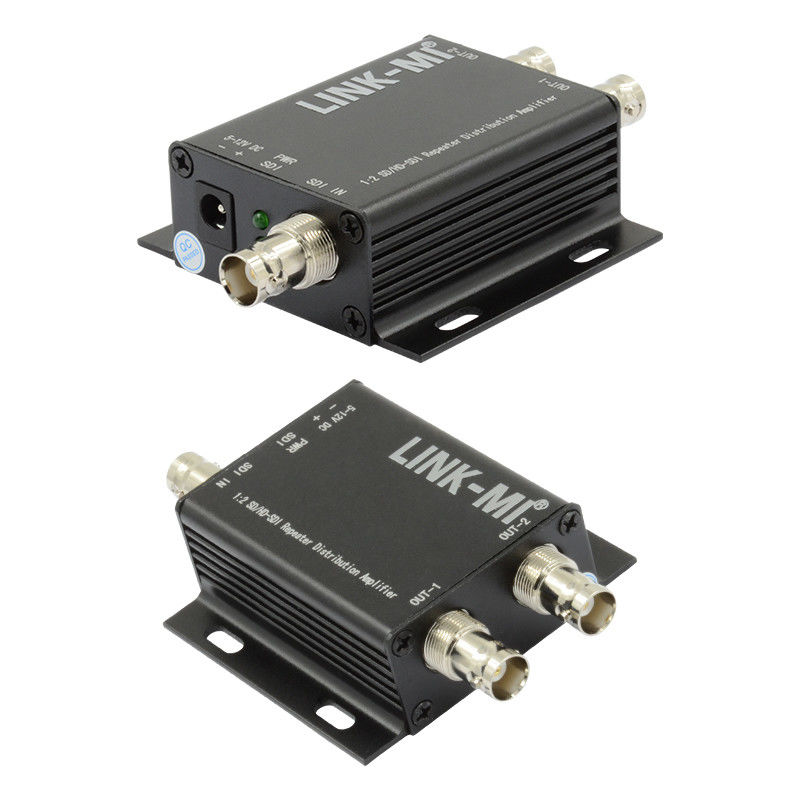

Panel Description
FAQ
Q1: Are you a factory or trading company?
A1: As a professional manufacturer, we supply HDMI related products more than 10 years in China.
Q2: Why should we choose you?
A2: We can offer products with factory price, good quality, best service and long warranty.
Q3: How about your product service?
A3: We can offer OEM and ODM, print your brand, your design on the product based on your order quantity.
Q4: How about the payment terms?
A4: We accept bank transfer, western union, money gram, paypal, Bank of China or cash as payments.
Q5: How do you ship the package?
A5: DHL, Fedex, EMS, by air, by sea...etc.
Q6: What kinds of warranty do you offer?
A6: Our excellent after-sale service team will provide you technical support online. We offer one year warranty for our products.
Q7: How could I buy the products I need if there is no price on the website?
A7: You can send us your inquiry about the products you need. Our sales will reply you within 24 hours to help you make the order.
User Manual:
LM-SS12 1x2 3G-SDI Repeater Splitter.pdf
