SD/HD/3G-SDI 1 to 4 Distribution Amplifier & Repeater with audio
Introduction

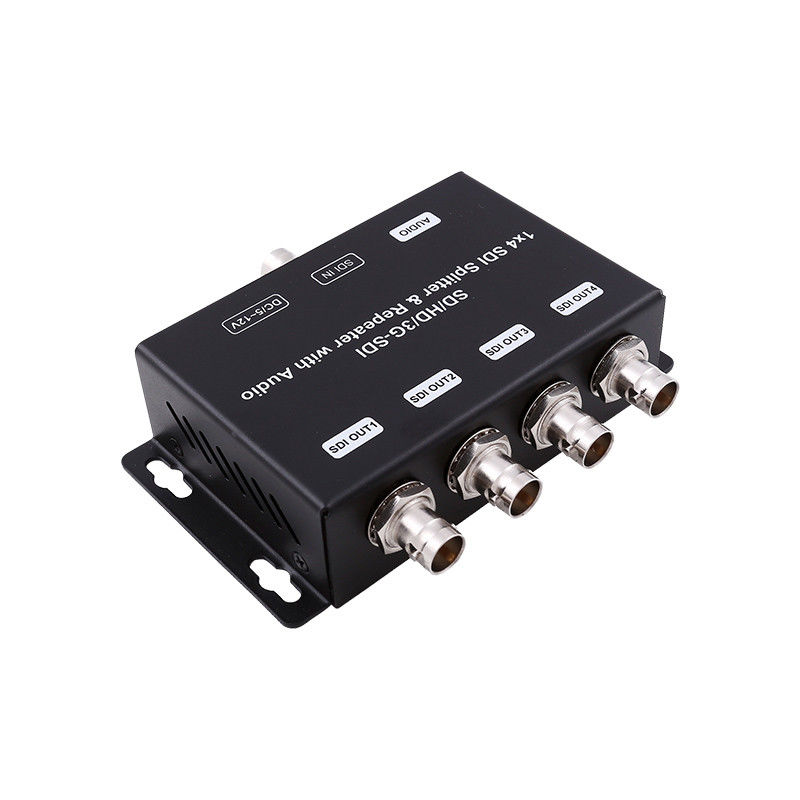

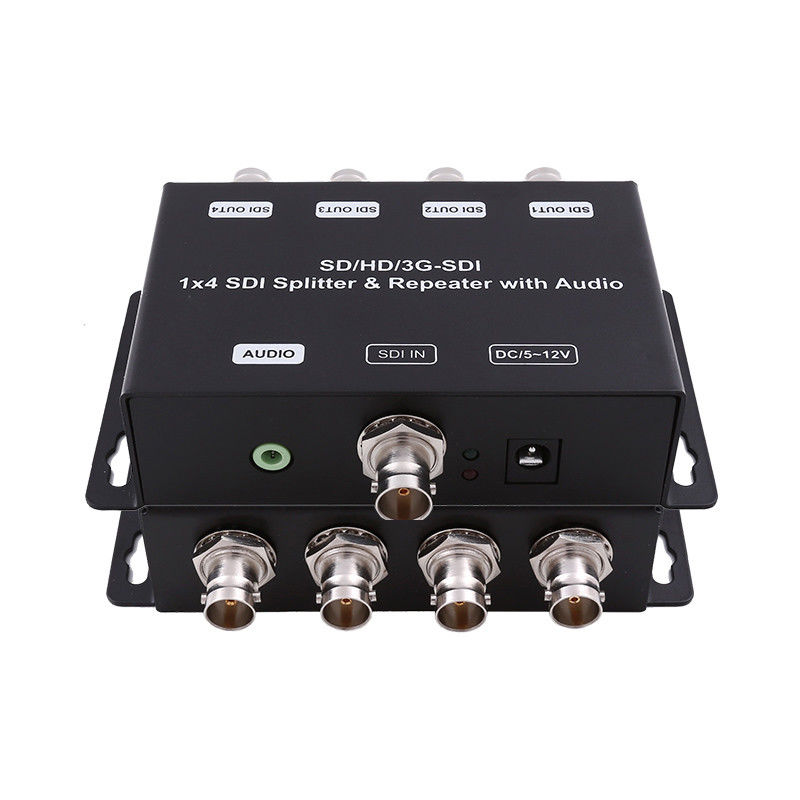

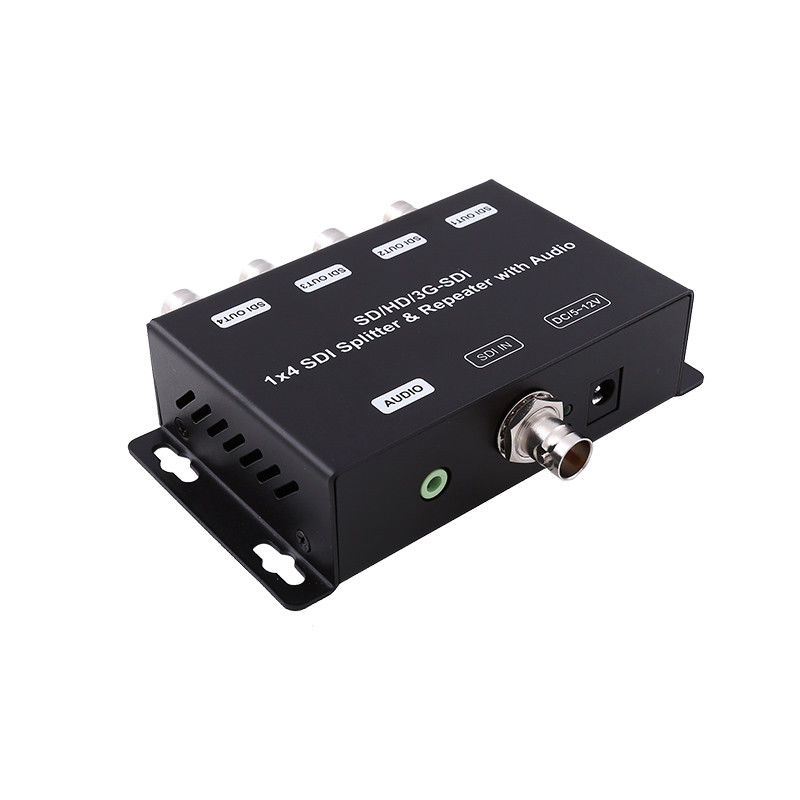

LINK-MI LM-TV04M SD/HD/3G-SDI 1 to 4 Distribution Amplifier & Repeater with audio
Features
1. Distributes 1 SDI input to 4 SDI outputs simultaneously
2. Single unit can transmit up to 120m/390ft (Belden 1694A)
3. With Audio extraction (3.5mm stereo audio output)
4. Re-clocking function capability---unlimited repeater connection
5. Support SDI Standard :SD-SDI,HD-SDI, 3G-SDI
6. Data Rates: 270Mbps(SD-SDI), 1.485Gbps (HD-SDI), 2.97Gbps (3G-SDI)
7. Signal Type: SMPTE 292M, SMPTE 259M, SMPTE 424M
8. DC 5V1A (Power consumption less than 2W)
9. With mounting ears
Specification
| Re-clocking Function |
Yes |
| SDI Standards |
SD-SDI, HD-SDI,3G-SDI |
| HD/SD-SDI Detection |
Auto |
| Supported Protocols |
SMPTE 259M
SMPTE 292M
SMPTE 424M
|
| Data Rates |
270Mbps(SD-SDI), 1.485Gbps (HD-SDI), 2.97Gbps (3G-SDI) |
| Video Support |
480i@60hz, 720p@50/59.94/60hz, 1080i@50/59.94/60hz, 1080p@23.98/24/25/29.97/30/50/59.94/60hz |
| SDI Signal Type |
SMPTE-292M, SMPTE-259M, SMPTE-424M |
| Output Impedance |
75 ohms |
| Cable Equalization |
HD-SDI up to 120m
SD-SDI up to 200m
Unlimited repeater connection
|
| Audio Sampling rate |
48Khz |
| Impedance |
75 ohms |
| Input |
1x BNC [SDI] |
| Output |
4x BNC [SDI], 3.5mm stereo audio jack |
| Power Adapter |
5V1A DC |
| Power Consumption(Max) |
2W |
| Dimension(LxWxH) |
L115xW64xH30mm |
| Operating Temperature |
0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature |
-20°C ~ 60°C / -4°F ~ 140°F |
| Relative Humidity |
20~90% RH (no condensation) |
| Housing Material |
Metal case |
Connection Diagram

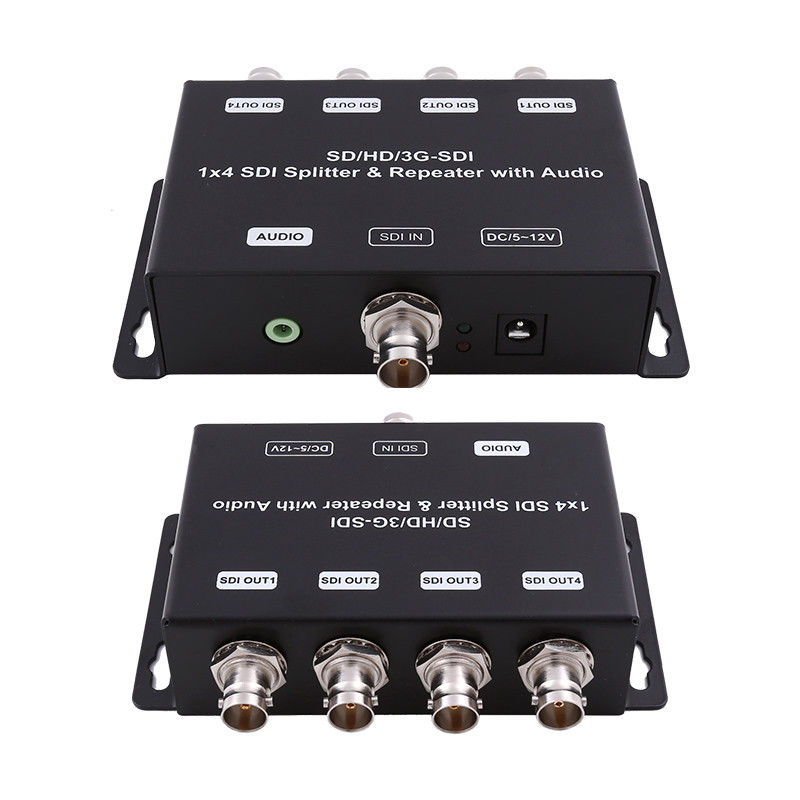

Panel Description
FAQ
Q1: Are you a factory or trading company?
A1: As a professional manufacturer, we supply HDMI related products more than 10 years in China.
Q2: Why should we choose you?
A2: We can offer products with factory price, good quality, best service and long warranty.
Q3: How about your product service?
A3: We can offer OEM and ODM, print your brand, your design on the product based on your order quantity.
Q4: How about the payment terms?
A4: We accept bank transfer, western union, money gram, paypal, Bank of China or cash as payments.
Q5: How do you ship the package?
A5: DHL, Fedex, EMS, by air, by sea...etc.
Q6: What kinds of warranty do you offer?
A6: Our excellent after-sale service team will provide you technical support online. We offer one year warranty for our products.
Q7: How could I buy the products I need if there is no price on the website?
A7: You can send us your inquiry about the products you need. Our sales will reply you within 24 hours to help you make the order.
