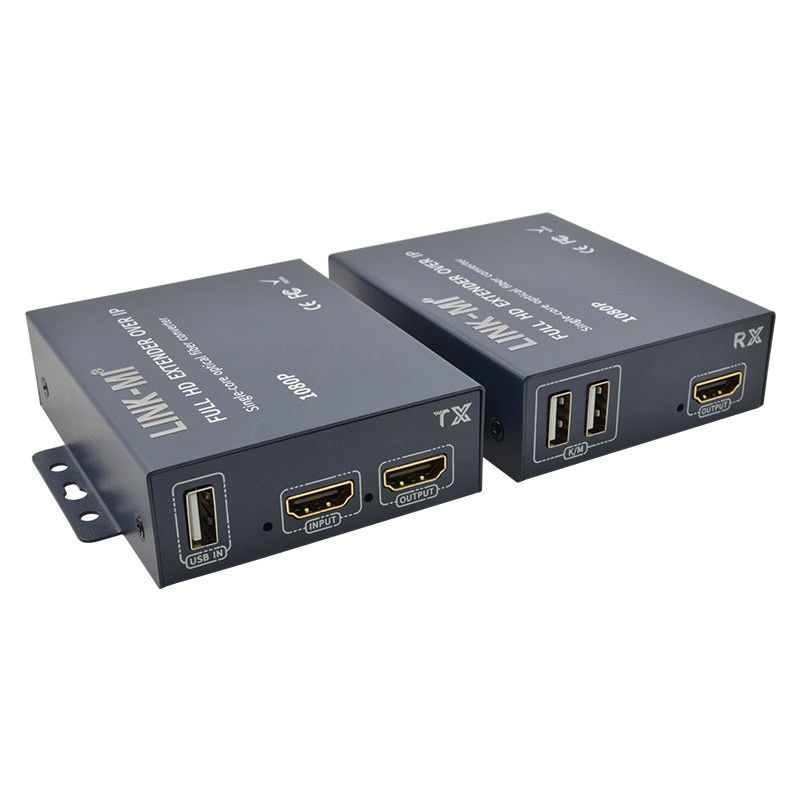

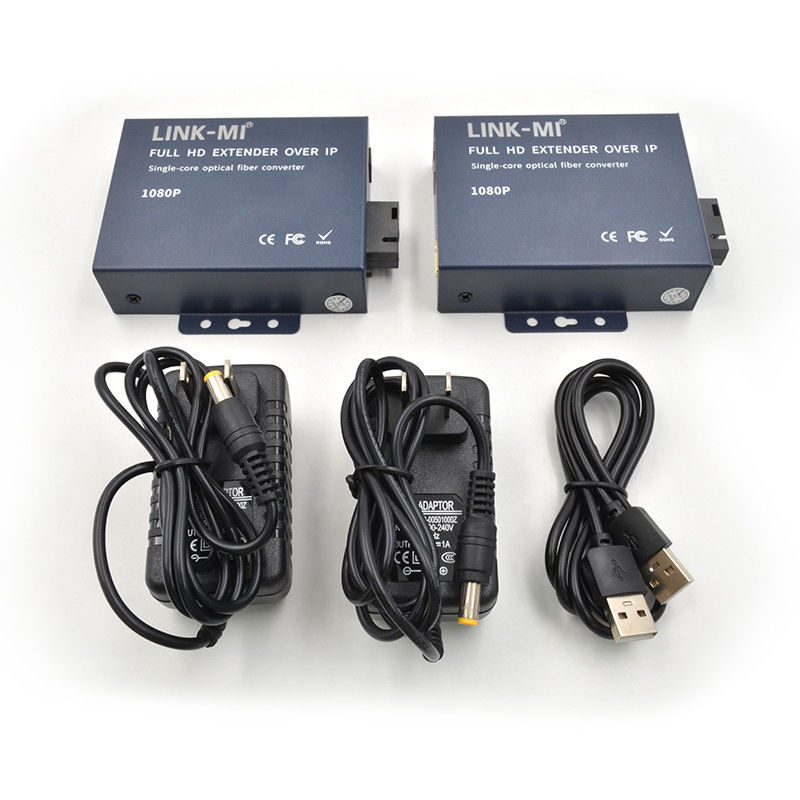

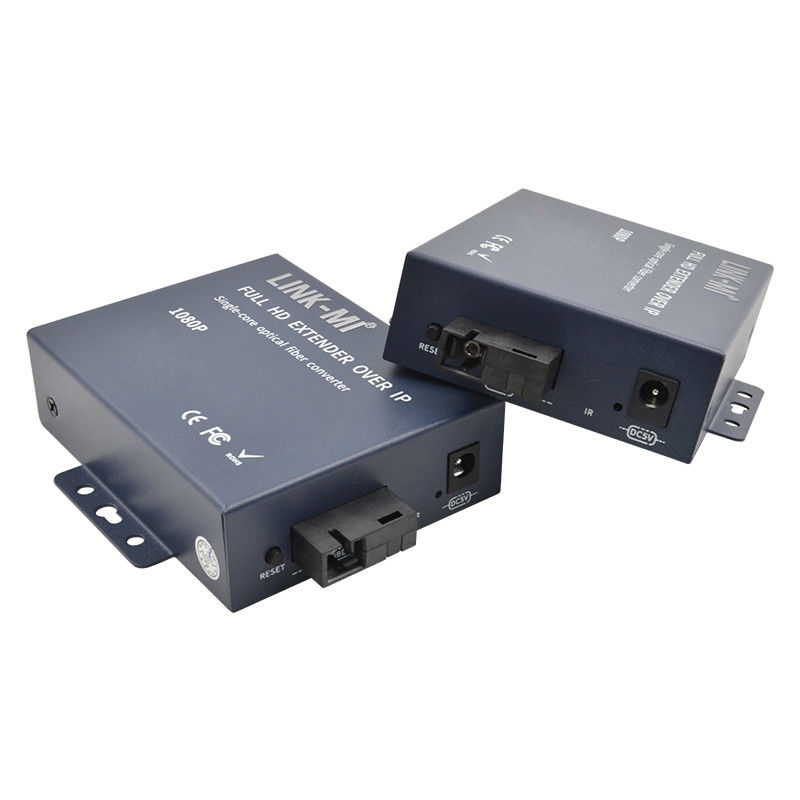

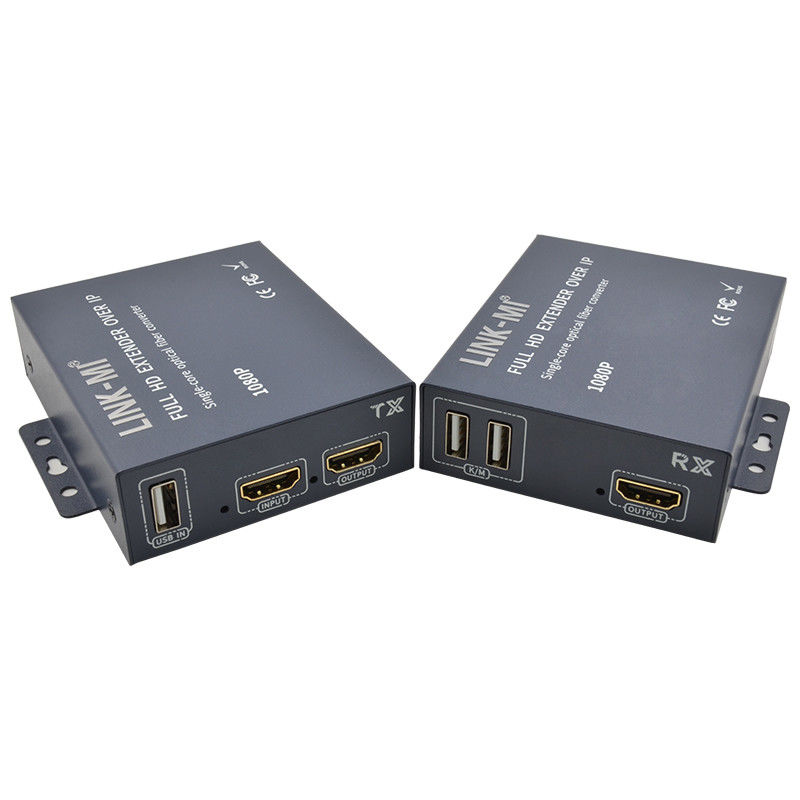

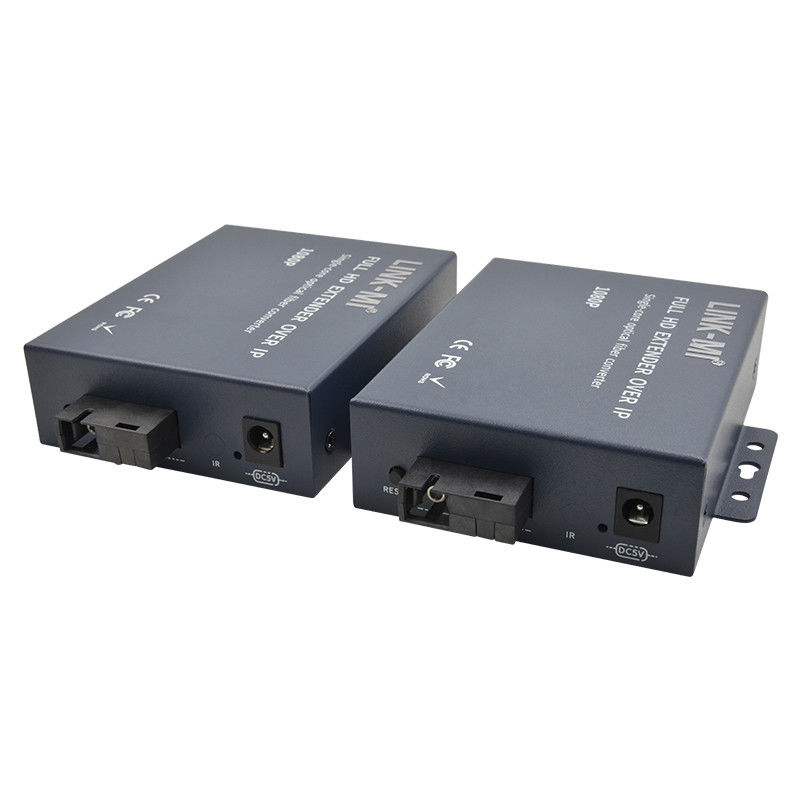

20KM HDMI KVM Fiber Extender with Loop out 1080P HDMI Extender over Fiber
Introduction
LINK-MI LM-K20HF This series of fiber optic extender is used to transmit 1080P high definition HDMI audio and video, USB keyboard and mouse and other signals, including multiple
styles. Using single-core single-mode fiber optic cable can be transmitted, the default standard module distance for single-mode 20KM, multi-mode 3KM, and provides a HDMI output port on the sender side to connect to the local monitor. The device has a long transmission distance, low cost, easy to install, good compatibility, is a stable and efficient transmission method, widely used in computer monitoring systems, high-definition conference systems, high-definition teaching systems, high-definition digital advertising and other signal transmission areas.
Feature
1. Support HDCP1.4
2. Support local loop out
3. Support 20km long distance transmission
4. Support USB mouse and keyboard extension
5. Optional IR function
6. Decoding Mode MJPEG
7. 802.3 Ethernet standard
8. Pure hardware design, plug and play, no additional software is required
9. Optional SC/FC fiber module
Specification
| Model No. |
LINK-MI LM-K20HF |
| Resolutions |
480p,720p,1080p |
| Audio |
Sample rate:32kHz,44.1kHz and 48kHz code I |
| Fiber optic interface |
SC/FC optional |
| Fiber optic transmission distance |
20KM as standard, 40KM/80KM etc. can be customized. |
| adapter |
DC:5V/1A |
| The Max Power consumption |
HDMI sender:3W HDMI receiver:3W |
| Size(L-W-H) |
98*78*28mm |
| Weight |
200g x 2 |
| Operating Temperature/Humidity |
0℃-45℃/10%-80%RH(no condensation) |
| Storage Temperature/Humidity |
-10℃-70℃/5%-90%RH(no condensation) |
| Note: Specifications are subject to change without notice. |
Connection Diagram

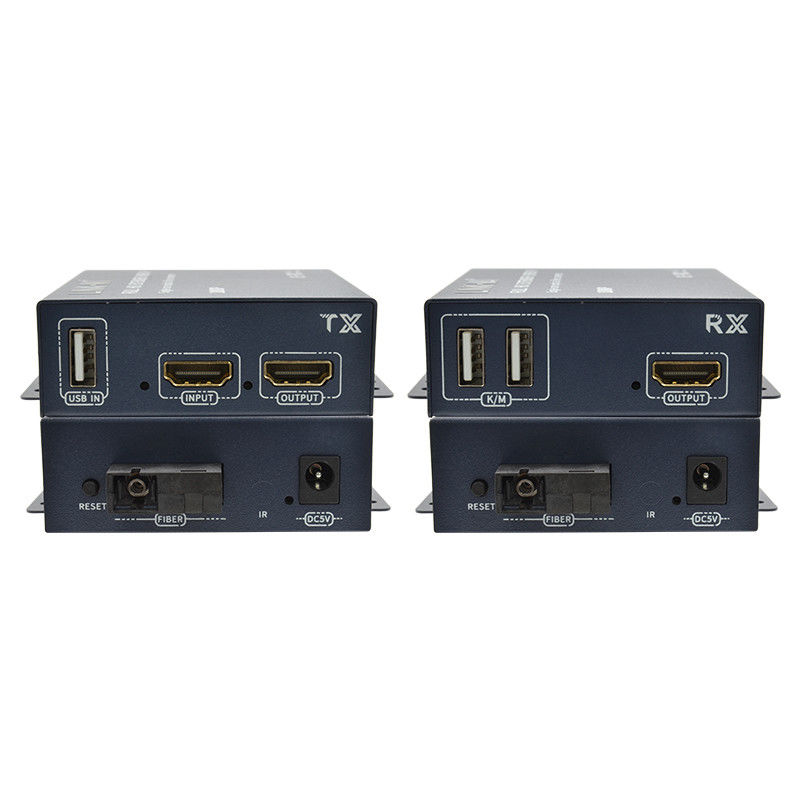

Panel Description
FAQ
Q1: Are you a factory or trading company?
A1: As a professional manufacturer, we supply HDMI related products more than 10 years in China.
Q2: Why should we choose you?
A2: We can offer products with factory price, good quality, best service and long warranty.
Q3: How about your product service?
A3: We can offer OEM and ODM, print your brand, your design on the product based on your order quantity.
Q4: How about the payment terms?
A4: We accept bank transfer, western union, money gram, paypal, Bank of China or cash as payments.
Q5: How do you ship the package?
A5: DHL, Fedex, EMS, by air, by sea...etc.
Q6: What kinds of warranty do you offer?
A6: Our excellent after-sale service team will provide you technical support online. We offer one year warranty for our products.
Q7: How could I buy the products I need if there is no price on the website?
A7: You can send us your inquiry about the products you need. Our sales will reply you within 24 hours to help you make the order.
User Manual:
LM-K20HF 20KM HDMI KVM Fiber Extender 1080P.pdf
