Name: 9x9 70M HDMI Video Wall Processor Hdmi Splitter 3x3 4K HDMI Matrix Extender
Brand: Shenzhen LINK-MI Technology Co., Ltd.
SKU: LM-TVM99C
Availability: InStock

Home > products > 4K Video Wall Controller >

9x9 70M HDMI Video Wall Processor Hdmi Splitter 3x3 4K HDMI Matrix Extender

9x9 HDMI video wall processor

70M hdmi video wall processor

hdmi splitter 3x3 4K

Place of Origin:

China

Brand Name:

LINK-MI

Model Number:

LM-TVM99C

Request A Quote

9x9 70M HDMI Video Wall Processor Hdmi Splitter 3x3 4K HDMI Matrix Extender

Product Details

Model No.:

LM-TVM99C

HDMI Input:

9 X HDMI In

HDMI Output:

9 X HDMI Loopout, 9 X HDMI Out

Audio Output:

Analog (Balanced Audio)

Video Format Supported:

4k@30Hz/1080P/720P/576P/480P/480i

Control Way:

Panel Button/Remote/TCP/IP/RS232

Audio Format Supported:

PCM, Dolby5.1/7.1, DTS5.1/7.1 Digital Audio

USB:

Firmware Update

Dimensions:

1.5U Rack Design L489 X W336 X H67.5 Mm

Mass (Main Unit):

5.48 KG

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiable

Packaging Details

White/Brown/Color Box

Delivery Time

5-7 work days

Payment Terms

T/T, Western Union, PayPal, Bank Transfer

4 TVs 4K Video Wall Processor Supports 180° Rotation Max 3840*2160 60Hz Input Resolution

Get Best Price

1X4 1X3 1X2 2X1 3X1 4X1 UHD TV Wall Processor for Max. 3840x2160 60Hz Input Resolution

Get Best Price

4K60 2x2 Video Wall Controller For 4 Splicing TVs Support 1x2 1x3 1x4 4x1 3x1 2x1 UHD TV Wall Processor

Get Best Price

4K Video Wall Controller for Professional Presentations , 2x2 Video Wall HDMI Controller

Get Best Price

+8613332950287

sales@link-mi.com

86-755-83513509

Contact Now

Product Description

70M 9x9 HDMI Matrix Extender 3x3 Video Wall Processor Seamless Swtich 4K Video Switch

Introduction

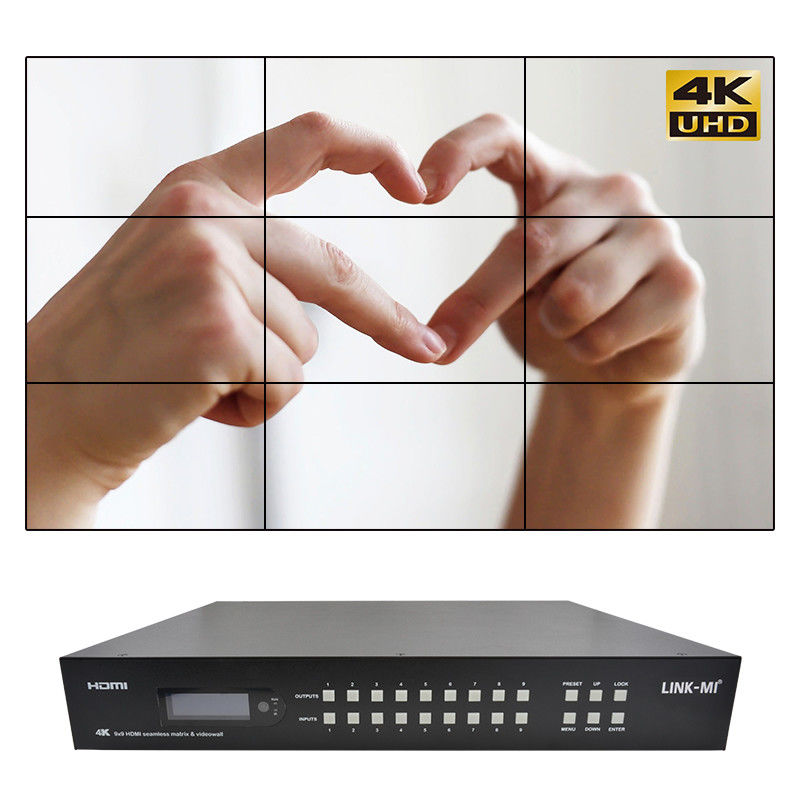

LINK-MI LM-TVM99C is a 9 in 9 out Video Matrix. It supports 3 main functions, 9x9 Matrix, 3x3 Video Wall, 9x1 Multi viewer. It supports seamless switching. Its supported resolution is up to 4K30Hz. And its transmission is up to 70M.

Feature:

1. 9xHDMI input, 9xHDMI loopout, 9xHDMI output and 9xDSC output(POC).
2. Support resolution up to HDMI 1.4v 4K30Hz 4:4:4, deep color 12bit, bandwidth 10.2Gbps.

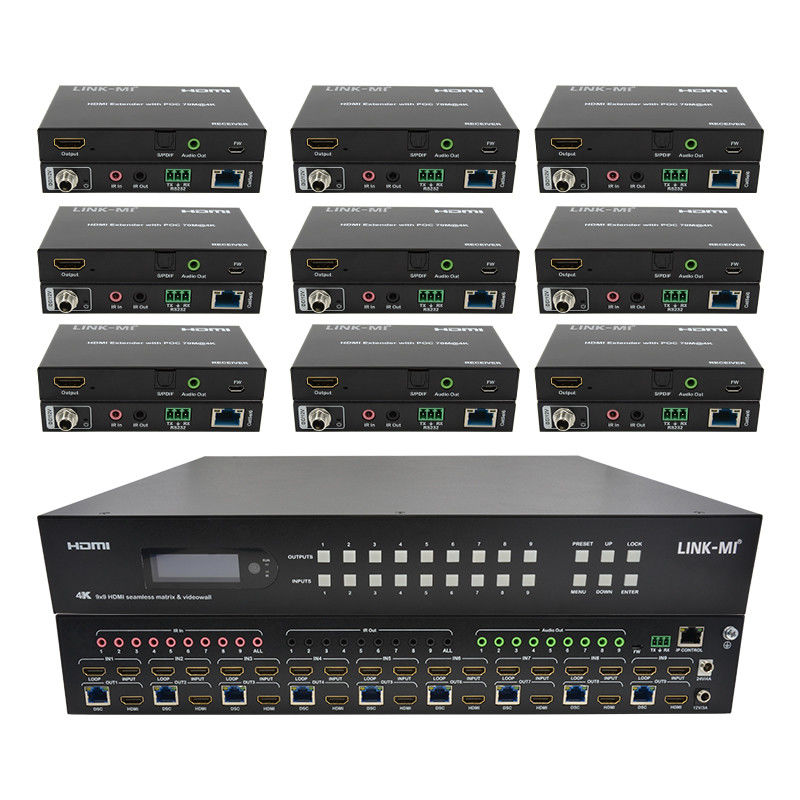

3. Support transmit upto 70m under 4k@30hz or 1080p@60hz by connecting with receiver.
4. Support video signal seamless switching; Video wall; Preset setting, etc.
5. Support Balanced Audio Extraction.
6. Support Panel Button, IR Remote, TCP/IP control, RS232 Commands control.
7. With Built-in EDID (4K30Hz, 1080P).
8. HDCP 2.2/1.4 compliant.
9. Support Micro USB for firmware updating.
10. Video wall mode (Max 3x3) support adjust the screen edge.
11. Support cascade to create max 10×10 videowall, 180°rotation, and mirror function.

Specification

Model No.	LM-TVM99C
Operating Temperature Range	-5 to +40°C(23 to +104 °F)
Storage Temperature Range	-10 to +60°C(-14 to +140 °F)
Operating Humidity Range	5 to 90 % RH (no condensation)
HDMI Input	9 x HDMI In
HDMI Output	9 xHDMI loopout, 9 x HDMI Out
Audio output	Analog (Balanced audio)
Video Format Supported	4k@30Hz/1080P/720P/576P/480P/480i
HDCP Compliant	HDCP2.2 and HDCP1.4
Control way	Panel button/Remote/TCP/IP/RS232
Audio Format Supported	PCM, Dolby5.1/7.1, DTS5.1/7.1 digital audio
USB	Firmware update
Dimensions	1.5U Rack Design L489 x W336 x H67.5 mm
Mass (Main Unit)	5.48 KG
Note: Specifications are subject to change without notice.

Connection Diagram

9x9 70M HDMI Video Wall Processor Hdmi Splitter 3x3 4K HDMI Matrix Extender 0

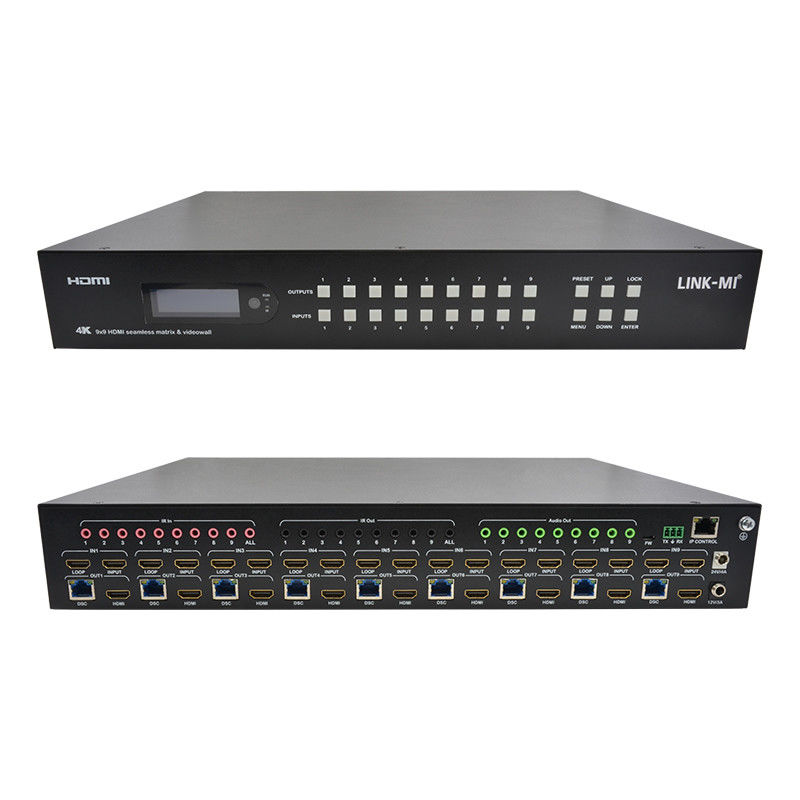

Panel Description

9x9 70M HDMI Video Wall Processor Hdmi Splitter 3x3 4K HDMI Matrix Extender 2

FAQ

Q1: Are you a factory or trading company?

A1: As a professional manufacturer, we supply HDMI related products more than 10 years in China.

Q2: Why should we choose you?

A2: We can offer products with factory price, good quality, best service and long warranty.

Q3: How about your product service?

A3: We can offer OEM and ODM, print your brand, your design on the product based on your order quantity.

Q4: How about the payment terms?

A4: We accept bank transfer, western union, money gram, paypal, Bank of China or cash as payments.

Q5: How do you ship the package?

A5: DHL, Fedex, EMS, by air, by sea...etc.

Q6: What kinds of warranty do you offer?

A6: Our excellent after-sale service team will provide you technical support online. We offer one year warranty for our products.

Q7: How could I buy the products I need if there is no price on the website?

A7: You can send us your inquiry about the products you need. Our sales will reply you within 24 hours to help you make the order.

User Manual:

LM-TVM99C 70M 9x9 Seamless 4K HDMI Matrix Extender...
