Name: 4K HDMI To SDI Converter With Loop Out Support 12G 4K@60Hz EDID Max 120m
Brand: Shenzhen LINK-MI Technology Co., Ltd.
SKU: LM-HSD6
Availability: InStock

Home > products > HDMI Converter >

4K HDMI To SDI Converter With Loop Out Support 12G 4K@60Hz EDID Max 120m

4K HDMI Converter

HDMI Converter 120m

HDMI to SDI 60Hz

Place of Origin:

China

Brand Name:

LINK-MI

Model Number:

LM-HSD6

Request A Quote

4K HDMI To SDI Converter With Loop Out Support 12G 4K@60Hz EDID Max 120m

Product Details

Model No.:

LM-HSD6

Input:

1x HDMI Input

Output:

1 X HDMI Output 1x SDI Output

Resolution Supports:

4k@60hzYUV4:2:2/4k@30HZ/1080p/1080i/720p, Etc..

Audio Format Supported:

PCM2.0 16-24bit 48KHz

Output Video Signal:

SDI & HDMI

Dimension (L×W×H):

L94mm×W79mm×H20mm

Power Supply:

DC 12V/1A

SDI Cable Distance:

80m For 12G 4k@60hz And 6G 4k@30hz , 120m For 3G 1080p

Net Weight:

182g

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiable

Packaging Details

White/Brown/Color Box

Delivery Time

5-7 work days

Payment Terms

T/T, Western Union, PayPal, Bank Transfer

12G 6G 3G SDI To HDMI Video Converter Support YUV4:2:2 Max 120m

Get Best Price

50Hz 60Hz TVI AHD To HDMI Converter With 1xlooping TVI AHD Output 1080p

Get Best Price

BNC 1080p HDMI Converter HDMI To HD SDI Converter 2.5Watt

Get Best Price

12G SDI To HDMI Converter With Audio Extraction 4K@60Hz 18Gbps

Get Best Price

+8613332950287

sales@link-mi.com

86-755-83513509

Contact Now

Product Description

4K HDMI to SDI Converter with loop out Support 12G, 4K@60Hz, EDID, Max. 120m

Introduction

LINK-MI LM-HSD6 is a 4K HDMI to SDI Converter with loop out which supports long SDI cable runs up to 120M. It supports EDID, HDCP2.2 and firmware upgrade.

Feature

1. Support HDMI resolution up to 4K@60Hz YUV4:2:2.

2. Bandwidth up to 12Gbps.

3. Support long SDI cable runs up to: 80m for 12G 4k@60hz and 6G 4k@30hz , 120m for 3G 1080p.

4. Support HDCP2.2/1.4.

5. 1x HDMI loop out.

6. Support EDID management: copy EDID or default EDID.

7. Support PCM2.0 16-24bit, 48KHz audio format.

8. Support Micro USB port for firmware upgrade.

Specification

Model No.	LM-HSD6
Operating Temperature Range	-5 to +40°C(+23 to +104°F)
Operating Humidity Range	5 to 90%RH (No Condensation)
Input	1x HDMI input
Output	1 x HDMI output 1x SDI output
Resolution supports	4k@60hzYUV4:2:2/4k@30HZ/1080p/1080i/720p, etc..
Audio format supported	PCM2.0 16-24bit 48KHz
Output Video Signal	SDI & HDMI
Dimension (L×W×H)	L94mm×W79mm×H20mm
Power supply	DC 12V/1A
Power consumption	12W(MAX)
SDI cable distance	80m for 12G 4k@60hz and 6G 4k@30hz , 120m for 3G 1080p
Net Weight	182g
Note: Specifications are subject to change without notice.

Connection Diagram
4K HDMI To SDI Converter With Loop Out Support 12G 4K@60Hz EDID Max 120m 0

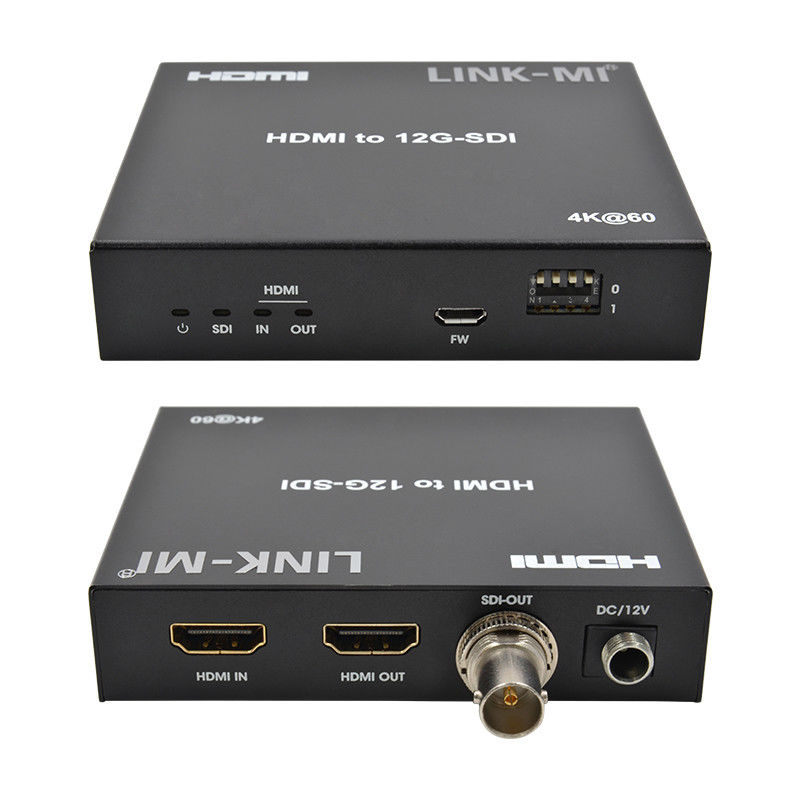

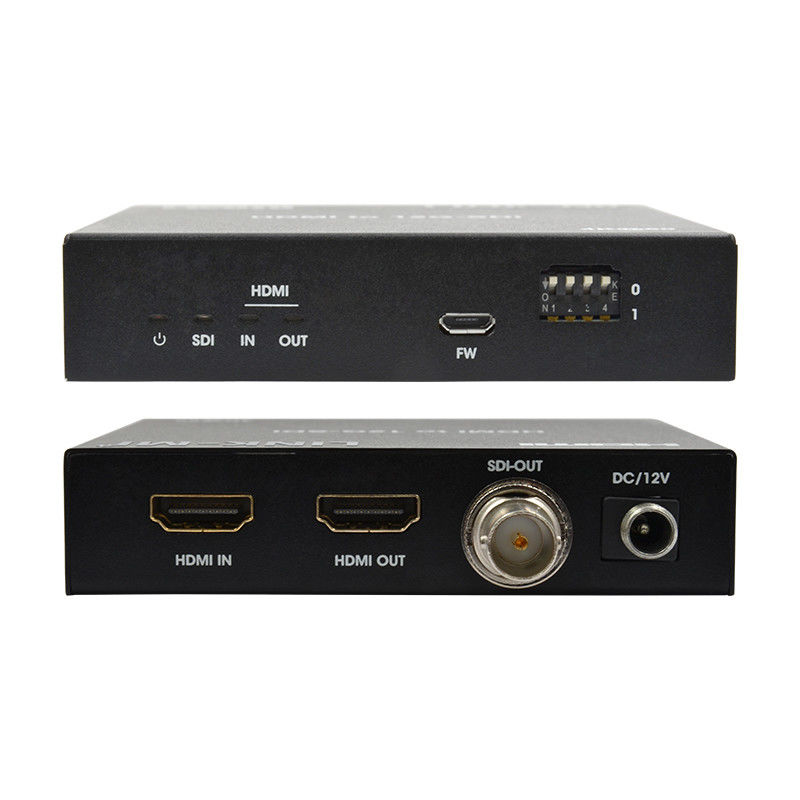

Panel Description

4K HDMI To SDI Converter With Loop Out Support 12G 4K@60Hz EDID Max 120m 1

FAQ

Q1: Are you a factory or trading company?

A1: As a professional manufacturer, we supply HDMI related products more than 10 years in China.

Q2: Why should we choose you?

A2: We can offer products with factory price, good quality, best service and long warranty.

Q3: How about your product service?

A3: We can offer OEM and ODM, print your brand, your design on the product based on your order quantity.

Q4: How about the payment terms?

A4: We accept bank transfer, western union, money gram, paypal, Bank of China or cash as payments.

Q5: How do you ship the package?

A5: DHL, Fedex, EMS, by air, by sea...etc.

Q6: What kinds of warranty do you offer?

A6: Our excellent after-sale service team will provide you technical support online. We offer one year warranty for our products.

Q7: How could I buy the products I need if there is no price on the website?

A7: You can send us your inquiry about the products you need. Our sales will reply you within 24 hours to help you make the order.

User Manual:

LM-HSD6 4K HDMI to 12G-SDI Converter with Loop out...
