70m 4K60Hz HDMI 4x4 Seamless Matrix Video Wall Controller Multi-Viewer Audio Matrix with EDID
Introduction

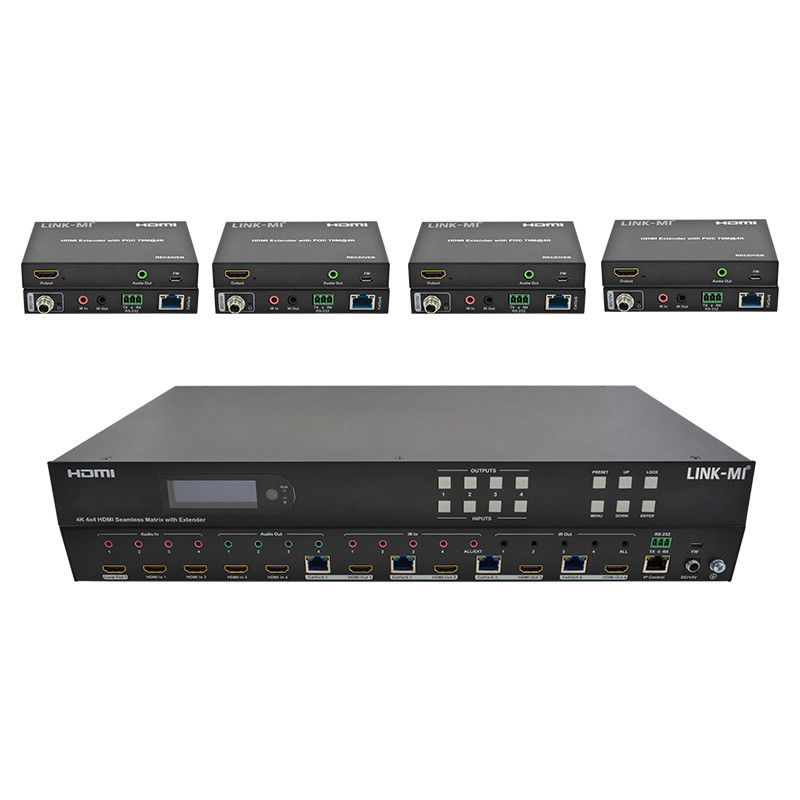

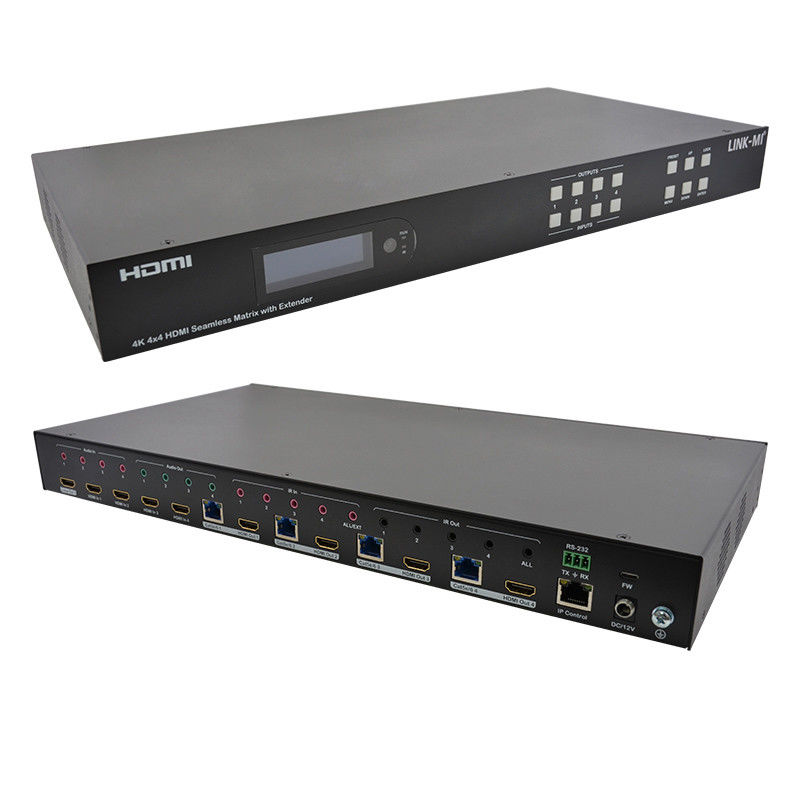

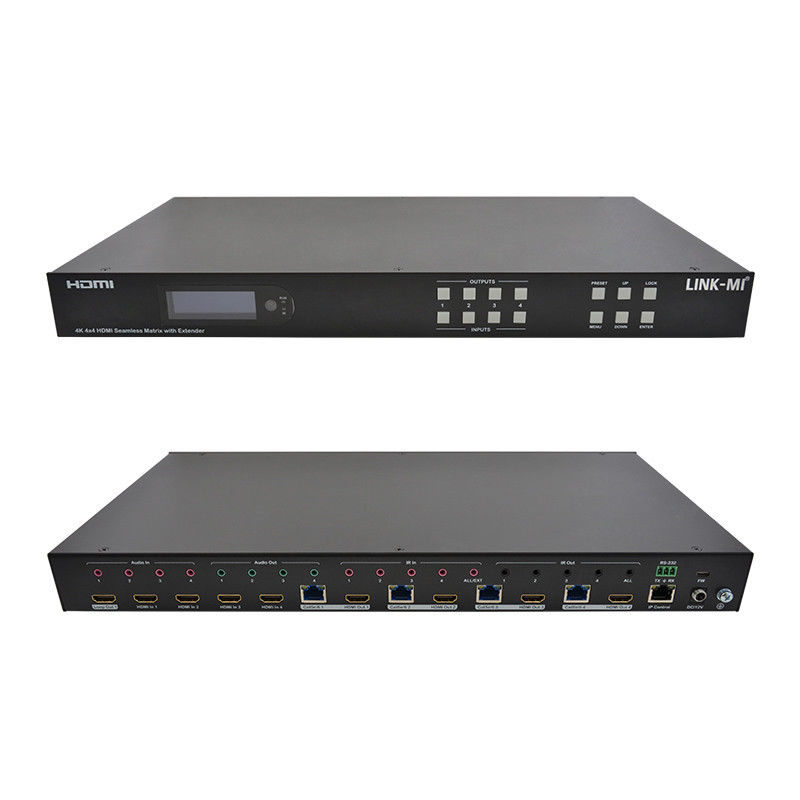

LINK-MI LM-TVM48 is a multifunctional 4 in 4 out Matrix with Extender up to 70m. It supports resolution up to 4K60Hz. It comes with 3 major functions: Matrix / Video Wall Controller / Multi-Viewer
Feature
1. 70m 4x4 HDMI 2.0 Seamless Matrix, 4 HDMI Inputs to 4 RJ45 Outputs with 4 HDMI Loops out
2. Support 4K@60Hz 4:4:4 8bit, HDCP 2.2
3. Seamless Matrix Mode: 4 in 4 out no switching delay and signal loss

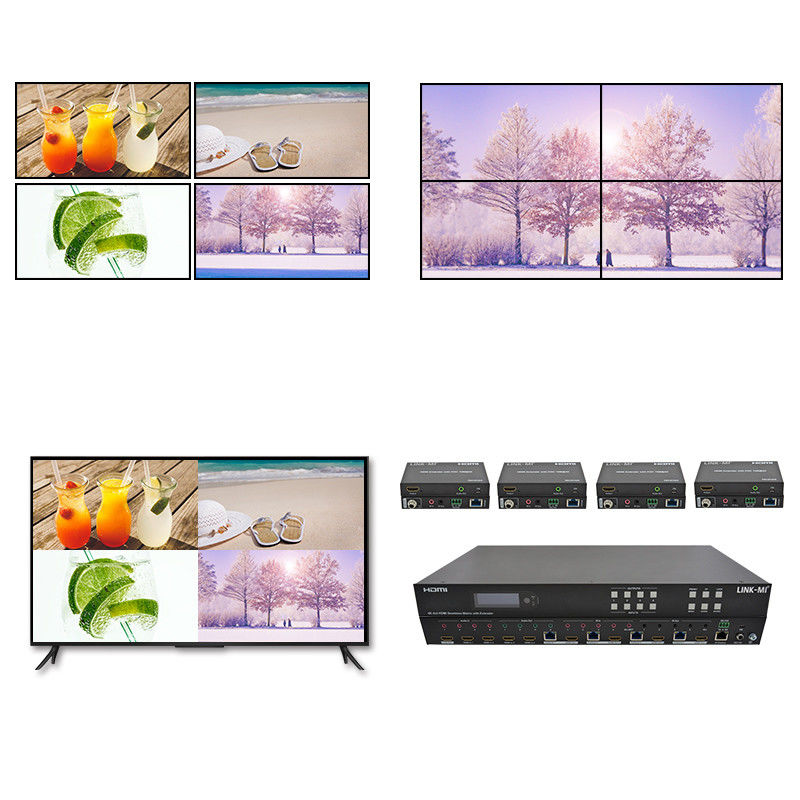

4. Video Wall Mode: Up to 7 different modes built-in and supports cascading
5. Multi-Viewer Mode: Display 4 videos on the same screen and has multiple modes built-in
6. Audio Matrix: Analog audio embedded & extraction, the audio can be independently switching
7. With EDID management
8. Support LPCM 2.0 Audio format
9. Support PoC (Power over Cable): RX powered by TX
10. Control via Panel button, Remote, RS232, TCP/IP Control
Specification
| Model No. |
LM-TVM48 |
| Operating Temperature Range |
-5 to +40°C(23 to +104 °F) |
| Storage Temperature Range |
-10 to +60°C(-14 to +140 °F) |
| Operating Humidity Range |
5 to 90 % RH (no condensation) |
| Video Input Connectors |
4x HDMI Type A, 19-pin, female |
| Video Output Connectors |
4x RJ45 female and 4x HDMI Type A, 19-pin, female |
| Bandwidth |
18Gbit/s |
| Video Format Supported |
4K@60Hz,YUV4:4:4 8bit
4k@30Hz/1080P/1080i/720P |
| Audio Formats Supported |
LPCM 2.0 |
| HDCP Compliant |
HDCP 2.2 and HDCP 1.4 |
| Input ports |
4x HDMI Ports |
| Output ports |
4x RJ45 Ports and 4x HDMI Ports |
| Matrix mode |
4x4 seamless switching |
| Video wall mode |
Multiple video wall modes |
| Multi-viewer mode |
Multiple multi-viewer modes |
| Power Consumption |
41 watts (Max.) |
| Dimensions |
Matrix: L262 x W163 x H36 mm |
| Mass (Main Unit) |
Matrix: 2710g |
| Note: Specifications are subject to change without notice. |
Connection Diagram
FAQ
Q1: Are you a factory or trading company?
A1: As a professional manufacturer, we supply HDMI related products more than 10 years in China.
Q2: Why should we choose you?
A2: We can offer products with factory price, good quality, best service and long warranty.
Q3: How about your product service?
A3: We can offer OEM and ODM, print your brand, your design on the product based on your order quantity.
Q4: How about the payment terms?
A4: We accept bank transfer, western union, money gram, paypal, Bank of China or cash as payments.
Q5: How do you ship the package?
A5: DHL, Fedex, EMS, by air, by sea...etc.
Q6: What kinds of warranty do you offer?
A6: Our excellent after-sale service team will provide you technical support online. We offer one year warranty for our products.
Q7: How could I buy the products I need if there is no price on the website?
A7: You can send us your inquiry about the products you need. Our sales will reply you within 24 hours to help you make the order.
