Name: 150M KVM HDMI Extender Support 4K 60Hz 18Gbps KVM Extender
Brand: LINK-MI
SKU: LM-EX150HKM
Rating: 4.6 (188 reviews)

Home > products > HDMI Extender >

150M KVM HDMI Extender Support 4K 60Hz 18Gbps KVM Extender

150M HDMI Extender

HDMI Extender 4K

60Hz 18Gbps KVM Extender

Place of Origin:

China

Brand Name:

LINK-MI

Model Number:

LM-EX150HKM

Request A Quote

150M KVM HDMI Extender Support 4K 60Hz 18Gbps KVM Extender

Product Details

Model No:

LM-EX150HKM

HDMI Compliance:

HDMI 2.0b

Transmitter:

Input: 1×HDMI, 1×IR, 1×USB Output: 1×HDBT, 1×IR

Receiver:

Input: 1×HDBT, 1×IR Output: 1×HDMI, 1×IR, 2×USB

Video Bandwidth:

18Gbps

Video Resolution:

Up To 4K2K@60Hz YUV 4:4:4

Transmission Distance:

1080P@60--150m, 4K60--120m

Color Space:

RGB, YCbCr_4:4:4, YCbCr_4:2:2

HDR:

HDR, HDR10, HDR10+, Dolby Vision, HLG

Audio Format:

LPCM 7.1CH, Dolby True HD, And DTS-HD Master

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiable

Packaging Details

White/Brown/Color Box

Delivery Time

5-7 work days

Payment Terms

T/T, Western Union, PayPal, Bank Transfer

AC 100-240V 50/60Hz Input USB 3.0 Extender 100m Speed and Stable Connection

Get Best Price

HDMI2.0 1x8 Splitter Extender Support 4K 60M POC

Get Best Price

H.265/H.264 HD HDMI Encoder for IP TV High Definition LM-HE02

Get Best Price

1xlooping AHD Output AHD To HDMI Converter Recommended Maximum Distance 500meters

Get Best Price

+8613332950287

sales@link-mi.com

86-755-83513509

Contact Now

Product Description

150M HDMI Extender with KVM Function Support 4K@60Hz 18Gbps KVM Extender

Introduction

LINK-MI LM-EX150HKM This 18Gbps HDBaseT Extender can extend HDMI signal, bi-directional IR control signal and USB KVM signal to a distance up to 150m via a single CAT6 cable. This product converts HDMI signal to standard HDBaseT signal and transmits it through LAN cable.

It can easily control signal source device or display device from the remote end through bi-directional IR signal passthrough function. Video resolution up to 4K2K@60Hz YUV 4:4:4. It also supports USB KVM and POC function.
The extender can be widely used in other fields such as video conference system, multimedia signal broadcasting, HDMI signal extension, etc.

Feature

1. HDMI2.0b, HDCP 2.2 and USB 1.1 compliant

2. Support 18Gbps video bandwidth

3. Support video resolution up to 4K2K@60Hz YUV 4:4:4

4. The transmission distance can be extended up to 492ft / 150m at the resoution of 1080P@60Hz, or 394ft / 120m at 4K2K@60Hz 4:4:4 via a single CAT6 cable

5. Support bi-directional IR signal and USB KVM signal pass-through

6. Support bi-directional POC (Power over Cable) function

7. Compact design for easy and flexible installation

Specification

Model No.	LM-EX150HKM
Technical
HDMI Compliance	HDMI 2.0b
HDCP Compliance	HDCP 2.2
Video Bandwidth	18Gbps
Video Resolution	Up to 4K2K@60Hz YUV 4:4:4
USB Compliance	USB 1.1
IR Level	5Vp-p
IR Frequency	Wideband 20K-60KHz
Transmission Distance	1080P@60--150m, 4K60--120m
Color Space	RGB, YCbCr_4:4:4, YCbCr_4:2:2
HDR	HDR, HDR10, HDR10+, Dolby Vision, HLG
Audio Format	LPCM 7.1CH, Dolby True HD, and DTS-HD Master
ESD Protection	Human body model —±8kV (Air-gap discharge) & ±4kV (Contact discharge)
Connection
Transmitter	Input: 1×HDMI IN [TypeA, 19-pin female] 1×IR IN [3.5mm Stereo Mini-jack] 1×SERVICE [Micro-USB jack] 1×USB [USB-B, 4-pin female] Output: 1×HDBT OUT [RJ45] 1×IR OUT [3.5mm Stereo Mini-jack]
Receiver	Input: 1×HDBT IN [RJ45 with light] 1×IR IN [3.5mm Stereo Mini-jack] 1×SERVICE [Micro-USB jack] Output: 1×HDMI OUT [TypeA, 19-pin female] 1×IR OUT [3.5mm Stereo Mini-jack] 2×USB [USB-A, 4-pin female]
Mechanical
Housing	Metal Enclosure
Color	Black
Dimensions	Transmitter / Receiver:140mm (W)x65mm (D)×18mm (H)
Weight	Transmitter: 246g, Receiver: 246g
Power Supply	DC 24V/1A; Support POC function
Power Consumption	10W
Operating Temperature	0°C ~40°C/32°F ~ 104°F
Storage Temperature	-20°C ~60°C/-4°F ~ 140°F
Relative Humidity	20~90% RH (non-condensing)
Note: Specifications are subject to change without notice.

Connection Diagram

150M KVM HDMI Extender Support 4K 60Hz 18Gbps KVM Extender 0

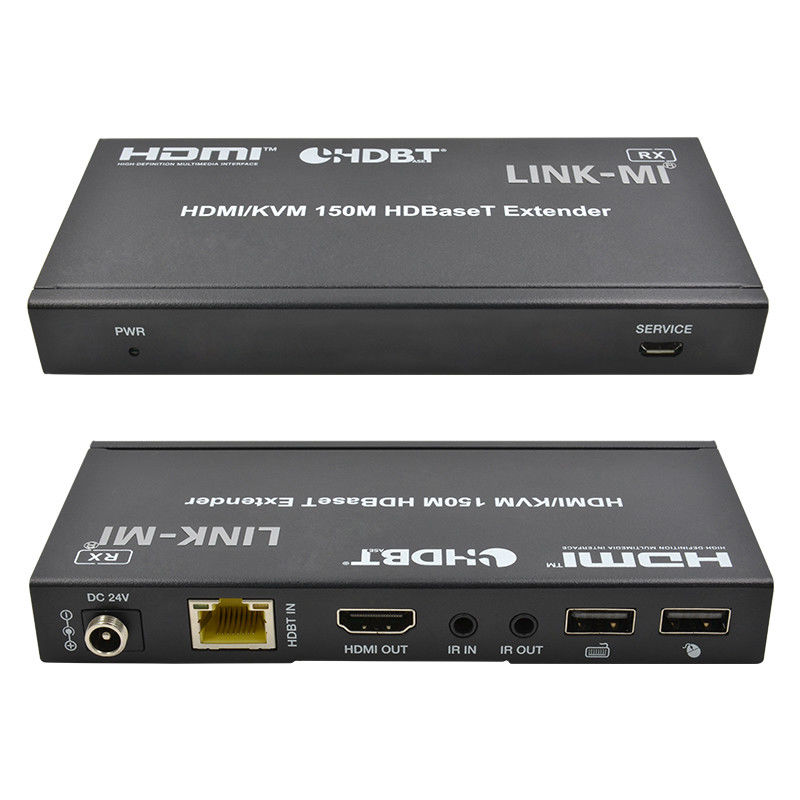

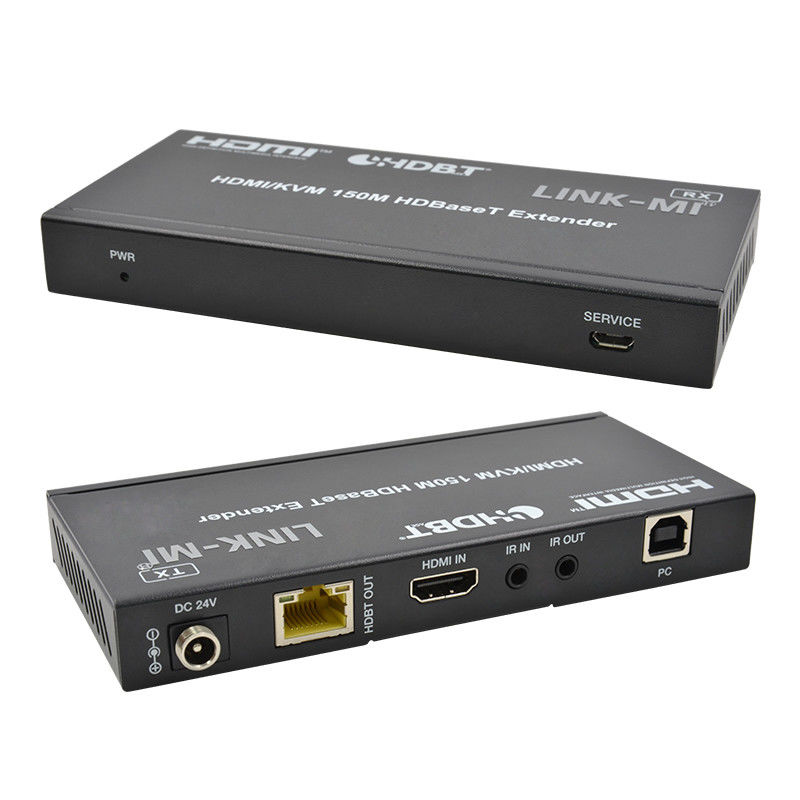

Panel Description

150M KVM HDMI Extender Support 4K 60Hz 18Gbps KVM Extender 1

FAQ

Q1: Are you a factory or trading company?

A1: As a professional manufacturer, we supply HDMI related products more than 10 years in China.

Q2: Why should we choose you?

A2: We can offer products with factory price, good quality, best service and long warranty.

Q3: How about your product service?

A3: We can offer OEM and ODM, print your brand, your design on the product based on your order quantity.

Q4: How about the payment terms?

A4: We accept bank transfer, western union, money gram, paypal, Bank of China or cash as payments.

Q5: How do you ship the package?

A5: DHL, Fedex, EMS, by air, by sea...etc.

Q6: What kinds of warranty do you offer?

A6: Our excellent after-sale service team will provide you technical support online. We offer one year warranty for our products.

Q7: How could I buy the products I need if there is no price on the website?

A7: You can send us your inquiry about the products you need. Our sales will reply you within 24 hours to help you make the order.

User Manual:

LM-EX150HKM 150M HDBaseT Extender with KVM.pdf
