2X2 4K HDMI Video Wall Controller Smart Net Media Player TV Wall Controller for 4 TVs
Introduction

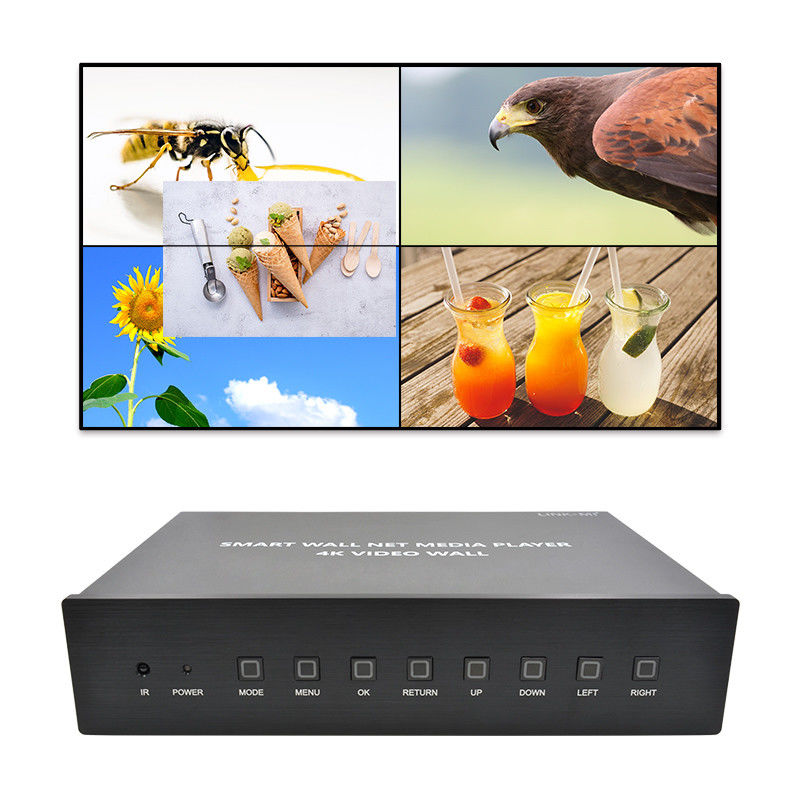

This is a professional image splicing video wall controller we launched specifically for LCD splicing walls. Through this device, you can realize any splicing, roaming, window opening, superposition and other functions of the splicing screen. It integrates multimedia broadcast control, information release, cluster management functions and application platform, and has powerful interaction and playback capabilities.
It supports Windows, Mac OS, iOS, and Android multi-platform terminal control, enabling arbitrary window opening and roaming display of multiple screens. At the same time, according to the needs of different application scenarios, it supports docking with live conference systems, monitoring systems, online live broadcasts, and local media playback, providing 2 scene modes (desktop mode, window mode), so that document presentation, video playback, and remote meetings can all match the best display effect.
It supports infrared remote control, mouse, tablet, mobile phone, and computer control, and can be widely used in commercial display scenarios in government and enterprise, conference rooms, hotel design, medical, education and other industries.
Feature
1. Support 4 channels HDMI outputs (Can customize max. 16 HDMI outputs )
2. Support 4 channels HDMI1.4 out, max support 1920x1080@60Hz point-to-point display, and backward compatible
3. Support 1 way HDMI (4K@30Hz) input, backward compatible
4. Support 2-way USB3.0 for multimedia display and function expansion (keyboard and mouse access functions, U disk upgrade, etc.)
5. Support TF card expansion, U disk expansion, direct plug-in, live broadcast
6. Support online/local display of video, audio, pictures, PPT, web pages, etc.
7. Support multiple communication methods such as WIFI, Gigabit Ethernet port, USB cable direct connection, etc.
8. Support 1 channel 3.5mm audio output, audio and video synchronization output
9. Support multi-window display, window opening, roaming, overlay, and splicing display
10. Support keyboard and mouse control, infrared remote control, mobile phone and tablet PC control
11. Support horizontal or vertical screen point-to-point splicing and combination mode splicing within 1x4 and 4x1 (software need to be customized)
Specification
| Model No. |
LM-TV04T |
|
Input Ports
|
1x HDMI
2x USB 3.0 (Connect U-disk/Keyboard/Mouse)
1x TF CARD (For capacity expansion)
1x LAN (1000M network port)
|
|
Output Ports
|
4x HDMI
1x Audio out
|
|
Resolution
|
HDMI input supports max. 4K@30Hz
HDMI output 1-4 supports max. 1920x1080@60Hz
|
|
Functions
|
multi-window display, window opening, roaming, overlay, and splicing display...etc.
|
|
Video Wall Modes
|
2X2, 1X4, 4X1...etc
|
|
Horizontal / Vertical
Mode
|
Support
|
|
Power Supply
|
DC 12V
|
|
Net Weight
|
1.5KG
|
|
Dimension
|
270*270*60mm
|
|
Operating Temperature
|
0°C~50°C
|
|
Operating Humidity
|
10%RH~75%RH (non-condensing)
|
|
Storage Temperature
|
-25°C~125°C
|
| Note: Specifications are subject to change without notice. |
Connection Diagram

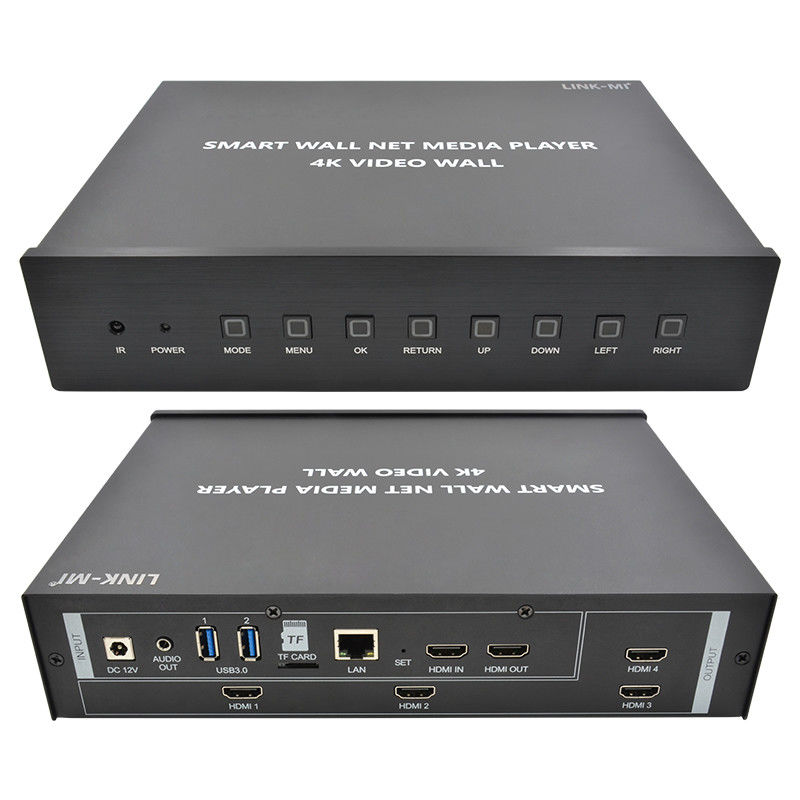

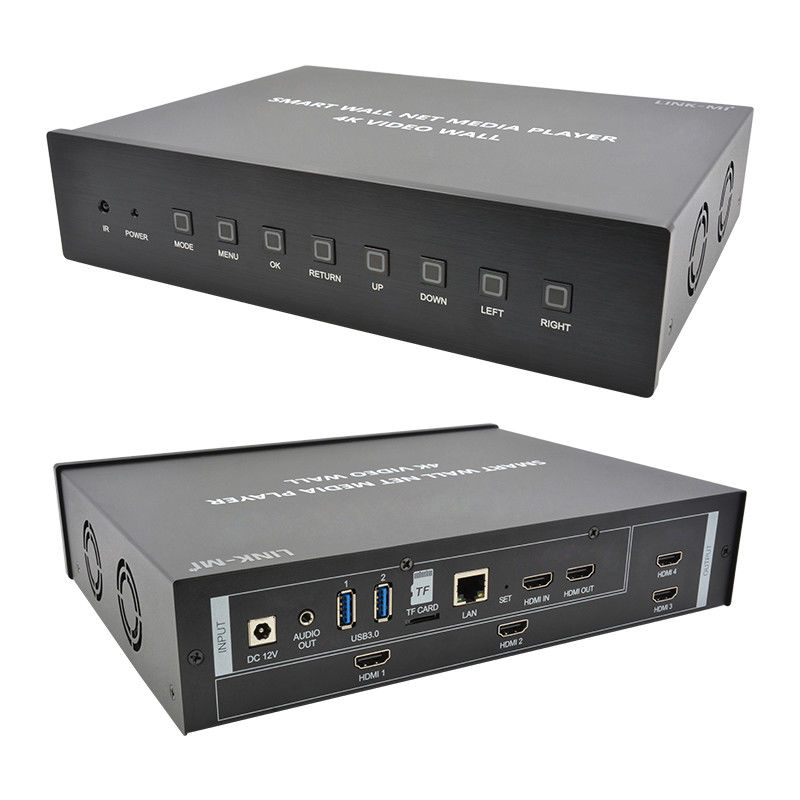

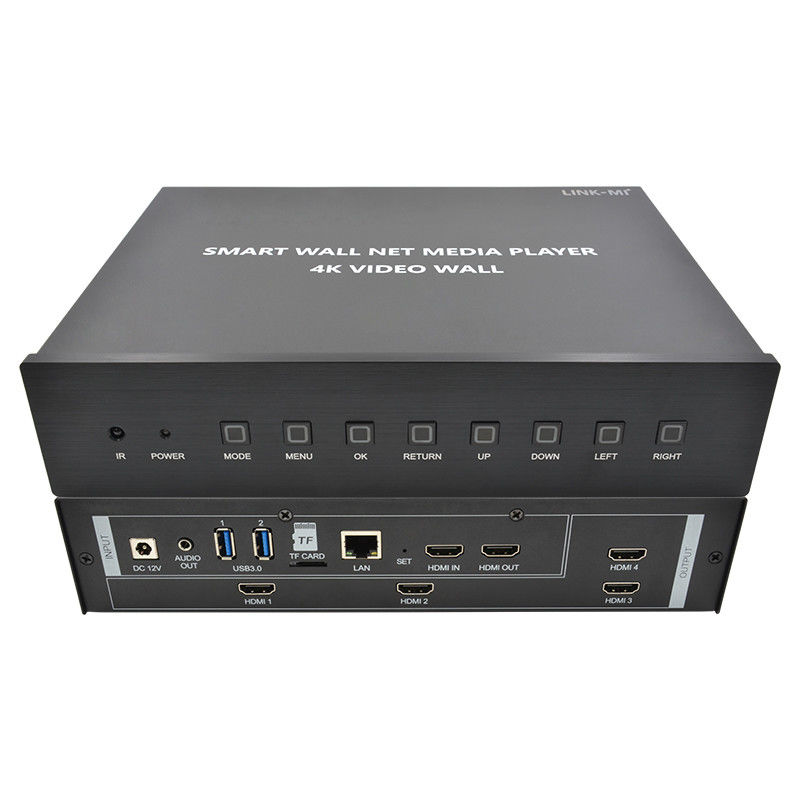

Panel Description
FAQ
Q1: Are you a factory or trading company?
A1: As a professional manufacturer, we supply HDMI related products more than 10 years in China.
Q2: Why should we choose you?
A2: We can offer products with factory price, good quality, best service and long warranty.
Q3: How about your product service?
A3: We can offer OEM and ODM, print your brand, your design on the product based on your order quantity.
Q4: How about the payment terms?
A4: We accept bank transfer, western union, money gram, paypal, Bank of China or cash as payments.
Q5: How do you ship the package?
A5: DHL, Fedex, EMS, by air, by sea...etc.
Q6: What kinds of warranty do you offer?
A6: Our excellent after-sale service team will provide you technical support online. We offer one year warranty for our products.
Q7: How could I buy the products I need if there is no price on the website?
A7: You can send us your inquiry about the products you need. Our sales will reply you within 24 hours to help you make the order.
User Manual:
LM-TV04T 4 Channels Smart Net Media Player 4K Vide...
