Name: 70m 4x4 HDMI Audio Matrix Switch With 4 HDMI Loop Out For 4 Port Video Switch
Brand: LINK-MI
SKU: LM-MX07C
Rating: 4.9 (177 reviews)

Home > products > HDMI Matrix >

70m 4x4 HDMI Audio Matrix Switch With 4 HDMI Loop Out For 4 Port Video Switch

70m audio matrix switch

4x4 audio matrix switch

4k video switcher ODM

Place of Origin:

China

Brand Name:

LINK-MI

Model Number:

LM-MX07C

Request A Quote

70m 4x4 HDMI Audio Matrix Switch With 4 HDMI Loop Out For 4 Port Video Switch

Product Details

Model No:

LM-MX07C

Input DDC Signal:

5 Volts P-p (TTL)

Bandwidth:

18Gbit/s

Video Format Supported:

4K@60Hz,YUV4:4:4 8bit 4k@30Hz/1080P/1080i/720P/576P/480P/576i/480i

Output Video:

HDMI2.0 And HDMI 1.4 (over HDBaseT And HDMI)

Audio Format Supported:

PCM, Dolby5.1, DTS5.1 Digital Audio

Maximum Transmission Distance:

1080P 70m, 4K 40m

Dimensions:

L438 X W394 X H44 Mm

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiable

Packaging Details

White/Brown/Color Box

Delivery Time

5-7 work days

Payment Terms

T/T, Western Union, PayPal, Bank Transfer

4X1 Seamless 4K HDMI Multi Viewer With KVM 2560*1440 60Hz Output Resolution

Get Best Price

4K 4x4 HDMI Matrix HDMI 2.0b Matrix with HDCP 2.2 and DCI-P3/Rec.2020 Color Space Support

Get Best Price

4K Hdmi Matrix / Hd Hdmi Splitter Switcher with Black Silkscreen Panel and DTS Audio Format Support

Get Best Price

4x4 HDMI2.0b Matrix 3D Video 7.1 DTS Dolby Digital Metal Chassis HDMI Switch HDCP2.2

Get Best Price

+8613332950287

sales@link-mi.com

86-755-83513509

Contact Now

Product Description

70m 4x4 HDMI Matrix with 4 HDMI loop out Support 4K@60hz 4 Port Video Switch

Introduction

LINK-MI LM-MX07C is a 4X4 HDMI Matrix Extender which supports transmission up to 70m. It also comes with 4 HDMI loop out. It supports 4K@60hz, HDMI 2.0

Feature

1. Incorporate HDBaseT technology

2. 4 x HDMI input and 4 x HDBaseT output with 4 x HDMI Loop out

3. HDMI 2.0 version support 4K@60Hz YUV4:4:4, 8bit, 18G, HDR10

4. Transmit up to 70m under 1080p, 40m under 4K@60Hz

5. HDCP 2.2/1.4 compliant

6. With wide-band Bi-Direction IR routed control(38~56KHz)

7. Support 4x Analog Audio input

8. Support 4x Analog Audio and 4x SPDIF Audio extraction output

9. Support Panel Button with LCD, IR Routing, RS232, TCP/IP, PC Tool Control

10. Support POC (Receiver powered by HDBaseT Matrix)

11. Support Micro USB for FW updating

Specification

Model No.	LM-MX07C
Operating Temperature Range	-5 to +40°C(23 to +104 °F)
Storage Temperature Range	-10 to +60°C(-14 to +140 °F)
Operating Humidity Range	5 to 90 % RH (no condensation)
Input Video Signal	0.5-1.0 volts p-p
Input DDC Signal	5 volts p-p (TTL)
Bandwidth	18Gbit/s
Video Format Supported	4K@60Hz,YUV4:4:4 8bit 4k@30Hz/1080P/1080i/720P/576P/480P/576i/480i
HDCP Compliant	HDCP2.2 and HDCP1.4
Output Video	HDMI2.0 and HDMI 1.4 (over HDBaseT and HDMI)
Audio Format Supported	PCM, Dolby5.1, DTS5.1 digital audio
Maximum Transmission Distance	1080P 70m, 4K 40m
Power Consumption	68 watts (Max.)
Dimensions	L438 x W394 x H44 mm
Mass (Main Unit)	3 KG
Note: Specifications are subject to change without notice

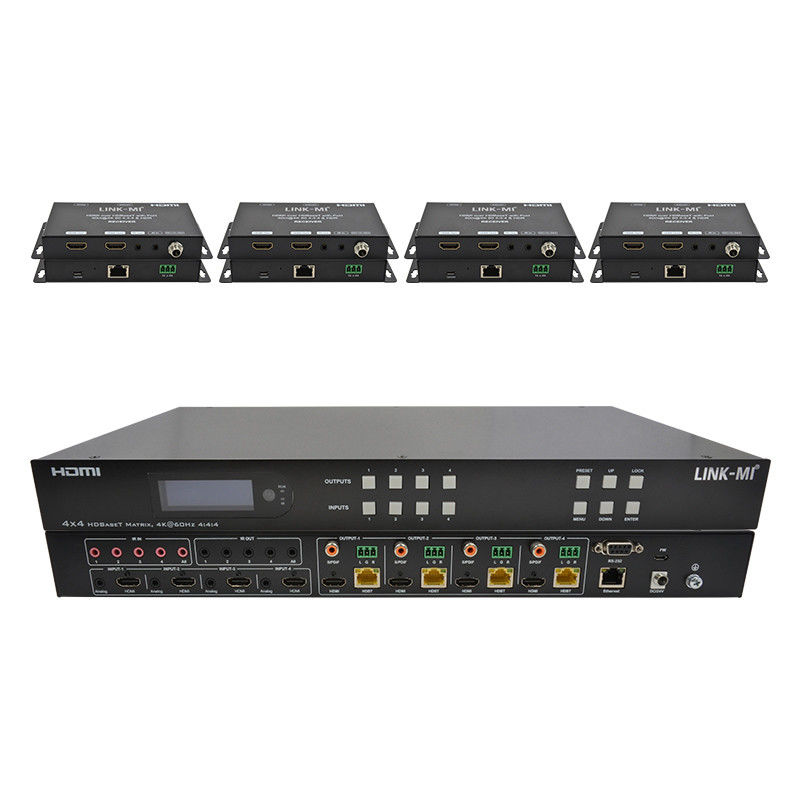

Connection Diagram

70m 4x4 HDMI Audio Matrix Switch With 4 HDMI Loop Out For 4 Port Video Switch 0

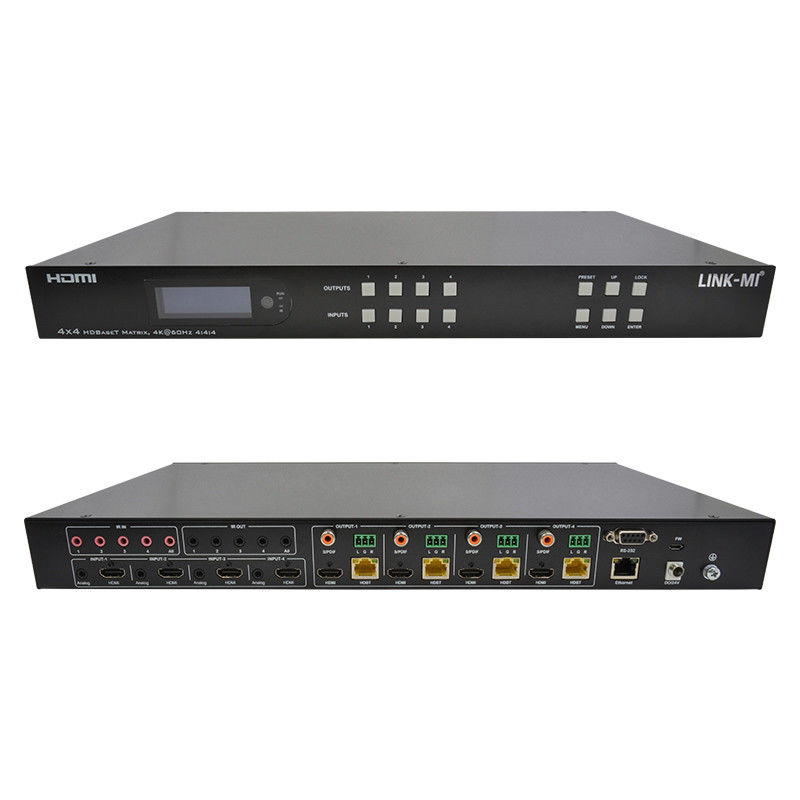

Panel Description

70m 4x4 HDMI Audio Matrix Switch With 4 HDMI Loop Out For 4 Port Video Switch 1

FAQ

Q1: Are you a factory or trading company?

A1: As a professional manufacturer, we supply HDMI related products more than 10 years in China.

Q2: Why should we choose you?

A2: We can offer products with factory price, good quality, best service and long warranty.

Q3: How about your product service?

A3: We can offer OEM and ODM, print your brand, your design on the product based on your order quantity.

Q4: How about the payment terms?

A4: We accept bank transfer, western union, money gram, paypal, Bank of China or cash as payments.

Q5: How do you ship the package?

A5: DHL, Fedex, EMS, by air, by sea...etc.

Q6: What kinds of warranty do you offer?

A6: Our excellent after-sale service team will provide you technical support online. We offer one year warranty for our products.

Q7: How could I buy the products I need if there is no price on the website?

A7: You can send us your inquiry about the products you need. Our sales will reply you within 24 hours to help you make the order.

User Manual:

LM-MX07C 4x4 HDBaseT HDMI2.0 Matrix.pdf
