2X2 HDMI Video Wall Controller Support 1X4 1X3 1X2 TV Splicing Box for 4 Screens
Introduction
LINK-MI LM-TV04M 4 channels video wall controller is a professional tv wall processor. It's used for distributing video signal to multiple TVs to make different video wall display. It's special designed for LCD TV, ultra narrow LCD screen, projector...etc.

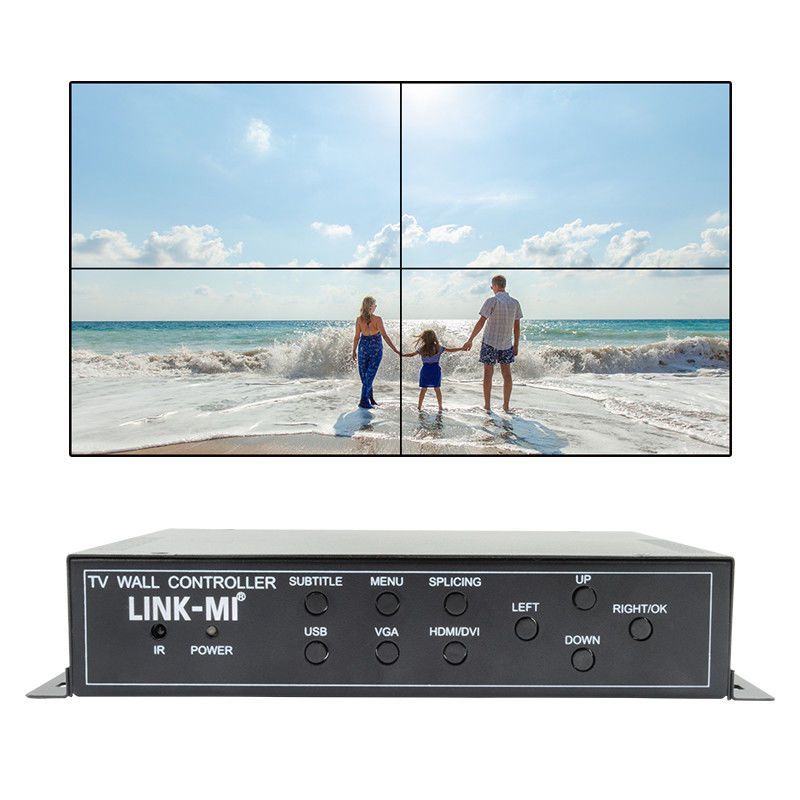

It supports HDMI, DVI, VGA, USB inputs. User can switch any one of the 4 inputs to display. It has 4 HDMI outputs to connect with 4 LCD TVs or other display units. User can customize a variety of splicing modes according to their need, such as 2x2, 1x4, 1x3, 1x2, 2x1, 3x1, 4x1...etc.
Features
1. Can be cascaded to achieve maximum 255 signal output;
2. Use the high definition processing chip, support the 1080P signal input and the output;
3. Support infrared remote control and front panel buttons control of the connector for a key shortcut control and full function control, can also transmit through the RS-232 control, a more diverse work can be expanded;
4. Suitable for 1 way VGA, 1 way DVI , 1 way USB, 1 way HDMI input, all input signals can be switched to the screen for splicing display;
5. Suitable for audio input and output, and support audio and video synchronization output;
6. Support any splicing screen to 180 degree flip;
7. Built in flying subtitle function.
Specification
| Model No. |
LINK-MI LM-TV04M |
| Input Signals |
| VGA Input |
HD15 interface, support 640x480@85Hz to 1920x1200@60Hz |
| HDMI Input |
HDMI 1.4 (HDCP1.3) with embedded audio; DVI 1.0 |
| DVI Input |
DVI-I interface (24+5), max. resolution 1920x1080@60Hz |
| USB Input |
USB2.0 interface for U disk and other storage devices; support TXT document and playback; Round robin play, pause, fast forward, program list and other functions |
| Output Signals |
| HDMI Output |
4 channels HDMI outputs, max. resolution 1920x1080@60Hz |
| Audio Output |
3.5mm audio interface, support stereo, audio and video signal switch synchronously |
| Display Functions |
| Splicing Modes |
2x2, 1x4, 1x3, 1x2, 2x1, 3x1, 4x1 |
| Other Functions |
Subtitle, zoom and cut, cascade, rotation, border blanking... |
| Others |
| Control Methods |
Remote, panel buttons, RS232 |
| Power Supply |
DC 12V 3A |
| Power Consumption |
40W |
| Size (L*W*H) |
210mm*60mm*45mm |
| Weight |
1.2kg |
Connection Diagram

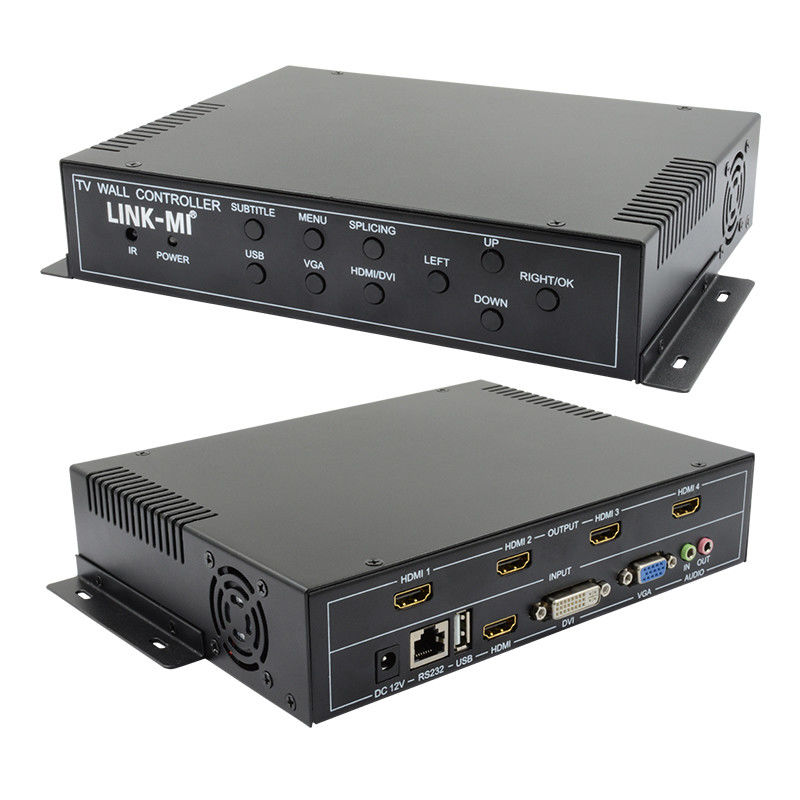

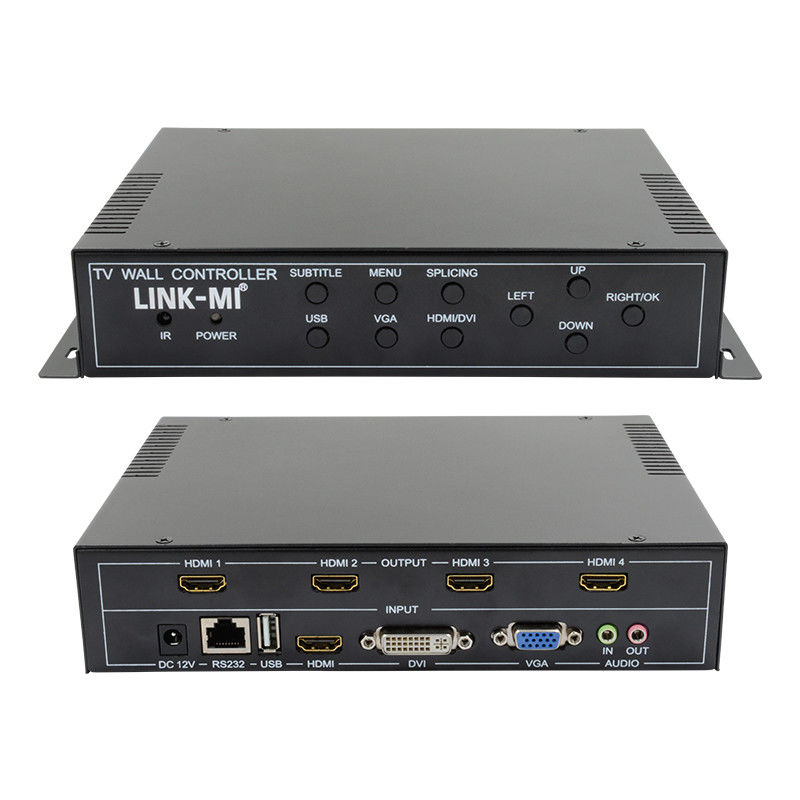

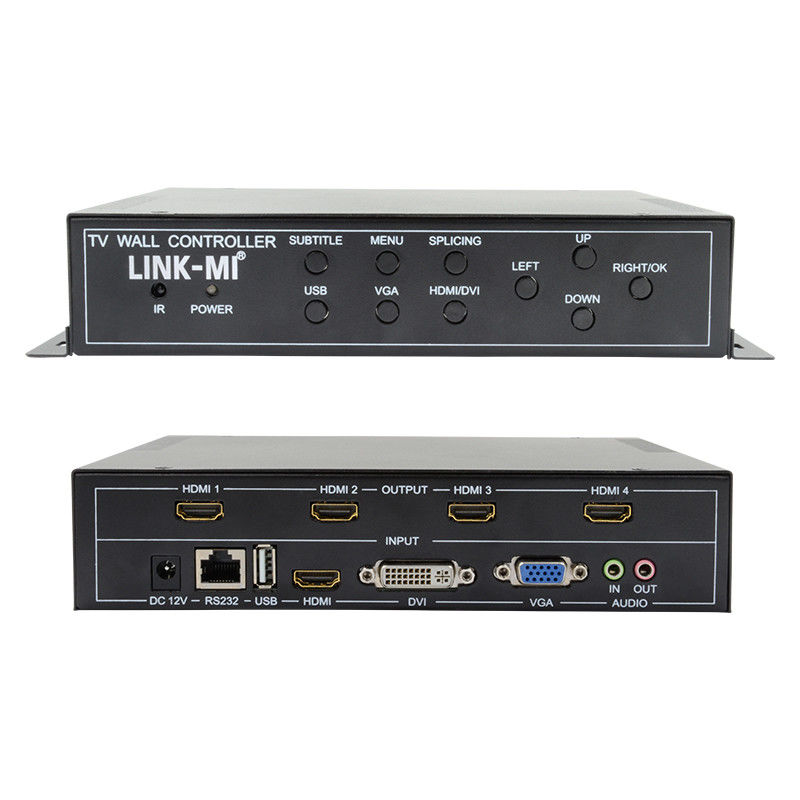

Panel Description
FAQ
Q1: Are you a factory or trading company?
A1: As a professional manufacturer, we supply HDMI related products more than 10 years in China.
Q2: Why should we choose you?
A2: We can offer products with factory price, good quality, best service and long warranty.
Q3: How about your product service?
A3: We can offer OEM and ODM, print your brand, your design on the product based on your order quantity.
Q4: How about the payment terms?
A4: We accept bank transfer, western union, money gram, paypal, Bank of China or cash as payments.
Q5: How do you ship the package?
A5: DHL, Fedex, EMS, by air, by sea...etc.
Q6: What kinds of warranty do you offer?
A6: Our excellent after-sale service team will provide you technical support online. We offer one year warranty for our products.
Q7: How could I buy the products I need if there is no price on the website?
A7: You can send us your inquiry about the products you need. Our sales will reply you within 24 hours to help you make the order.
User Manual:
LM-TV04M 2x2 Video Wall Controller (1080P).pdf
