1X4 Video Wall Controller Support 2X2 1X2 1X3 1080P 90 Degree Rotation for Portrait Display
Introduction

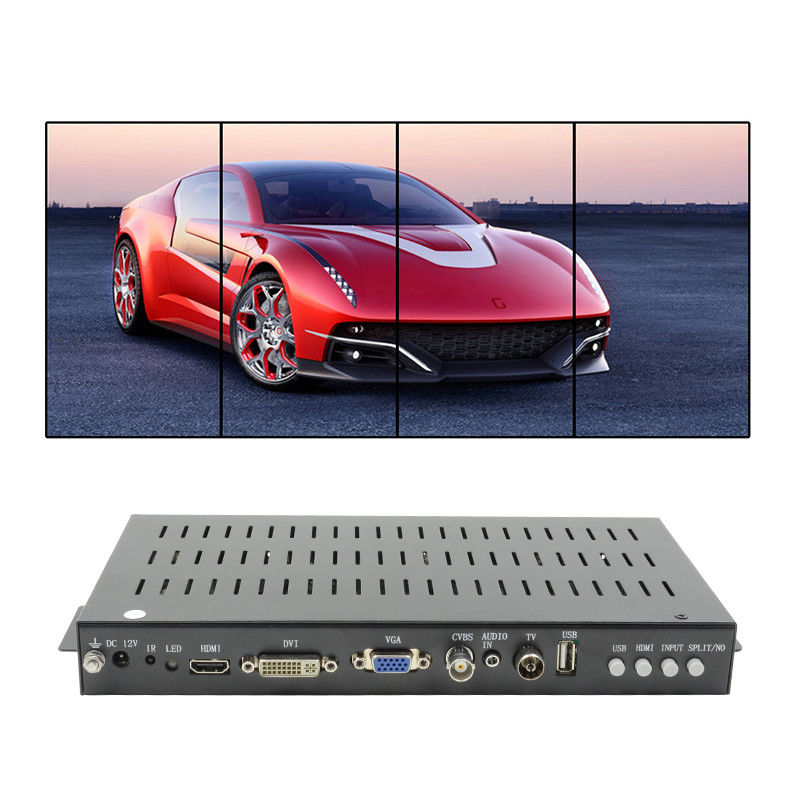

LINK-MI LM-TV04V is a Vertical 4-Channel Video Wall Controller. As a video wall controller, it can make 1 horizontal input source to create a large video wall in vertical. And it supports extendable display up to 10x10 (Need more controllers); As a splitter, it can split 1 input source to 4 display units separately.

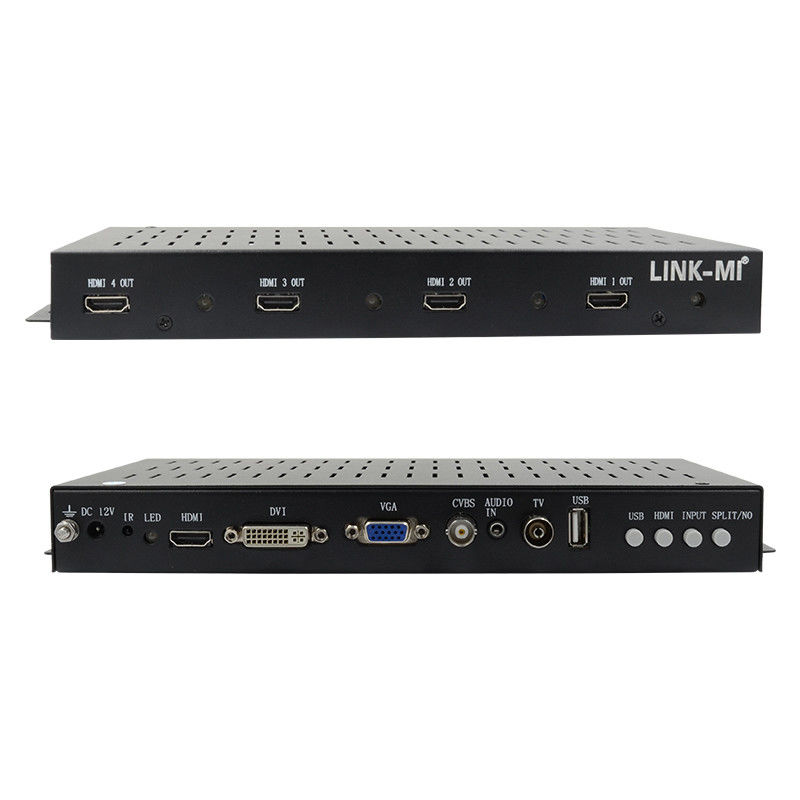

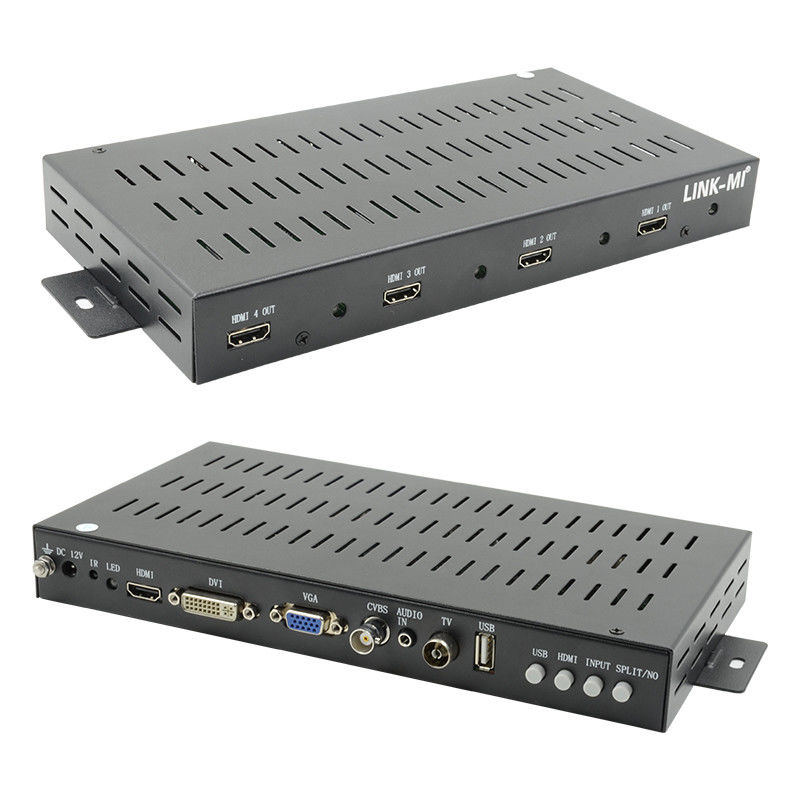

It supports HDMI/DVI/VGA/CVBS/TV/USB total 6 input ports and 4 HDMI output ports. User can control it easily via remote or panel buttons.
Features
1. Get vertical video wall perfectly from horizontal source, 1 large image display on the entire 1x4 Vertical Video Wall
2. Support multiple video wall mode like 1x4,1x3, 1x3, 2x2...etc.
3. Each output individually supports 180° rotation

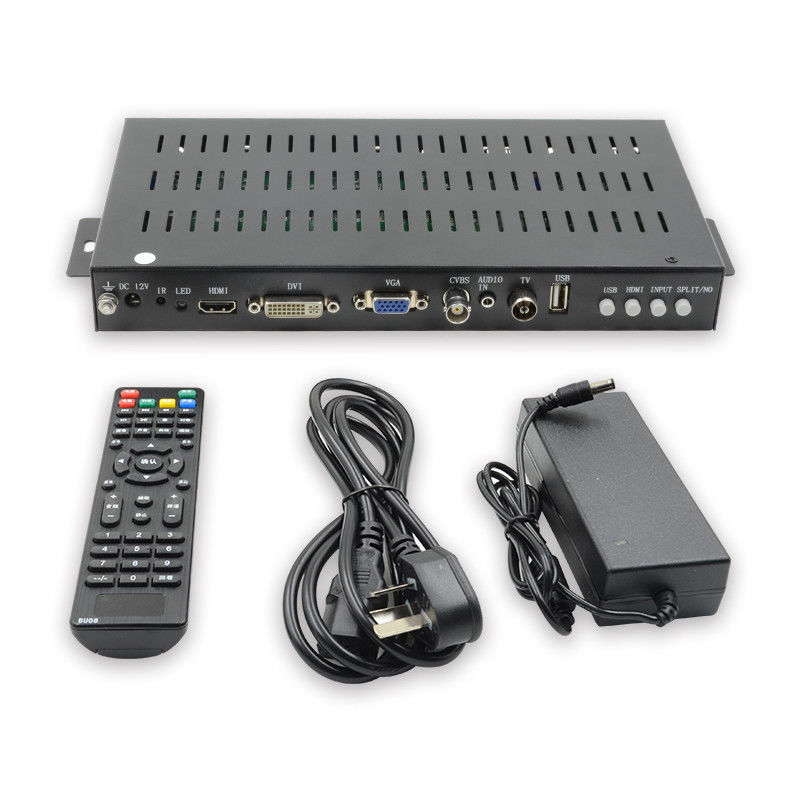

4. Multiple Control Ways, support controlled by remote and panel buttons.
5. No need computer and software control
6. Multiple Input Signal: HDMI/DVI/VGA/CVBS/TV/USB total 6 input ports and 4 HDMI output ports
7. High Resolution up to 1080P@60Hz
8. Extendable Display by 3x2, 3x3, 4x4...max 10x10. (needs more controllers)
Specification
| Model No. |
LINK-MI LM-TV04V |
| Inputs |
HDMI Input |
480p, 576p, 720p, 1080i, 1080p |
| DVI Input |
480p, 576p, 720p, 1080i, 1080p |
| VGA Input |
|
| CVBS/AV Input |
PAL/NTSC/SECAM; CVBS signal (1.0Vp-p +/-5%) |
| TV Input |
Analog TV |
| USB Input |
Play movie, read text, photo from USB device |
| Outputs |
HDMI Output |
4 channels HDMI output |
| Functions |
Control Ways |
Panel buttons, Remote |
| Display Modes |
1x4, 1x3, 1x2, 2x2...etc. |
| Split/No |
Split function (4 images display separately)
Splicing function (1 large image display on the entire video wall)
|
| Mechanical |
Power Supply |
DC 12V |
| Power Consumption |
≤1W |
| Housing |
Material |
Metal |
| Color |
Black |
| Dimension |
258mm(L)134xmm(W)x34mm(H) |
| Weight |
g |
| Note: Specifications are subject to change without notice |
Connection Diagram
Video Wall Modes
Panel Description
FAQ
Q1: Are you a factory or trading company?
A1: As a professional manufacturer, we supply HDMI related products more than 10 years in China.
Q2: Why should we choose you?
A2: We can offer products with factory price, good quality, best service and long warranty.
Q3: How about your product service?
A3: We can offer OEM and ODM, print your brand, your design on the product based on your order quantity.
Q4: How about the payment terms?
A4: We accept bank transfer, western union, money gram, paypal, Bank of China or cash as payments.
Q5: How do you ship the package?
A5: DHL, Fedex, EMS, by air, by sea...etc.
Q6: What kinds of warranty do you offer?
A6: Our excellent after-sale service team will provide you technical support online. We offer one year warranty for our products.
Q7: How could I buy the products I need if there is no price on the website?
A7: You can send us your inquiry about the products you need. Our sales will reply you within 24 hours to help you make the order.
User Manual:
LM-TV04V Vertical 1x4 Video Wall Controller (NEW)....
