Phone Mirror Cast Controller Video Rotator Support 90 180 270 Degree Rotation
Introduction
LINK-MI LM-R90U Mobile phone projection screen rotator is a high-performance image multiplier rotation switch, the internal use of high-speed image processing chip. Its main function is to enable Android, Iphone mobile phone IPAD in vertical pendulum to display images synchronously to vertical display LCD TV or projector and other display devices.
The product can rotate the input USB signals of HDMI, DP and mobile phone at 90, 180 and 270 degrees, and take vertical screen shots according to the Iphone, Android and IPAD, so that the images can be displayed to the LCD screen and projector which are placed vertically. The product is designed with infrared remote control and chassis key control, and the user is more simple and intuitive when operating.
Features
1, HD image can be rotated in 90, 180, 270 degrees;
2, Image cutting, make the image display on vertical screen without distortion;
3, Can be supported 2 HDMI,1 DP,1 USB (customized) signals input;
4, Can be supported 2 HDMI output display 2 completely same image ;
5, Input resolution up to 3840x2160, output resolution is fix on 1920x1080@60HZ.
6, 4 signals can be switched to display screen;
7, It is used in phones,iPad and shows display on vertical screen.
Specification
| Name |
Specification |
| Input signal |
| D P x 1 |
DisplayPort 1.1 |
| HDMI x 2 |
HDMI1.4 |
| USB |
connected to phone via normal data cable(Customized) |
| Output signal |
| HDMI x 1 |
hdmi1.3,1920x1080p/60hz, optional increase 1 HDMI output; |
| Audio x 1 |
3.5mm headphone interface, supports left and right channel stereo |
| The other |
|
| Control model |
infrared remote, chassis button; |
| Power supply |
DC-12V |
| Power consumption |
10W |
| Package size |
236mm(L)x140mm(D)x30mm(H) |
| Weight |
0.85Kg |
| Note: Specifications are subject to change without notice. |

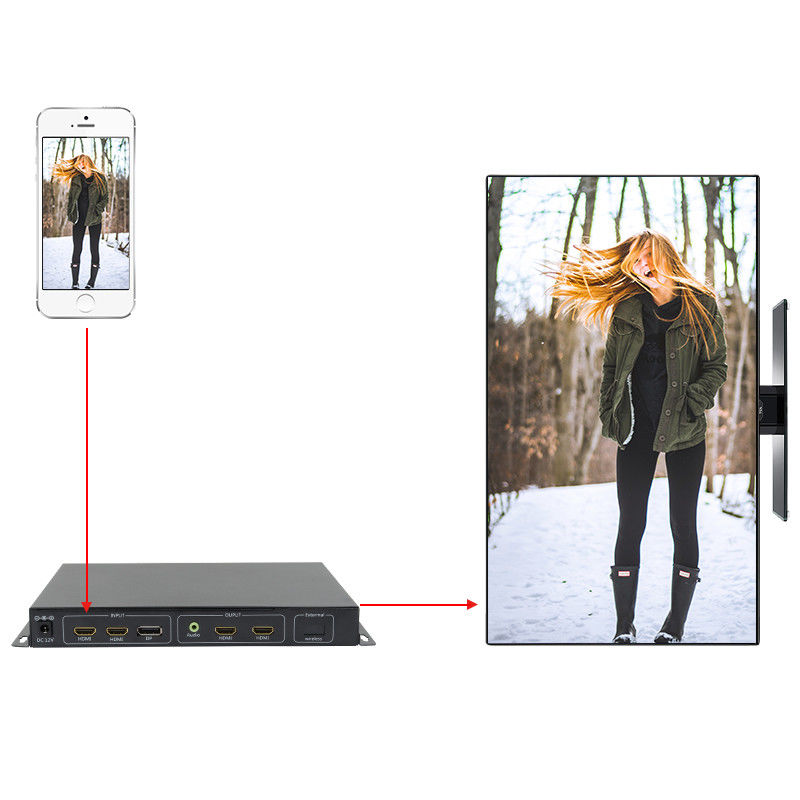

Connection Diagram

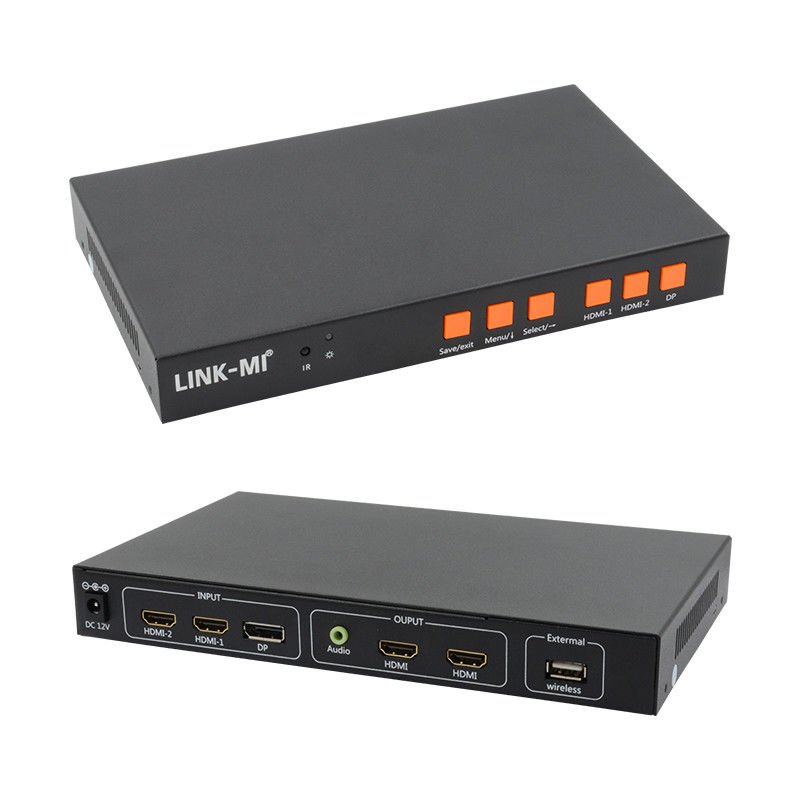

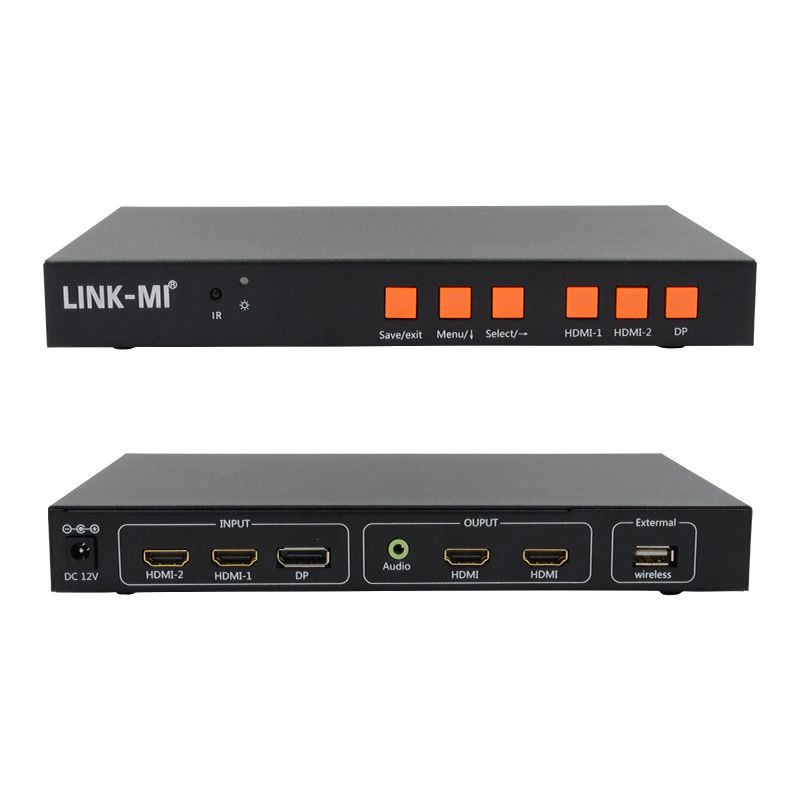

Panel Description
FAQ
Q1: Are you a factory or trading company?
A1: As a professional manufacturer, we supply HDMI related products more than 10 years in China.
Q2: Why should we choose you?
A2: We can offer products with factory price, good quality, best service and long warranty.
Q3: How about your product service?
A3: We can offer OEM and ODM, print your brand, your design on the product based on your order quantity.
Q4: How about the payment terms?
A4: We accept bank transfer, western union, money gram, paypal, Bank of China or cash as payments.
Q5: How do you ship the package?
A5: DHL, Fedex, EMS, by air, by sea...etc.
Q6: What kinds of warranty do you offer?
A6: Our excellent after-sale service team will provide you technical support online. We offer one year warranty for our products.
Q7: How could I buy the products I need if there is no price on the website?
A7: You can send us your inquiry about the products you need. Our sales will reply you within 24 hours to help you make the order.
User Manual:
LM-R90U Mobile phone screen device.pdf
