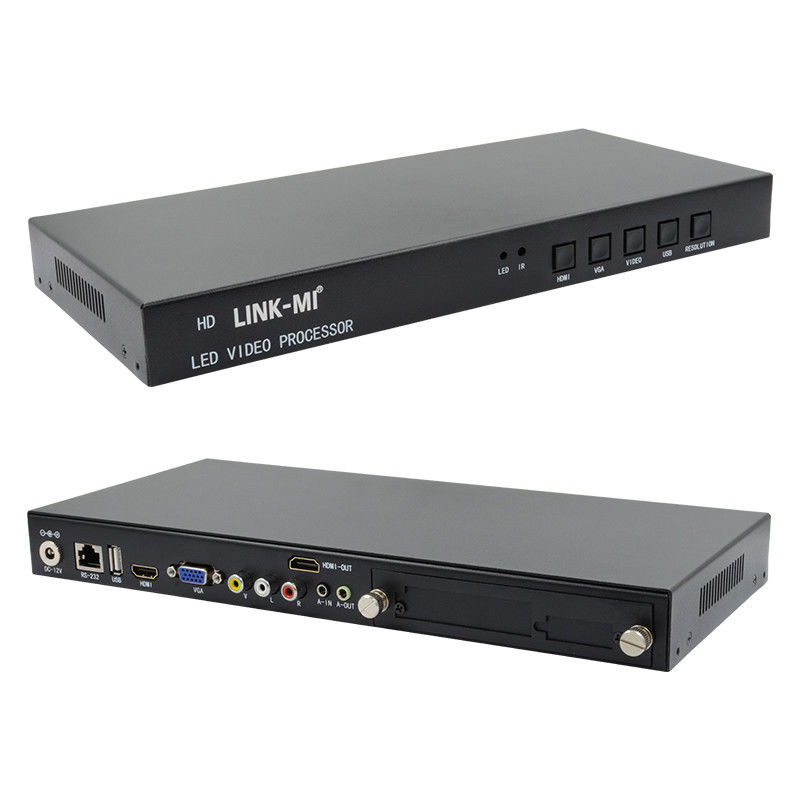

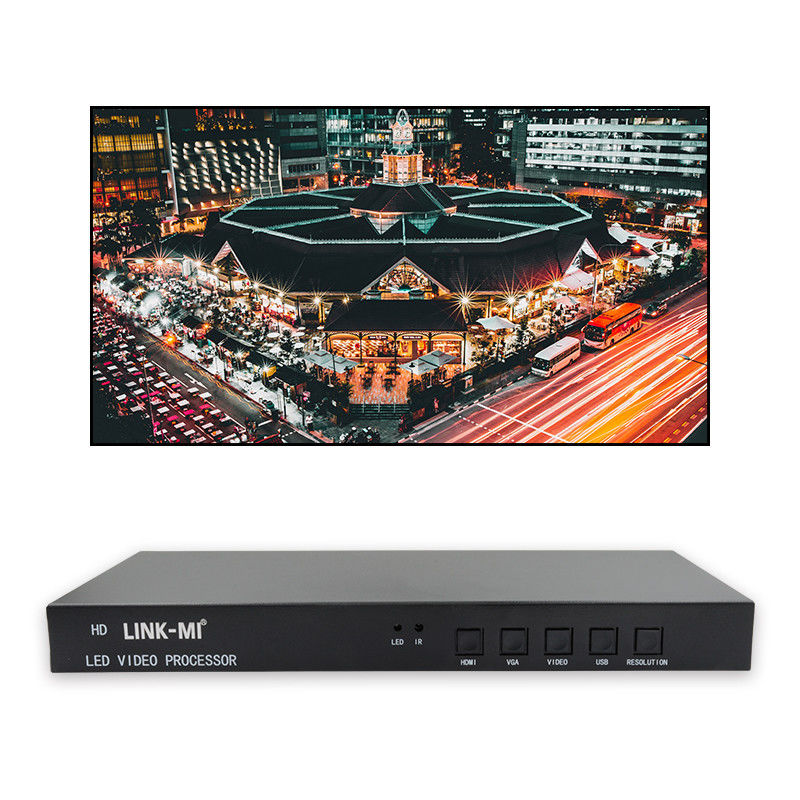

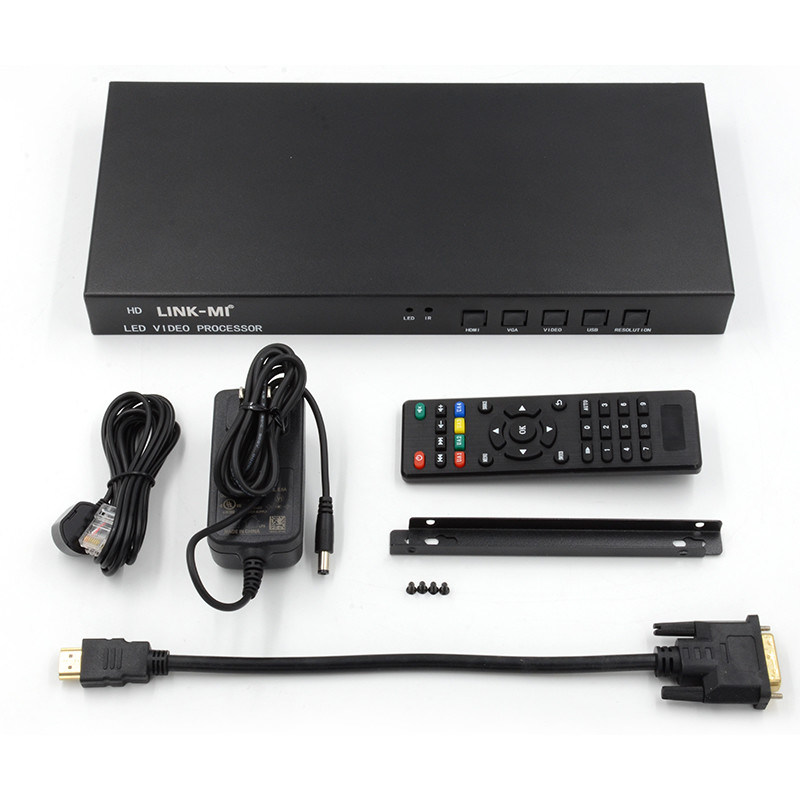

4 in 1 out LED Video Processor HDMI Wall Controller
Introduction
LINK-MI LM-VC41 is a simple LED full-color video processor designed with advanced image processing chips. Compared with the conventional LED full-color video processor in the market, LM-VC41is easy to operate, and the image of LED Screen can be set by one remote control, which can achieve the image display effect of LED full-color full screen;
LM-VC41 supports the highest resolution up to 1920x1080@60Hz, which meets most of the showrooms' product display; It supports 1 VGA 1 HDMI, 1 USB (USB cannot make full screen to LED), 1 composite video total 4 signal inputs, with 3.5mm independent audio output.
Features
1. Support Remote to make quick setting for the device, simple, convenient and easy to use;
2. 1 composite video, 1 VGA, 1 HDMI, 1 USB total 4 signal inputs;
3. 1 HDMI output connect with LED sending card;
4. Support Panel Button, IR Remote, RS-232 serial port control;
5. Small Chassis, greatly reduce placing space for many showrooms.
Specification
| Video Input |
| Interface |
Quantity |
Specification |
| USB |
1 |
Standard USB 2.0,support U-disk, with embedded audio;
Support Video/Photo/MP3/TXT format;
Video support coding format:
USB Decoding Video Format:Mpeg1,2,4
(1920*1080@30P and below);
Divx, Xvid (1920*1080@30P and below);
RM,RMVB (1920*1080@25P and below);
H.264(1920*1080@30P and below);
VC-1 (1920*1080@30P and below);
MJPEG (640*480@30P).
|
| VGA |
1 |
VESA Standard, PC to 1920x1200, HD to 1080p |
| HDMI |
1 |
480i/p,576i/p,720p,1080i/p, Color Deep support 8,10,12 bit |
| Composite Video |
1 |
Automatic recognize NTSC, PAL or SECAM standard,binding 1 channel 3.5 audio interface； |
| Video Output |
| HDMI (compatible with DVI) |
1 |
1024x768@60Hz, 1280x720@60Hz, 1920x1200@60Hz |
| General Specification |
| Power |
DC 12V 3A |
| Power Consumption |
20W |
| Weight |
1.4 KG |
| Chassis Size |
31.7cm(L) x14.4cm(W)x3.1cm(H) |
| Note: Technical parameters are subject to change without prior notice |
Connection Diagram

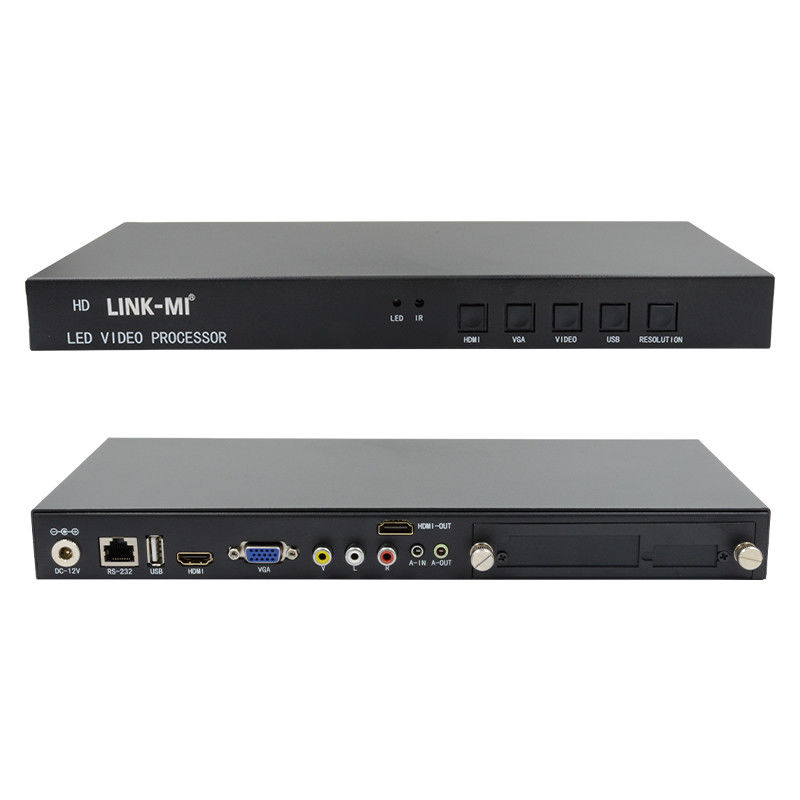

Panel Description
FAQ
