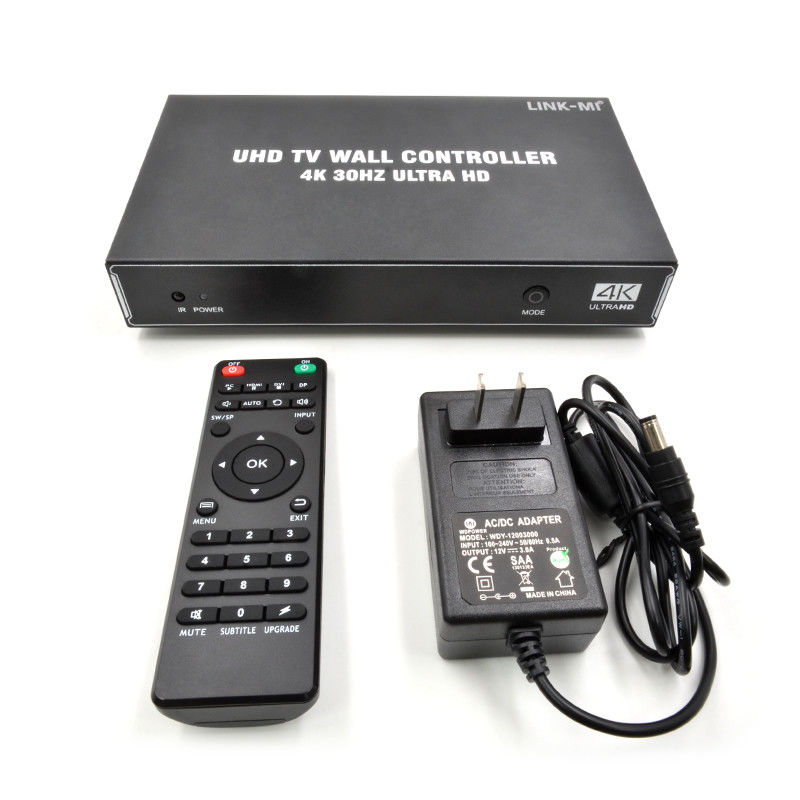

2x2 Video Wall Controller Support 4K@30Hz 1X4 1X3 1X2 4 Channels HDMI TV Wall Controller
Introduction
LINK-MI LM-TV04Q This product is a special LCD TV, ultra-narrow LCD screen, projector HD screen splicing processor, a single unit supports 4 HDMI signal output, connected to LCD TV or other display devices, can be customized according to user needs of various splicing mode.
Features
1. Support cascade, the maximum 255 signal output.
2. HD processing chip, up to support 4K@30Hz HDMI signal input.
3. Support infrared remote control, the user can remote control the splicer for a key quick control and full function Simple and convenient, the remote control adopts ultra-sensitive design, easy to use.

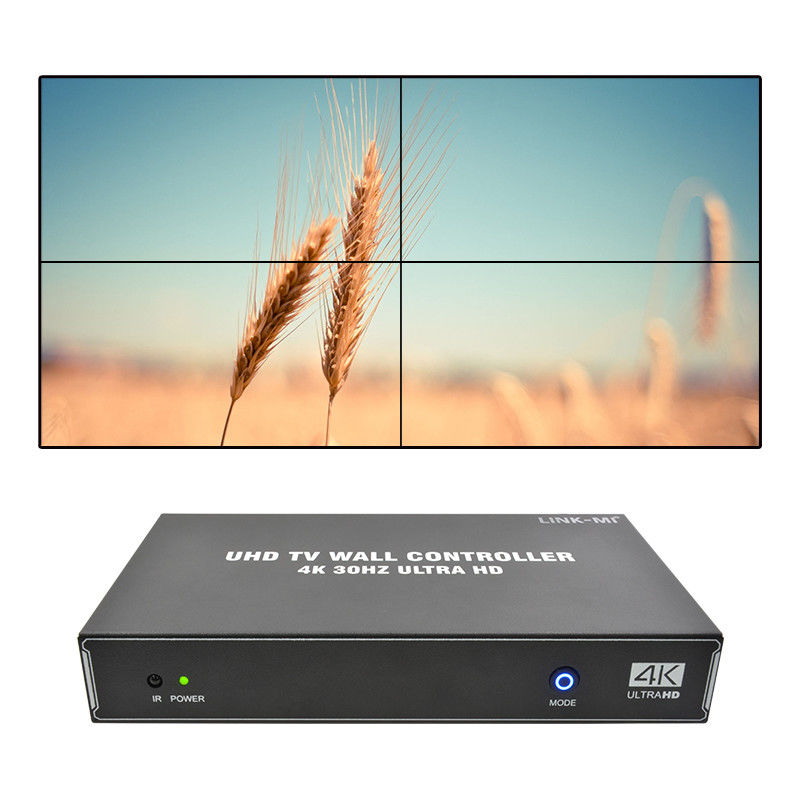

4. Support 1 HDMI input signal to the large screen for splicing display.
5. Support audio independent output, support audio and video synchronous output.
6. Support all models of splicing screen and 180 degree image rotation.
7. Support border fading technology, in the case of not using the border fading, the image will appear visually stretched away; after the border fading processing image without distortion, stretching, visual more natural and realistic.

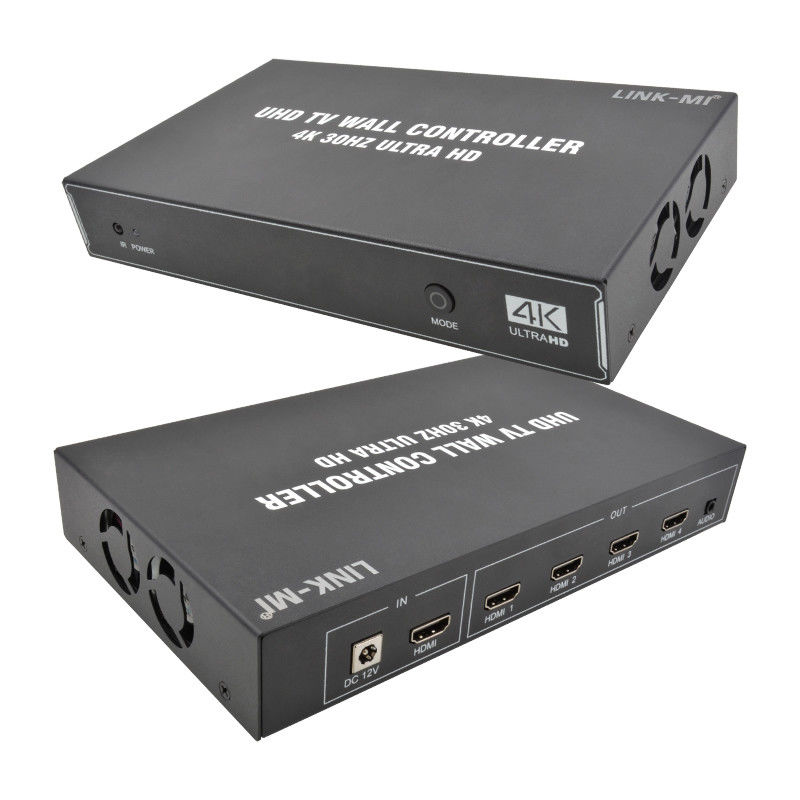

8. Intelligent fan cooling, product performance is more stable and reliable.
Specification
| Model No. |
LINK-MI LM-TV04Q |
| Input Signals |
|
HDMI signal
|
HDMI1.4 HDMI with audio resolution support 640x480 to 3840x2160@30hz；
|
|
Output Signals
|
| HDMI 1 |
Support 2x2, 1x4, 4x1...etc video wall mode, max resolution upto 1920x1200@60hz |
| HDMI 2 |
Support 2x2, 1x4, 4x1...etc video wall mode, max resolution upto 1920x1200@60hz |
| HDMI 3 |
Support 2x2, 1x4, 4x1...etc video wall mode, max resolution upto 1920x1200@60hz |
| HDMI 4 |
Support 2x2, 1x4, 4x1...etc video wall mode, max resolution upto 1920x1200@60hz |
|
Audio Output
|
3.5 audio interface, supporting left and right channel stereo, simultaneous switching of audio and video signals
|
| Other |
|
Control
|
IR remote
|
|
Power
|
DC 12V - 2A
|
|
Video wall mode
|
Simple type 4 HDMI out video wall
|
|
Power consumption
|
15W
|
| Carton box size |
210mm(L)*160mm(W)*45mm(H)
|
| Carton box weight |
1.2kg
|
Connection Diagram

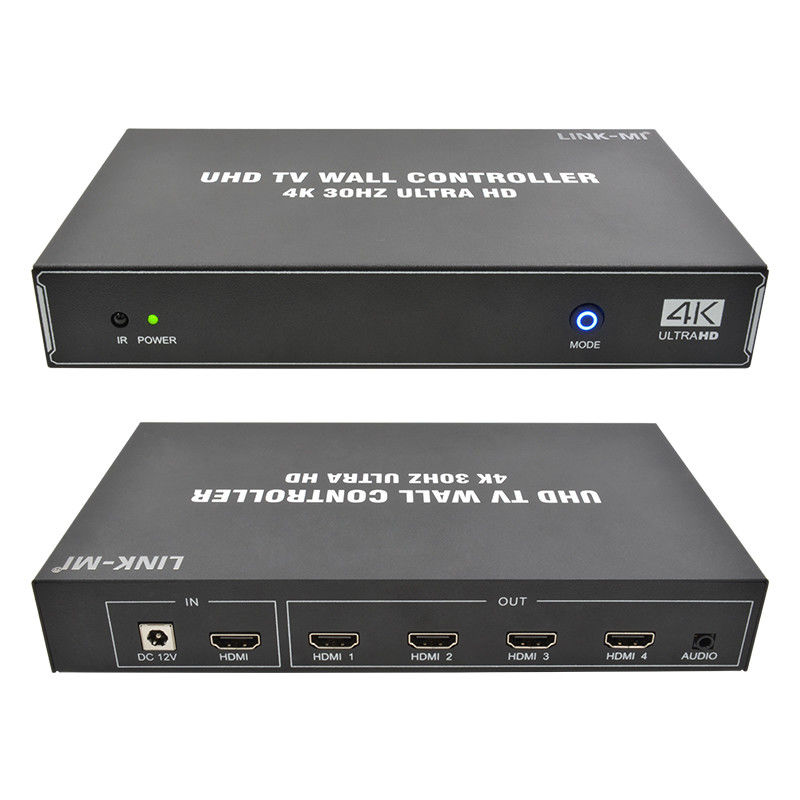

Panel Description
FAQ
Q1: Are you a factory or trading company?
A1: As a professional manufacturer, we supply HDMI related products more than 10 years in China.
Q2: Why should we choose you?
A2: We can offer products with factory price, good quality, best service and long warranty.
Q3: How about your product service?
A3: We can offer OEM and ODM, print your brand, your design on the product based on your order quantity.
Q4: How about the payment terms?
A4: We accept bank transfer, western union, money gram, paypal, Bank of China or cash as payments.
Q5: How do you ship the package?
A5: DHL, Fedex, EMS, by air, by sea...etc.
Q6: What kinds of warranty do you offer?
A6: Our excellent after-sale service team will provide you technical support online. We offer one year warranty for our products.
Q7: How could I buy the products I need if there is no price on the website?
A7: You can send us your inquiry about the products you need. Our sales will reply you within 24 hours to help you make the order.
