Name: DVI Fiber Optic HDMI Extender 2KM LC KVM DVI Extender Over Fiber
Brand: LINK-MI
SKU: LM-THF122DKM
Rating: 4.9 (113 reviews)

Home > products > HDMI Extender >

DVI Fiber Optic HDMI Extender 2KM LC KVM DVI Extender Over Fiber

HDMI Extender 2KM

HDMI Extender LC

KVM DVI Fiber Optic Extender

Place of Origin:

China

Brand Name:

LINK-MI

Model Number:

LM-THF122DKM

Request A Quote

DVI Fiber Optic HDMI Extender 2KM LC KVM DVI Extender Over Fiber

Product Details

Model No.:

LM-THF122DKM

Standards:

DVI 1.0;

Maximum Data Rate:

10Gbps

Resolution Range:

Up To 1920X1200@60Hz

Connector:

DVI-D

Interface:

LC Connector

Signal Type:

Stereo

Fiber Type:

Single-mode A Pair Fiber

Wavelength:

Single-mode 1310nm

Transmission Distance:

Standard 2km

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiable

Packaging Details

White/Brown/Color Box

Delivery Time

5-7 work days

Payment Terms

T/T, Western Union, PayPal, Bank Transfer

AC 100-240V 50/60Hz Input USB 3.0 Extender 100m Speed and Stable Connection

Get Best Price

HDMI2.0 1x8 Splitter Extender Support 4K 60M POC

Get Best Price

H.265/H.264 HD HDMI Encoder for IP TV High Definition LM-HE02

Get Best Price

1xlooping AHD Output AHD To HDMI Converter Recommended Maximum Distance 500meters

Get Best Price

+8613332950287

sales@link-mi.com

86-755-83513509

Contact Now

Product Description

DVI Fiber Optic Extender 2KM LC KVM DVI Extender over Fiber

Introduction

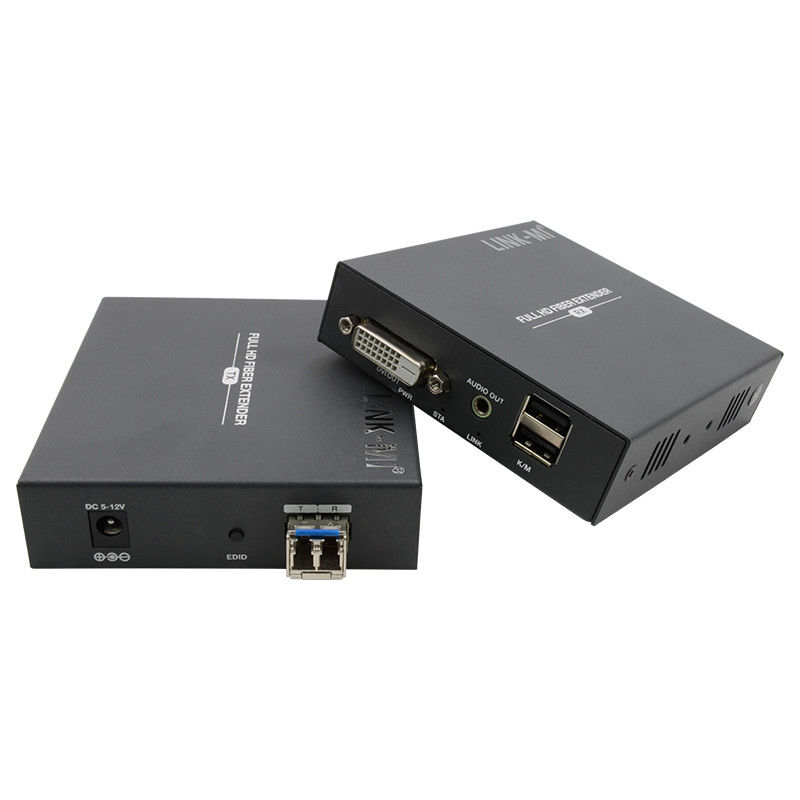

LINK-MI LM-THF122DKM Fiber optic extender provides extension of DVI signals long distances over one fiber optic cable, it supports high resolution up to 1920*1200, EDID copy, KVM signal and external audio transmission function. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.

Feature

1. Transmits DVI video signals up to 2km over a pair fiber optic cable;
2. Support video resolution up to 1920*1200P@60Hz;
3. Support EDID copy function, can match many kind display device;
4. Support remote control switch ON/OFF;
5. Support USB keyboard and mouse signal transmission;
6. Support external stereo audio unidirectional transmission;
7. Compliance with DVI 1.0.
8. High compatibility, can auto-match source and display device;
9. Built-in automatic adjustment system, make the image smooth, clear and stable;
10. Built-in ESD protection system;
11. Simple to install, plug and play

Specification

Model No.	LM-THF122DKM
Standards	DVI 1.0;
Maximum pixel clock	165MHz
Maximum data rate	10Gbps
Resolution range	Up to 1920X1200@60Hz
Connector	DVI-D
Impedance	100Ω
Interface	3.5mm earphone seat
Signal type	Stereo
Interface	LC connector
Fiber type	Single-mode a pair fiber
Wavelength	Single-mode 1310nm
Interface bandwidth	10Gbps
Transmission distance	standard 2km
Power supply	The power adapter: DC 12V/1A
Power dissipation	MAX 6W
Temperature	Operating: -5℃ ~+70℃
Humidity	Operating: 5%~90%
Dimension	12012030mm
The warranty	1 year free warranty
Note: Specifications are subject to change without notice.

Connection Diagram
DVI Fiber Optic HDMI Extender 2KM LC KVM DVI Extender Over Fiber 0

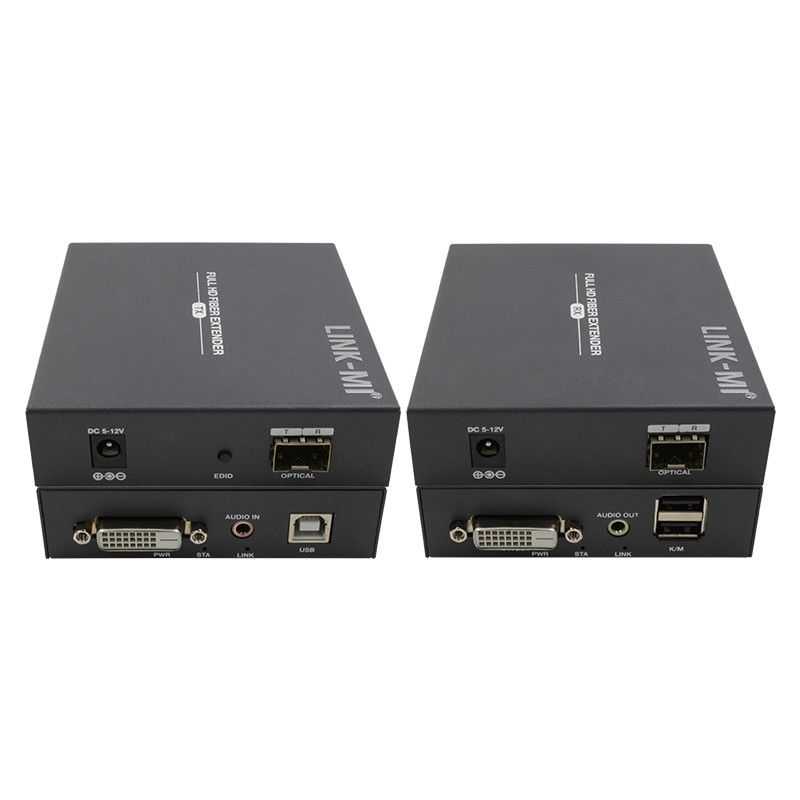

Panel Description

DVI Fiber Optic HDMI Extender 2KM LC KVM DVI Extender Over Fiber 1

FAQ

Q1: Are you a factory or trading company?

A1: As a professional manufacturer, we supply HDMI related products more than 10 years in China.

Q2: Why should we choose you?

A2: We can offer products with factory price, good quality, best service and long warranty.

Q3: How about your product service?

A3: We can offer OEM and ODM, print your brand, your design on the product based on your order quantity.

Q4: How about the payment terms?

A4: We accept bank transfer, western union, money gram, paypal, Bank of China or cash as payments.

Q5: How do you ship the package?

A5: DHL, Fedex, EMS, by air, by sea...etc.

Q6: What kinds of warranty do you offer?

A6: Our excellent after-sale service team will provide you technical support online. We offer one year warranty for our products.

Q7: How could I buy the products I need if there is no price on the website?

A7: You can send us your inquiry about the products you need. Our sales will reply you within 24 hours to help you make the order.

User Manual:

LM-THF122DKM DVI Fiber Optic Extender.pdf
